Home / National Drivetrain / Replacement Parts
4.56 RING AND PINION GEARS & INSTALL KIT PACKAGE - DANA 30 TJ FRONT / D35 REAR in Saudi Arabia

4.56 RING AND PINION GEARS & INSTALL KIT PACKAGE - DANA 30 TJ FRONT / D35 REAR

SAR 1,799
Weight
15.9 kg
– 1 +

Special Features

  • Ring and Pinion (Front) - Gear Ratio: 4.56 | Ring Gear: 41 Teeth, 7.125" OD, 8620 Steel, 10 Bolt | Pinion: 9 Teeth, 1.376" Shaft Diameter, 26 Spline | Carrier Break: 3.73 & Up | Standard Rotation | Fits Dana 30 TJ
  • Gear Install Kit (Front) - Fits Dana 30 Standard (Low Pinion); Front install kit for 1997–2006 Jeep TJ; includes brush, cover gasket/RTV, crush sleeve or preload shims, marking compound, pinion nut, pinion seal, ring gear bolts, pinion and carrier shims, thread locking compound.
  • Ring and Pinion (Rear) - Gear Ratio: 4.56 | Differential Model: Dana 35 | Carrier Break: 3.54 & Up | Ring Gear Teeth: 41 | Pinion Teeth: 9 | Spline Count: 26 | Pinion Shaft Dia.: 1.376" | Ring Gear OD: 7.5" | Material: 8620 Steel | Ring Gear Bolts: 8 | Cover Bolts: 10 | Rotation: Standard
  • Gear Install Kit (Rear) - Dana 35 Standard Differentials (1980–2001); Rear; Includes Brush, Cover Gasket/RTV, Crush Sleeve/Preload Shim Pack, Marking Compound, Pinion Nut, Pinion Seal, Ring Gear Bolts, Shims (Pinion & Carrier), Thread Locking Compound
  • Warranty Period: 1 Year or 50,000 Miles

Description

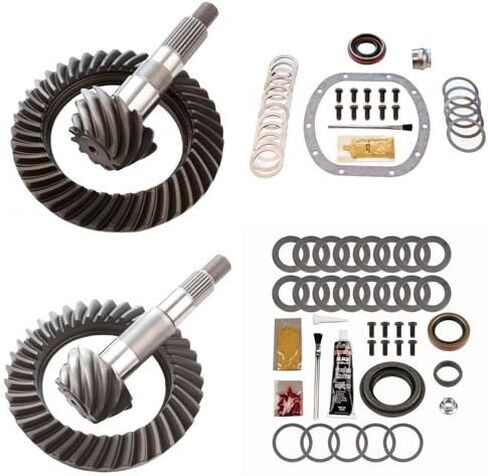

4.56 RING AND PINION GEARS & INSTALL KIT PACKAGE

4.56 RING AND PINION GEARS & INSTALL KIT PACKAGE - COMPATIBLE WITH JEEP WRANGLER TJ (and various years of XJ Cherokee and ZJ/WJ Grand Cherokee - check fitment guide) - Includes everything required to replace your front and rear ring and pinion - Kit includes: front and rear matched ring and pinion gear sets, pinion seals, pinion nuts, ring gear bolts, pattern checking compound & brushes, thread locking compound, cover seal and shims (does not include bearings or races)

*** some ratio changes may require different offset differential cases which are sold separately (call or message us with your current gear ratio if you need help checking this) - COMPATIBLE WITH DANA 30 TJ STYLE FRONT & DANA 35 MODEL REAR

D30-456TJ D35-456 D30IKTJ D35IKJ
