Adjusters
Regulator (IVR) feature in the EMCP 4 controls.
Over-excitation protection limit can be adjusted via a potentiometer (IEXC.)
Green status LED indicating unit is powered on
Red status LED indicating excitation current limiting
When used with EMCP 4.3/4.4 and IVR-compatible EMCP 4.1/4.2 controllers, the Integrated Voltage Regulator system
Automatic Voltage Regulation (Automatic Voltage Regulator)
Programmable stability settings
Soft start control with an adjustable time setting in
Automatic Voltage Regulator control mode
Dual Slope Under Frequency (Volts / Hz) regulation
Three-phase or single-phase generator voltage (RMS) sensing/regulation in Automatic Voltage Regulator mode
EMCP 4.3/4.4 and IVR-compatible EMCP 4.2 controllers also offer:
Power Factor Regulation (PF)
Generator paralleling with reactive droop compensation
Line drop compensation
ELECTRICAL
Generator Excitation Types Self Excitation / Internal Excitation / Permanent Magnet (PMG)
Max. Continuous Field Current Output 6 Amps
Max. Forcing Field Current Output 10 Amps
Max. AC Voltage Input (X1:X2, Z1:Z2) 180 Vrms
ENVIRONMENTAL
Operating Temperature Range 40 °C (40 °F) to +70 °C (+158 °F)
Storage Temperature Range 40 °C (40 °F) to +85 °C (+185 °F)
Relative Humidity Tolerance 95% non-condensing humidity
Salt Spray 5% salt (NaCl) solution for 120 hrs
Vibration 4.5 G-rms, 24-2000 Hz in 3 orthogonal planes
Electromagnetic Compatibility RF Immunity (Radiated & Conducted
RF Emissions Radiated & Conducted
Electrical Transients
Weight 770 g 30 g
==========
Hign-concerned Chemical : None

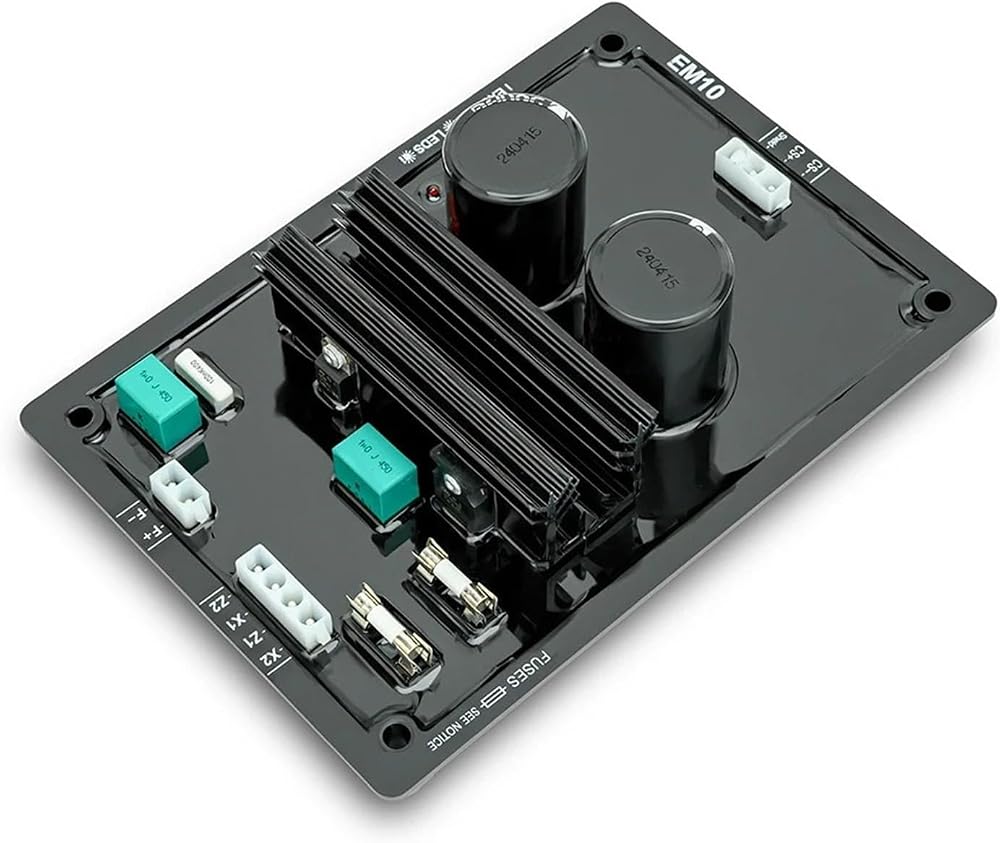

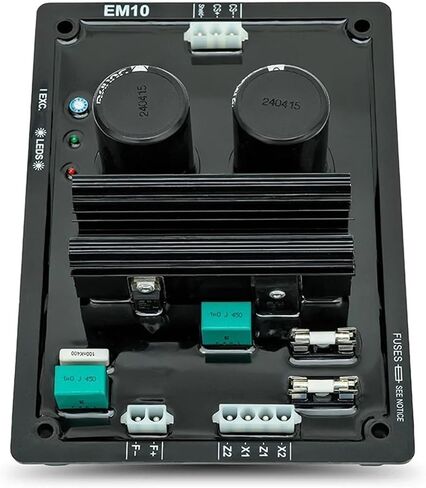

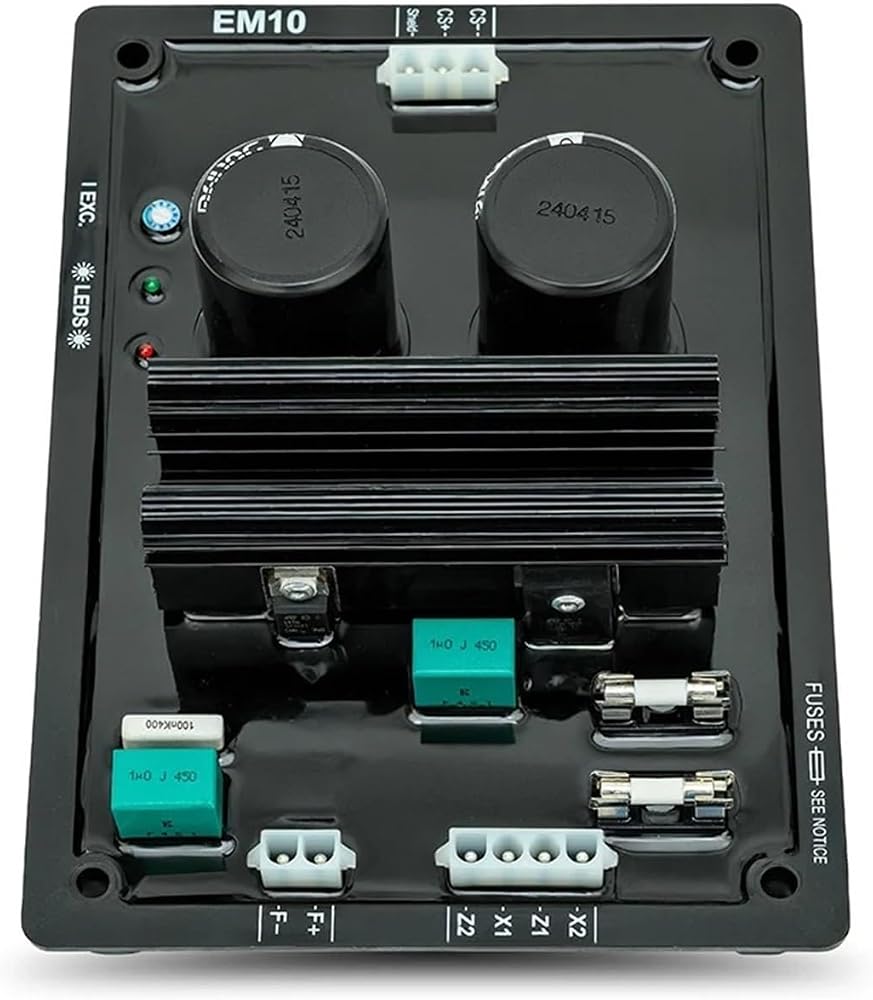

Model Number : EM10-A
