Product Description

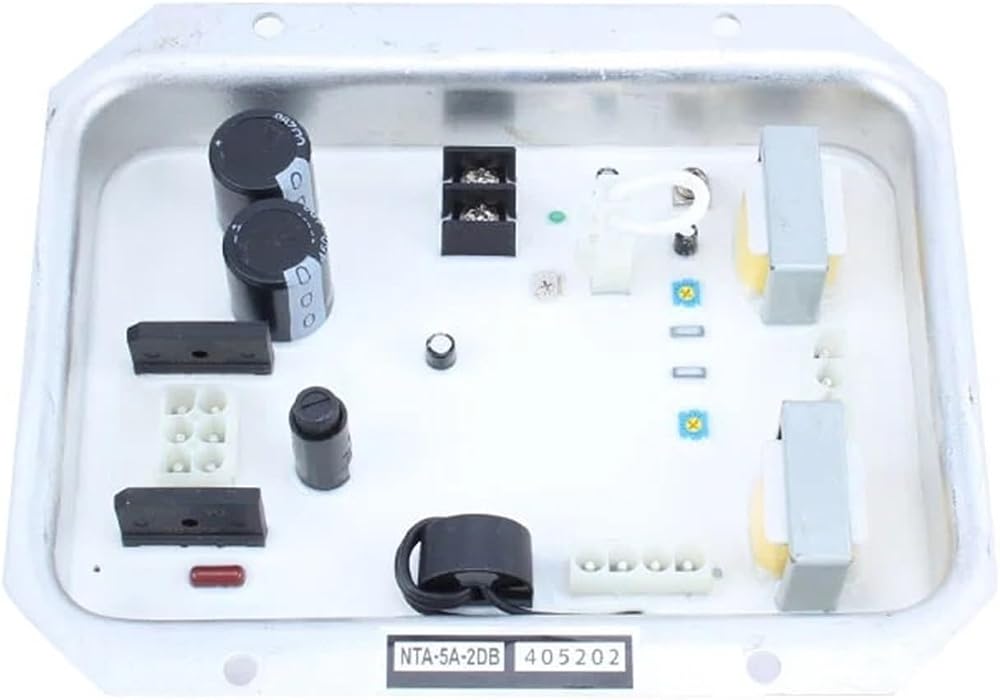

1.The NTA-5A-2DB automatic voltage regulator is a compatible replacement for generator Automatic Voltage Regulator.
2.By using proficient semiconductors in the power circuit, a positive voltage accumulated from the residual level is ensured.
3.In addition to adjusting the generator voltage, the Automatic Voltage Regulator circuit provides down speed and sensing loss protection to make sure the safety and reliable control of the generator.
4.NTA-5A-2DB applies the half-wave phase-controlled thyristor type automatic voltage regulator for generator, and forms part of the excitation system of the brushless generator.
5.The product is connected to the main stator winding and the excitation excitation winding to provide closedloop control output voltage, the load is specified as +/- 1.5%.
Technique Specification
Supporting Application Models: 45ESI 150SPM 150ESK
Maximum Output Voltage: 120V/5ADC/10S.
Voltage Adjustment Range 15%
Sensing Input Voltage: 55-200V AC
Voltage Input 400VAC, 50Hz/60Hz UFRO Slop 17% down to 30Hz
Frequency: 50/60HZ
==========
Hign-concerned Chemical : None
Model Number : NTA-5A-2DB
