Adjusters
3 Phase PMG Power Input
For Use In Parallel Operation
Adjustable EXC TRIP, DIP, TRIM & DROOP Functions
Soft Start Voltage Ramping
Under Frequency Roll Off Protection
UFRO Over Excitation LED Indicators
Sensing Input
Voltage: 190-264VAC, 1 phase 2 wire
Frequency:50-60Hz nominal
Power Input (PMG)
Voltage:170-220VAC , 3 phase 3 wire
Current:continuous 3A/phase
Frequency:100-200Hz nominal
Output
Voltage:max 120VDC
Current:continuous 2.7ADC , intermittent 6A for 10 secs
Resistance:15 ? minimum
Regulation:+/-1% RMS with 4% engine governing
Voltage build-up:residual voltage at Automatic Voltage Regulator terminal ?5VAC
External Voltage Adjustment:+/-10% with 1k ohm 1 watt trimmer
the AVRis use for the following magnetic generator set.
==========

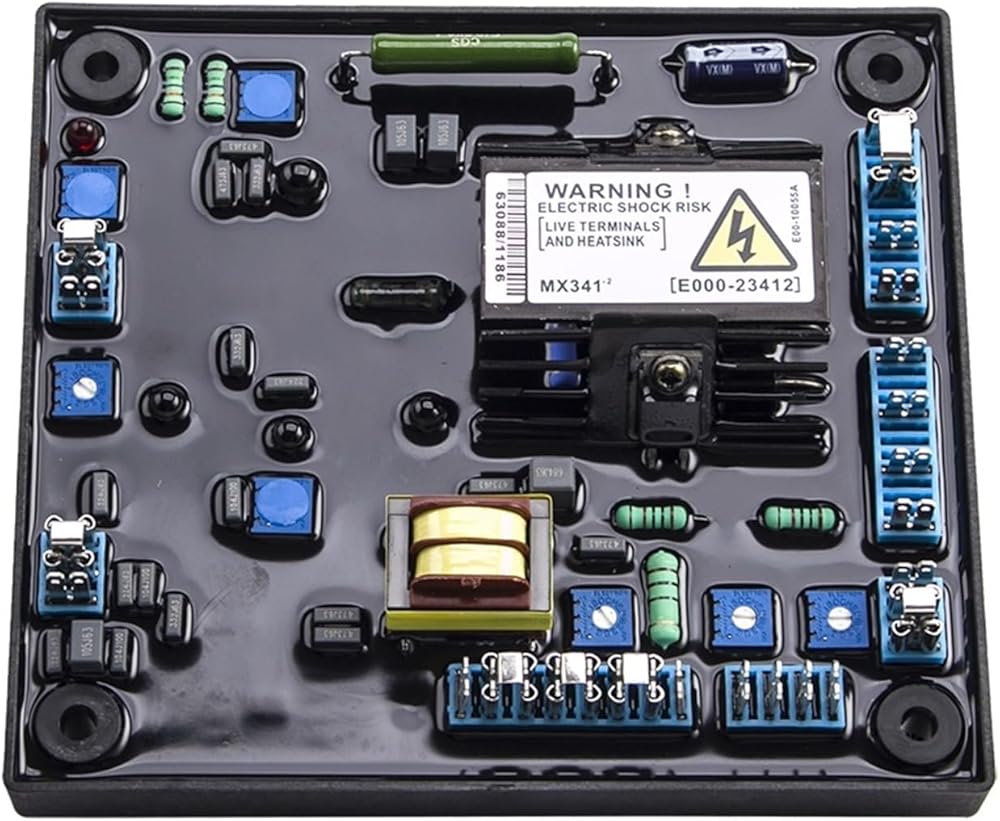

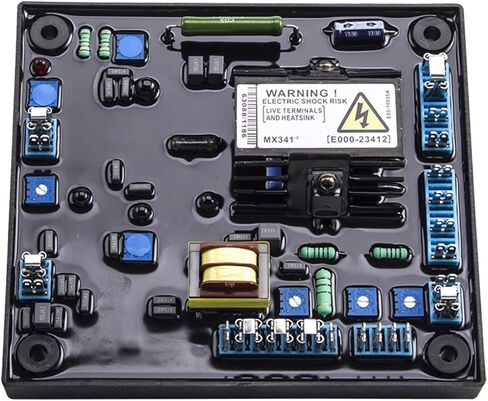

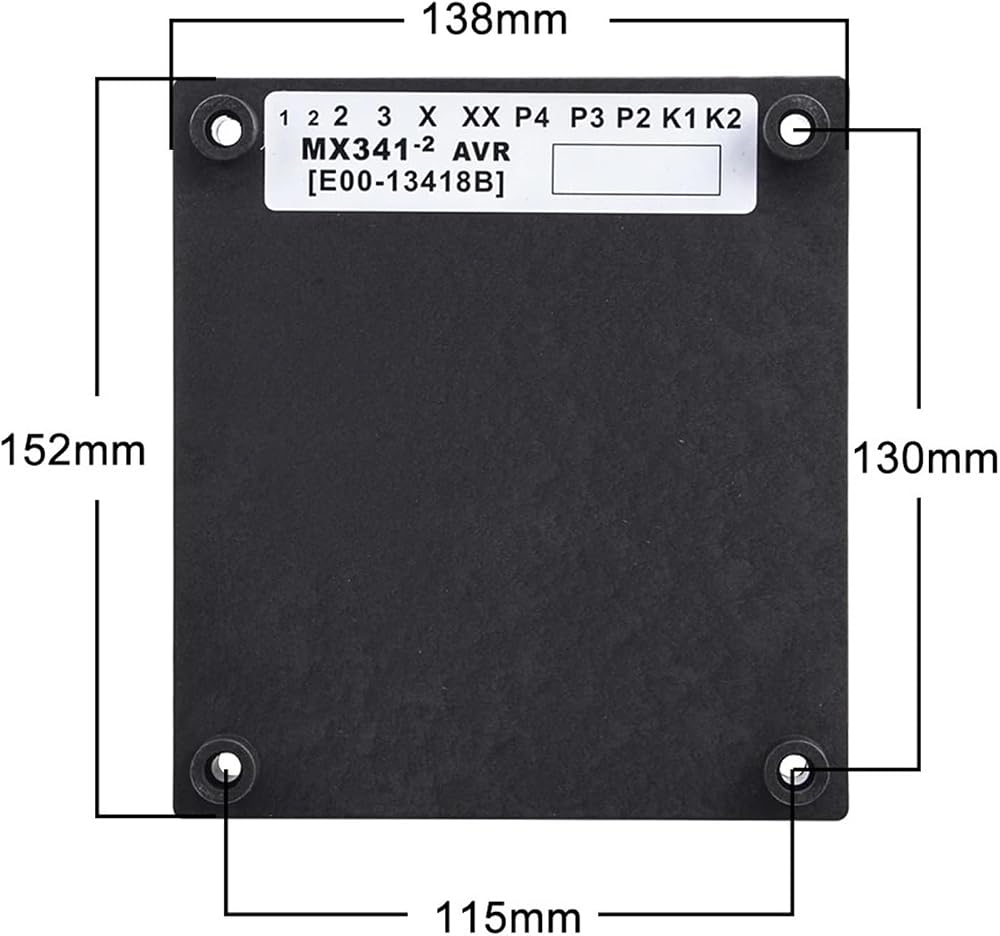

Model Number : MX341/MX341-2 Automatic Voltage Regulator
