1. Using post‑programming technology, the driver can be modified as needed to match a variety of analog input signals.

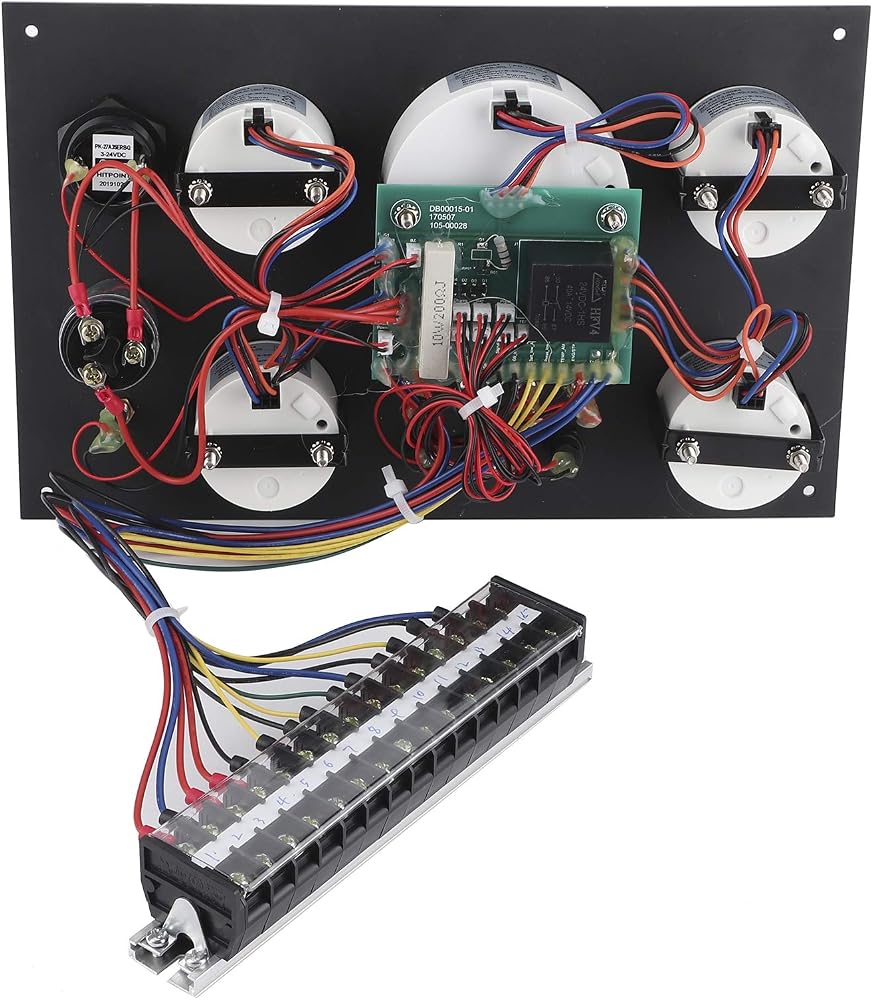

2. The wire harness connector has a buckle, which can ensure a firm connection between the instrument and the wire harness, even if it is used in strong vibration occasion, it can still work reliably.
3. Using industrial‑grade electronic components and structural parts, the working temperature can reached ‑30‑+75℃.
4. IP67 and , 316 stainless steel front cover, can be used for a long time even in , alkali and humid environment.
5. Adopt ultra‑wide working voltage design, 9‑32V long‑term working voltage, up to 36V (≤1 minute).
6. Ultra‑low power consumption design, the working current of the 2in gauge ≤60mm, and 3.2in gauge ≤100mA.
7. It can be used in engines, generator sets, RVs, yachts, fishing boats, ships, construction machinery, agricultural machinery, modified vehicles and other fields.

Specification:
Condition: Brand New

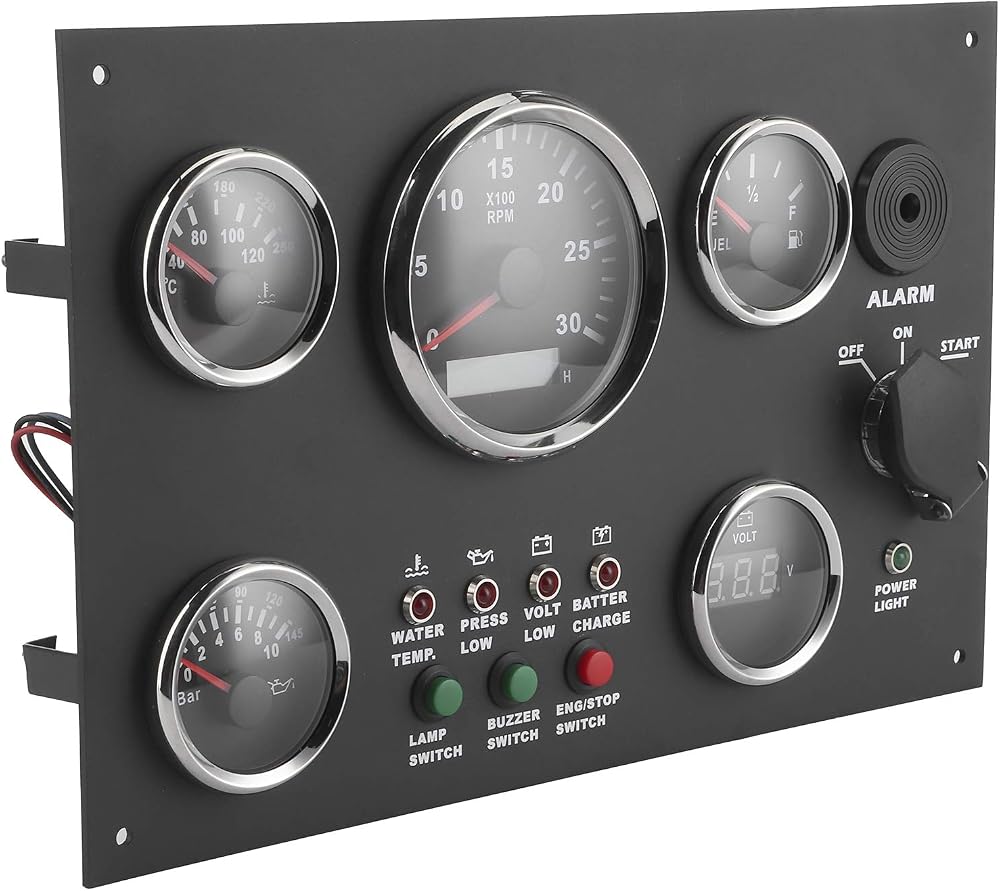

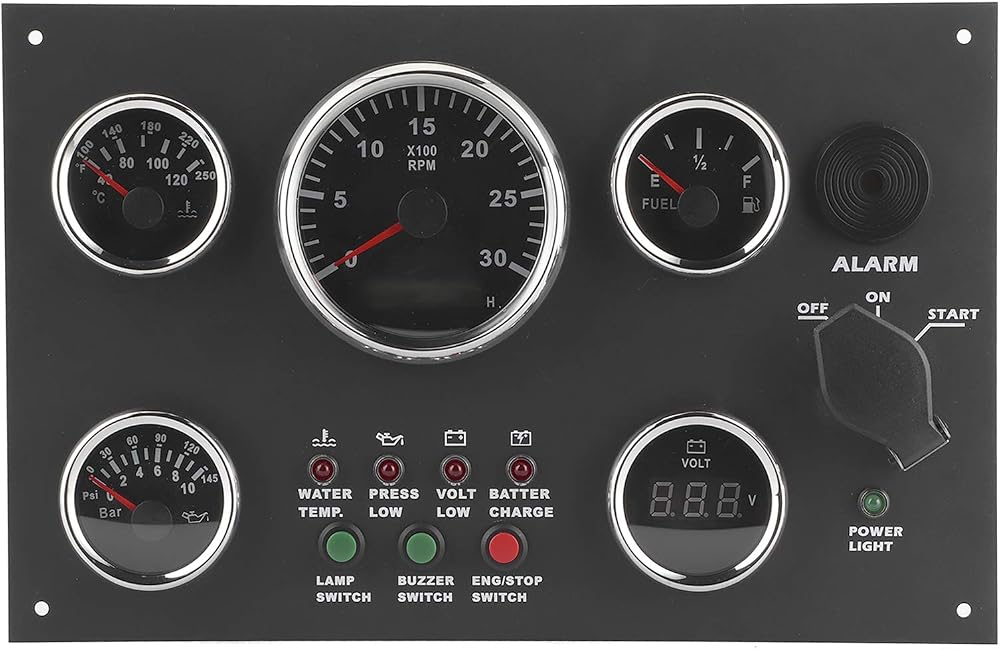

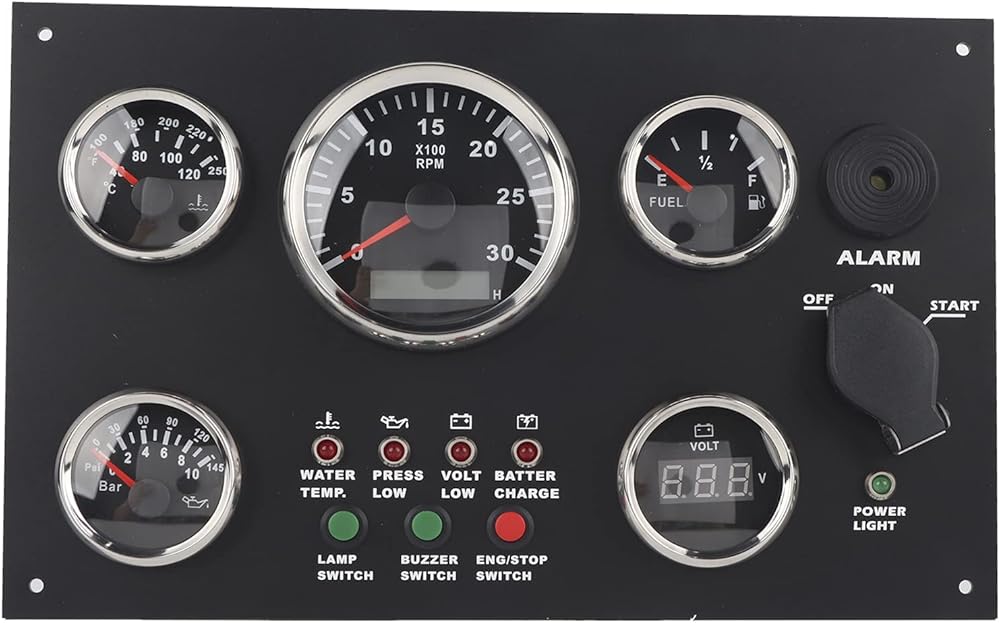

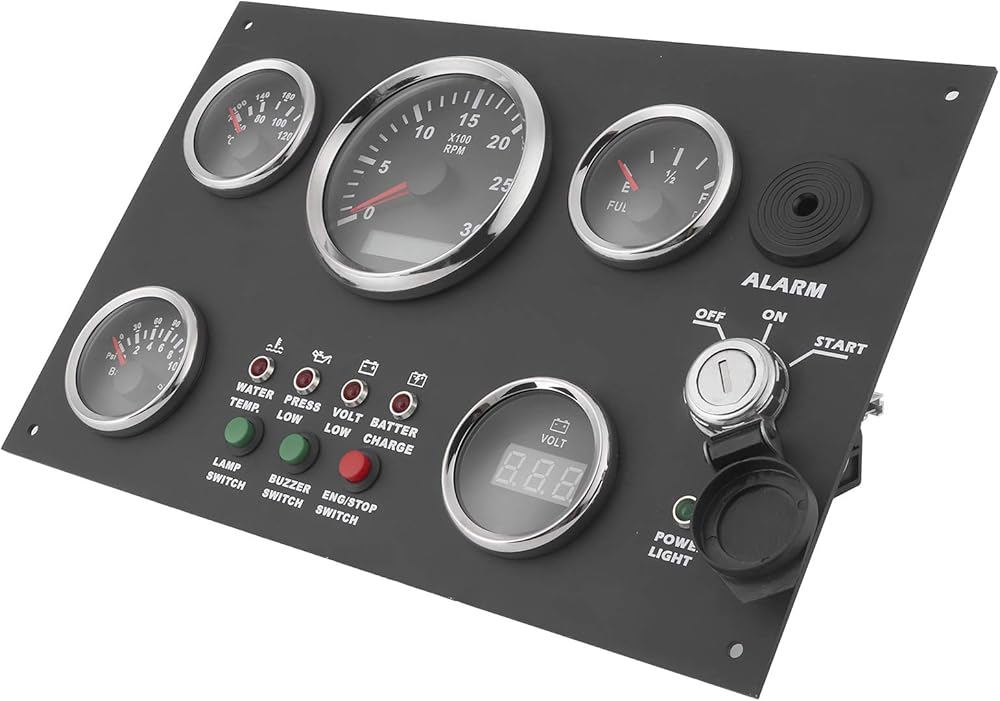

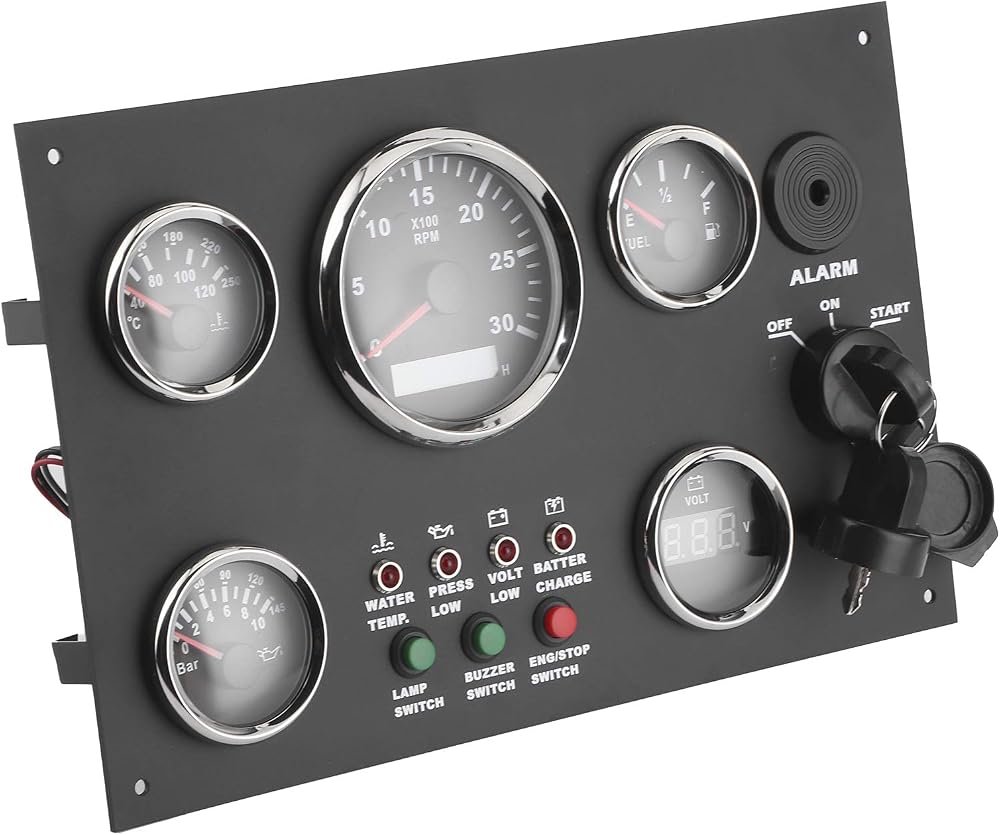

Item Type: Gauge Cluster
Material: Stainless Steel + -plated Plastic
52mm/2in, Red Backlight
82mm/3.2in, 8 color Backlight
Operating Current: ≤100mA
Operating Mode: LCD display, stepper motor
Input Signal: Pluse Signal from tacho sensor, engine, ignition coil, crankshaft sensor, etc.
Protection Class: IP67,can work underwater 1m position
Functions:
Water Temperature Meter Range: 40-120 degrees Celsius
Oil Pressure: 0-140psi
Engine Speed: 0-3000RPM, Hourly Timing
Oil Level Gauge: E-1/2-F

PackageList:
1 x Gauge Cluster

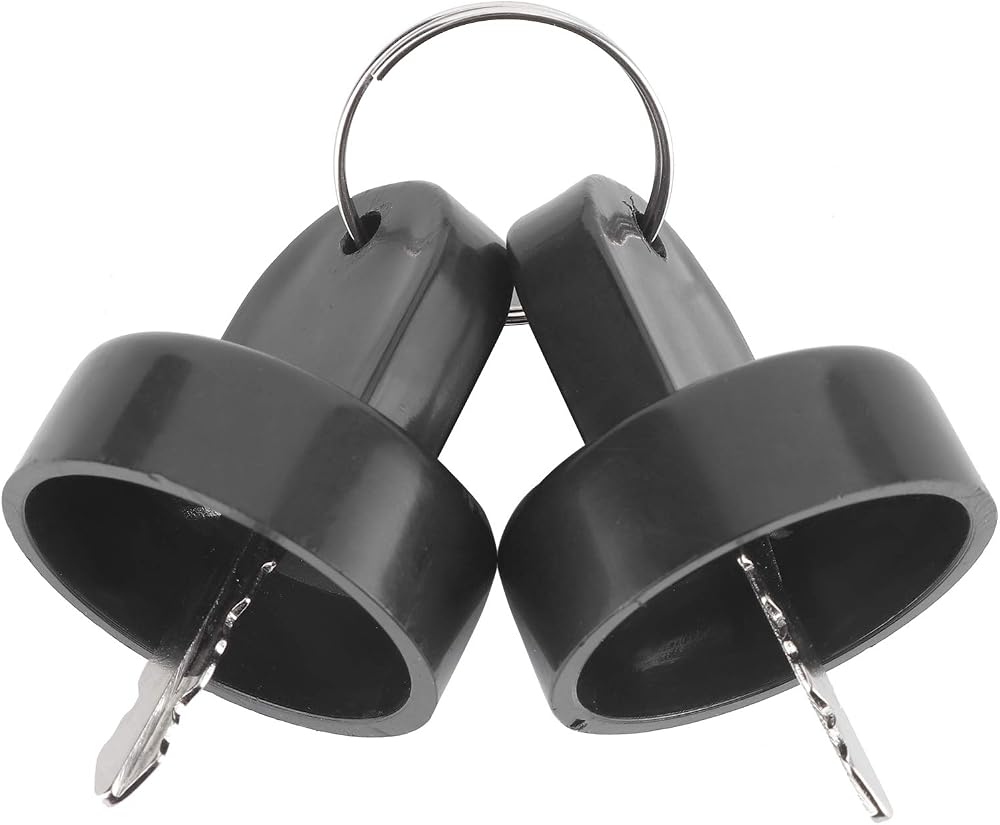

2 x Ignition Keys
1 x Manual

Note:
1. Each product will be shipped with a detailed product manual. The manual will clearly describe the installation, wiring and use functions of the product, so there is no need to worry about the situation that it will not be used after purchase.
2. Each product is packaged in a hard carton, and the bubble cotton is anti‑drop filling, ensuring that your order remains in a brand new state before receipt.
3.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
