Selector Switch

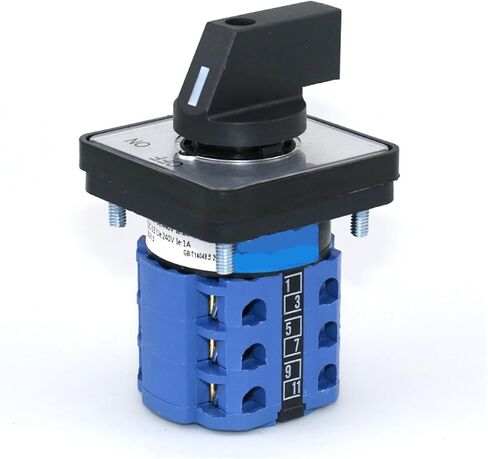

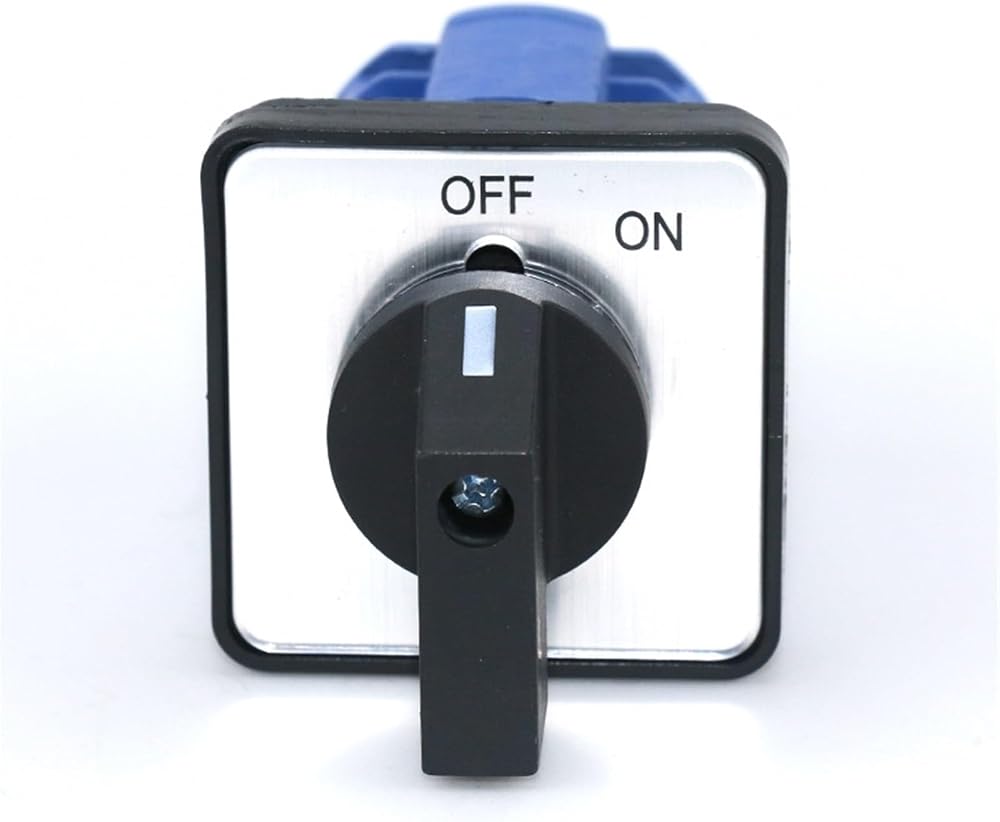

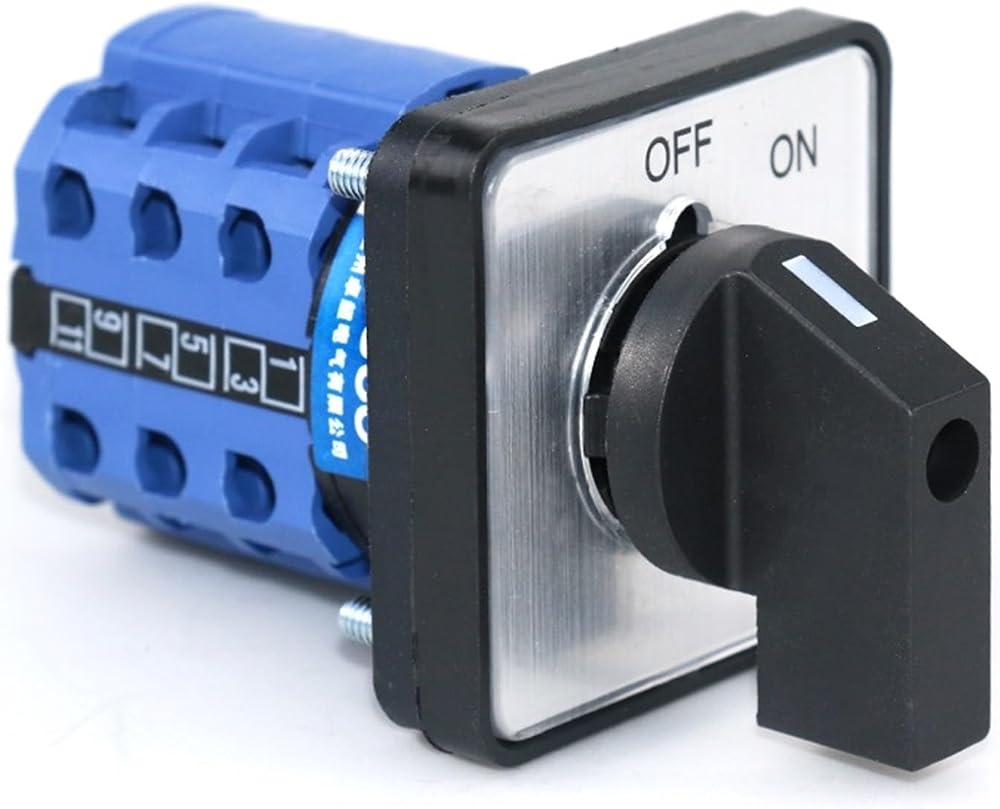

SZW26/LW26-20/C06.3 20A Three Pole Two Position 64X64 48X48 Mm Panel Selector Transfer Rotary Cam Universal Switch ON OFF
Description
1.Product Name:
SZW26/LW26-20/C06.3 20A 3 Phase Universal Rotary Changeover Cam Switch
2.Specification:
Lacthing Selector ; Ui: 660V, Ith: 20A ; 3 Phase 12 Terminals
2 Position (OFF-ON)
3.Rating :
AC-15: Ue 440V Ie 20A
DC-13: Ue 240V Ie 1A
4.Panel size:48 x 48 mm,Install Size:36 x 36mm
Panel size:64 x 64 mm,Install Size:48 x 48mm

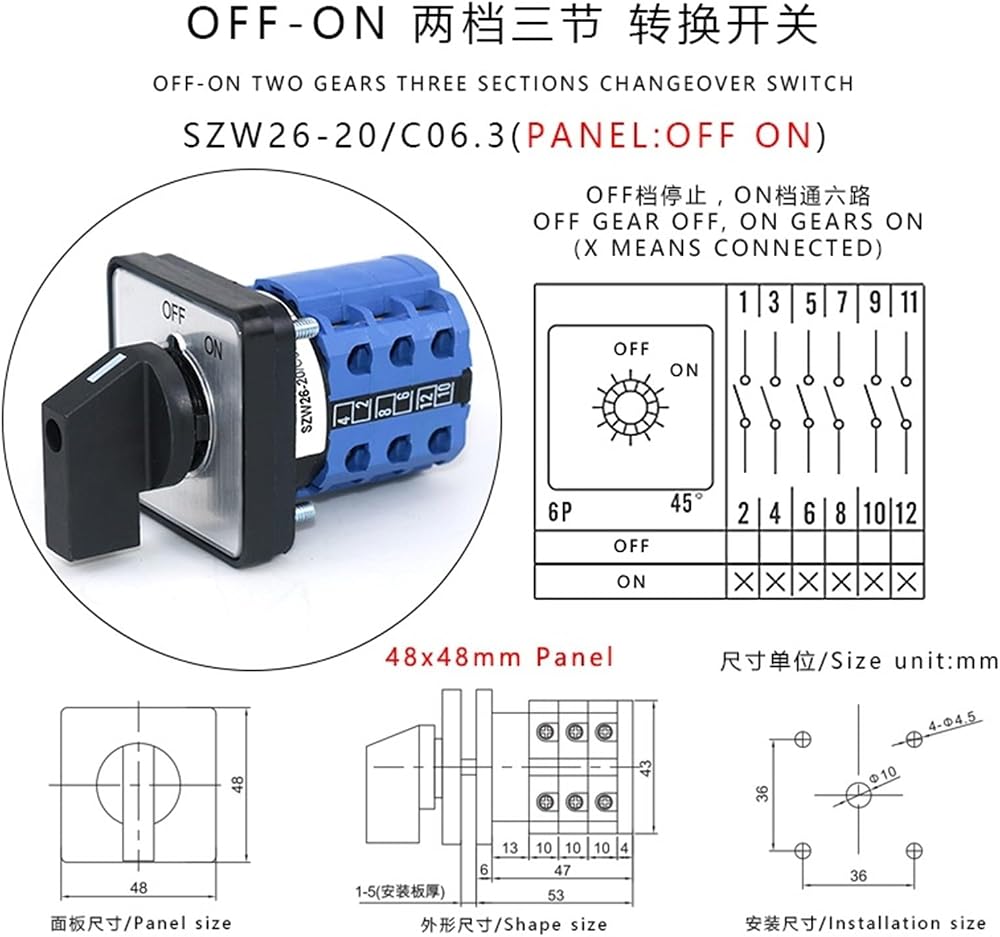

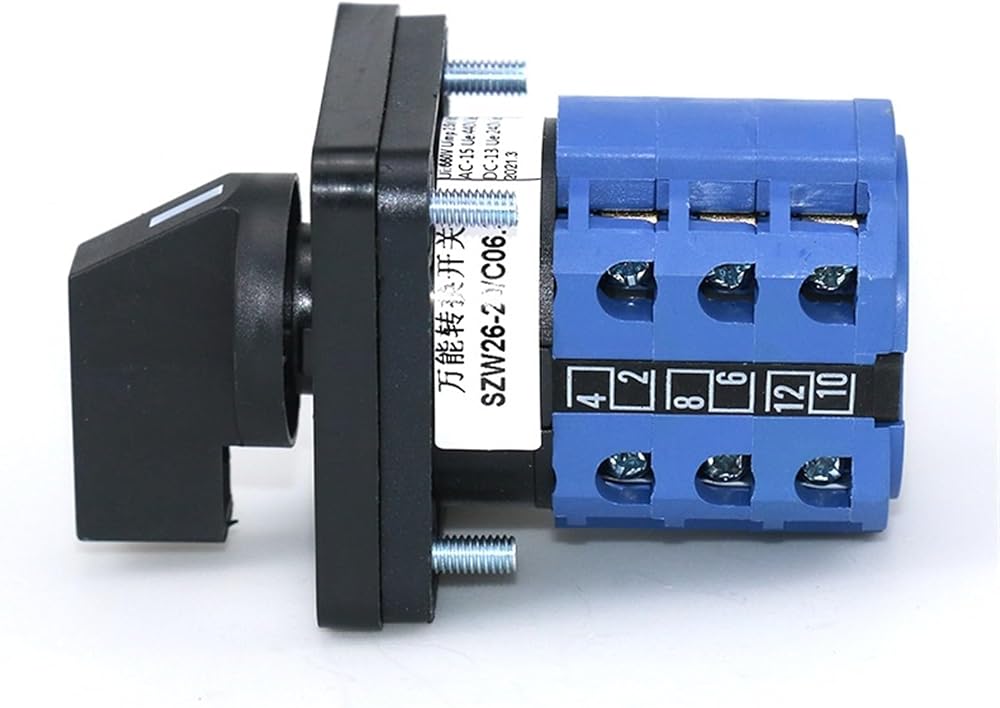

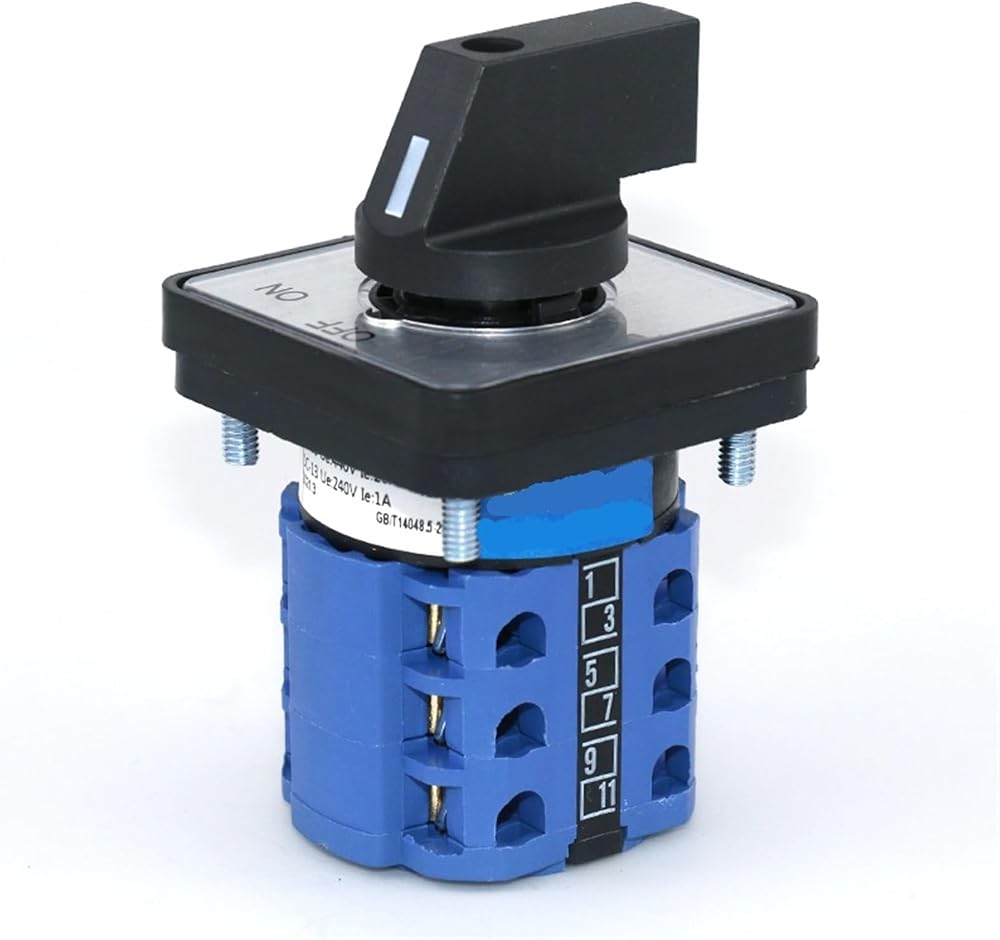

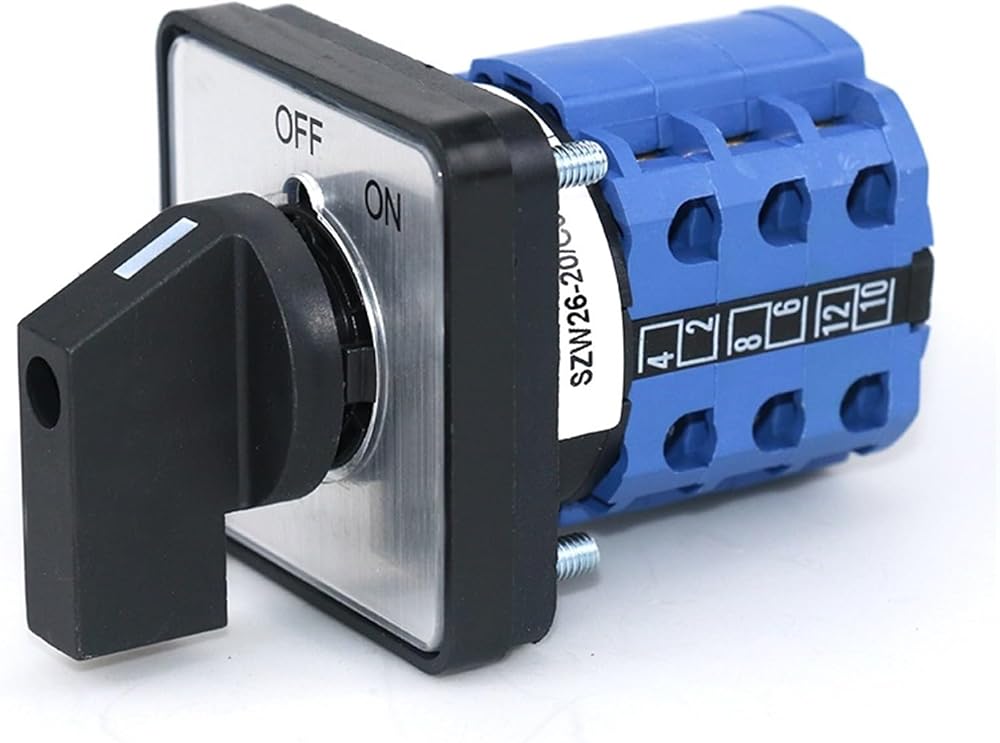

5.which terminal will be connected in different position , please read the wiring diagram as a reference.
Position OFF : All terminal disconnected
Position ON : 1-2 , 5-6 , 3-4 , 7-8 , 9-10 , 11-12
6.Material:
Flame retardant PC material, high temperature resistance; Premium copper parts with silver alloy point.

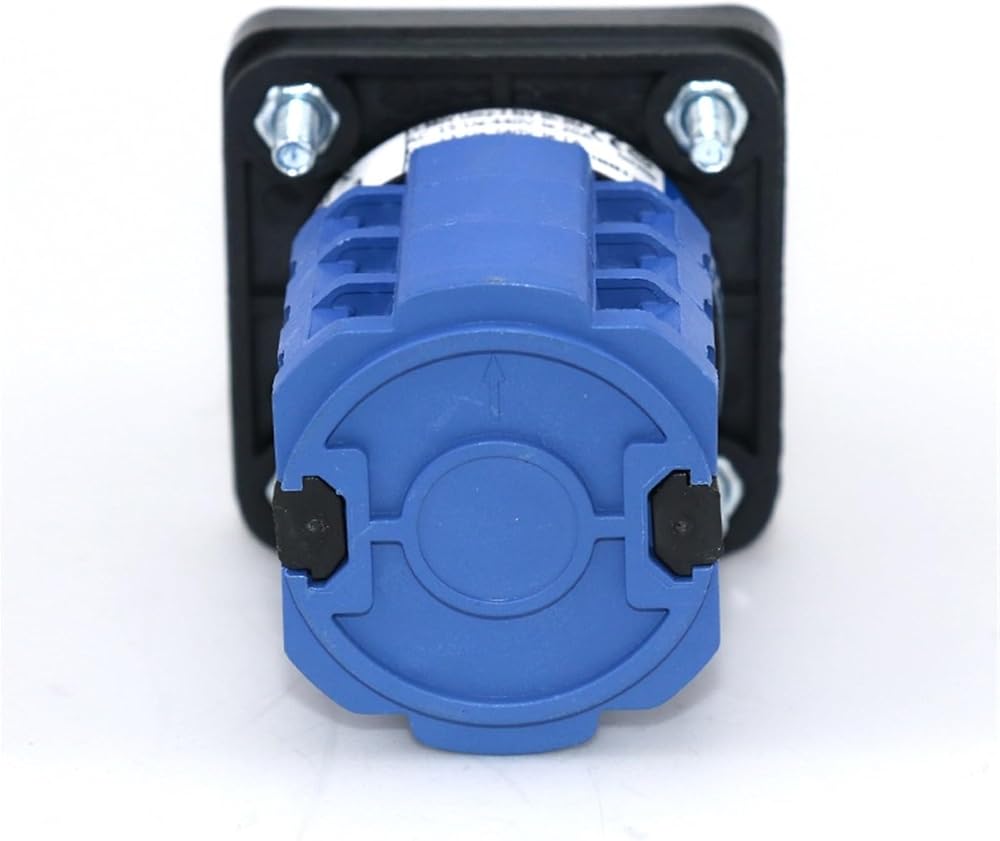

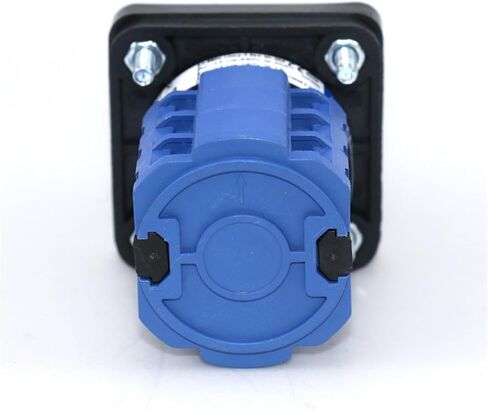

7.Suitablefor the thickness between 1mm to 5mm of the mounting board.
8.Ideal choicefor electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.
9.Widely usedas circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.
==========
Current : 20A
Material : Plastic
Switch Type : Universal Switch
Model Number : SZW26-20/C06.3
Features : 3 Phase
Item Type : SWITCHES
Rated insulation voltage(Ui) : 660V
Conventional heating current(Ith) : 20A
Use category 1 : AC-15
Rated working voltage(Ue) 1 : 440V
Rated working current(Ie) 1 : 20A
Use category 2 : DC-13
Rated working voltage(Ue) 2 : 240V
Rated working current(Ie) 2 : 1A
