Description
Thermocouple or millivolt signal input isolator, (output loop power supply), isolates the field thermocouple or millivolt signal into a DC signal of 4-20mA, and transmits it to the control system or other unit combination meters.
It is mainly used for DCS and PLC systems that not only need to maintain the superior performance of the independent power supply type, but also meet the power supply function of the output loop.

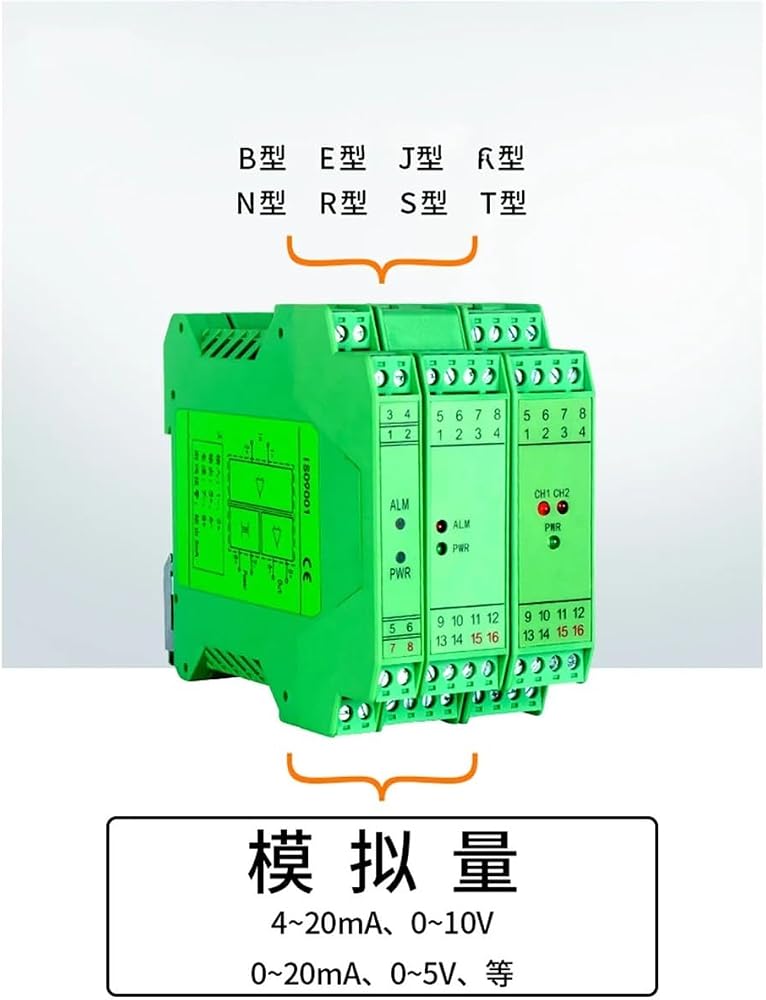

Intelligent thermocouple signal isolator. The thermocouple type and measuring range can be configured and determined.
This isolator has independent power supply mode and output circuit power supply interface requirements, and electromagnetic isolation between power supply-input circuit-output circuit.
Characteristic

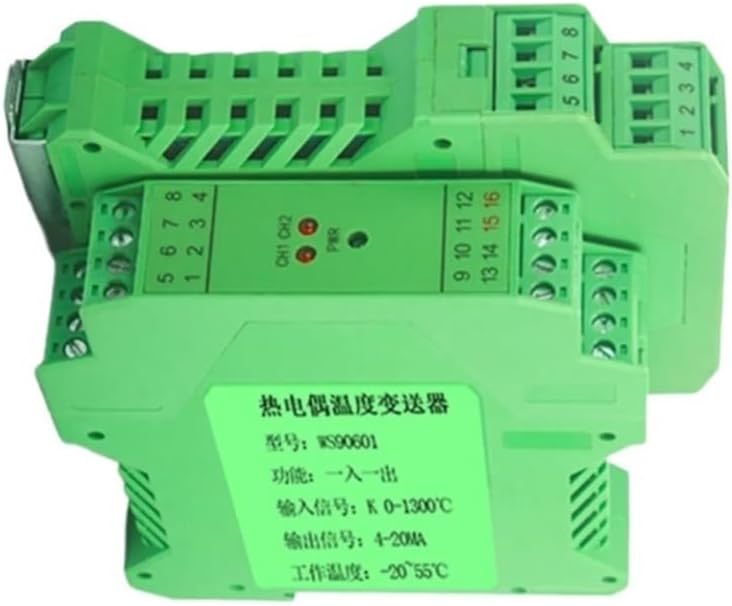

Thermocouple temperature transmission and isolation output.
Output current signal 4~20mA.
The output loop power supply is 12~35V.
Intelligent, can be configured on site. You can also select a fixed thermocouple type and temperature range input.
Modular watch movement design, no need for zero and full scale adjustment, automatic dynamic calibration of zero point, automatic temperature drift compensation.
With working power indicator light.
Single channel, one input and one output, short circuit protection of the input circuit.

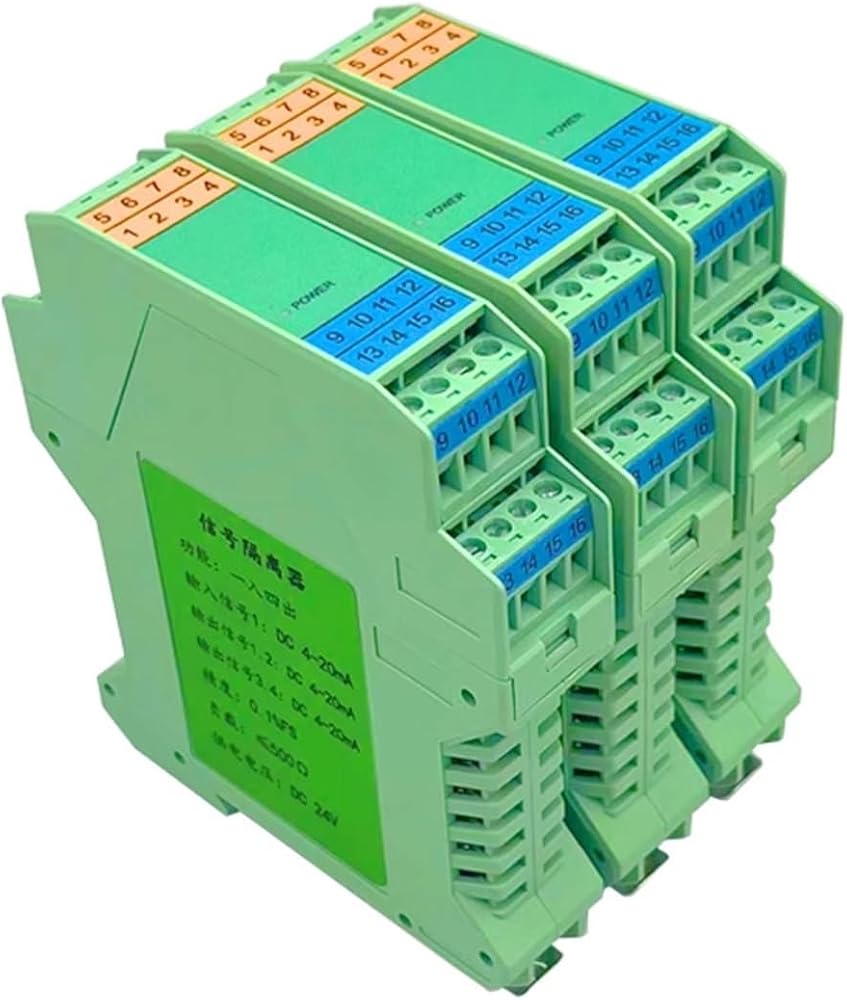

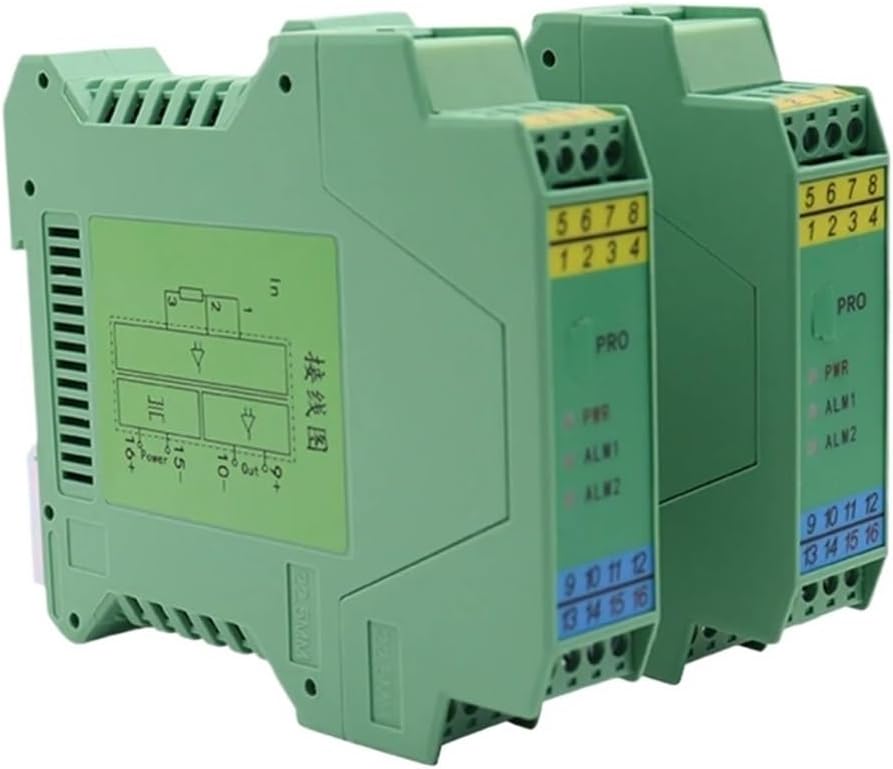

Rail type temperature transmitter
Rail type temperature transmitter

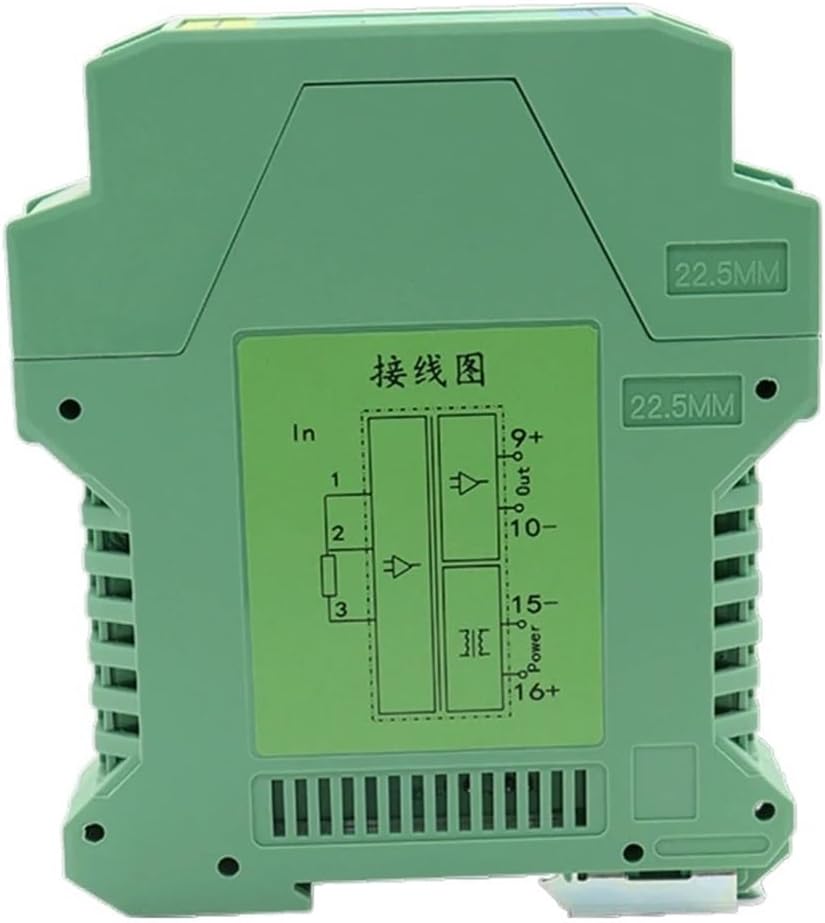

Plug and unplug terminal blocks, DIN rail card installation.
Installation
1. 35mm standard DIN rail card installation.
Please note that the card position is stable and firm when installing.
2. Install it as vertically as possible to facilitate the heat dissipation inside the instrument.
==========
Hign-concerned Chemical : None
Certification : None
Use : Industrial
