Adjusters
Specification:

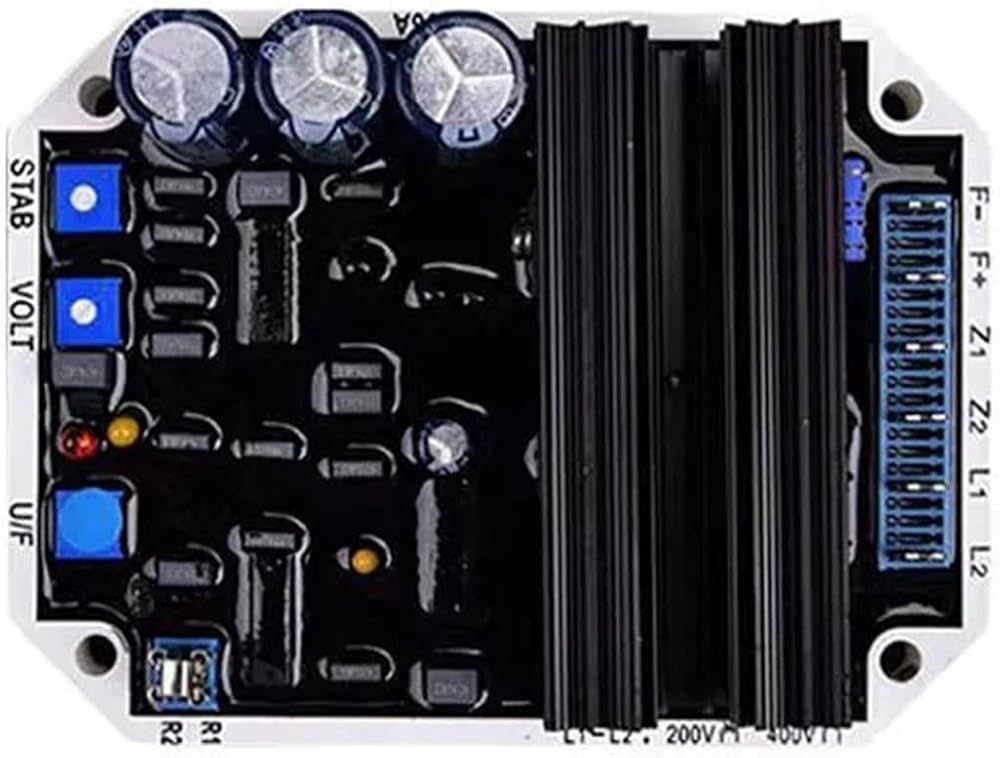

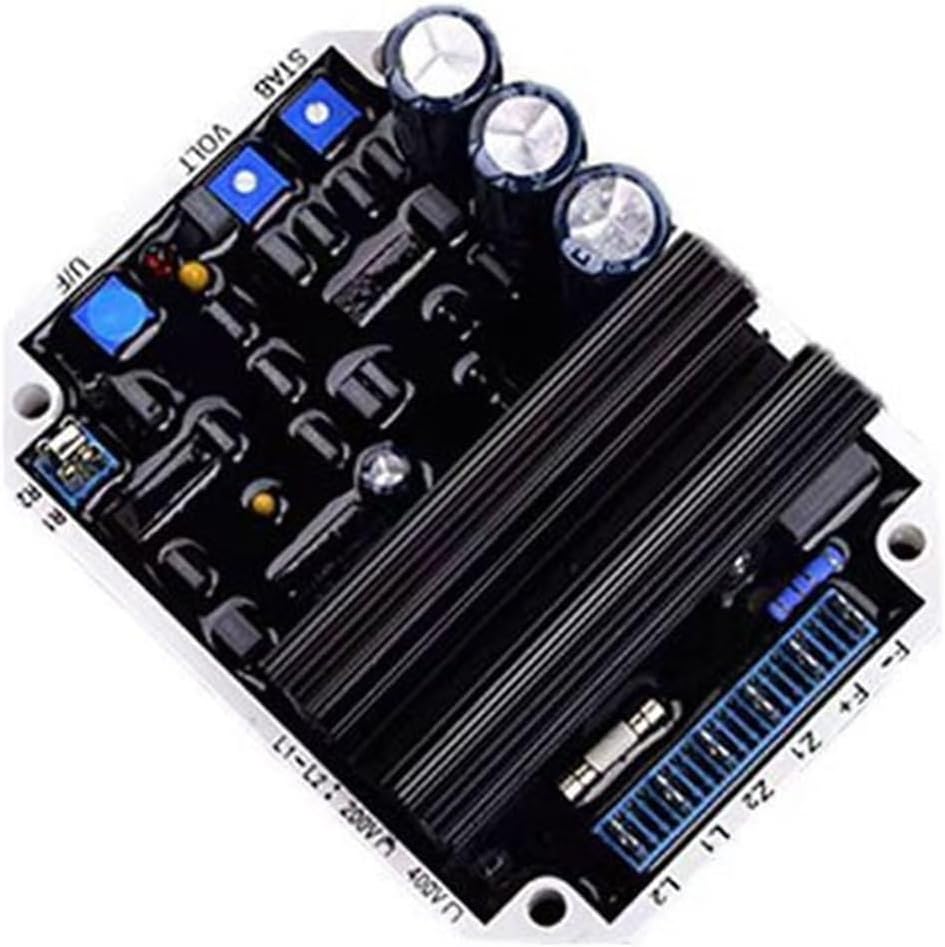

Generator 1000KW Automatic Voltage Regulator VR06
Measuring power input
Voltage Frequency
160~265VAC/ 300~550VAC 50/60Hz single phase
Power Input Voltage Regulation
The output voltage
Power: 63VDC max at 240VAC input, 32VDC max at 120VAC input Current: 4ADC , m
7A for 60 seconds
voltage build up External voltage adjustment
The input terminal needs to have a residual
voltage of 5VAC or more
15% @ 1KQ
Working Environment
Operating temperature: -40~60°C :
Storage temperature: -40~85°C Relative Humidity
Below 95% Vibration: 1.5G@5~30Hz, 5.0G@30~500Hz
==========
Hign-concerned Chemical : None
