MX321 Automatic Voltage Regulator PMG Permanent Magnet Generator Automatic Voltage Regulator Stabilizer
3 Phase Sensing Permanent Magnet Generator type voltage regulator is a compatible replacement for NS MX321 and 305-0823.

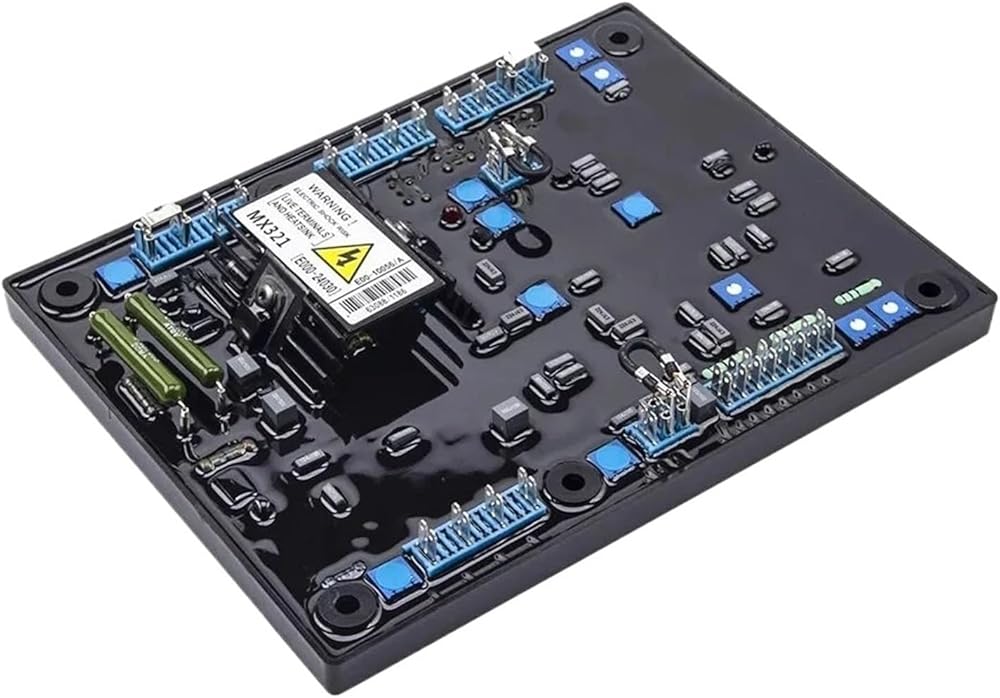

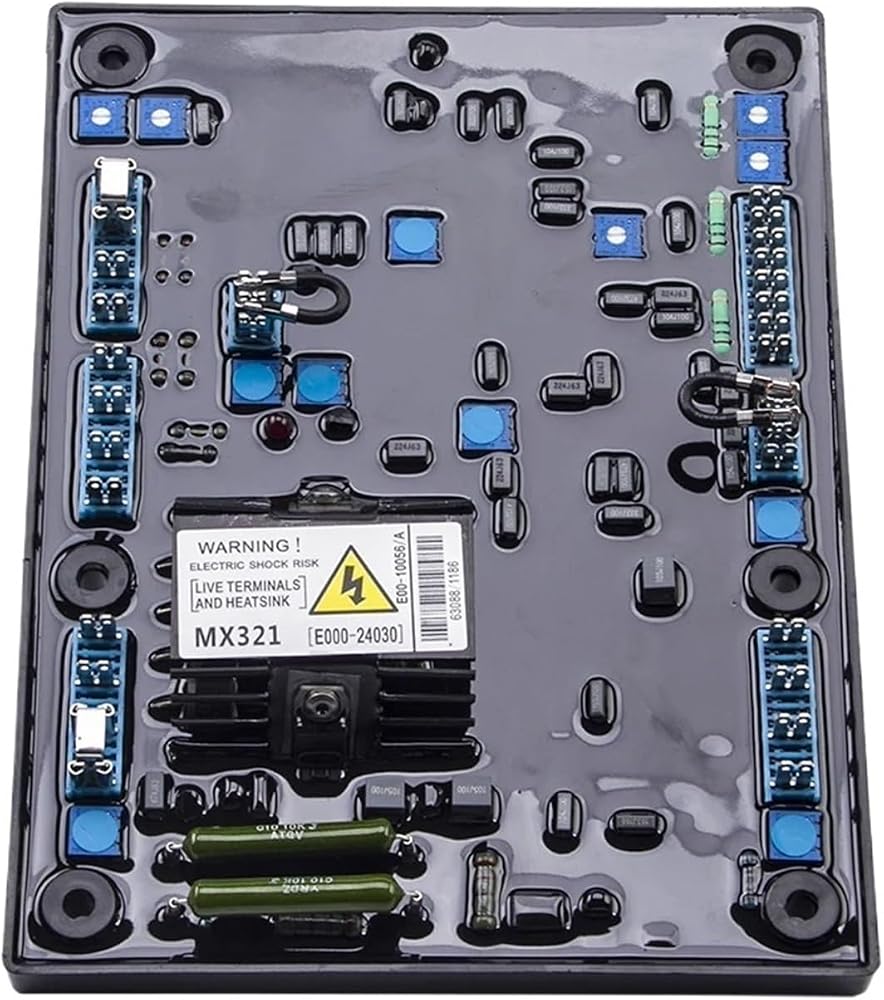

MX321 is a three phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.Excitation power is derived from a three phased permanent magnet generator(PMG),to isolate the Automatic Voltage Regulator control circuits from the effects of nonlinear loads and to reguce radio frequency interence on the generator terminals.Sustained generator short circuit current is another feature of the PMG system.
The Automatic Voltage Regulator sense the voltage in the main generator winding and controls the excitation to maintain the generator output voltage with the specified limits,compensating for load,speed,temperature and power factor of the generator.Thress phase RMS sensing is emplyed for superior voltage regulation.
==========
Hign-concerned Chemical : None
Model Number : MX321 Automatic Voltage Regulator
used for : PMG brushless generator
phase : three phase
