Adjusters
Extreme temperature, free operation: normal operation at high temperature above 200, experience
Extremely fast response, fast and stable pressure building time
24-hour rated current online aging
Create highly reliable and stable products
Precise production line simulation test equipment with more than 20 test processes
Highly reliable waterproof and moisture-proof imported AB glue, providing more protection for the product
Wide range of application
Applicable to any electronic adjustment accessories of generator sets.
Applied to mobile base stations, communication equipment, transportation vehicles, ships, equipment and instruments, etc.
Performance requirements
(1). Calibration voltage: 230V, full load ±2%.
(2). Excitation short circuit protection: When the excitation is short-circuited, the voltage is instantly protected, and the protection time is 60-90 seconds.
(3). Bulb: During the detection process, no-load and full-load, the bulb does not flicker.
(4). Resistive load voltage stability 2%, use environment: -20~85,
storage temperature: -30~85.
(5). Excitation residual voltage 3V.
(6). Overload 110% can work for a long time.
(7). Sampling phase voltage: 220V.
(9). Secondary winding voltage AC170V.
(10). When the power factor is 0.8, the voltage rise is 9.7%.
(11). The voltage regulator internal precision chips and semiconductor devices are prohibited from withstand voltage test.
(12). The resistance of the motor rotor is 20R ohms.
(13). The insulation withstand voltage of the motor's auxiliary winding and main winding is 2000V;
III: Appearance requirements
II: Frequency selection
(1). S1 closed = 60Hz
(2). S1 open = 50Hz
(1). There are no obvious bubbles on the potting surface.
(2). There are no burrs or flying skin on the shell.
==========
Hign-concerned Chemical : None

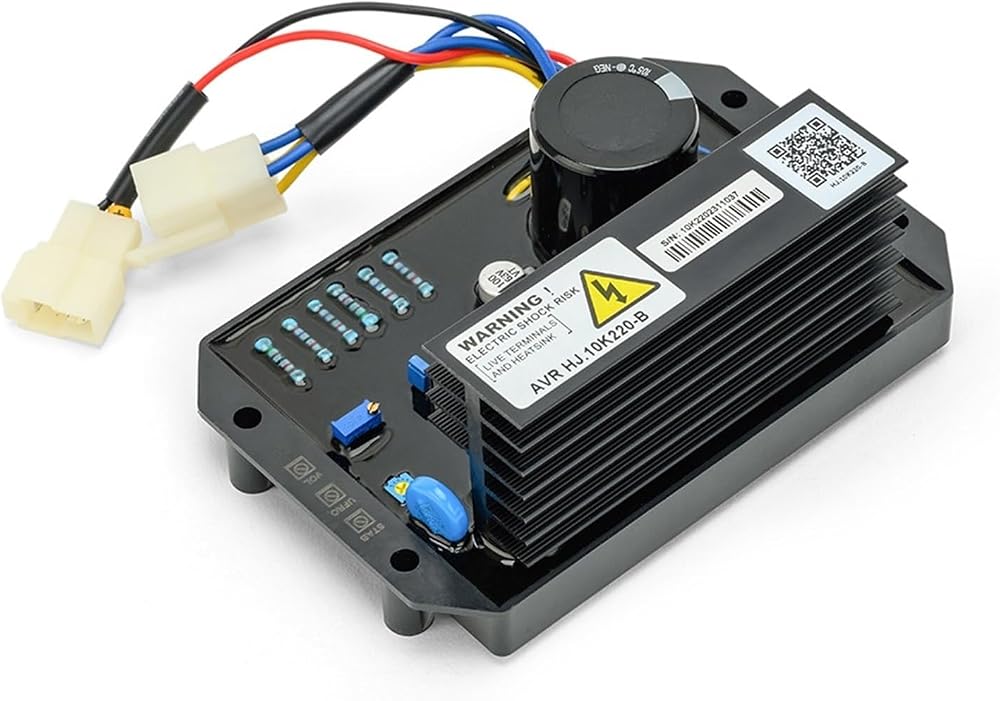

Model Number : HJ10K220-B
