Specifications
Resolution
600 dpi/24 dots per mm
Memory
1GB SDRAM memory
2GB linear Flash memory
Maximum Print Width
4.09 in./104 mm
Maximum Print Speed
14 ips/356 mm per second
Media Sensors

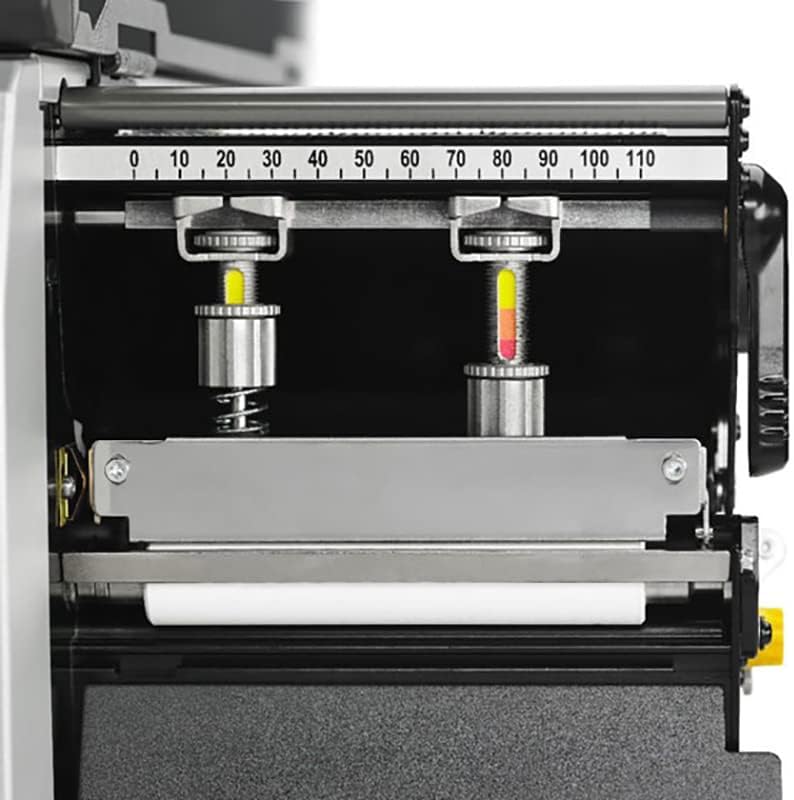

Adjustable dual media sensors: transmissive and reflective
Maximum Continuous Print Length
600 dpi: 30"/762 mm

Media Characteristics
Maximum Media Width
1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter
1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind
Maximum Media Roll Size
8.0"/203 mm O.D on a 3.0"/76 mm I.D. core
Media Thickness
0.0023"/0.058 mm to 0.010"/0.25 mm
Media Types
Continuous, die-cut, notch, black mark

Barcode Symbologies
Linear barcodes
Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Ribbon Characteristics
Standard Length
1476 ft./450 M
Width
2.00 in./51 mm to 4.33 in./110 mm
Core
1.0 in./25 mm I.D
Communication
USB 2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth
Dimension/ Weight
19.88 in. L x 10.56 in. W x 15.58 in. H/ 50 lbs
