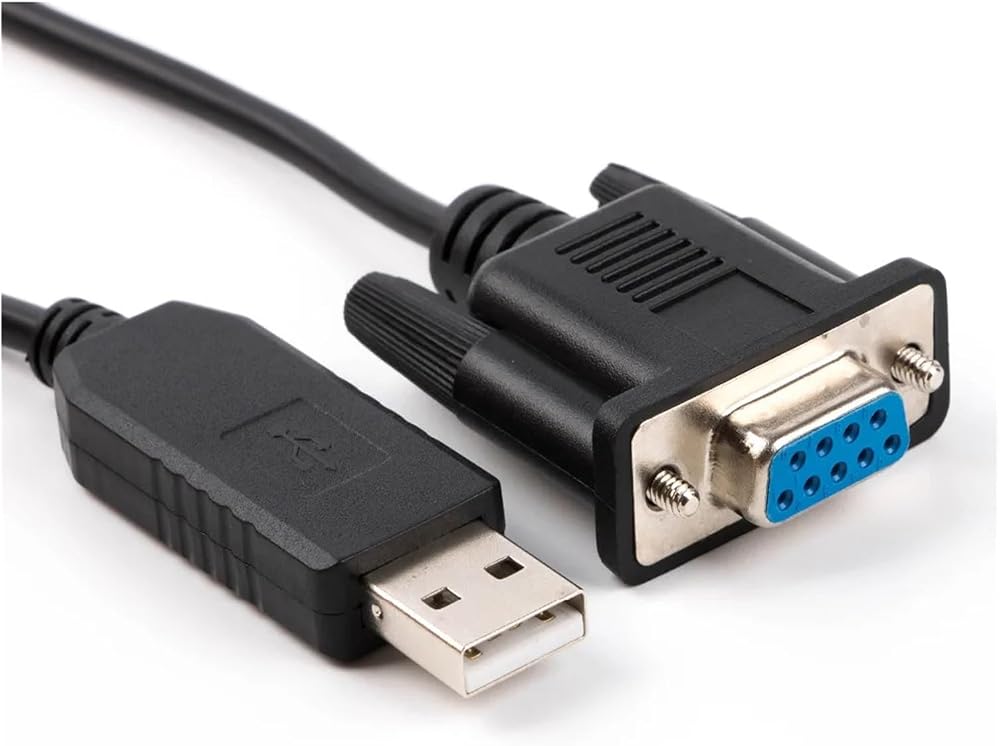

USB RS232 Serial to DB9 Female Adapter Converter CP2102 Null Modem or Terminal device Cable support win7/8/10/xp/mac etc
Null modem pinout( pc with usb communicate with destop pc(with DB9 com port)):
2-TXD(yellow), 3-RXD(orange),5-GND(GND),7-CTS(green),8-RTS(brown), 1/4/6/9-NC
USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
The CP2102 chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
Portable USB-Powered design requires no bulky power adapter or outlet
USB to Null Modem (Cross-Wired) RS232 Serial Adapter

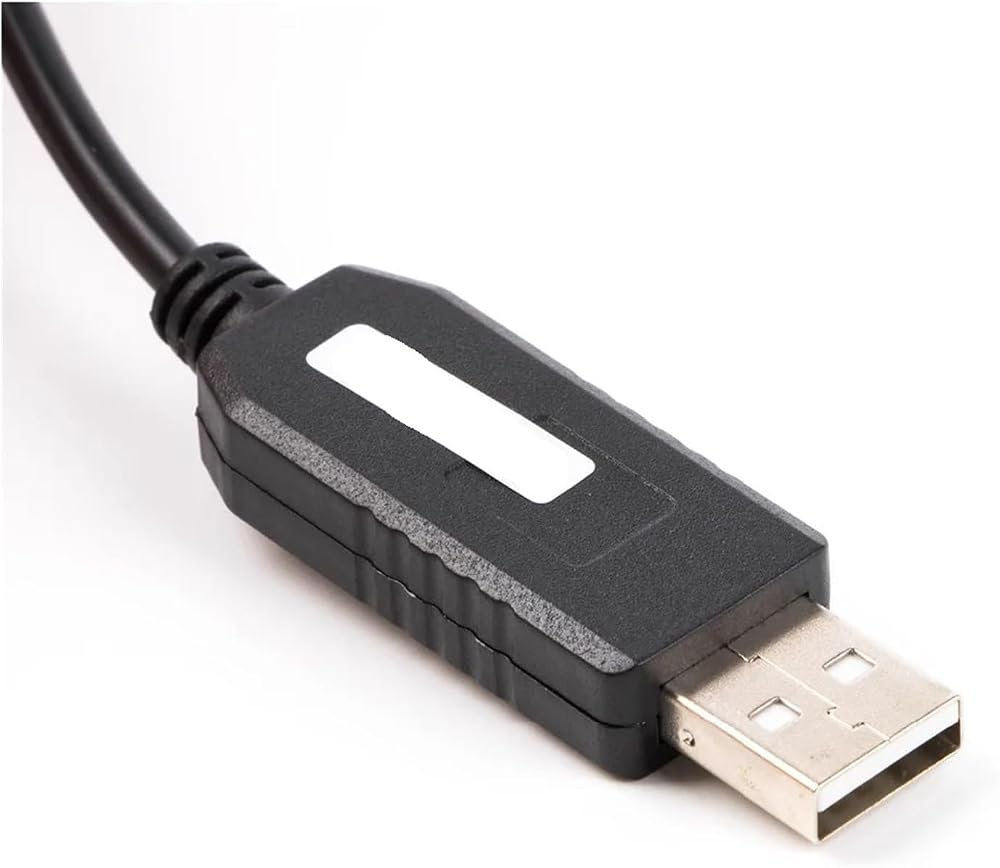

Integrated CP2102 USB UART Chip
Baud Rate up to 921.6Kbps
COM Port assignments maintained across reboot
USB-powered - no external power adapter required
F1T-D2I USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
USB to Null Modem (Cross-Wired) RS232 Serial Adapte

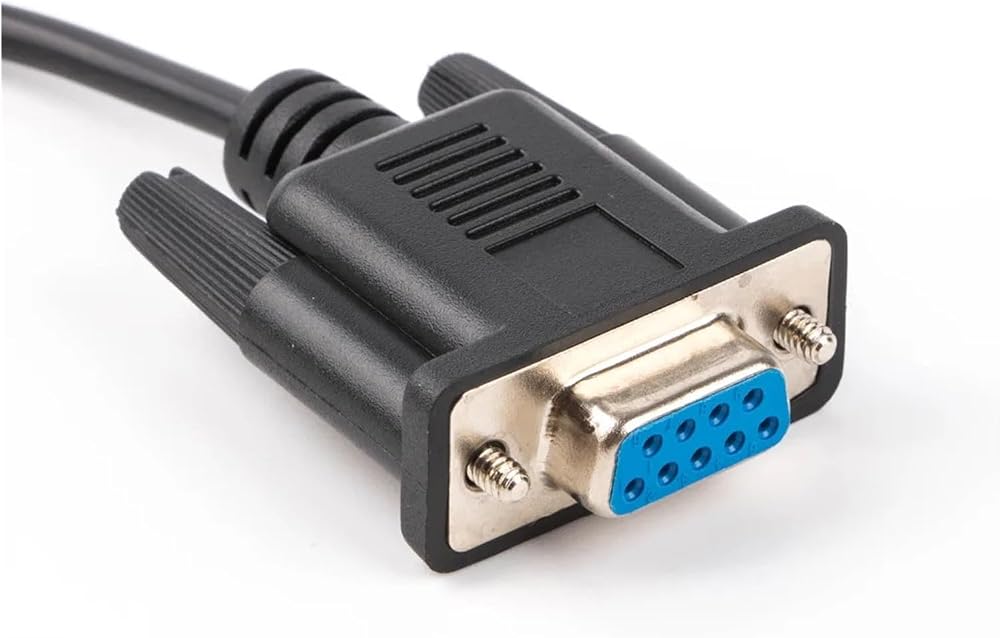

USB2.0 RS232 to DB9 female cable
CP2102+ZT213 chip
USB2.0 standard, full speed
Baud Rate up to 921.6Kb
Null modem pinout( pc with usb communicate with destop pc(with DB9 com port)):
2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
Driverdownload : www.silab.com
Standard DB9 COM port pinout:pc(host) with usb to RS232 terminal device(slave)
2-RXD(yellow), 3-TXD(orange),5-GND(GND),7-RTS(green),8-CTS(brown), 1/4/6/9-NC
USB to female serial port cable allows you to connects a PC without serial port to a serial device because it adds a 9 pin DB9 port to or desktop via USB port
Portable USB-Powered design requires no bulky power adapter with superior performance, offering an easy connectivity for serial pl-ug devices
Built as cp2102 serial cable for 10, 8, 7, OS8 or higher, Linux 2.4.0 and late
