Transceivers
10Pairs of a Package 1.25Gb/s SFP WDM 1310/1550nm 20KM Transceiver
General
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are compliant and lead-free.
Features
Single LC/SC receptacle optical interface compliant
-pluggable SFP footprint
1310nm FPlaser transmitter
compliant and
Up to 20km on 9/125um SMF
Metal enclosure for lower EMI
Single 3.3V power supply
Commercial operating temperature range: 0°C to 70°C
Applications
Fiber Channel Links
WDM Application
Gigabit Ethernet
Other Optical Links
FTTX Application
When bidding the product, please leave message for your switch .
1.25G SFP Transceivers
SFP BIDI1310 3km
SFP BIDI3km Tx1310nm/Rx1550nm LC/SC
SFP 1550 3km
SFP BIDI3km Tx1550nm/Rx1310nm LC/SC
SFP BIDI1310 20km
SFP 10km Tx1310nm/Rx1550nm LC/SC
SFP BIDI155020km
SFP BIDI10km Tx1550nm/Rx1310nm LC/SC
SFP BIDI1310 40km
SFP 10km Tx1310nm/Rx1550(1490)nm LC/SC
SFP BIDI1550(1490) 40km
SFP BIDI10km Tx1550(1490)nm/Rx1310nm LC/SC
SFP BIDI1310 60km
SFP 10km Tx1310nm/Rx1550(1490)nm LC/SC
SFP BIDI1550(1490) 60km
SFP BIDI10km Tx1550(1490)nm/Rx1310nm LC/SC
SFP BIDI1490 80km
SFP 80km Tx1490nm/Rx1550nm LC/SC
SFP BIDI155080km
SFP BIDI80km Tx1550nm/Rx1490nm LC/SC
SFP BIDI1490120km
SFP BIDI120km Tx1490nm/Rx1550nm LC
SFP BIDI1550120km
SFP BIDI120km Tx1550nm/Rx1490nm LC
SFP BIDI1490160km
SFP BIDI160km Tx1490nm/Rx1550nm LC
SFP BIDI1550160km
SFP BIDI160km Tx1550nm/Rx1490nm LC
SFP BIDI1490200km
SFP BIDI200km Tx1490nm/Rx1550nm LC
SFP BIDI1550200km
SFP BIDI200km Tx1550nm/Rx1490nm LC

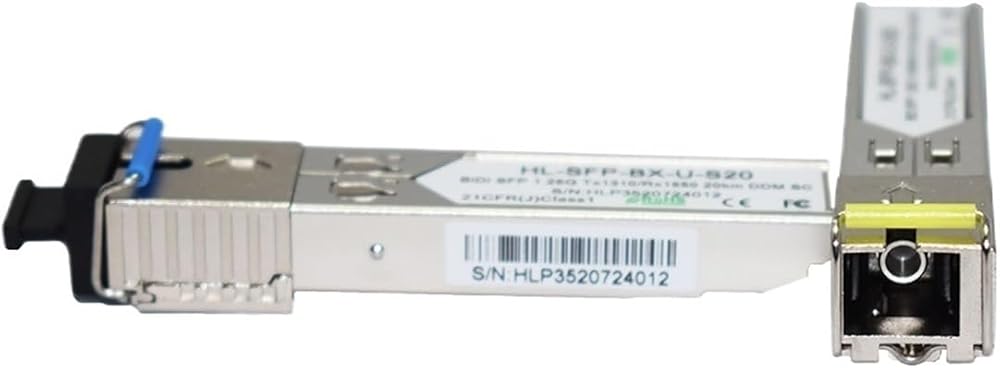

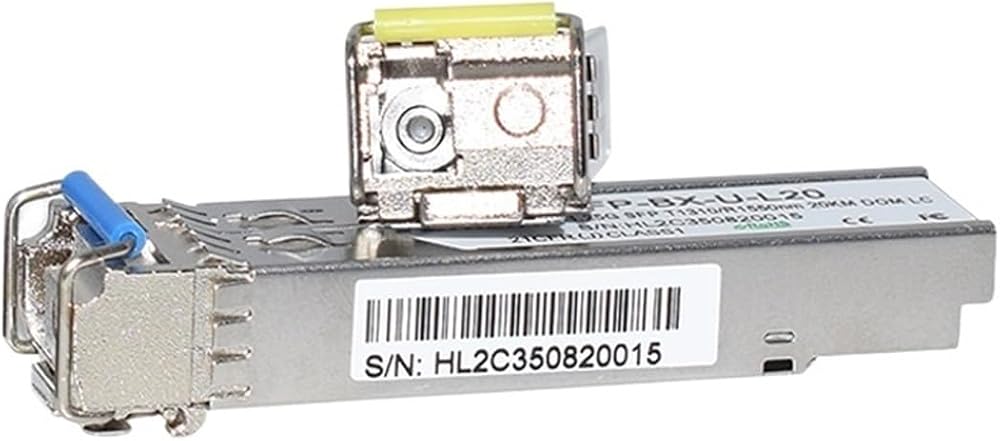

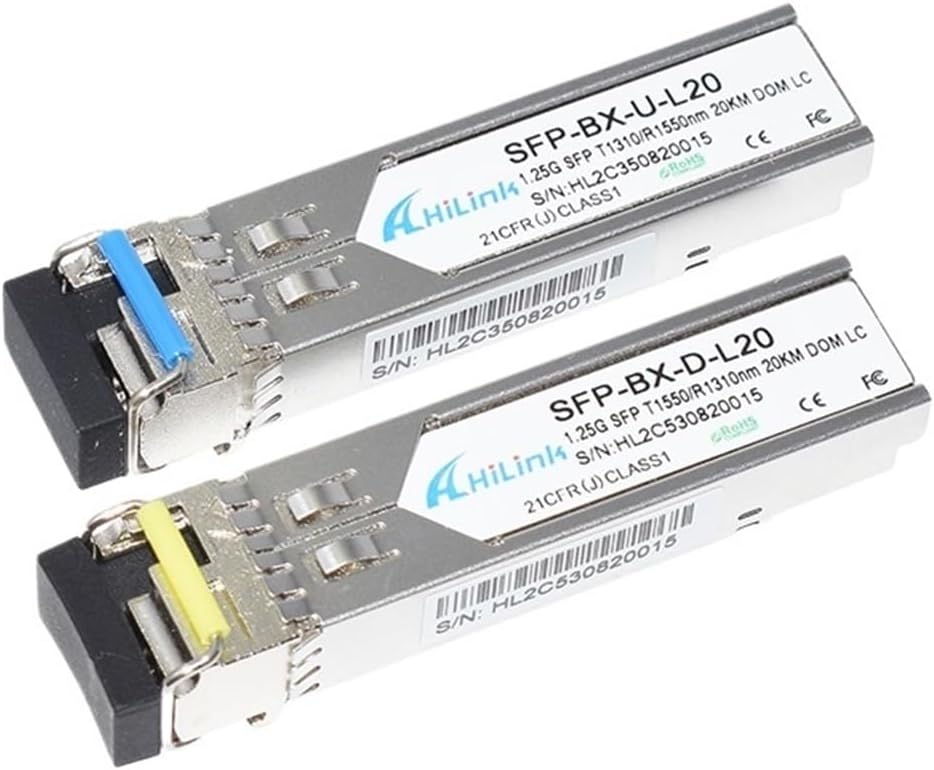

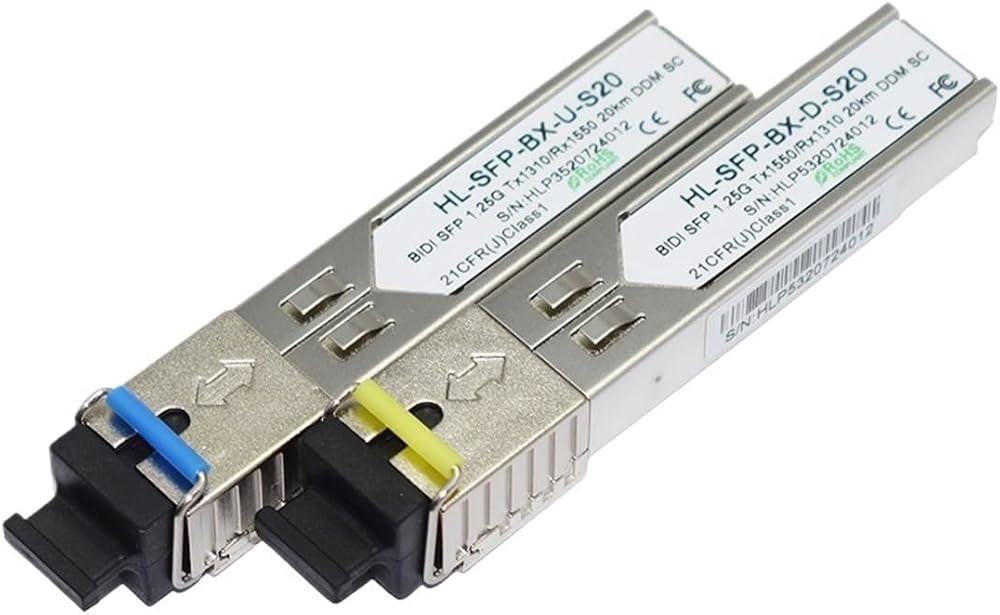

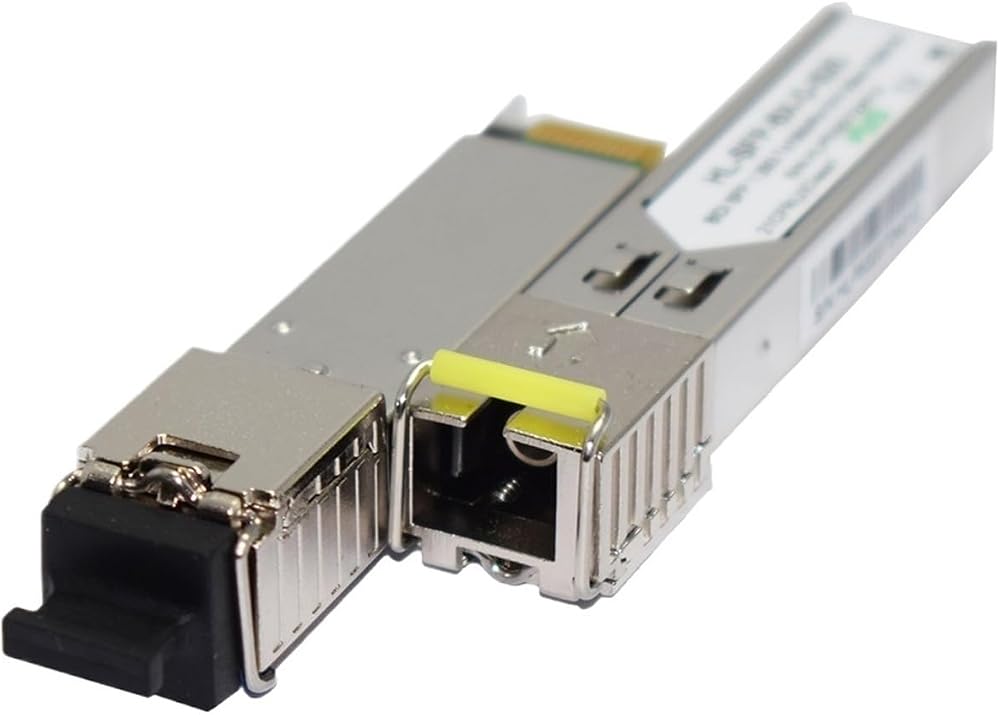

Product Show
Mechanical Specifications:
Opti
