NOTE: This Product Requires a Pair to Use

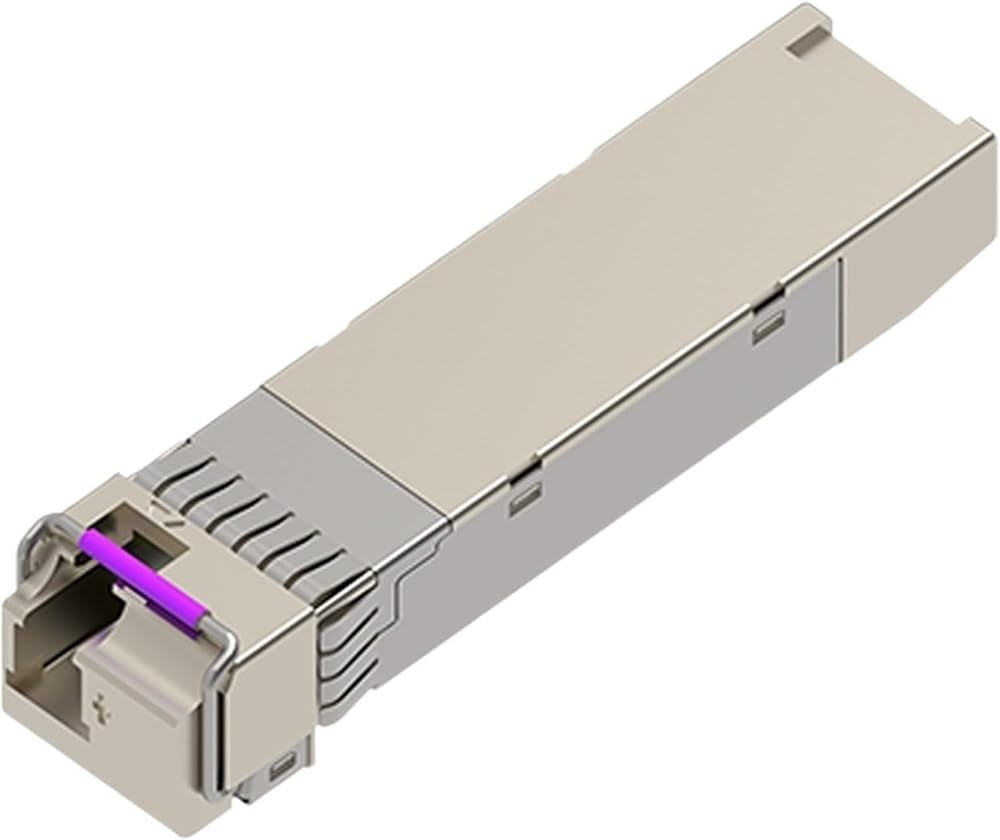

SFP-10G-BX20U Compatible 10GBASE-BX20-U SFP+ Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 20km, LC, DOM)
SFP-10G-BX20U Compatible SFP+ transceiver supports up to 20km over OS2 SMF via an LC simplex connector. This transceiver is compliant with SFF-8431 and IEEE 802.3ae standard. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet etc.
Specifications
AO-SFP-10G-BX20U
Form Factor
SFP+
Max Data Rate
10.3125Gbps
Wavelength
1270nm-TX/1330nm-RX
Max Cable Distance
20km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-6~3dBm
Receiver Sensitivity
Powerbudget
8.4dB
Receiver Overload
0.5dBm
Typical Power Consumption
1W
Extinction Ratio
>3.5dB
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
SFP+ ,CPRI,eCPRI
