JMT ADT-R29A PCIe4.0 x4 to SFF-8611/8612 OCuLink Adapter Card 64Gbps with Half and Full Height Baffle Support Chassis External

Details:
Product Model:R29A
Product Name：PCIe 4.0 x4 to SFF-8611/8612(OCuLink) Adapter Card
Speed Bandwidth: PCIe 4.0 x4

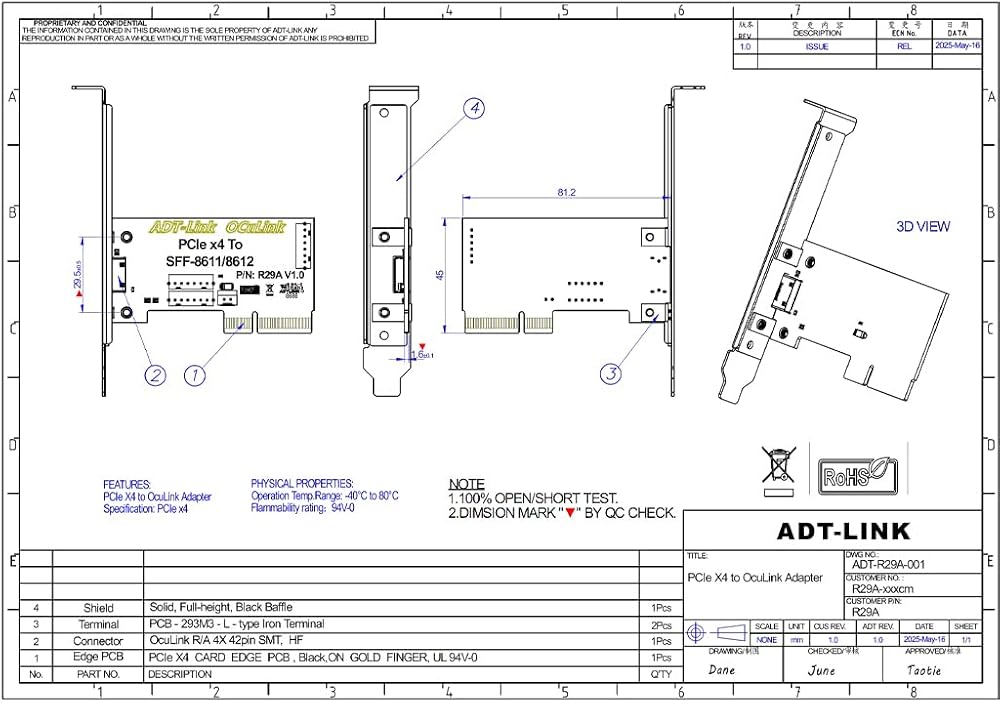

Product Size: Length 94.6mm*Height 121mm*Thickness 21.6mm
Product weight: R29A (31.7g)
Appearance Color: Black
Working Temperature: -40℃~80
Flame retardant grade: 94V0

Advantage:.
1. Support PCIe 4.0 X4 compatible with Gen3/Gen4.

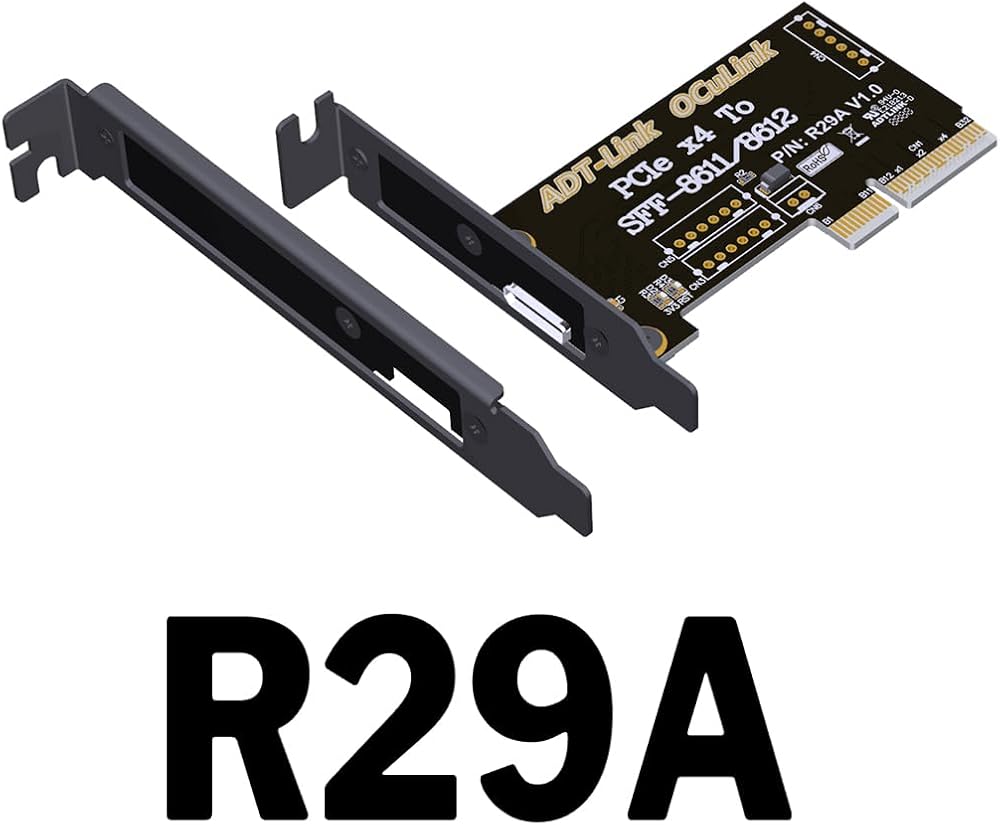

2. Equipped with full-height and half-height baffles for a wide range of environments.
3. Circuit protection design prevents the current generated by the external graphics card from flowing to the motherboard and protects the motherboard.
4. Gold-plated gold fingers, gold thickness up to 10U, in line with the IPC level 1 international standard.
5. High-frequency and low resistance to high temperature and oxygen-resistant PCB board, non-deformation color yellow crystal semi-transparent, not white and not black.

R29A two indicator lights:
D2 lamp for the power indicator, the normal state is always on;
D3 light for RESET light, under normal circumstances will only flash once in the boot state.
