PRODUCT SPECIFICATIONS:
CPU Socket: 2011 (Narrow Type, 56 x 94mm mounting pitch)
CPU Support: Intel Xeon E5-2600 & 4600 Series up to TDP 160 Watts
Solution 3U&Up, Workstation & Tower Desktop Solution

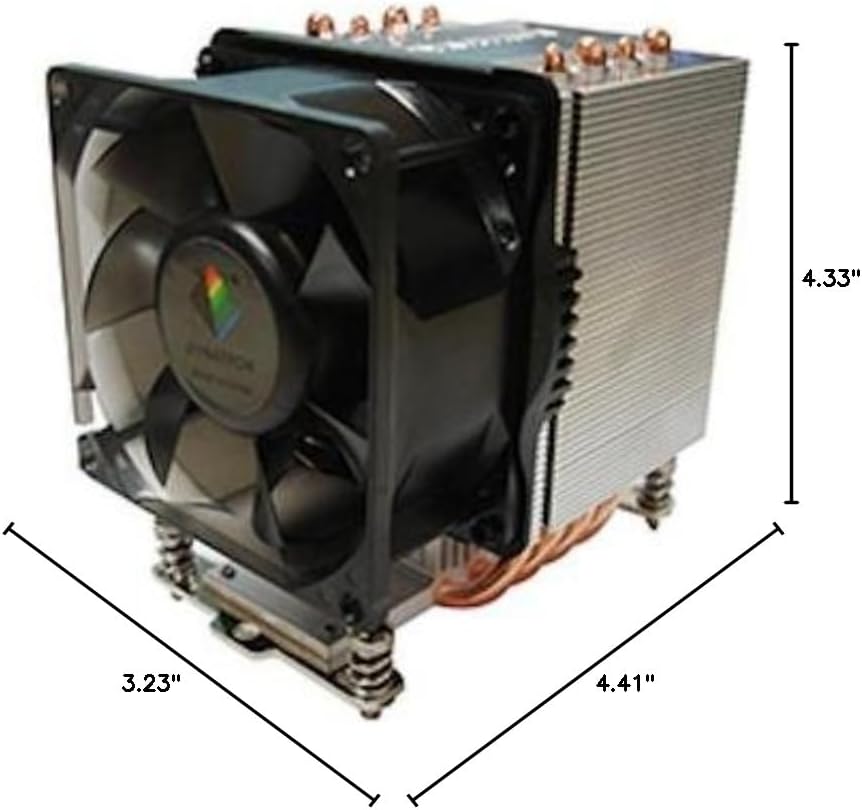

Overall Dimension 112.0 x 82.0 x 110.0 mm
Weight: 550 g

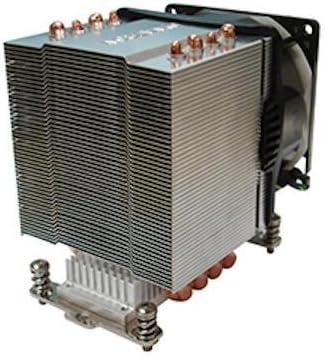

Material: Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan Dimension: 80x80x38 mm
Bearing: 2 Ball Bearing
Rated Voltage:12 V

Speed:
At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 2000 RPM
At Duty Cycle 100%: 3800 RPM

Power:
At Duty Cycle 20%: 2.2 W
At Duty Cycle 50%: 3.6 W
At Duty Cycle 100%: 7.9 W

Air Flow:
At Duty Cycle 20%: 13.8 CFM
At Duty Cycle 50%: 30.78 CFM
At Duty Cycle 100%: 65.4 CFM

Noise Level:
At Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 31.5 dBA
At Duty Cycle 100%: 43.4 dBA

Air Pressure:
At Duty Cycle 20%: 0.42 mm-H2O
At Duty Cycle 50%: 2.45 mm-H2O
At Duty Cycle 100%: 9.75 mm-H2O

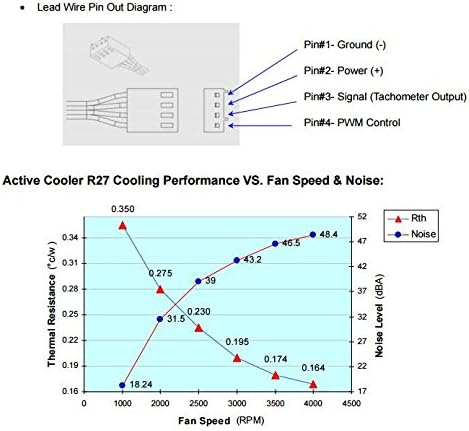

Lead Wire
Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

NOTE:
1. Support CPU Power up to 160 Watts
2. Pre-print thermal compound Shin-Etsu G751
3. Backplate is not included

CERTIFICATIONS:
RoHS Compliant
