Features:
Identify the true or false coin according to the material, diameter and thickness of the COINS, the accuracy is high.
Accept 5 different kinds of coins at the same time, CPU process control, automatically remembers the set of sample COINS.
Can be applied in game machines, vending machines, coin-operated telephone, coin-operated washing machines, coin-operated toy cars, massage chairs, etc.
Can add the function of cumulative signal output and time control, prohibiting coin acceptor.
Anti-phishing, anti-mixed coin, anti-shock, anti-high frequency, and can connect counter.
Prevent phishing and other means of cheating, cheat alarm.

Specifications:
Back shell material: PC Plastic
Identify Accuracy Rate: 95%
Applying Coins Diameter: 15-29mm/0.59-1.14inch
Applying Coins Thickness: 1.8mm-3.0mm
Atmospheric Pressure: 80Kpa-106Kpa
Operating Voltage: DC12V ± 10%
Working Current: 50mA
Moment Maximum Current: 350mA (less than 0.5S)
Humidity: less than 95%
Storing Temperature: -20 Degree --+85 Degree
Operating Temperature: -10 Degree --+60 Degree
Recognition Speed: Less than 0.6sec
Product size: 64* 124* 143mm/2.52 * 4.88 * 5.63inch
Screw hole: 5 * 5mm/0.20 * 0.20inch
Hole pitch: 46 * 97mm/1.81* 3.82inch

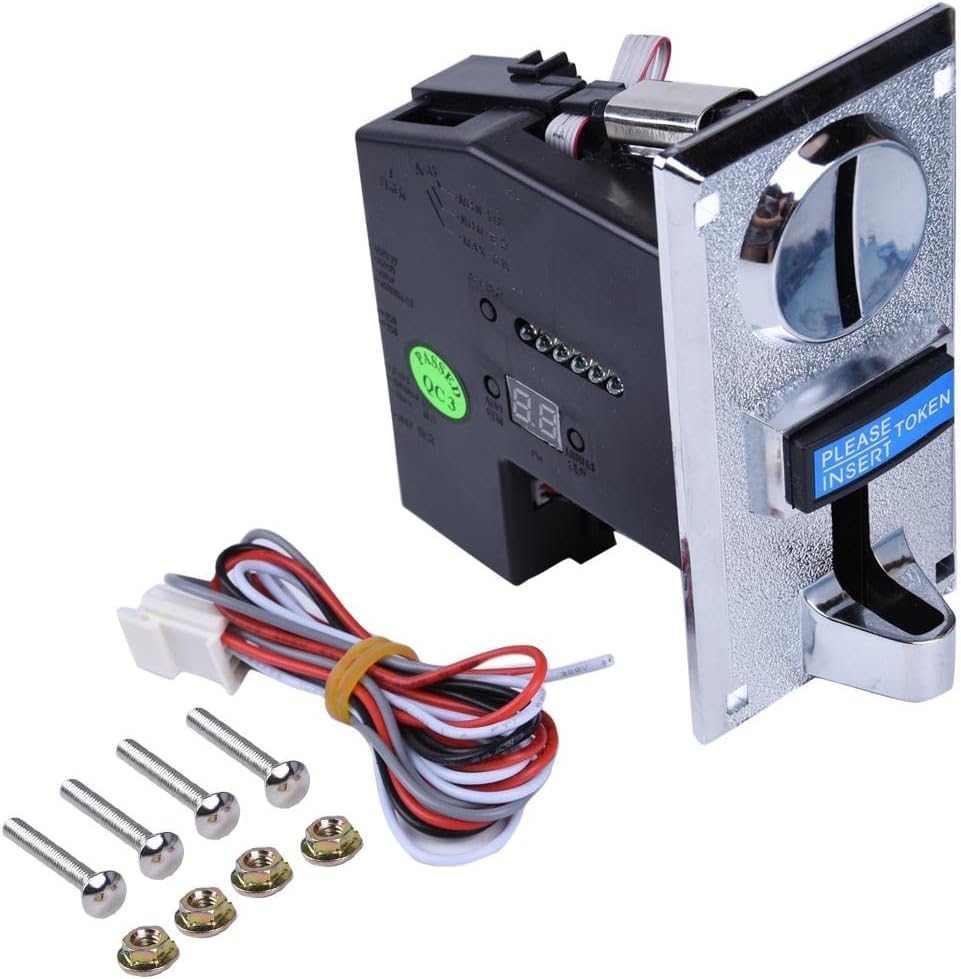

Package Content:
1 x coin acceptor
1 x installation accessories (screw, nut, connector, As picture shows)
