EQ 7 Band Sound Equalizer Home Audio, 2 Channel Car Audio Equalizer, 3.5mm Interface Digital Headphone Stereo Equalizer for Home Audio, 12dB High Bass Adjustment

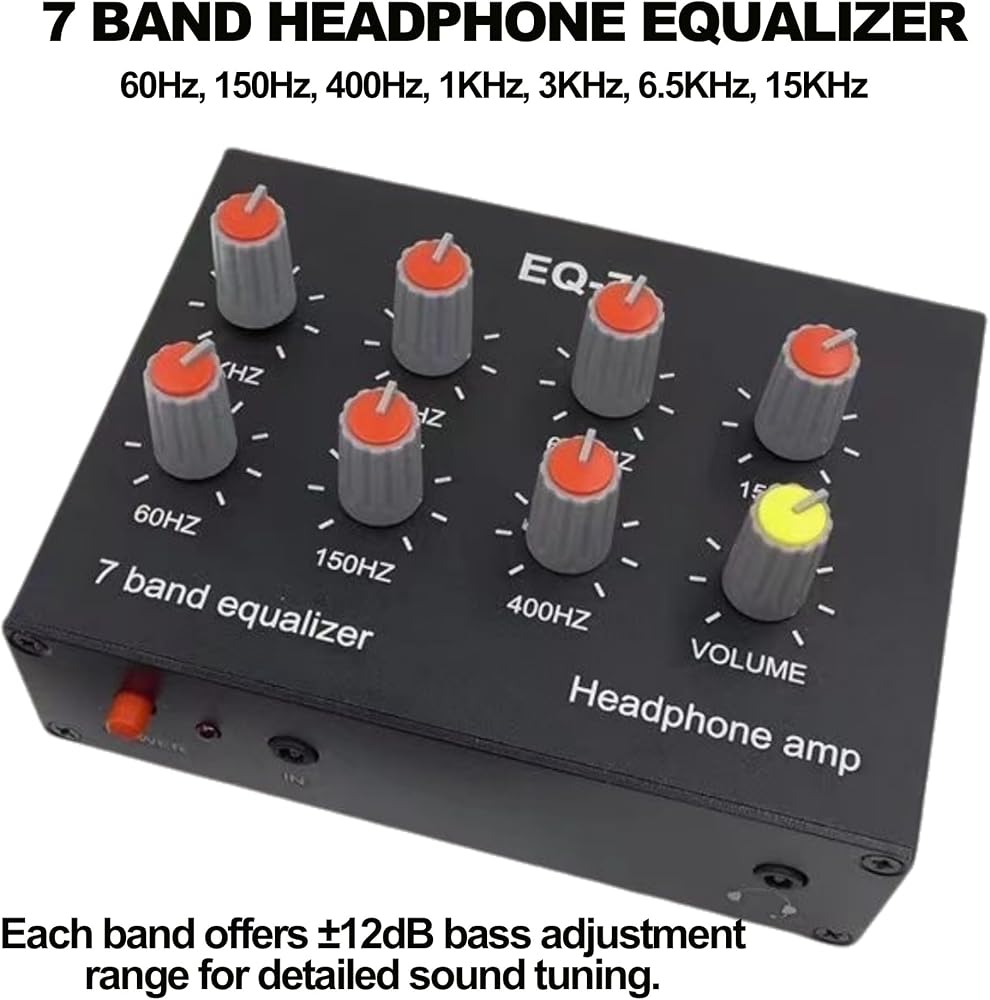

EQ equalizer home audio provides precise control over 7 frequency bands: 60Hz, 150Hz, 400Hz, 1KHz, 3KHz, 6.5KHz, and 15KHz, each band offering ±12dB bass adjustment range for detailed sound tuning

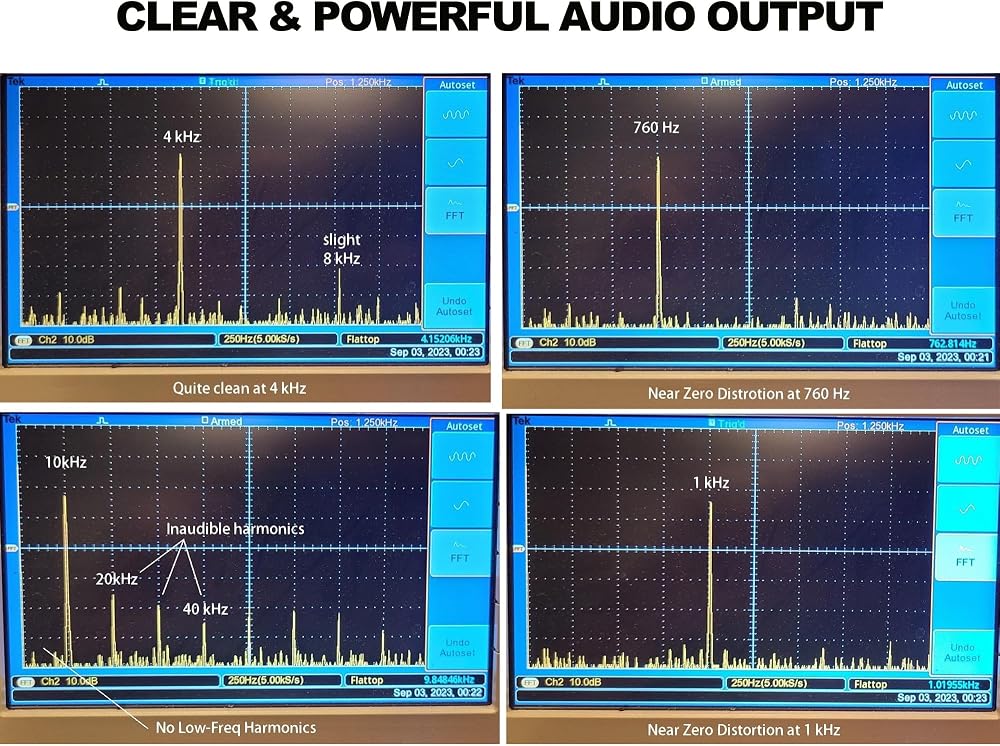

Stereo equalizer for home audio utilizes classic TL074 and NE5532 op-amp circuits for superior sound quality, pre-amp gain of 5x (14dB) ensuring clear and powerful audio output

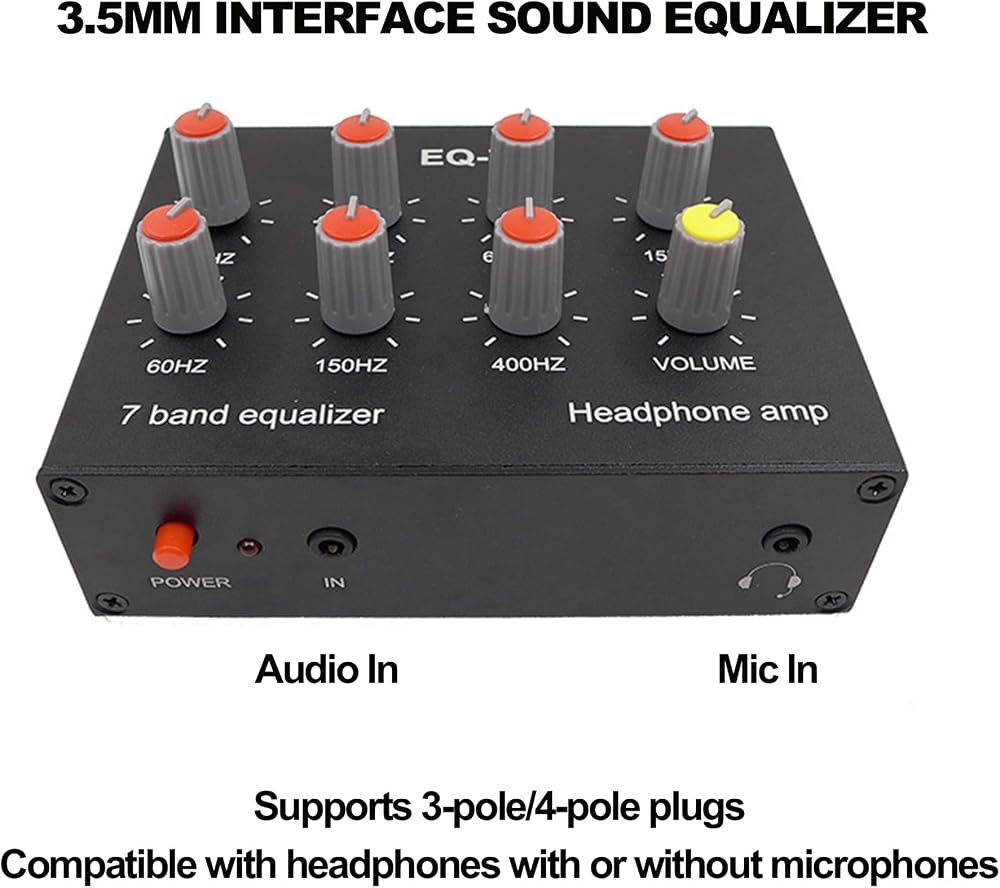

Car audio equalizer equipped with a 3.5mm input/output interface that supports both 3-pole and 4-pole plugs, compatible with headphones with or without microphones, allowing for normal voice calls on mobile phones

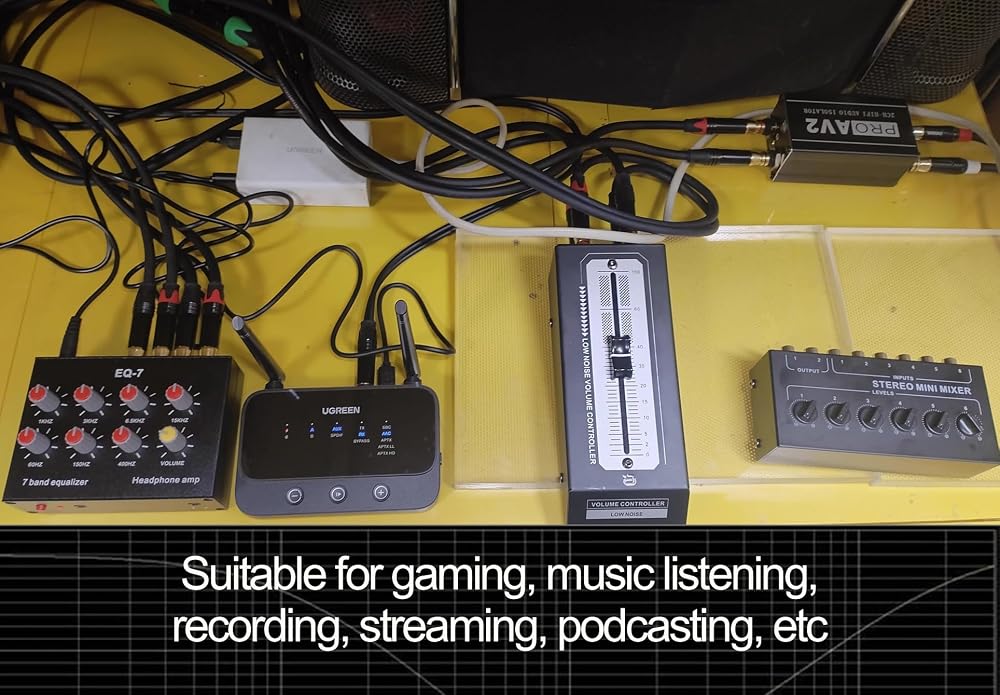

Equalizer home audio features input impedance of 20KΩ and output impedance of 600Ω to ensure compatibility with a wide range of headphones from 16Ω to 600Ω, suitable for gaming, music listening, recording, streaming, podcasting, etc

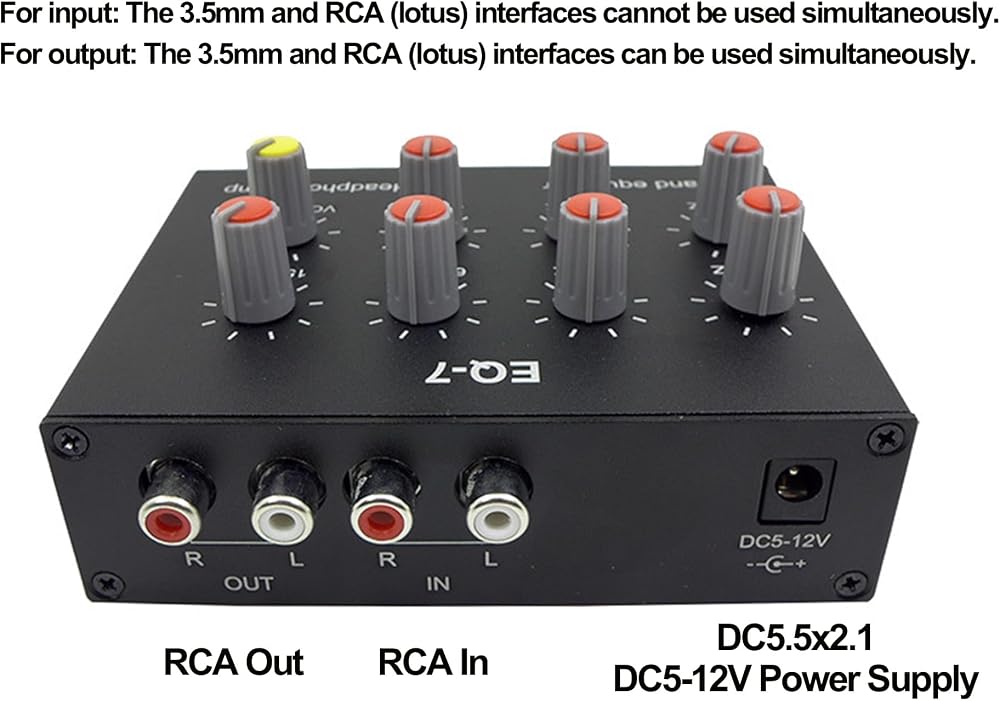

Car audio equalizer includes a secondary set of RCA (lotus) interface terminals for expanded connectivity, ideal for both home and mobile use, providing enhanced audio experiences
Stereo equalizer for home audio supports DC 5V to 12V power inputs, with low power consumption about 1.8W, and current draw of 390mA at 5V and 140mA at 12V
SPECIFICATION
Model: EQ-7
Material: aluminum alloy
Power Supply :DC5V-12V
Interface: DC5.5x2.1/3.5mm
Input Impedance: 20K
Output Impedance: 600Ω
Balance Circuit Control Range: ±12dB
Balance Frequency: 60Hz, 150Hz, 400Hz, 1KHz, 3KHz, 6.5KHz, 15KHz

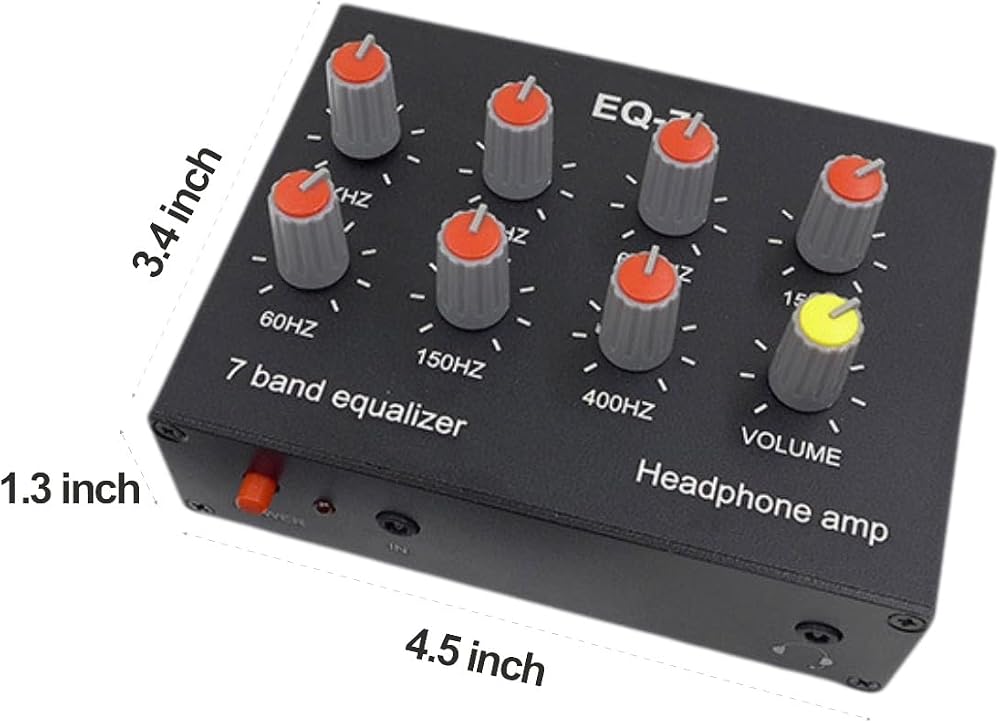

Dimensions: 4.5*3.4*1.3 inches
Weight: 0.55 lbs.
PACKAGE
1 x Sound EQ Equalizer Home Audio
1 x 12V Power Cable
