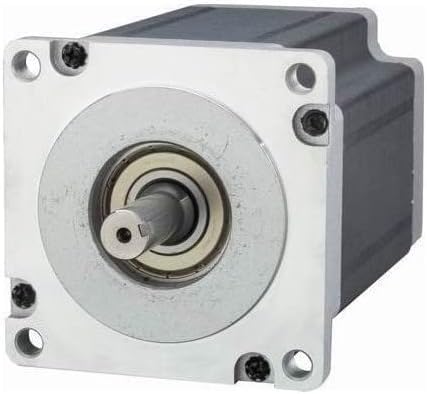

110HS3A120-356 Three-phase hybrid stepper motor
Electrical Specification
Model No.
± 10%
Torque @rated
speed
Current
/Phase
± 20%
Inductance
/Phase
± 10%
Resistamce
/Phase
Rotor
Inertia
Motor
length
Motor
Weight
# of
leads
N.m
A
mH
Ohms
g.cm 2
mm
Kg
57HS3A50-356
0.6
3.5
1.7
1.3
190
50
0.59
6
57HS3A56-506
0.9
5
1
0.5
220
56
0.72
6
57HS3A76-506
1.5
5
1.9
0.87
380
76
1.1
6
86HS3A70-506
2
5
2.3
0.95
1170
70
1.7
6
86HS3A103-206
4
2
28
6.5
2340
103
2.85
6
86HS3A135-236
6
2.3
31
7.7
3500
135
4
6
110HS3A120-406
8
4
19.2
3.65
850
122.5
6.2
6
110HS3A140-406
12
4
22
3.2
1050
142.5
8
6
Item specifics:
Type: Hybrid
Phase: 3
Model number: 110HS3A120-356
Certification: ce
Certification: UL
