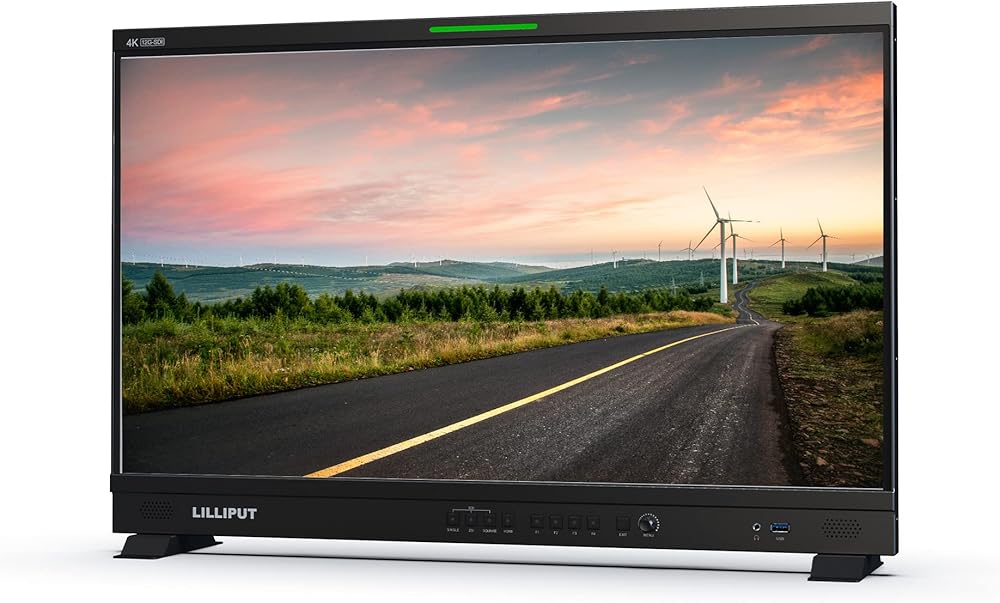

Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor (V Mount) Key Features:
12G-SDI and 4K HDMI 2.0 Connectivity
3840 x 2160 Display Resolution

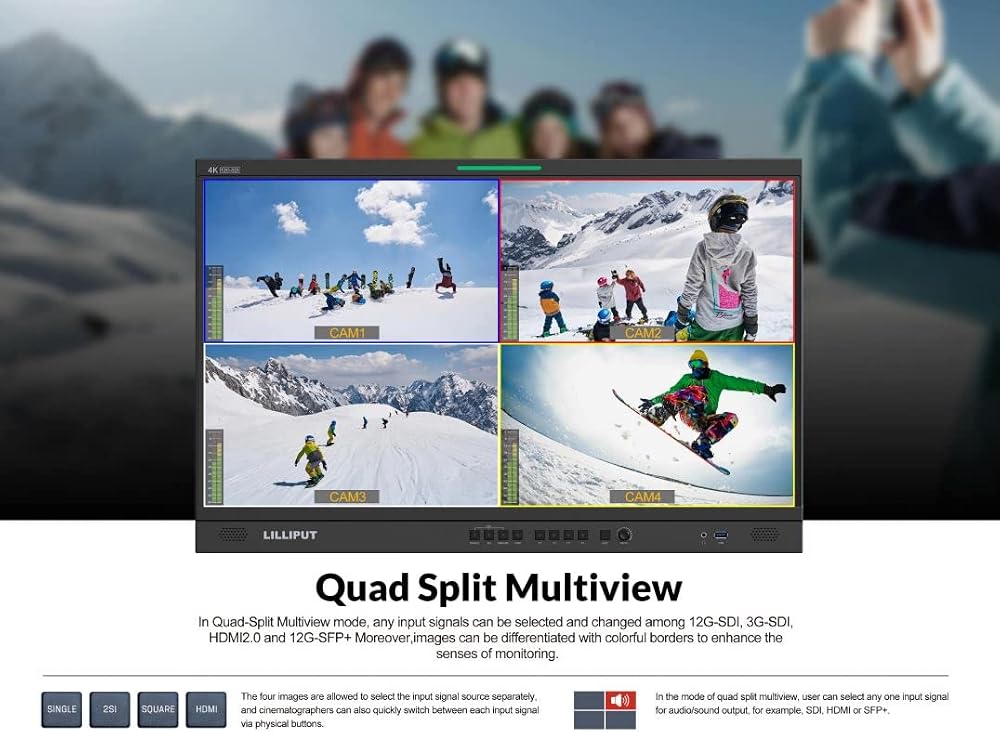

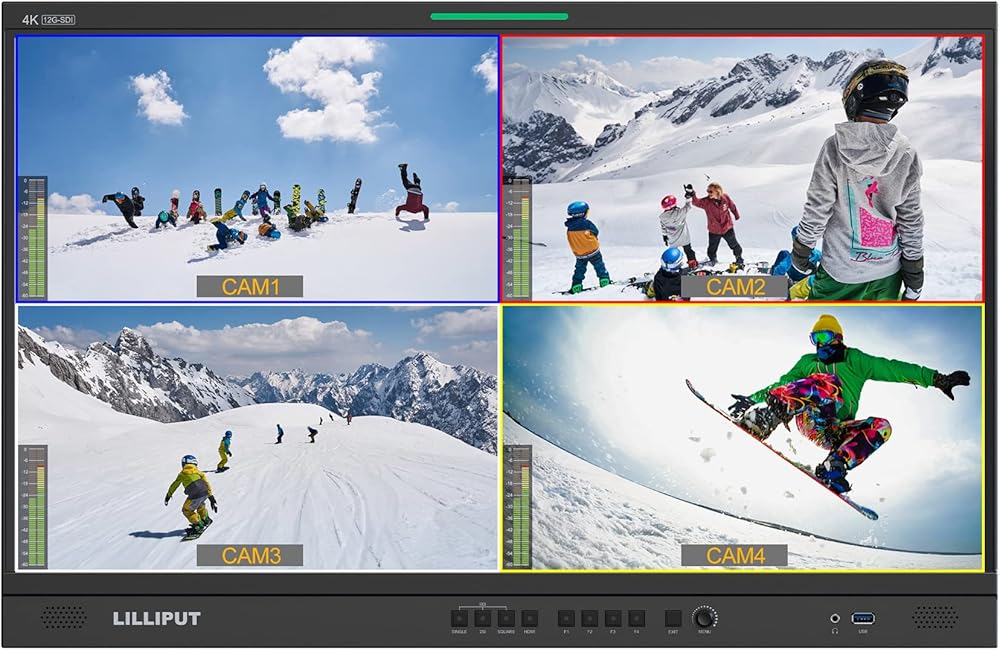

Quad-Split Multiview Display

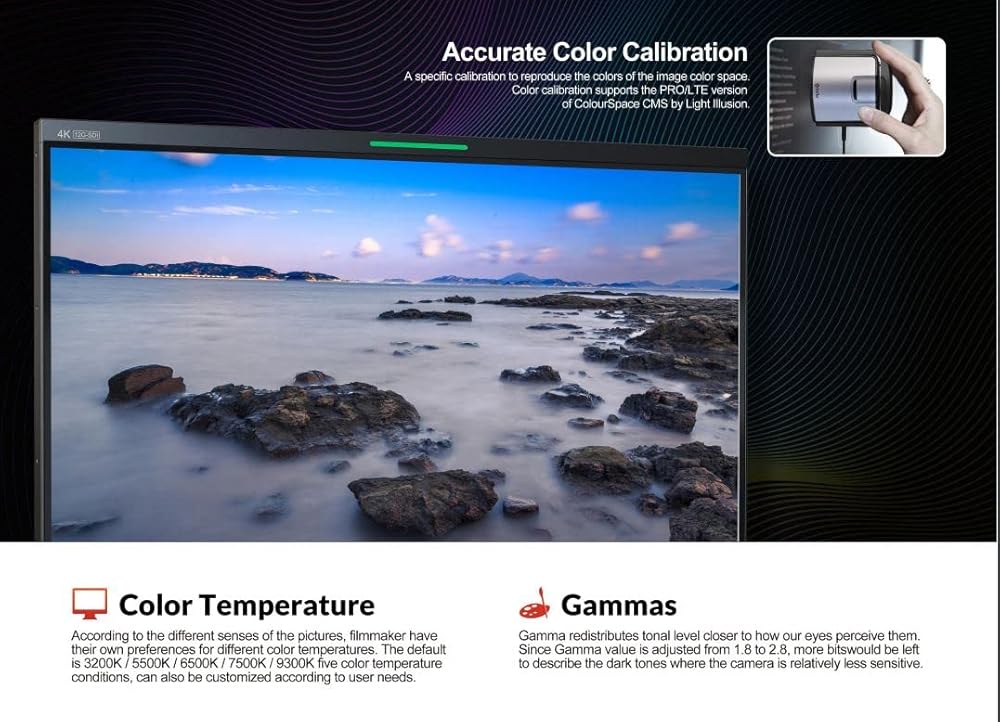

Multiple Color Temperature Presets
HDR and 3D-LUT Support
Built-In Speakers, 3.5mm Earphone Jack
Supports DCI 4K60 Input

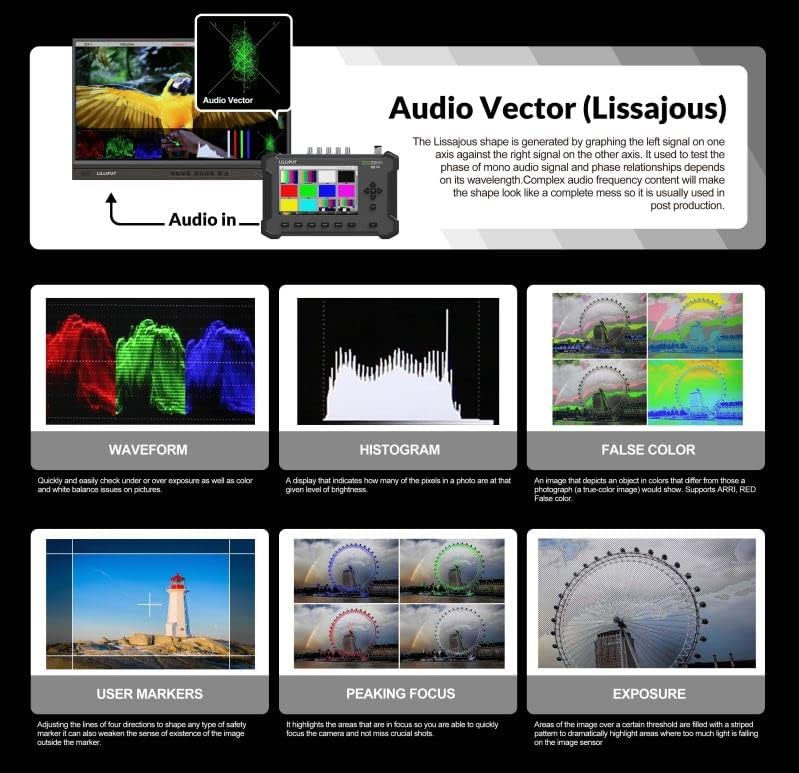

Audio Vector, Histogram, and Waveform

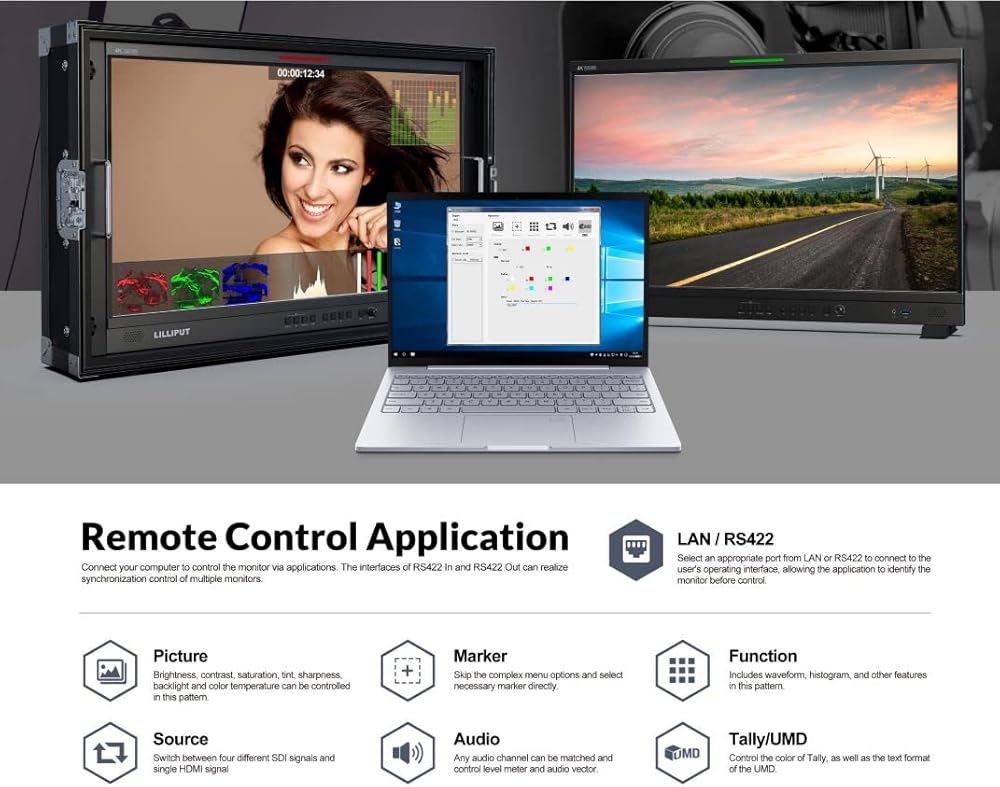

RS-422 Remote Control Application
Integrated Tally Light
DISPLAYPanel28″
Physical Resolution3840*2160
Aspect Ratio16:9
Brightness300 cd/m²
Contrast1000：1
Viewing Angle178°/178°（H/V)
HDRST2084 300/1000/10000/HLG
Supported Log FormatsSLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User… Look up Table(LUT)support3D LUT (.cube format)
TechnologyCalibration to Rec.709 with optional calibration unit

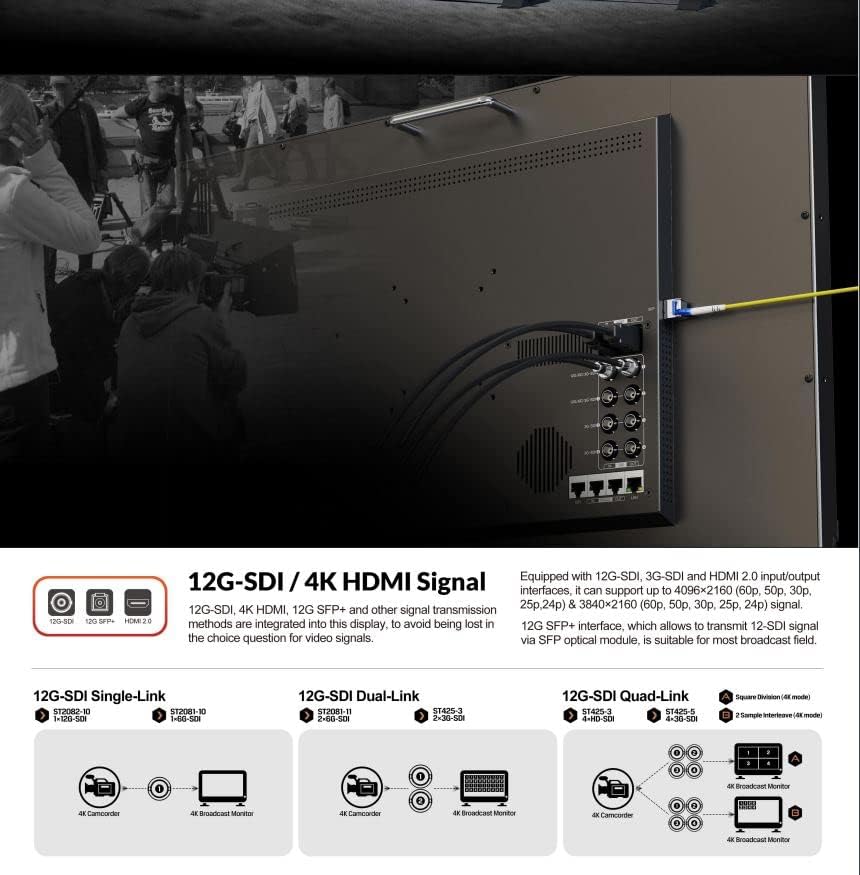

VIDEO INPUTSDI2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
SFP1×12G SFP+(Fiber module for optional,not included )
HDMI1×HDMI 2.0
VIDEO LOOP OUTPUTSDI2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI1×HDMI 2.0
SUPPORTED FORMATSSDI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
SFP2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT
(48kHz PCM AUDIO)SDI16ch 48kHz 24-bit
HDMI8ch 24-bit
Ear Jack3.5mm
Built-in Speakers2
REMOTE CONTROLRS422In/out
GPI1
LAN1
POWERInput VoltageDC 12-24V
Power Consumption≤60W (15V)
Compatible BatteriesV-Lock
Input Voltage(battery)14.8V nominal
ENVIRONMENTOperating Temperature0℃~40℃
Storage Temperature-20℃~60℃
OTHERDimension(LWD)638mm × 414.3mm × 54.4mm
Weight8.6kg
What's included in the package:
15V DC adapterx1 (Ship correct plug according to your country)
VESA Mount plate x 1
V mount plate x1
Base Bracket x 1 set
USB Flash Disk x1
