Specification:
【Input voltage】 : DC8.5V-48V
【Input current】 :10A (max) more than 8A, please strengthen heat dissipation
【Maximum input voltage】 : 40V
【Minimum output voltage】 : 10V
【Static working current】 10mA (when 10 liters of 20V, the higher the output voltage, the static current will increase)
【Output current】 If 10A MAX exceeds 6A, please strengthen heat dissipation
【Constant current range】 0.2-8A
【Output power】 = input voltage *10A
【Operating frequency】 =150KHz
【Conversion efficiency】peak 96%
【Installation method】 : 4 3mm screw holes

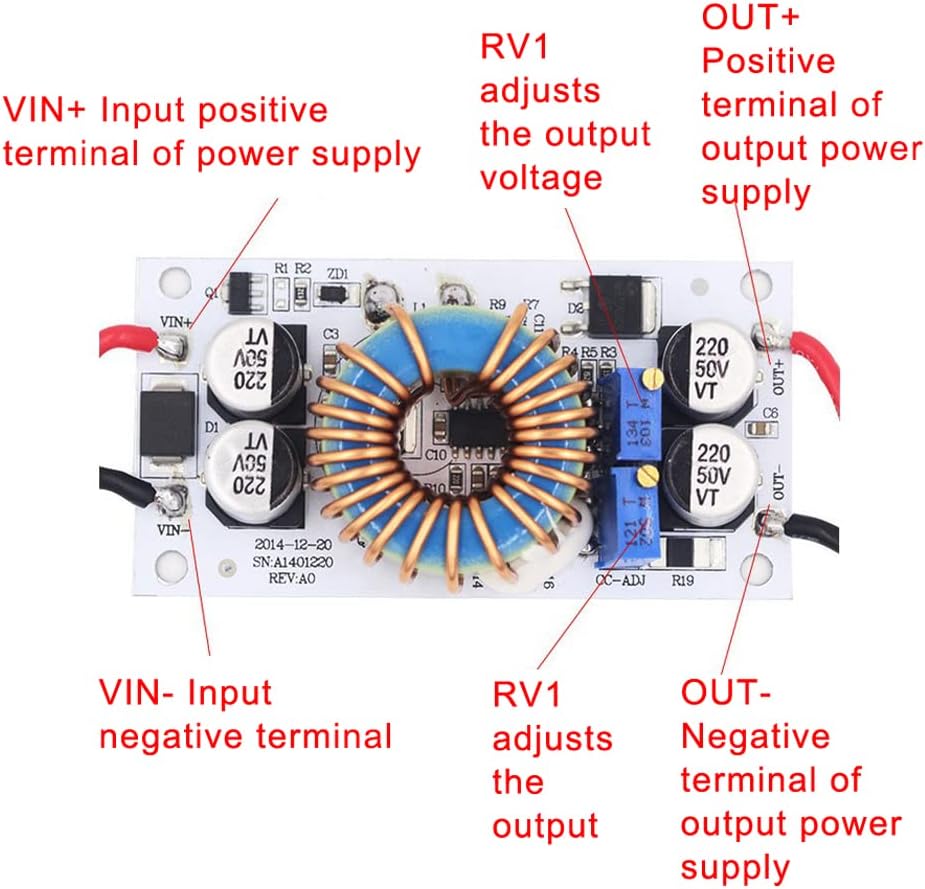

【Wiring method】 Wiring output

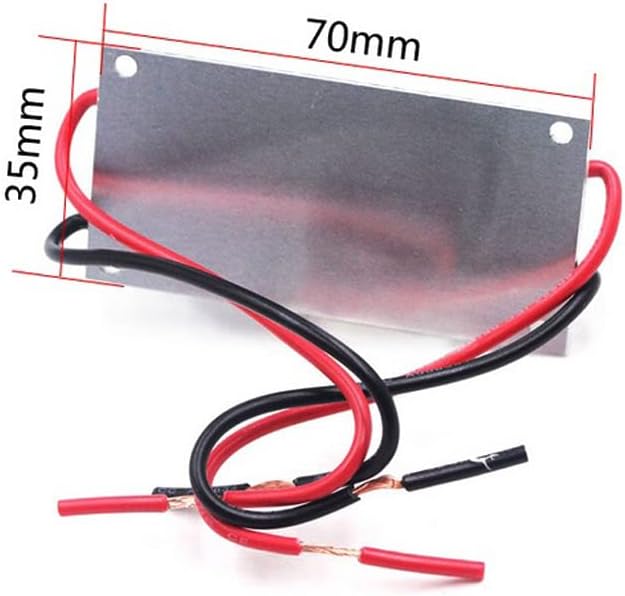

【Module size】: 70mm*35mm

Applications:
1, DIY a power supply, 12V can input and output can 12-50V adjustable.
2, the power supply for your electronic device, according to your
system can set the output voltage value.
3, as the car power supply for your laptop, PDA or a variety of digital
products supply.
4, DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.
5, solar panel regulator.
6, To the battery, rechargeable lithium batteries.
7, driving high-power LED lights.

Package includes:
1* power module
