مميزات خاصة

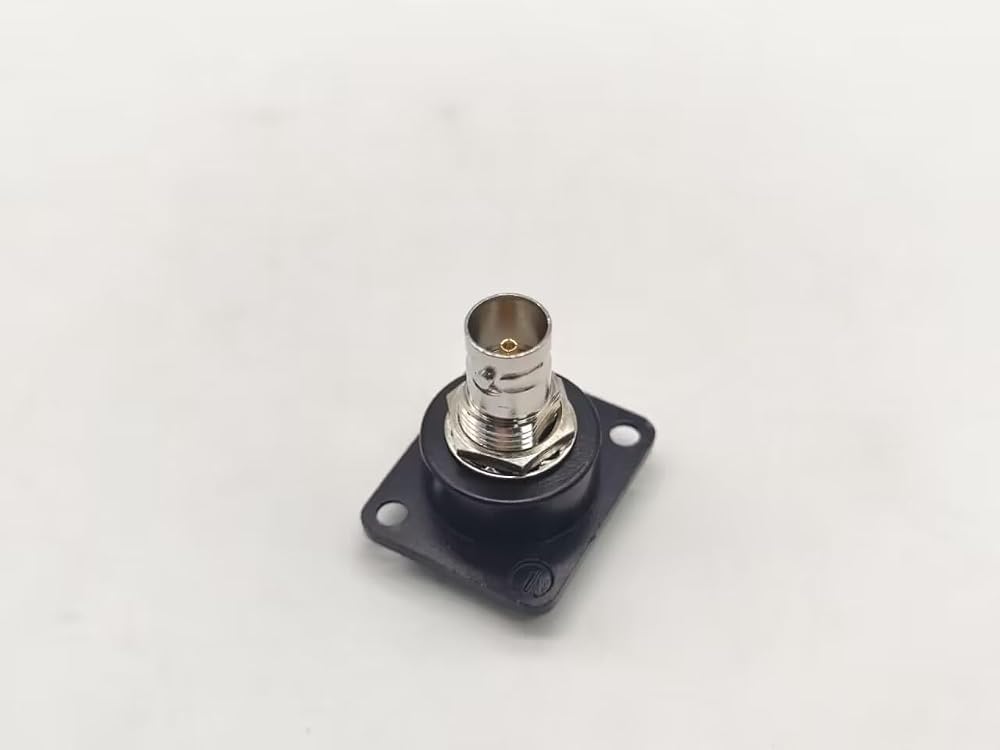

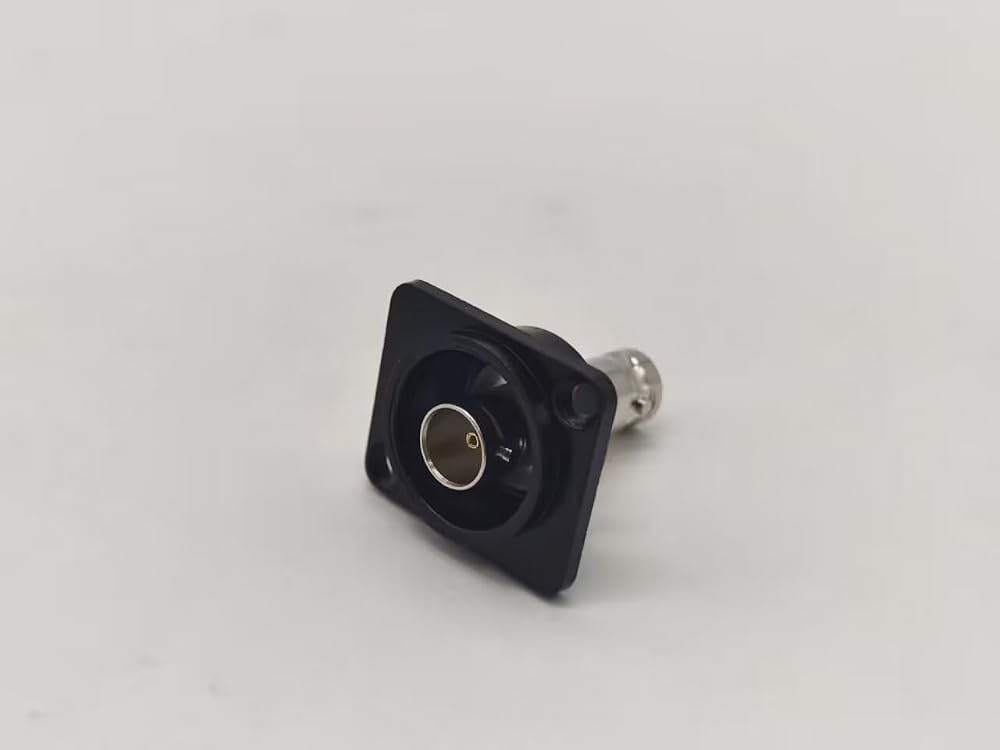

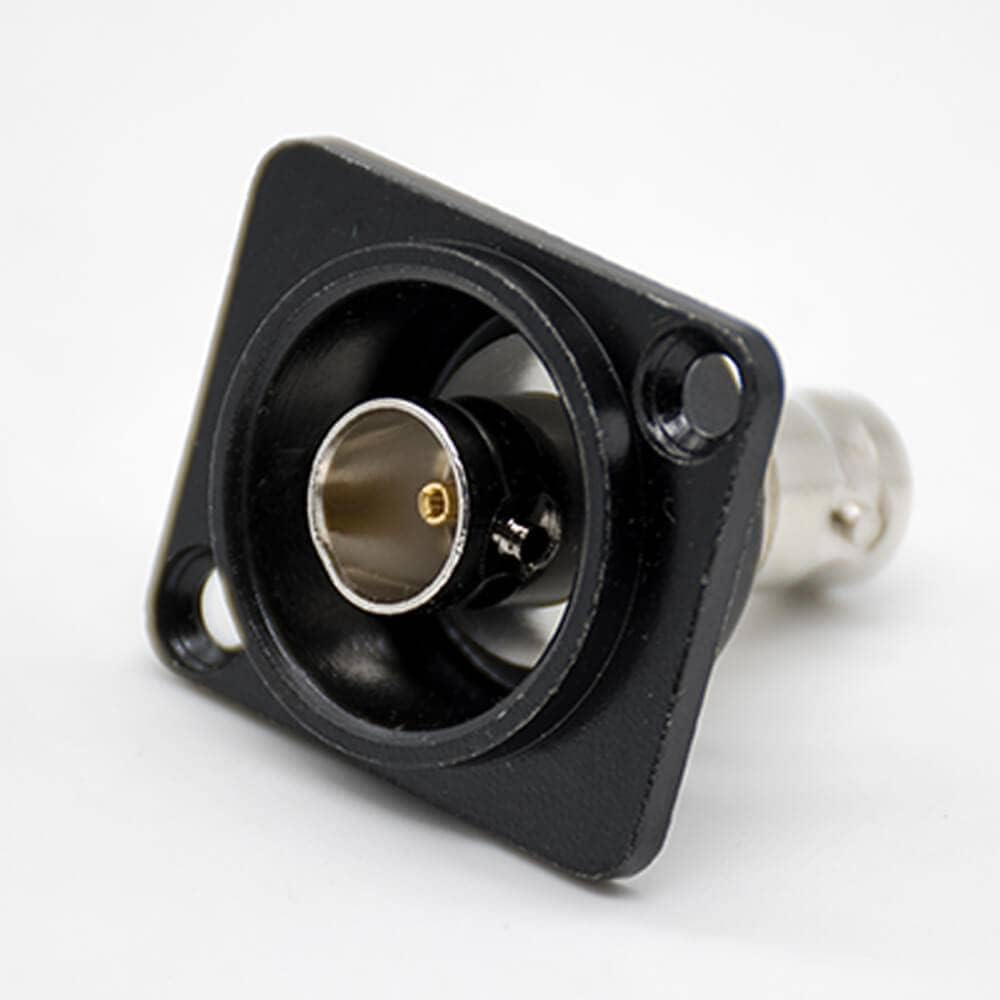

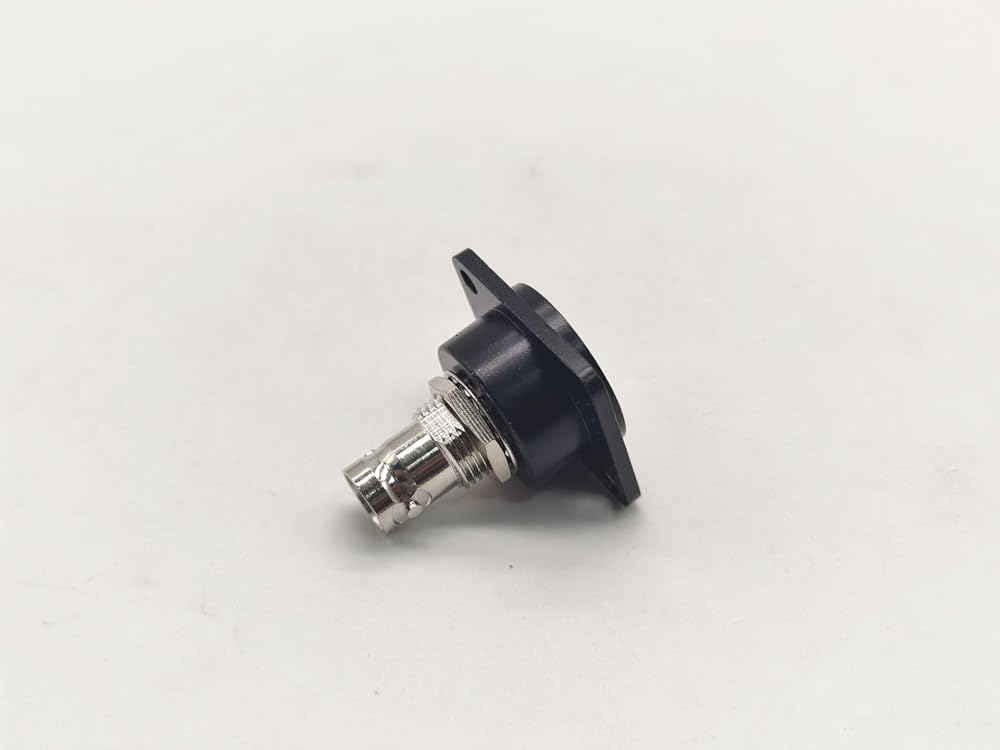

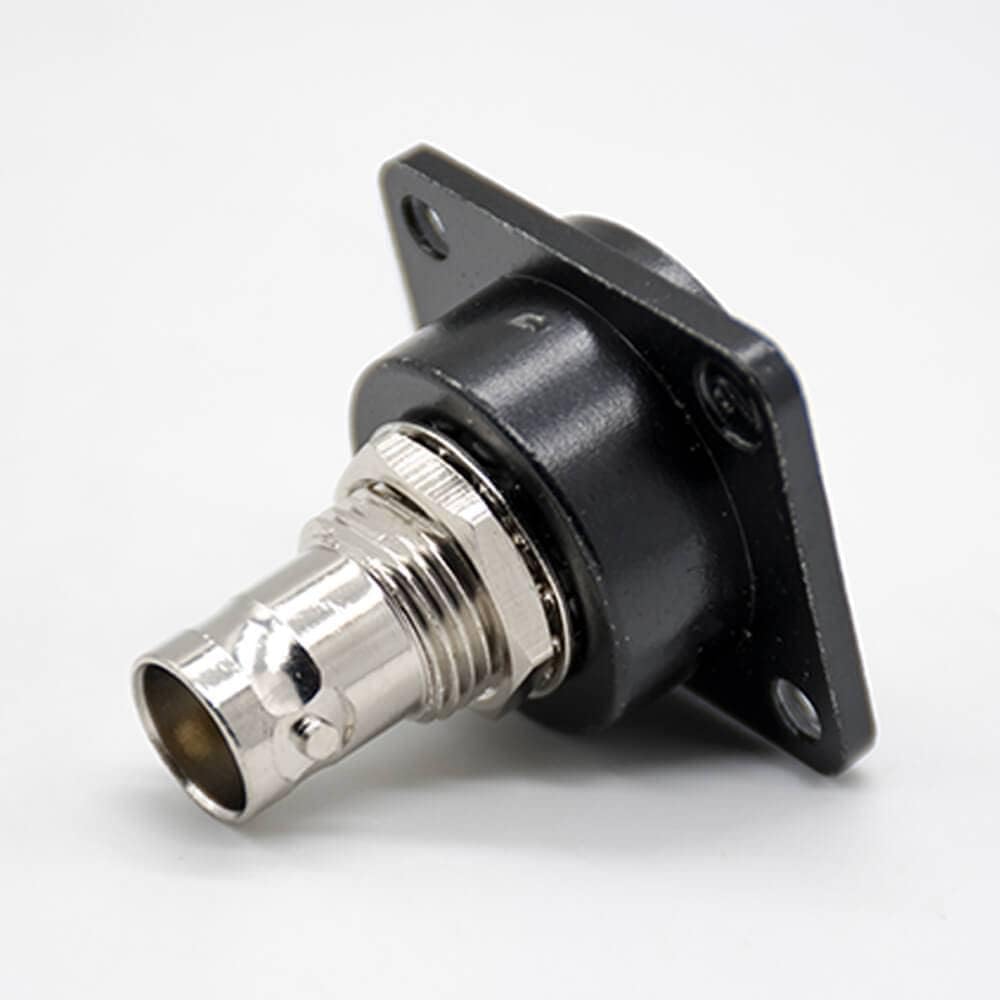

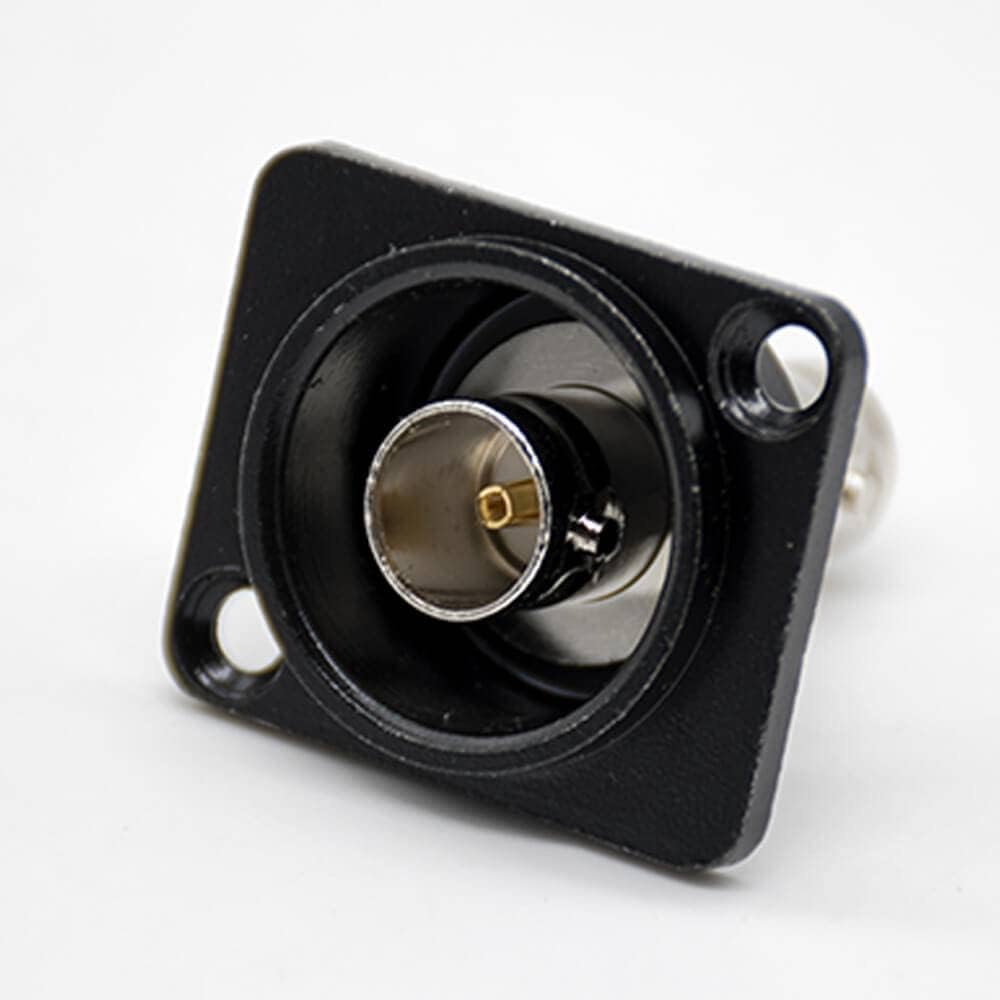

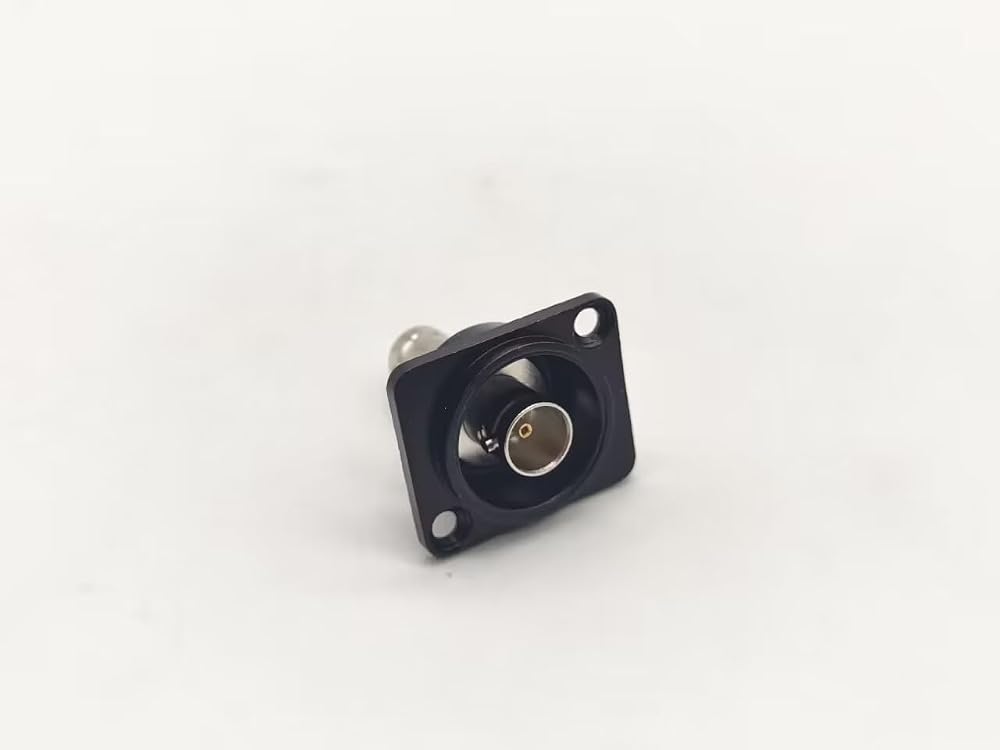

Adapter,BNC,Female To Female,Straight,Nickel Plating,Panel Mount,Two Hole Flange
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
Main Application of BNC Adapter:Hand-held field Device and Instrumentation，Instrumentation，Bluetooth and GPS，Wireless Base Stations, Cellular Mobile System， M2M Communications, Vehicle Tracking System
Professional and trustworthy connector supplier. High quality, if there is a quality problem, we promise a 100% refund within 30 days.

وصف

Electrical Characteristics

Impedance：50 ohm
Frequency Range: 0~18 GHz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402 1
70 V RMS max. for RG178
Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

Temperature Range：-65°C to +165°C
Vibration: MIL-STD-202 Method204
Corrosion resistance: MIL-STD-202 Method 101

Material:

Body:(Material)Brass+(Finish)Au:1-3u"
Center Contact Pin:(Material)Brass +(Finish)Au:5u"
Insulator：(Material)TEFLON+(Finish)None

From the OEM Original Factory, same quality with much better price.
