NOTE:
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and loads in both directions.
Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
With small friction and high-limit speed, Uxcell's Deep Groove Ball Bearings are cost-effective and require little maintenance.
These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
Single-row, pre-lubricated, normal accuracy.

Selection Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

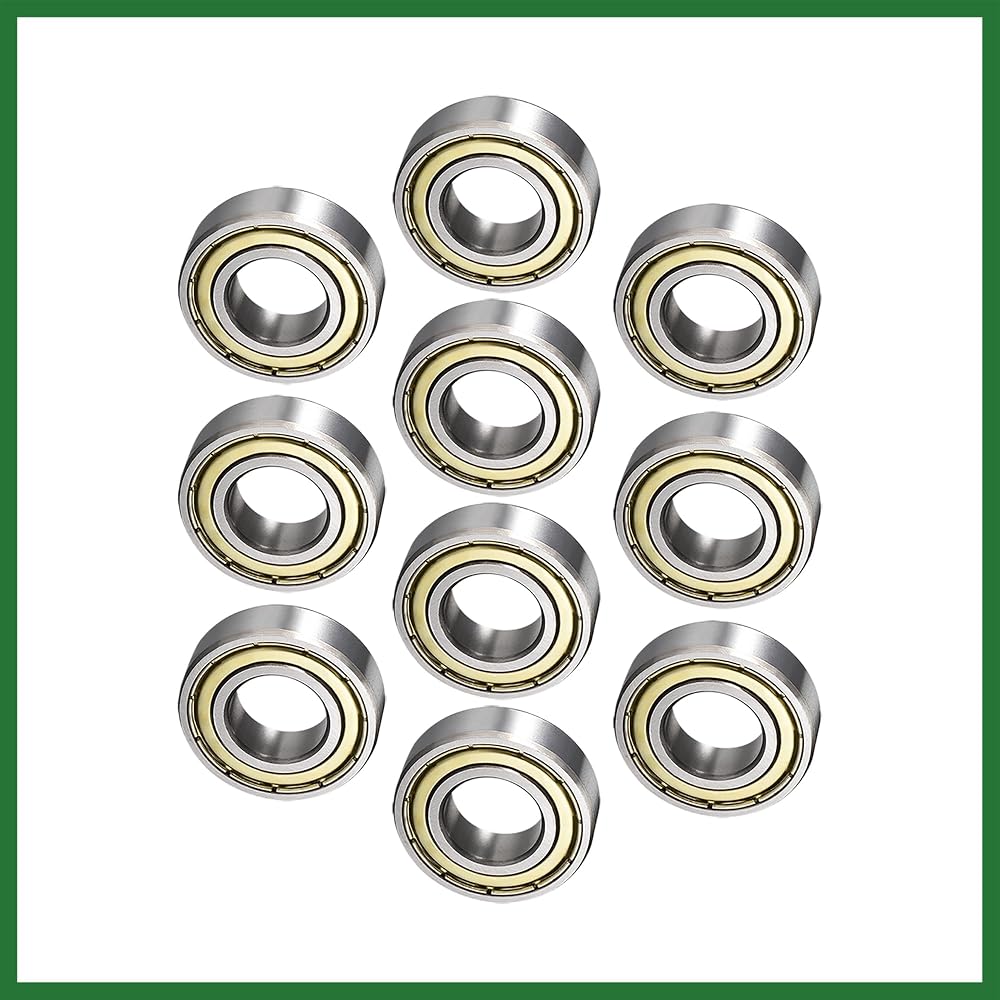

Model: 6003ZZ

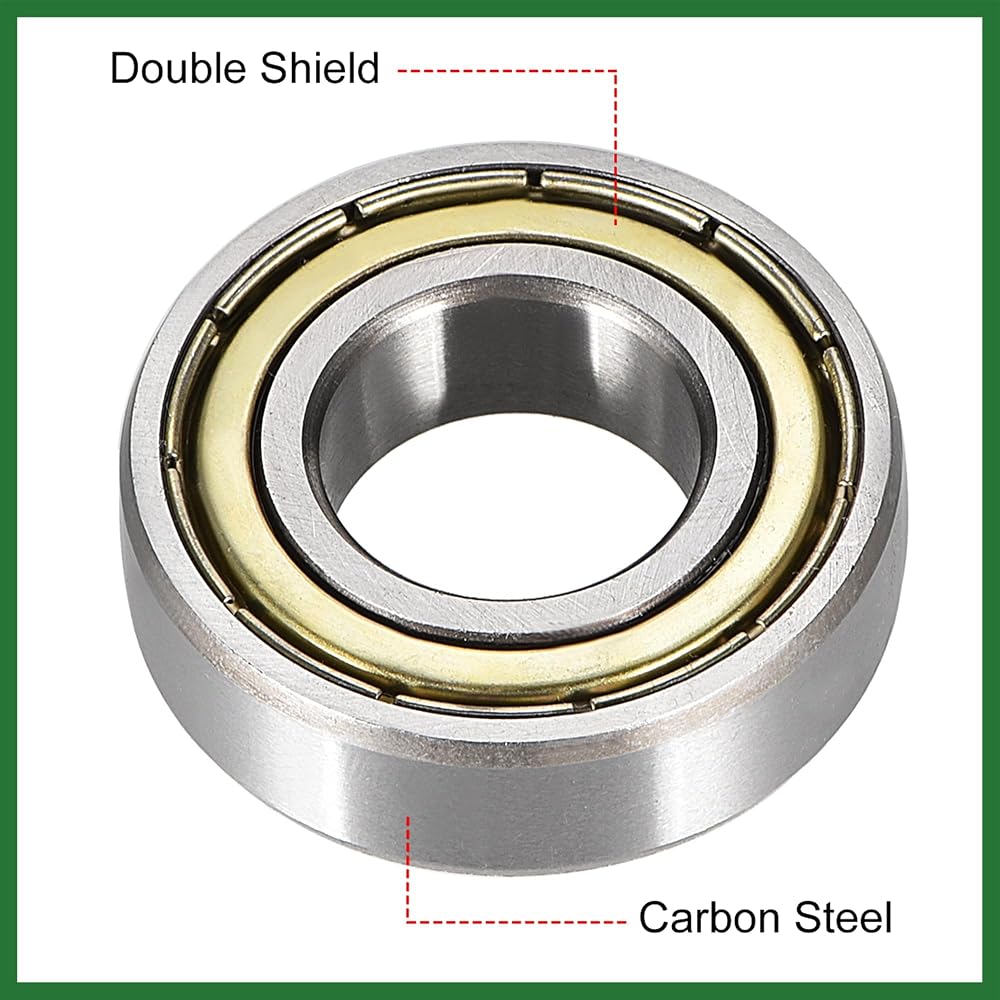

Shield Type: Double Shield
Material:High Carbon Steel
Heat Treatment:Quenching
Hardness: HRC50-55
Cage Material: Stamping Steel

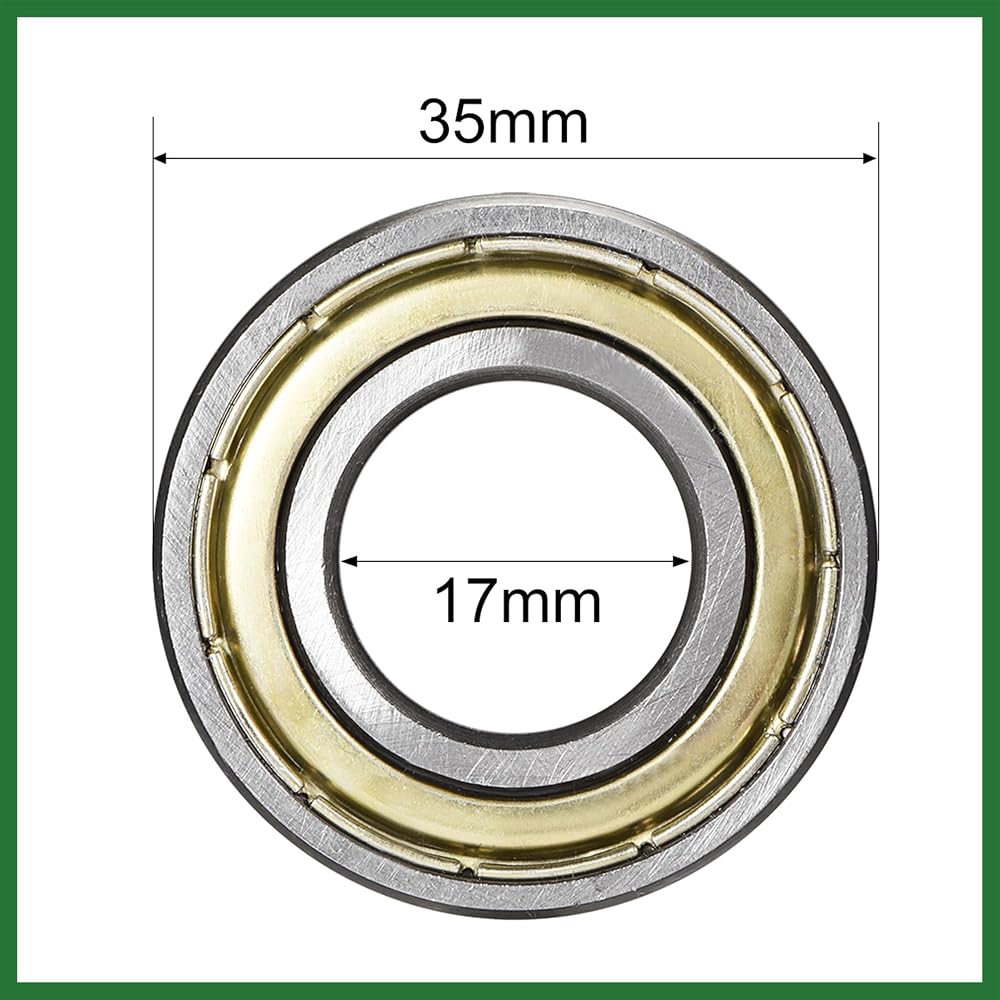

Inner Diameter (d): 17mm
Outer Diameter (D): 35mm

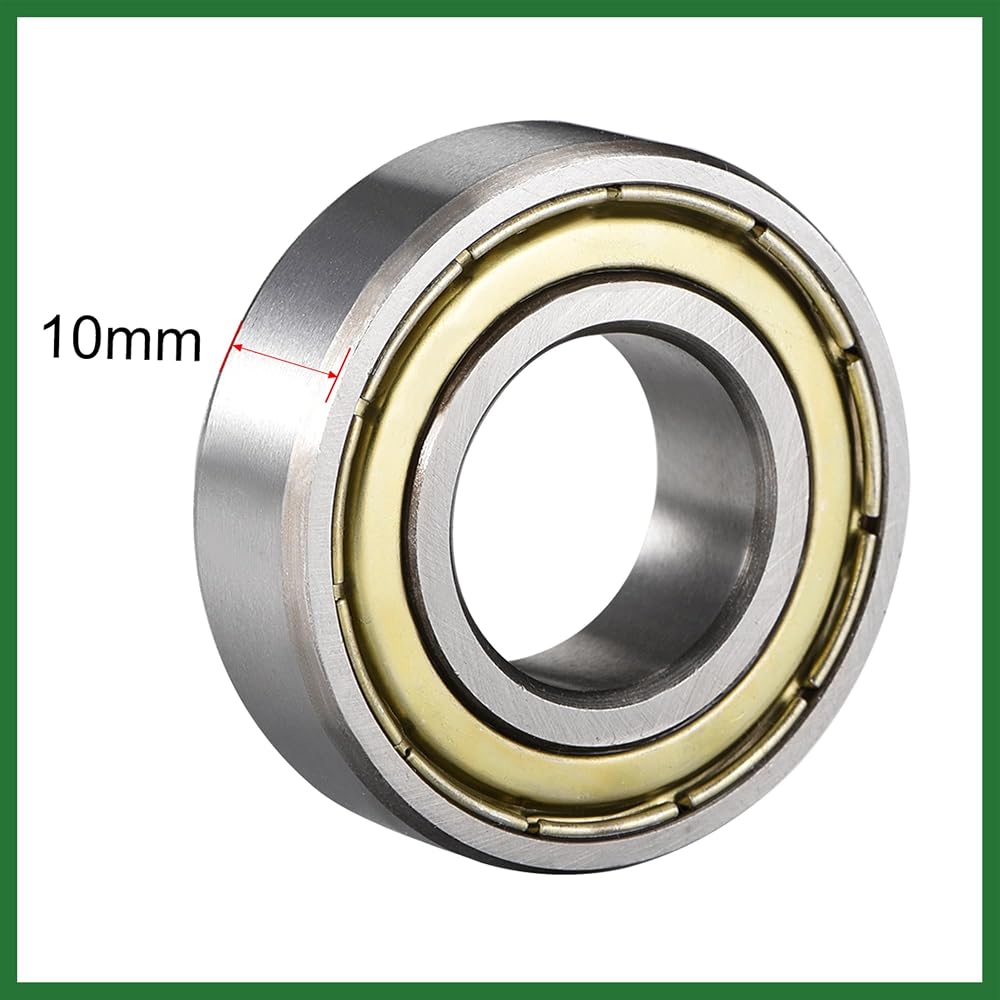

Thickness (B): 10mm
Dynamic Load Rating (Cr): 6kN
Static Load Rating (Cor): 3.25kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z1
Number of Pack: 10 Pcs
Weight: 395g
