Specification:
Features:

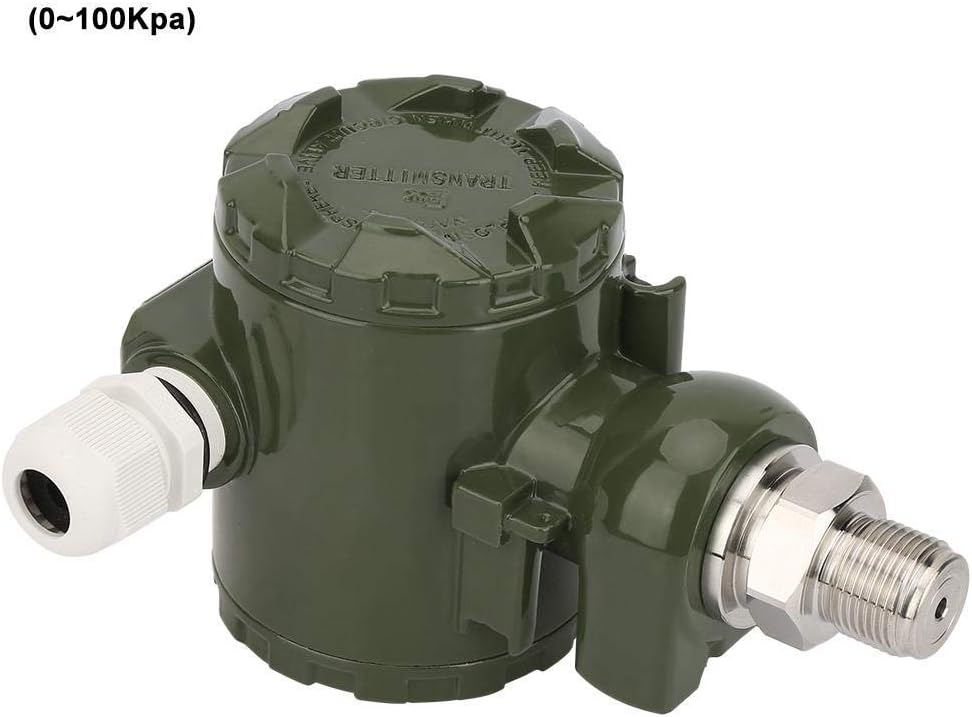

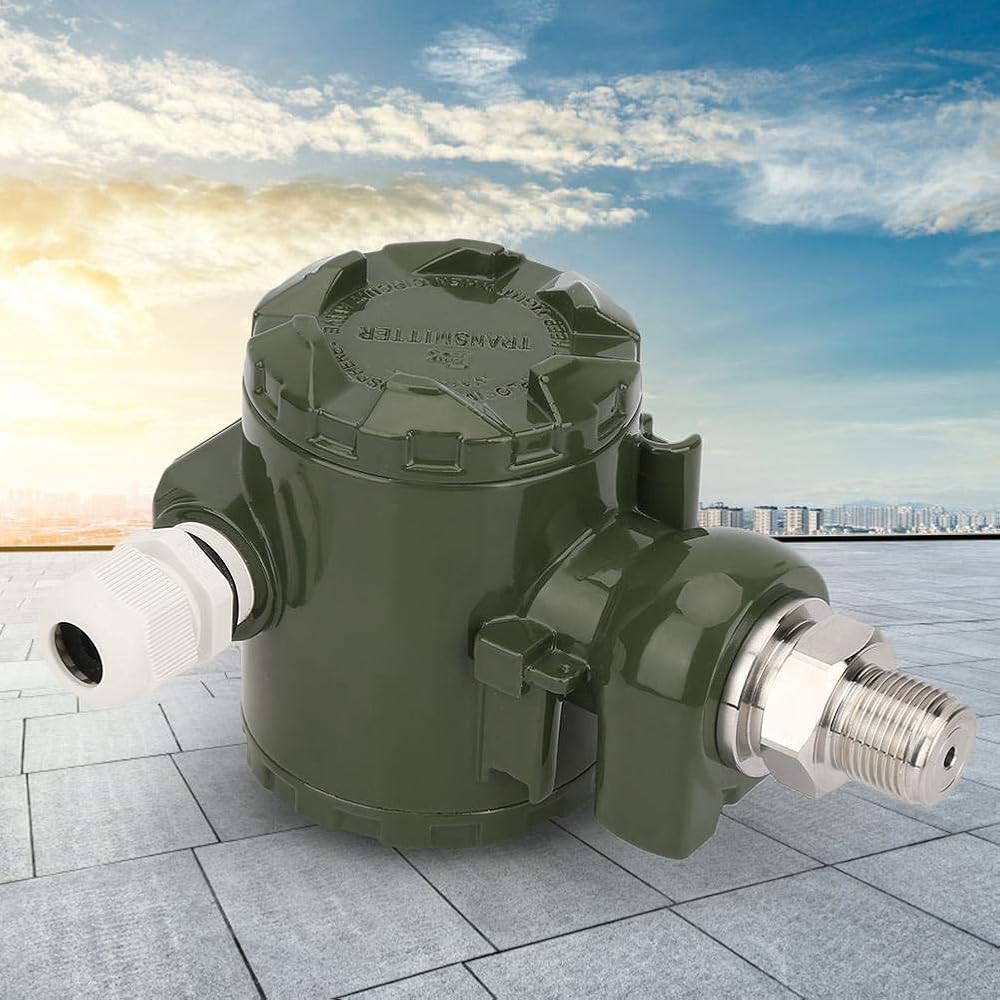

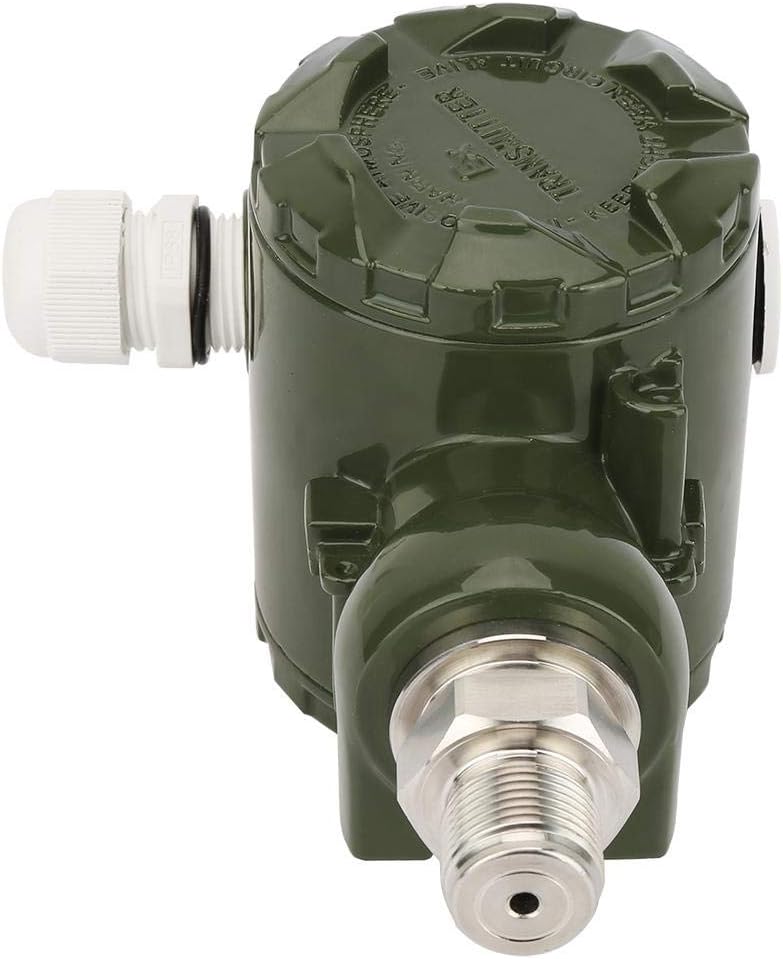

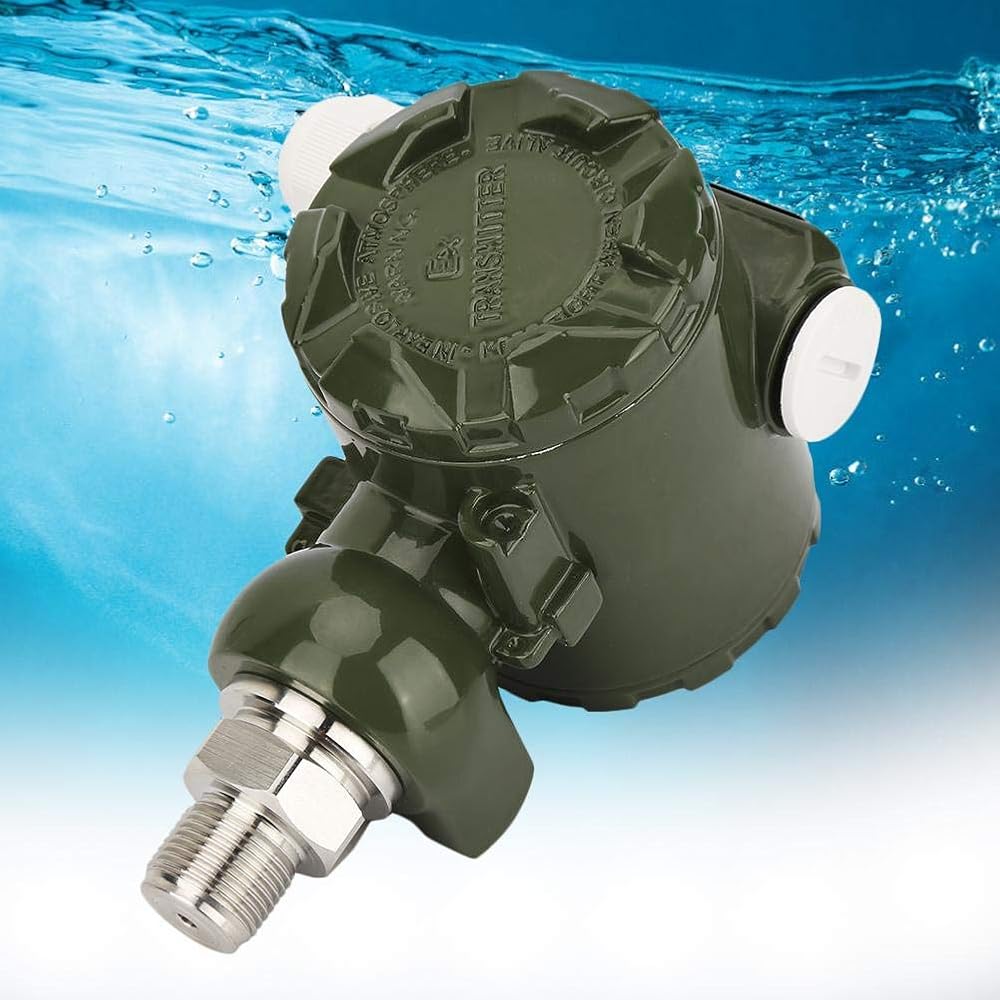

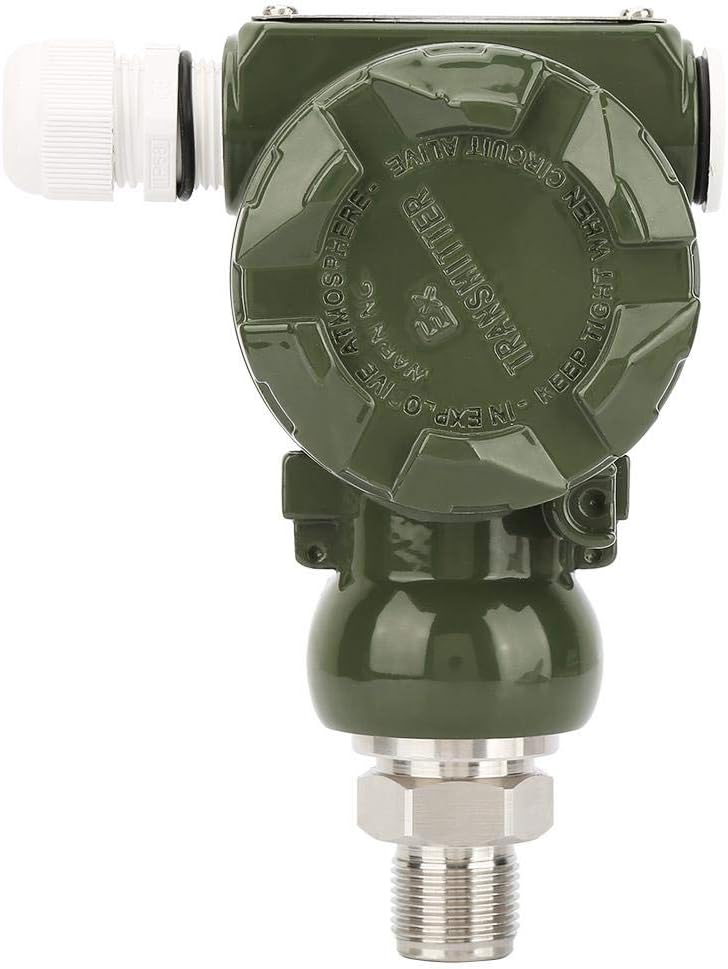

Type 2088 pressure transmitter is a kind of high performance pressure transmitter specially designed for the site with bad environment.
amplifier processing circuit, with shock and impact resistance, high , good stability and other characteristics.
Widely used in , chemical, metallurgy, food and other industries pressure, liquid measurement and process control.
High strength stainless steel structure, with high hardness and
Strong anti-interference, good -term stability
Specification:
Measuring range: 0-60Kpa, 0-100Kpa, 0-0.6Mpa, 0-1Mpa, 0-1.6Mpa,0-2.5Mpa, 0~4.0Mpa, 0~6.0Mpa(Optional)
Measurement accuracy: 0.2%FS
Power supply voltage: DC24V
Output : 4-20mA
Overload pressure:≤200%FS
-term stability:≤±0.2%FS/ year
Compensation temperature: 0-80℃
Medium temperature: - 40~50℃
Ambient temperature: - 20~70℃
Temperature drift:±0.01%FS/℃
Ambient humidity:≤85%
Shell material: stainless steel structure
Thread: M20 * 1.5
Measuring medium: non-corrosive gas and liquid to stainless steel
Weight: 727 g / 25.6 oz(approx.)

Package list:
1 x Pressure Sensor
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
