Description
This oil filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern, typical use for plumbing, gardening, agriculature etc.

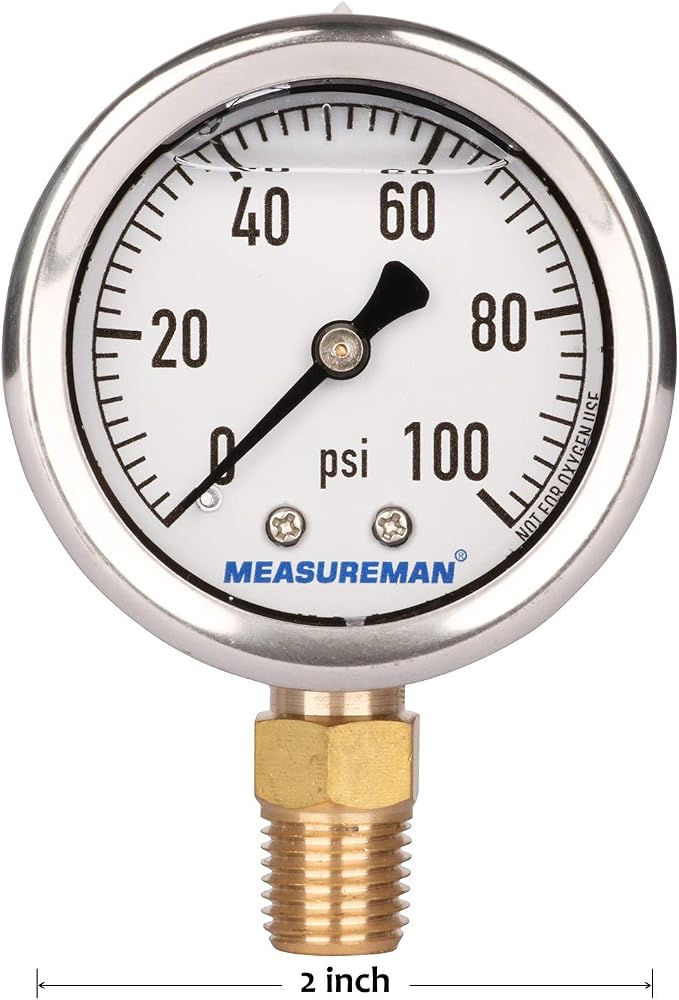

Dial size: 2"

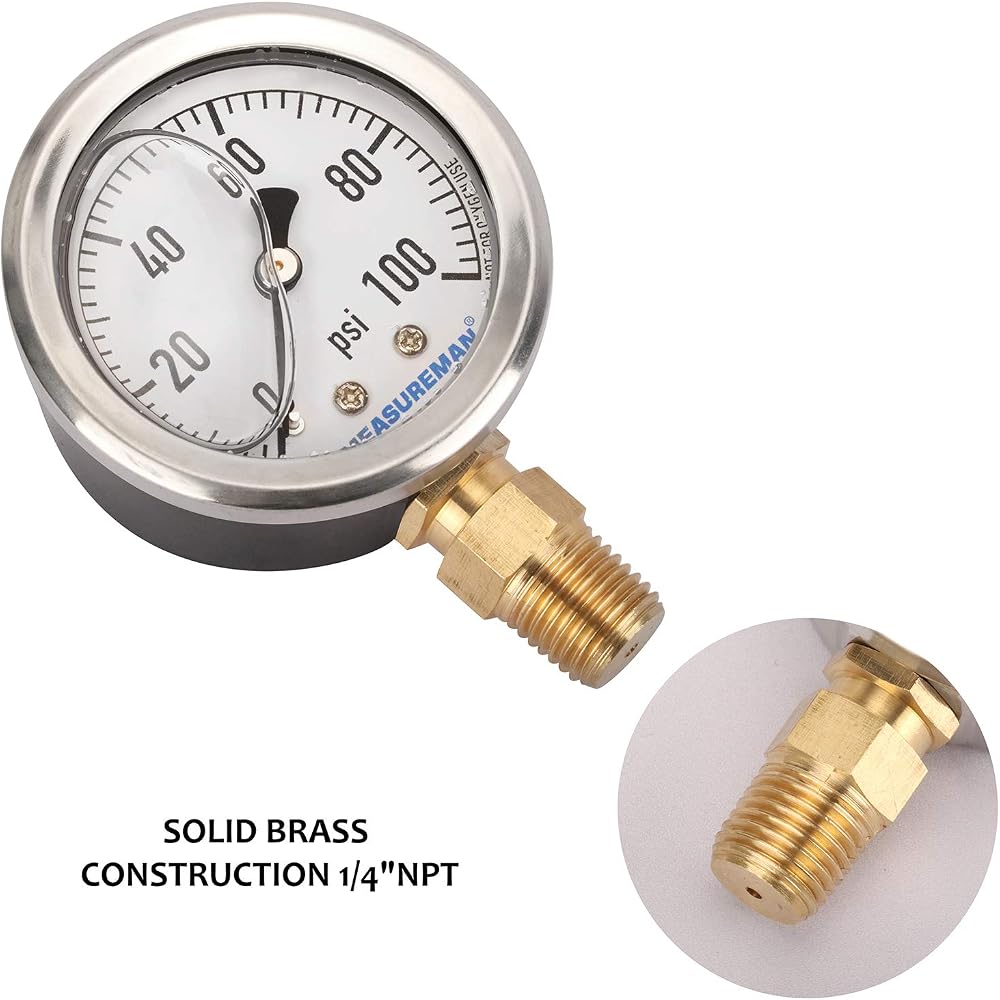

Process connection: 1/4"NPT lower mount

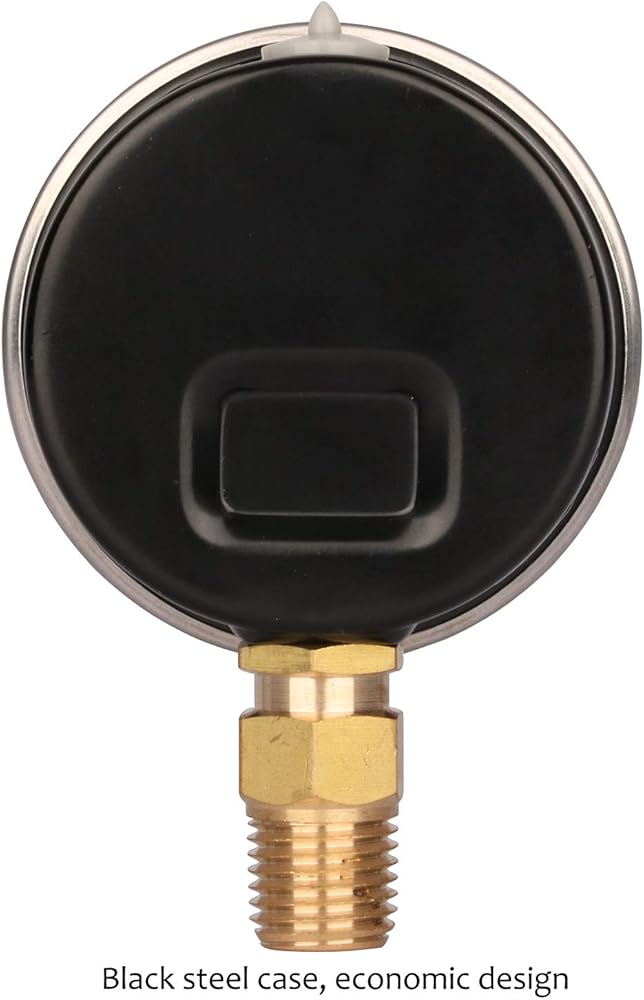

Case: Black steel case and stainless steel crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Boudon tube: Copper alloy
Movement: Brass
Connection: Brass, two piece design
Oil cap: rubber, gray color

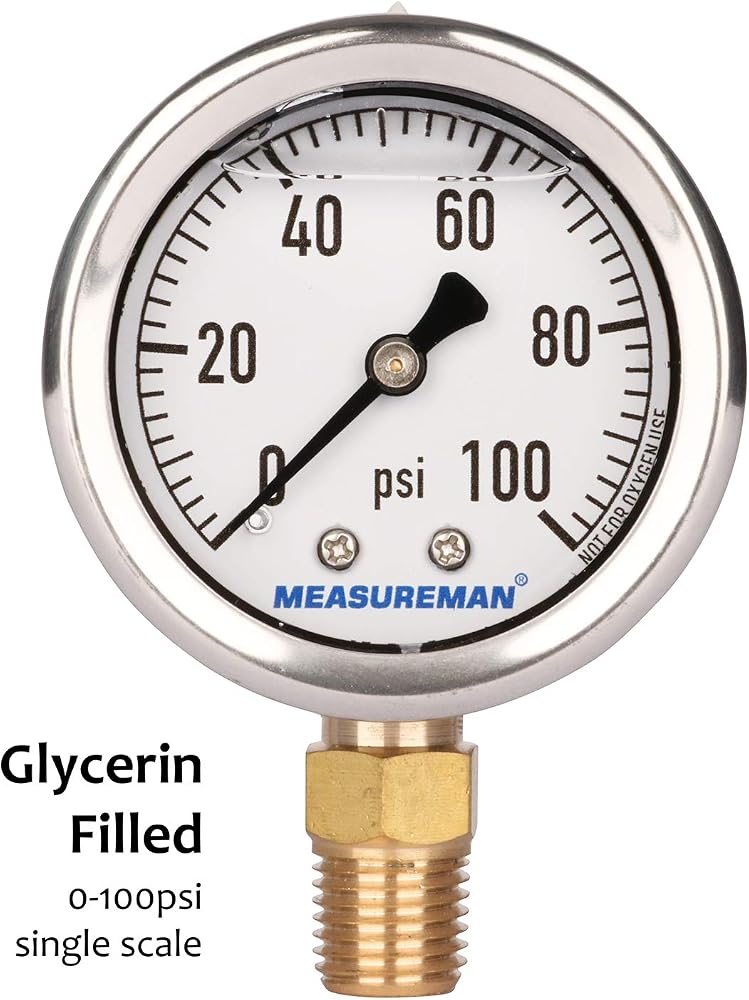

Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%
Range: 0-100psi single scale
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" banded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
