Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia Power-line Carrier Module, KQ-130F 120~135KHZ Power-line Transceiver for 220VAC Power Line Long Distance Data Communication in Saudi Arabia

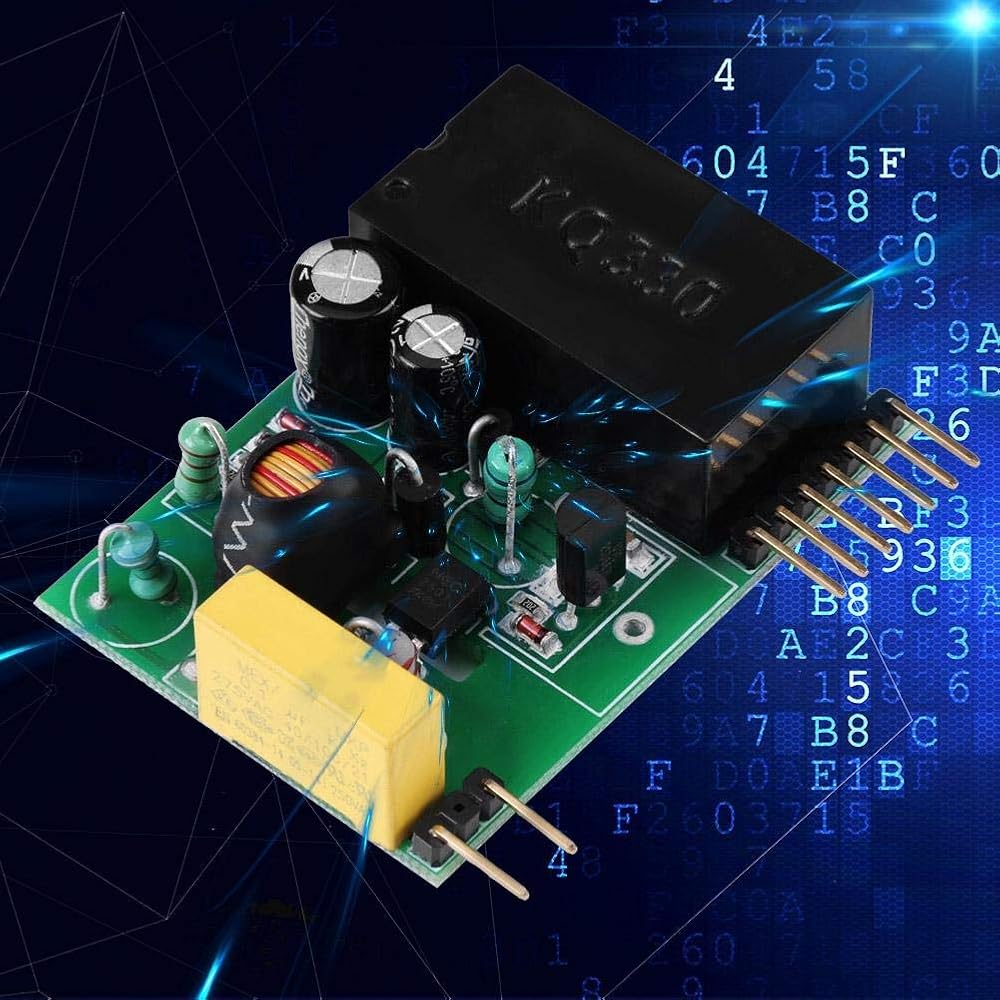

Carrier Module, KQ-130F 120~135KHZ Transceiver for 220VAC Power Line Long Distance Data Communication

SAR 91
Brand
Yanmis
Category
Network Adapters
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

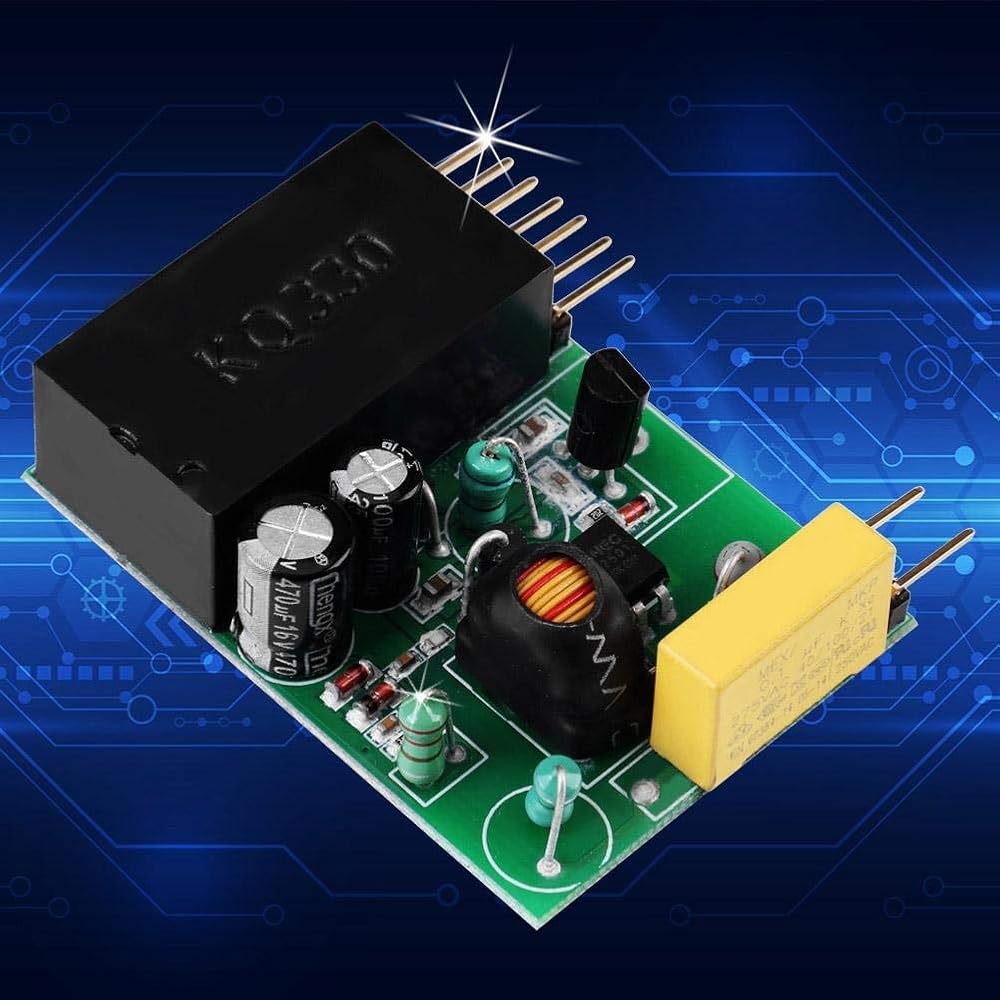

  • [HIGH PERFORMANCE] -- KQ-130F is a single row 9-pin small size high-performance carrier data transceiver module.
  • [RATIONAL DESIGN] -- Designed for on 220V AC, strong interference, strong attenuation and long distance required environment, reliable data transmission.
  • [ADVANTAGE] -- A frame continuous send maximum length is 252 bytes or less, from 1 to 252 defined by the user, and the module will not send redundant data.

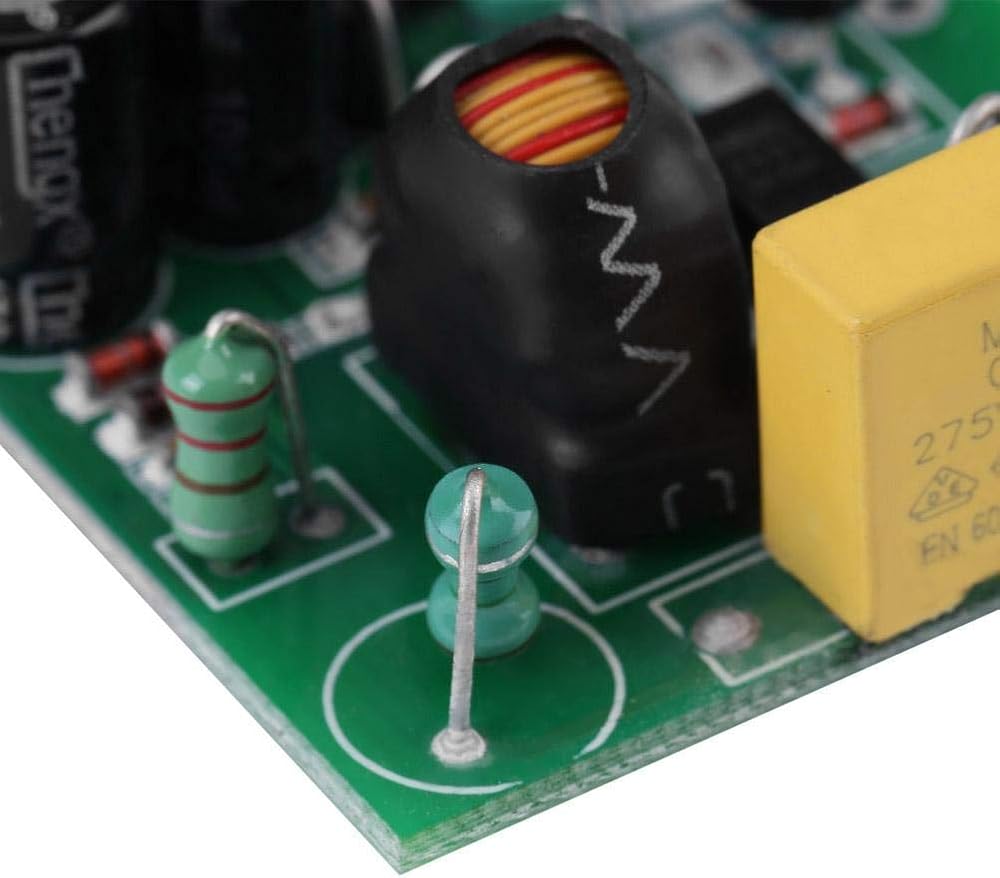

  • [FUNCTION] --TVS diode protection against lightning stroke, the PCB wiring and components selection are all designed for wide temperature and high voltage resistance.
  • [APPLY TO] -- The power line data module is suitable for meter reading, street light, intelligent household, fire fighting, building control and other applications that need power to send data.

Description

Specifications:
Working Frequency: 120~135KHZ
Connector Baud Rate: 9600bps
Actual Baud Rate: 100bps
One Frame Continuous Send Max. Length: ≤252 bytes (user defines from 1 to 252, module will not send redundant data)
Receive Sensitivity: ≤1mV
Out-of-band Rejection Ability: ≥60dB
Band Width: ≤10 KHZ
Insulation Resistance: 500V≥500MΩ
Power Supply: DC +5V(receiving: ≤11mA; sending: ≤230mA)
Frequency Insulation Withstand Voltage: AC to GND 3000V (1min test no breakdown, nor current leak)
Operating Temperature: -25℃~70℃
Operating Humidity: ≤90%

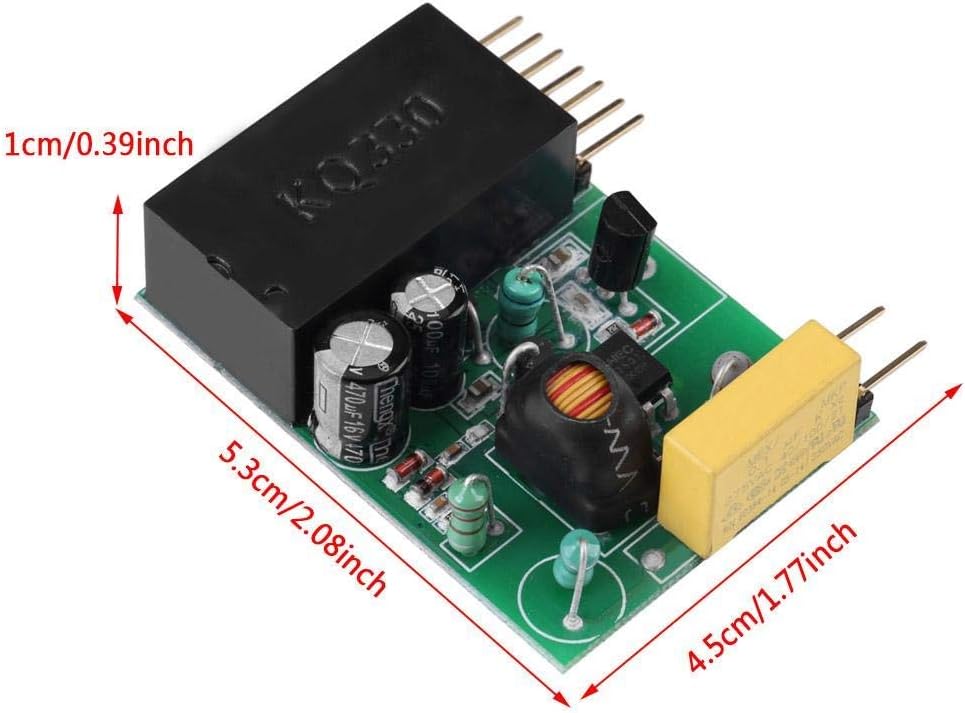

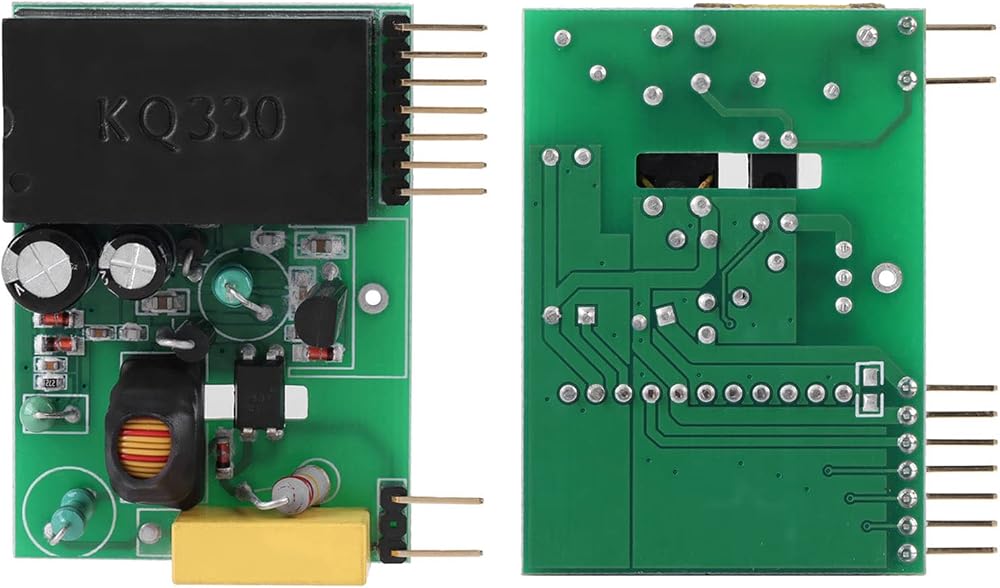

Size: 5.3*4.5*1cm/2.08*1.77*0.39in
Weight: 30g(approx.)

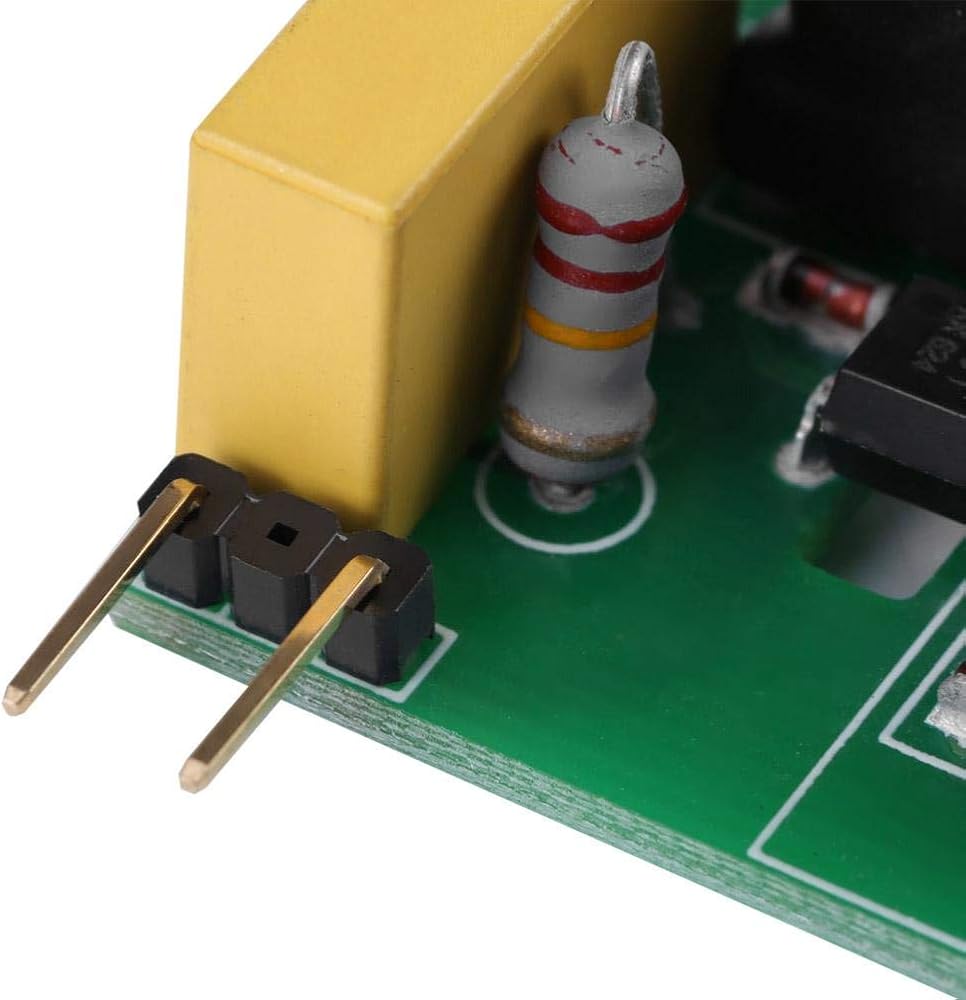

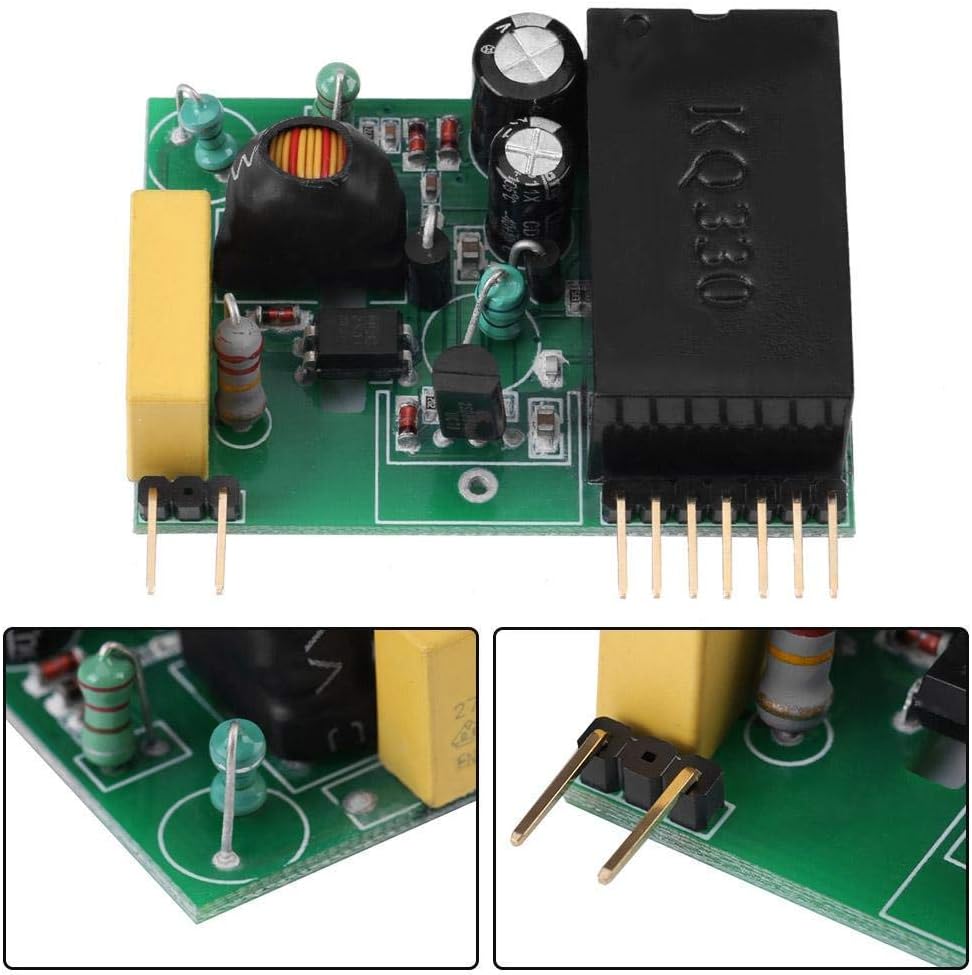

Wiring:

1P---AC: 220V live wire (or neutral wire)
2P---AC: 220V neutral wire (or live wire)

3P---+5V: +5V sending power supply(210mA), if only receiving data, can be disconnected to reducing power consumption

4P---GND: Digital circuit ground
5P---+5V: +5V working power supply 11mA

6P---RX: TTL level, carrier data input, connect to TXD of SCM
7P---TX: TTL level, carrier data output, connect to RXD of SCM
8P---MODE: Mode selection, connect to 5V as high level or disconnect, connect to ground as low level
9P---NC/RST: Reset pin(low level effective), for frequent switching modes. No connection if do not use this function.

Package Includes:

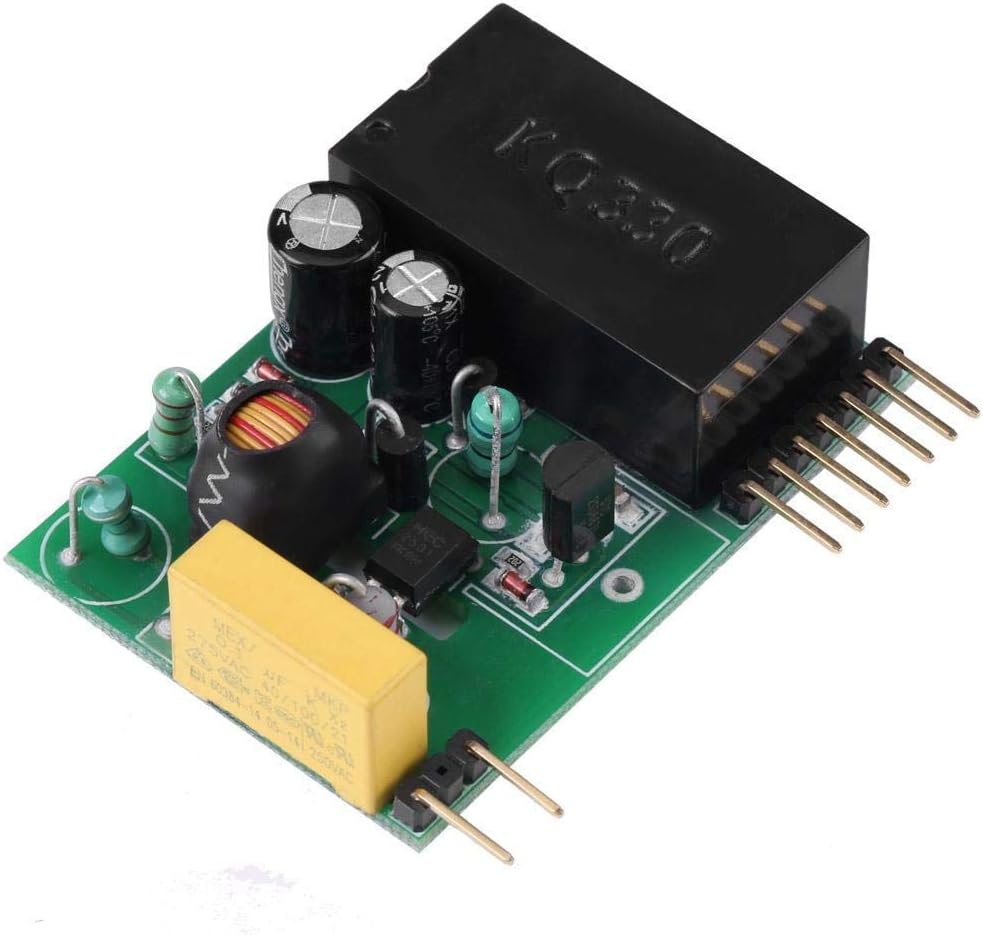

1 x Power-line Carrier Module

Note:

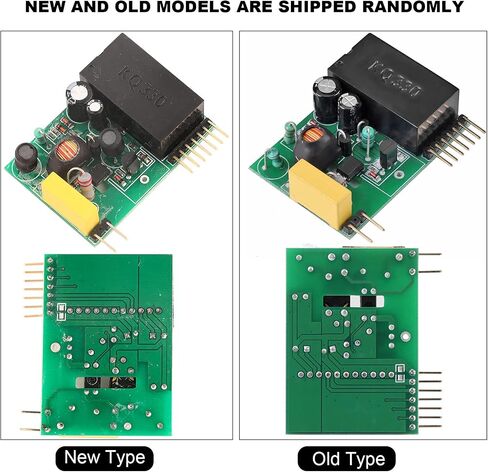

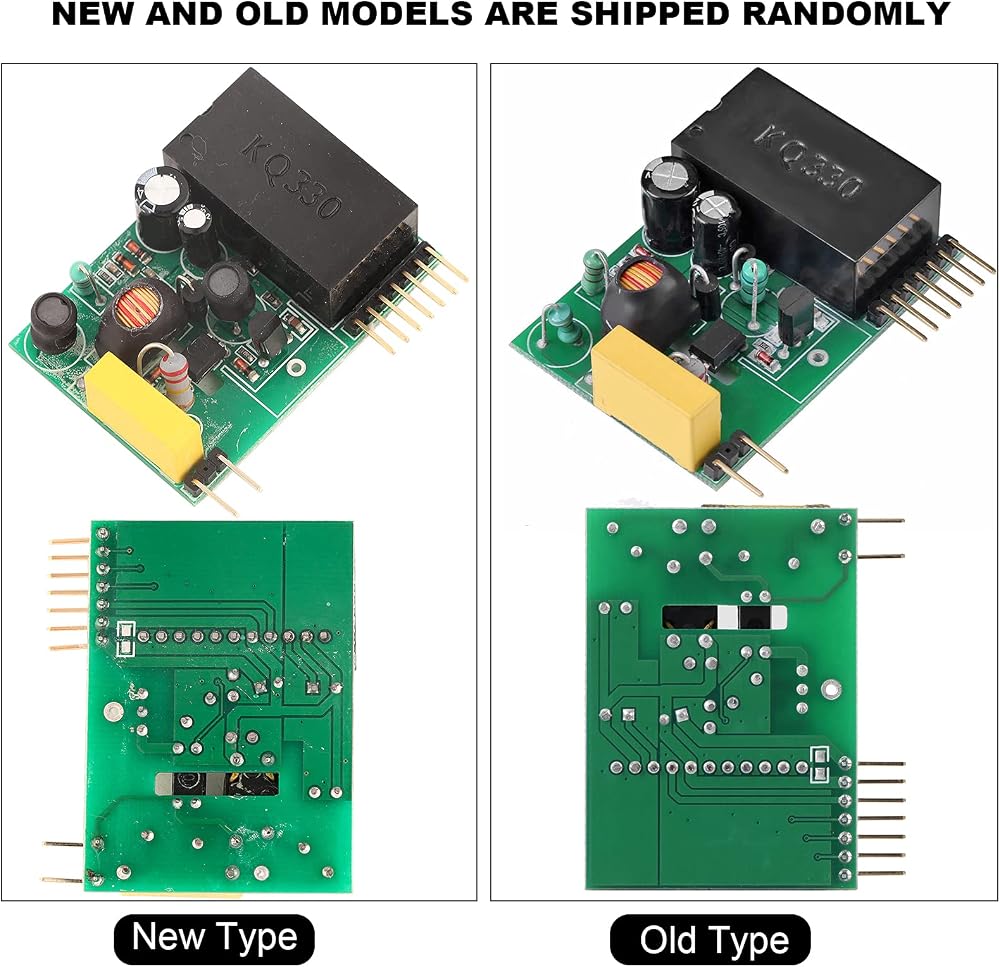

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
