Package:

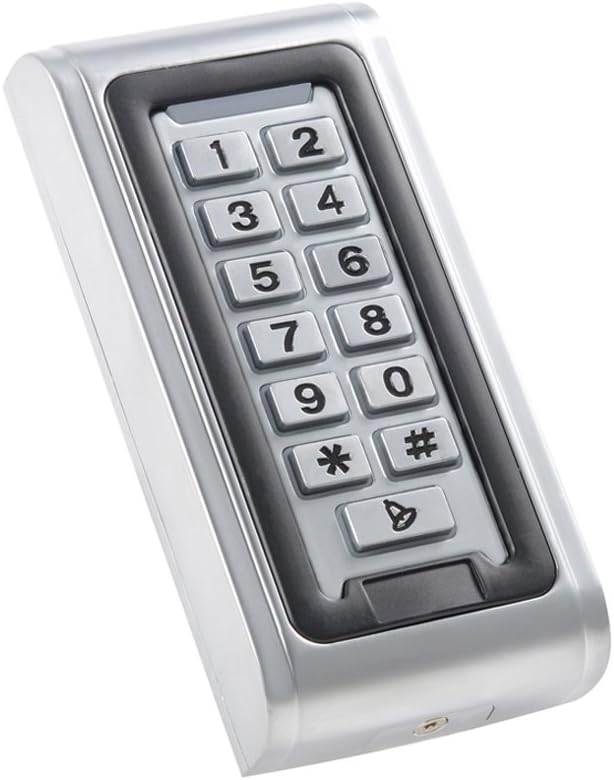

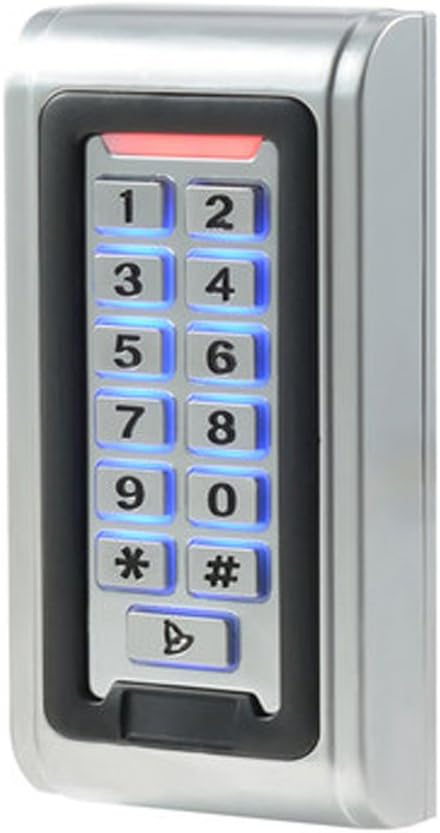

1 x Metal Keypad RFID Access Controller
1 x Installation Kit
1 x User Manual

Features:
Waterproof Degree: IP68
Metal structure design, anti-vandal
Digital backlit keyboard
Full programming from the keypad
User capacity: 2000 card user card, 2000 user password
Three way to open the door, card, password, card + password
Support Wiegand 26 input from connection to external reader or Wiegand 26 output for connection to a controller
Adjustable door output time,alarm time,door open time
Very low power consumption (30mA)
Fast operationg speed, Lock output current short circuit protection
Easy to install and program
Built-in light dependent resistor (LDR) for anti tamper
Buili-in buzzer
Red,yellow and green LEDs display the working status

Specification Details:
Operating Voltage : DC 12V
User Capacity: 2000

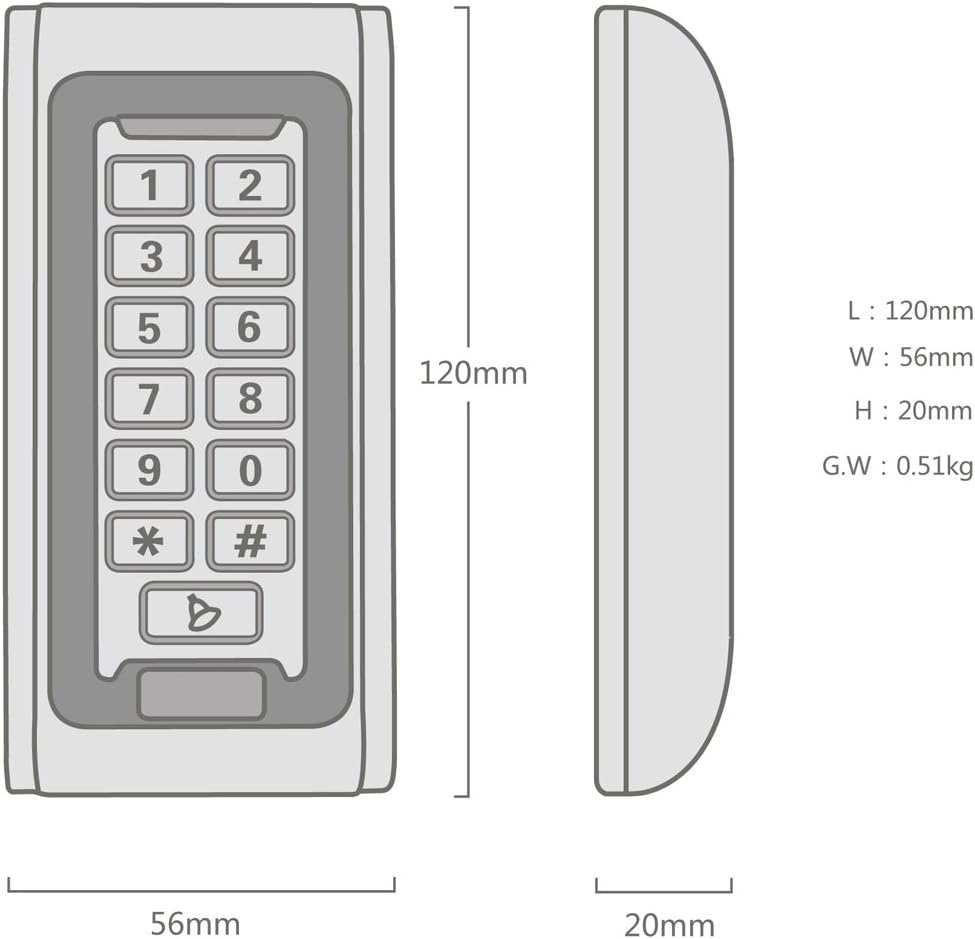

Size: 120(W)x58(H)x22(D) mm
Card Reading Distance: 5~8cm
Current: Lock Output Load: Alarm Output Load: Operation Temperature: -45C~60C
Operating Humidity: 10%~90% RH
Waterproof: Conforms to IP68
Adjustable Door Relay time: 0~99 seconds
Wiegand Interface: Wiegand 26 bit

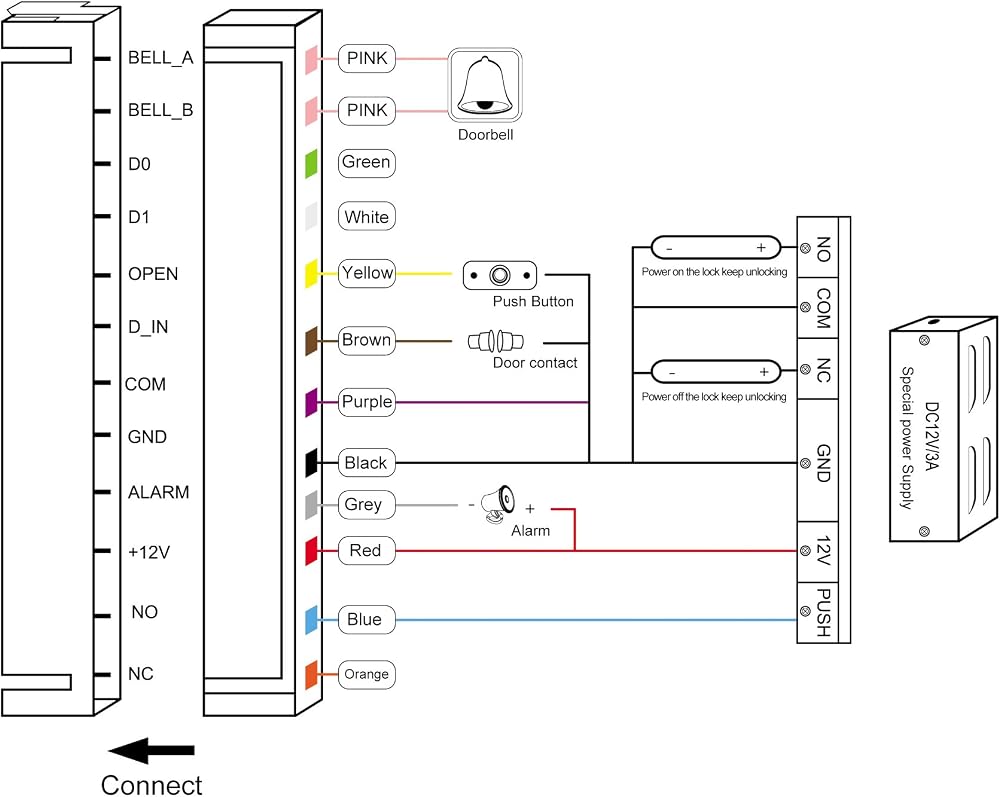

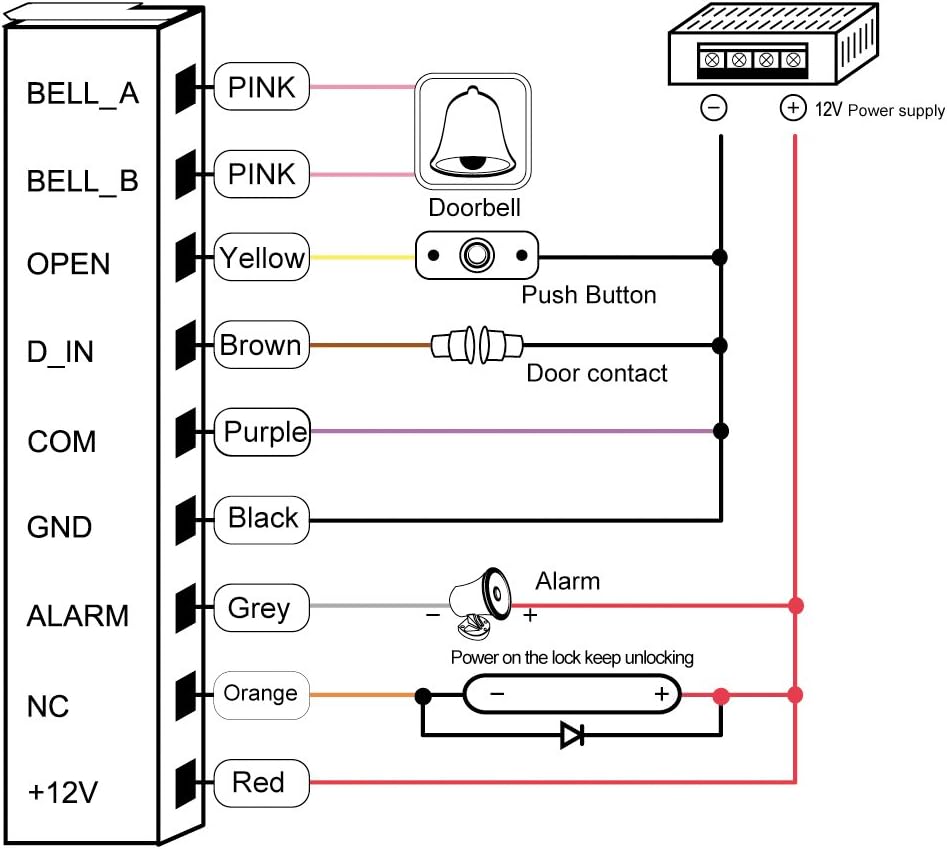

Wiring Connections: Electric Lock,Exit Button,External Alarm,External Reader
Compatible Cards: EM standard card (Can't support some encrypted cards,such as HID, Cobra, APCiK etc)
Frequency: 125khz
Net Weight: Approx. 371g
