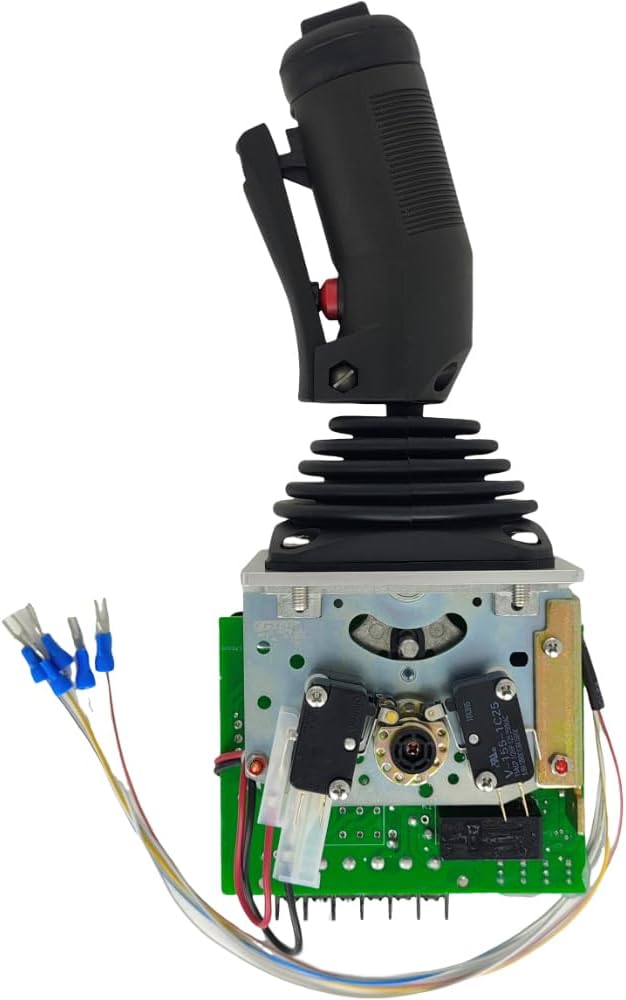

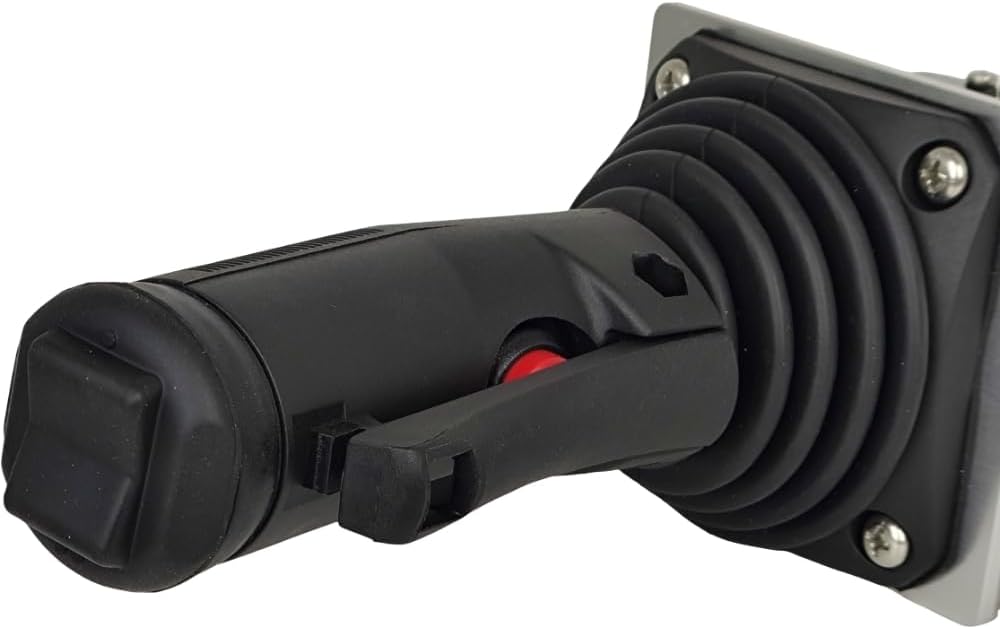

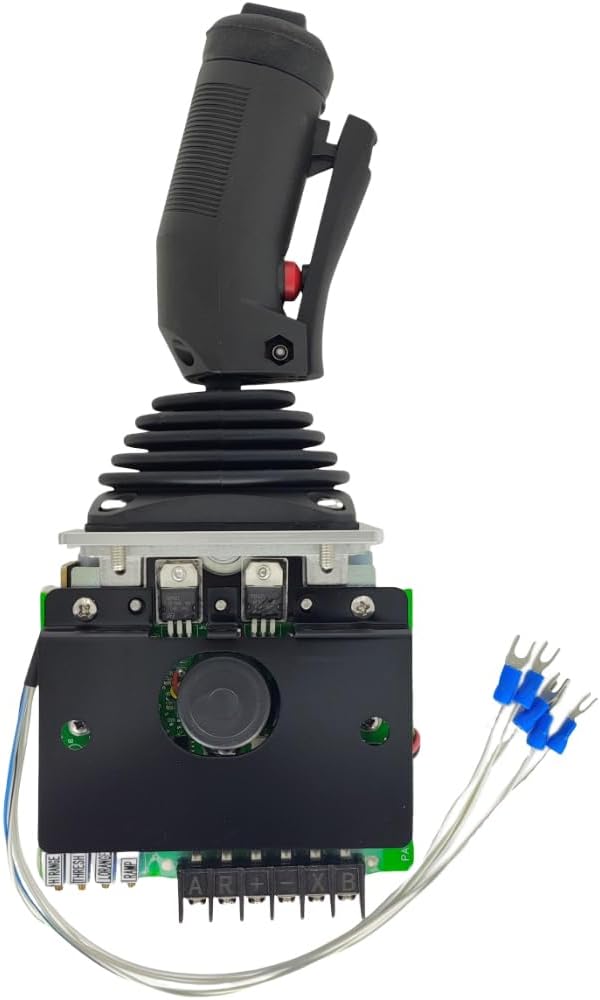

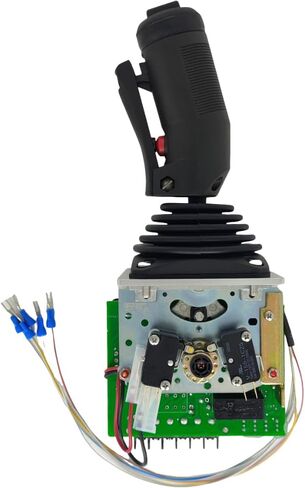

XYZIL وحدة تحكم عصا التحكم أحادية المحور 066544-001 متوافقة مع صندوق التحكم في منصة العمل العكسية الأمامية 12 فولت
مميزات خاصة
- Part Number: 066544-001
- Compatible with Upright models: SL26/30RT
- Drive Control: Proportional
- Working voltage: 12Vdc
- Working voltage: 12Vdc
وصف
Part Number: 066544-001
Compatible with Upright models: SL26/30RT
Drive Control: Proportional
Single Axis
Electrical Installation:
Working voltage: 12Vdc
Output type: PWM constant-current control
Modulation frequency: 200Hz
Output response: Non-delayed
Startup current: 500mA (not affected by terminal R connection method), duty cycle 35%
Maximum current: 1150mA (terminal R grounded or floating), duty cycle 74%
Maximum current: 1500mA (terminal R connected to +12V), duty cycle 94%
