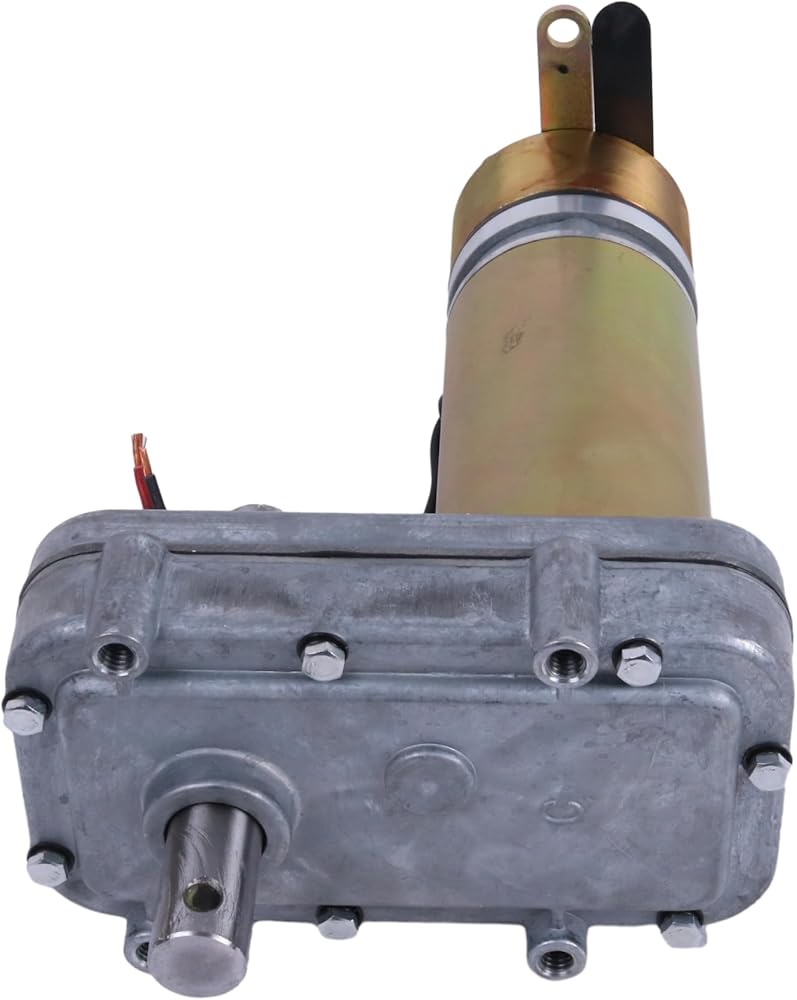

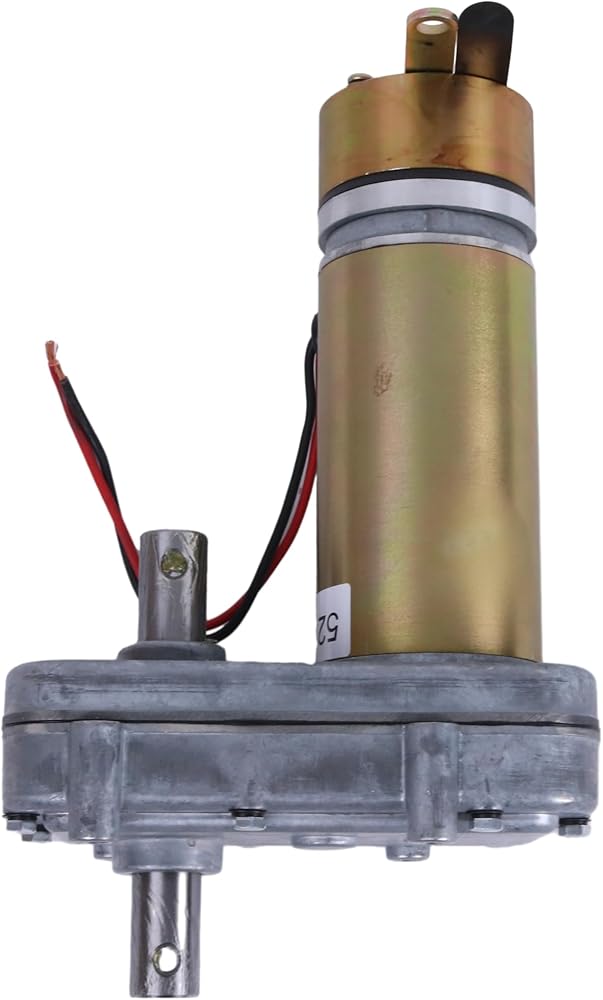

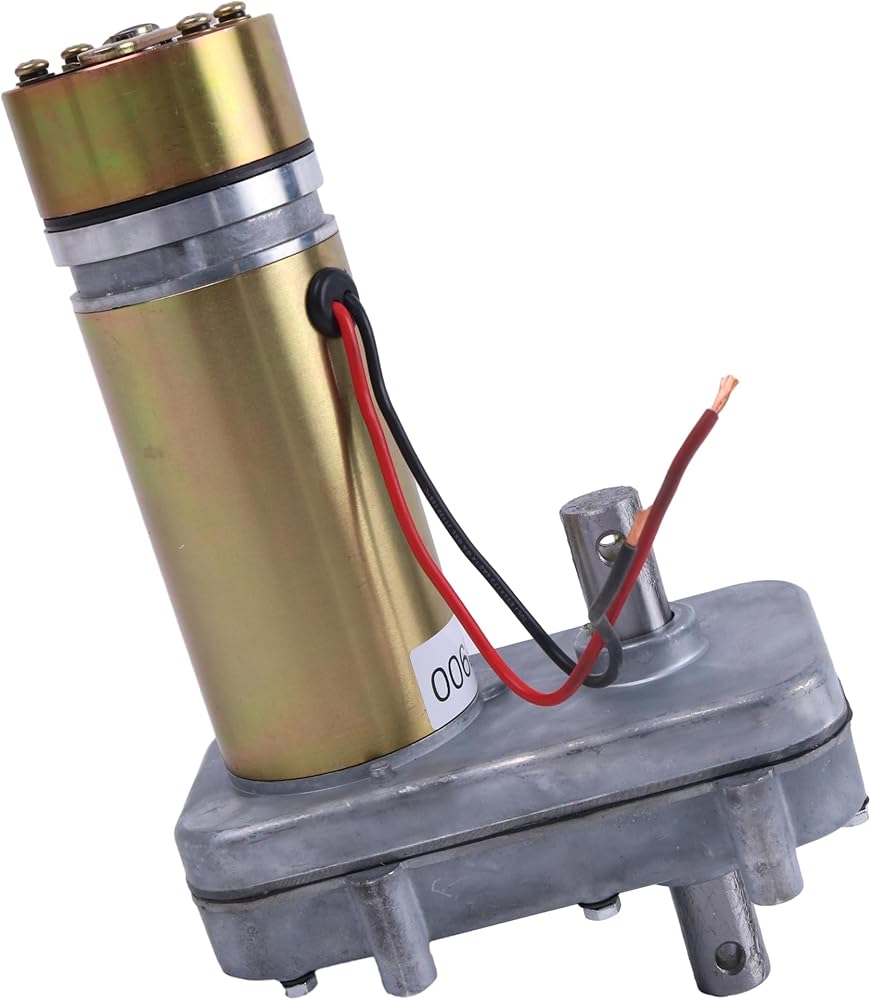

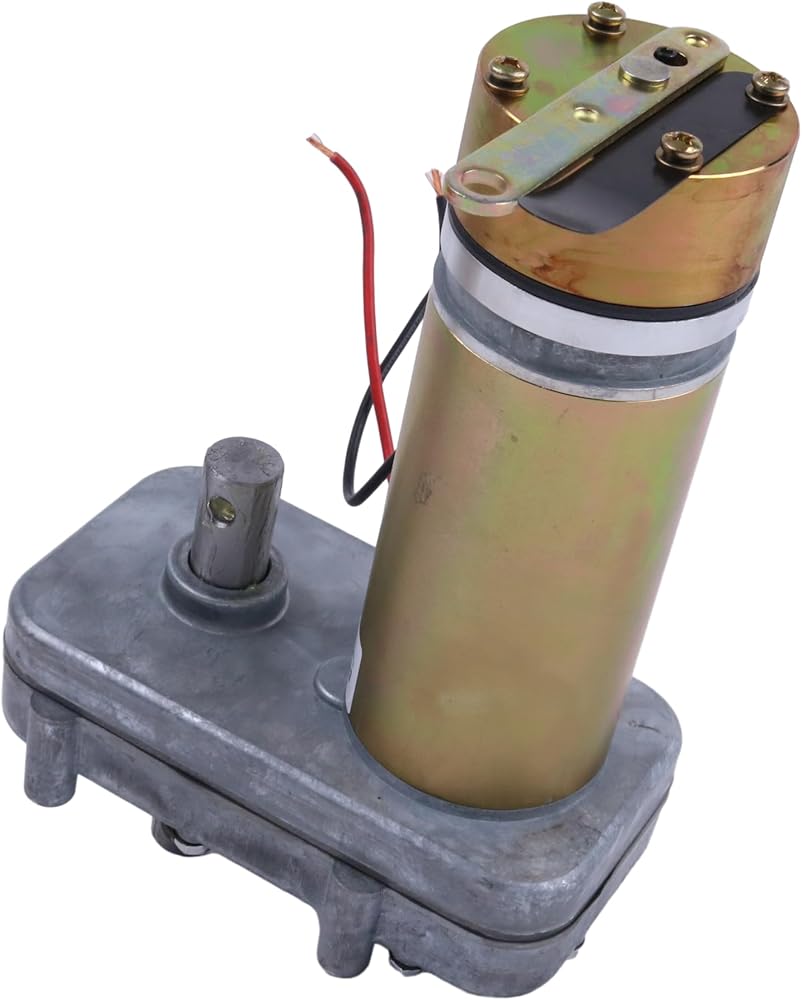

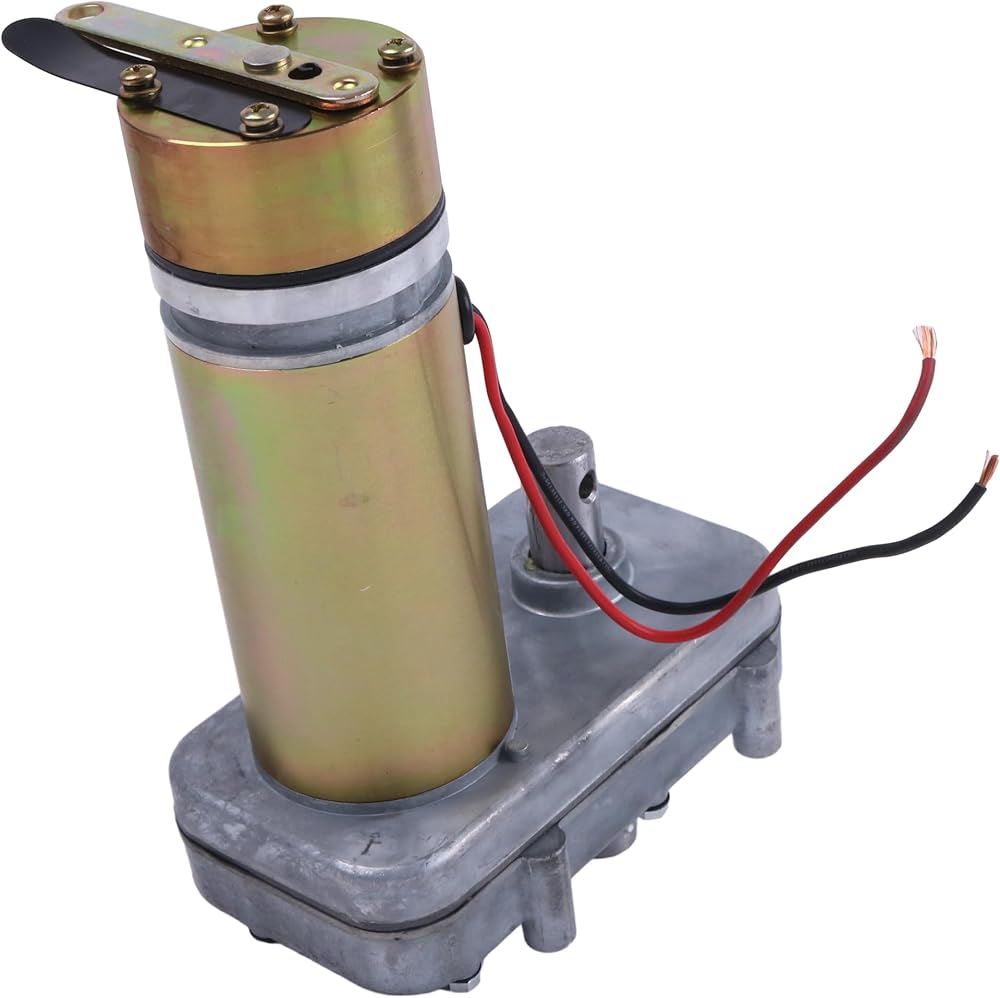

JEENDA RV Power Gear Slide Out Motor 523900 K01265D300 521976 523983 524327 524097 520819 522967 523036 523931 524246 523498 523432 523143

عذرا، هذا المنتج غير متوفر
ماركة
JEENDA

مميزات خاصة

  • Replaces Part Number: K01469-B300, K01469B300 K01439E300, 138449 130-1235, 130-1204c, K01531A300, K01265E300, K01265F300, K01285F300, 1510000006, 130-1164, 130-1187, 13-1109, 130-1219, 520819, 522967, 523529, 521976, 13-1133, 13-1119, 523900, 523013, 523529, 524094, 524327, 524411, 523931, 524246, 520819, 522967, 523823 1010000010, 523983, 522176 (check specs) 386322 (verify bolt pattern) 521292, 521748, 523046, 523387, 368417, 522756, 524361, 523387, 524667 .
  • Replaces Part Number:523143, 386480, 368185, 523982, 523143S (has the smaller motor but same ratings), 523766, K01265D300 (Gear ratio lower), K01265B300, Lippert 383745. (may have to reuse, splice on, old connector from old unit) 523091, replaced by Lippert 383744 check bolt pattern on old unit to verify.
  • Versatile and Durable Construction: Built to withstand the harsh conditions of RVing, this RV Power Gear Slide Out Motor features a PMDC motor type and a duty intermittent rotation design, ensuring long-lasting performance and durability. Its reversible shaft allows for easy installation and compatibility with various slide-out mechanisms.
  • Precise Control and Smooth Operation: With a maximum RPM of 22 and a run torque of 250 in-lbs, this motor offers precise control over the slide-out movement. Whether you need a slow and steady extension or a quick retraction, this motor can handle it with ease.
  • Reliable Performance and Customer Satisfaction: Backed by JEENDA's reputation for quality and reliability, this RV Power Gear Slide Out Motor ensures consistent and dependable performance for your RV slide-out needs.

وصف

SPECIFICATIONS:
Amp: 12
RPM: 22
Voltage: 12V DC
Gear Ratio: 131:1
Motor Type: PMDC
Run Torque: 250 in-lbs
12 RPM @ 400 in-lbs, 9.5 Amps
Speed 9 RPM @ 850 in-lbs, 17 Amps
14 RPM (no load)
Duty Intermittent
Rotation Reversible
Shaft Size: 1.22" x 3/4" diameter x 1.22"
Mount Four bolt face mount on 3.38" x 3.38"centers
