محول مقسم PoE مقاوم للماء 48 فولت إلى 12 فولت، متوافق مع IEEE 802.3af بسرعة 10/100 ميجابت في الثانية، موزع طاقة خارجي عبر إيثرنت، لكاميرا IP للمراقبة، نقطة وصول لاسلكية وهاتف VoIP (أبيض، عبوتان) in Saudi Arabia محول مقسم PoE مقاوم للماء 48 فولت إلى 12 فولت، متوافق مع IEEE 802.3af بسرعة 10/100 ميجابت في الثانية، موزع طاقة خارجي عبر إيثرنت، لكاميرا IP للمراقبة، نقطة وصول لاسلكية وهاتف VoIP (أبيض، عبوتان) in Saudi Arabia محول مقسم PoE مقاوم للماء 48 فولت إلى 12 فولت، متوافق مع IEEE 802.3af بسرعة 10/100 ميجابت في الثانية، موزع طاقة خارجي عبر إيثرنت، لكاميرا IP للمراقبة، نقطة وصول لاسلكية وهاتف VoIP (أبيض، عبوتان) in Saudi Arabia محول مقسم PoE مقاوم للماء 48 فولت إلى 12 فولت، متوافق مع IEEE 802.3af بسرعة 10/100 ميجابت في الثانية، موزع طاقة خارجي عبر إيثرنت، لكاميرا IP للمراقبة، نقطة وصول لاسلكية وهاتف VoIP (أبيض، عبوتان) in Saudi Arabia

النسخة العادية

SAR 53
مقاسالنسخة العادية
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

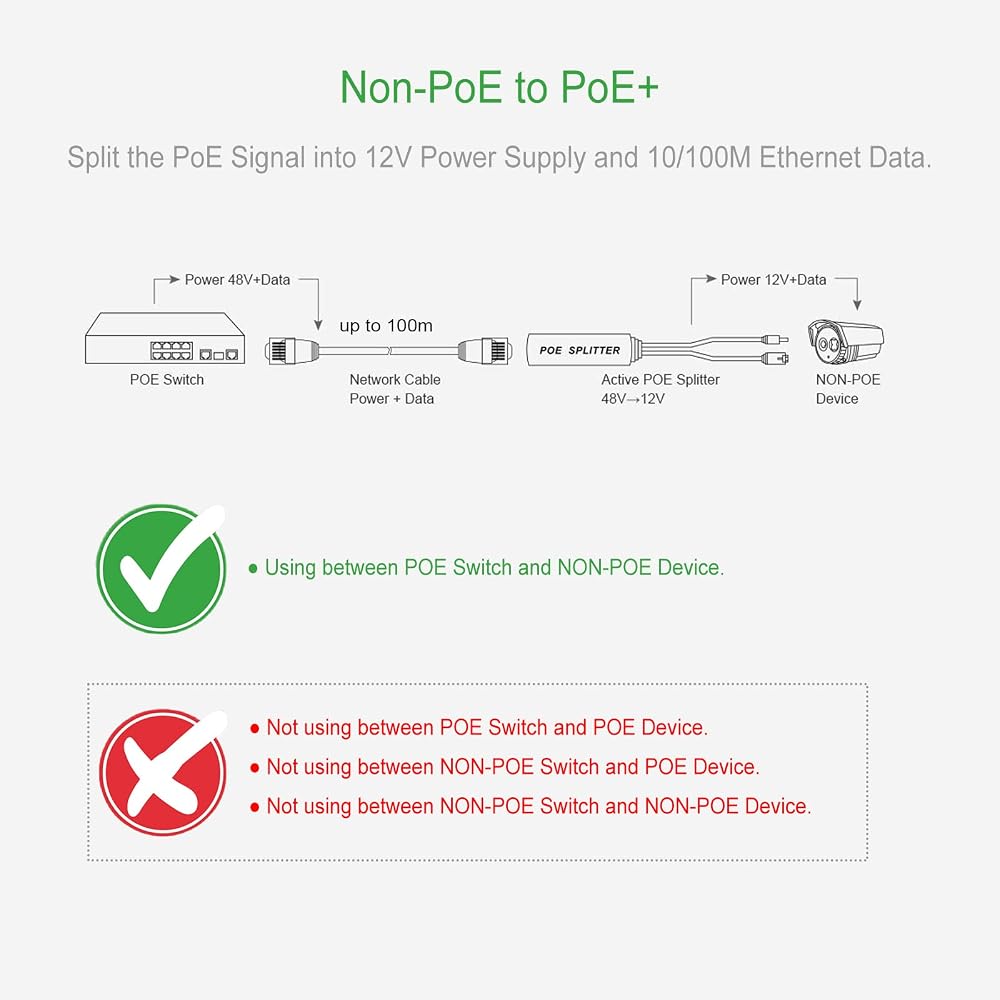

  • 【Non-PoE to PoE+】The Waterproof PoE splitter to split the PoE signal into 12V power supply and 10/100M Ethernet source in RJ45 so that non-PoE devices can be powered over Ethernet located up to 150-meter(492ft.) away. It's a perfect solution for devices that don't support PoE in a PoE environment.
  • 【12V/1-2A & 10/100Mbps】Output Power: 12V/1-2A, 15.4W(IEEE 802.3af), 25.5W(IEEE 802.3at). Plug Output: Data (1,2+/3,6-).

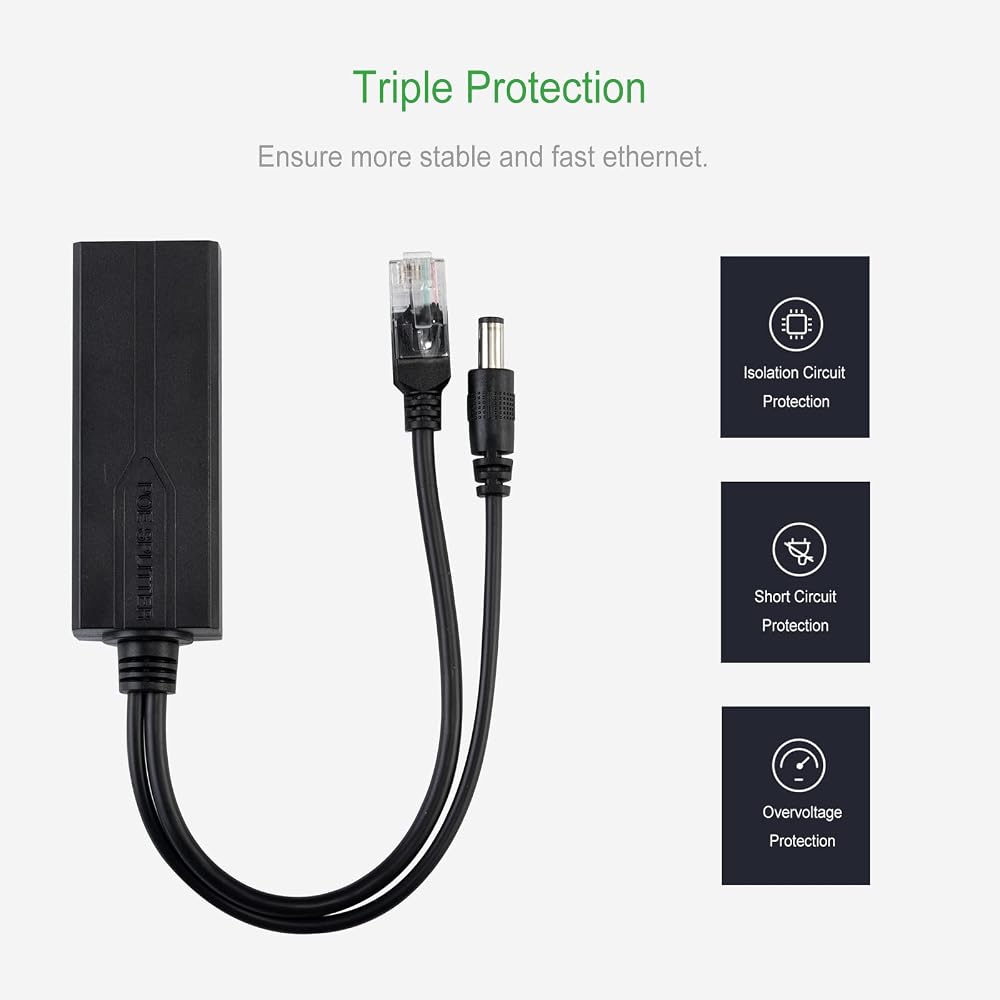

  • 【Waterproof Protection】Support waterproof protection, adopts one-piece injector molding and injection holes, accessories tightly connected, has good waterproof performance; Support the isolation circuit protection, can effectively protect electrical equipment; Support the short circuit, overvoltage protection, 1500V high voltage isolation.
  • 【Visualized LED Indicator】Equipped with LED indicator, indicator yellow LED light on indicates the voltage output is normal.
  • 【Widely Application】Support international standard IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at, compatible with DC voltage 48-55V standard POE switches. Plug and play, available with IP camera/phone, wireless AP and other 12V Non-POE devices for home, ffice, factory, mall, warehouse, etc.
  • 【What You Get】2x Fiberssky Active 12V PoE Splitter, 2 x Waterproof Accessory, 30 Days Free-returned, 1 Year Free Warranty and Lifetime Technology Support. If you have any further questions or queries, please feel free to contact us.

وصف

The high waterproof grade PoE Splitter is made of durable material and 4N Oxygen-free Copper. It is one-piece injector molding and featured with slot type structure, waterproof jacket is optional, can be used indoors or outdoors. It can separate the power and data via cable transmission. Proper matching use with POE switch or PSE injector which meet standard IEEE802.3af, provides 12V power and 10/100M data at the same time for the terminal device does not support PoE so that non-PoE devices can be powered over Ethernet.

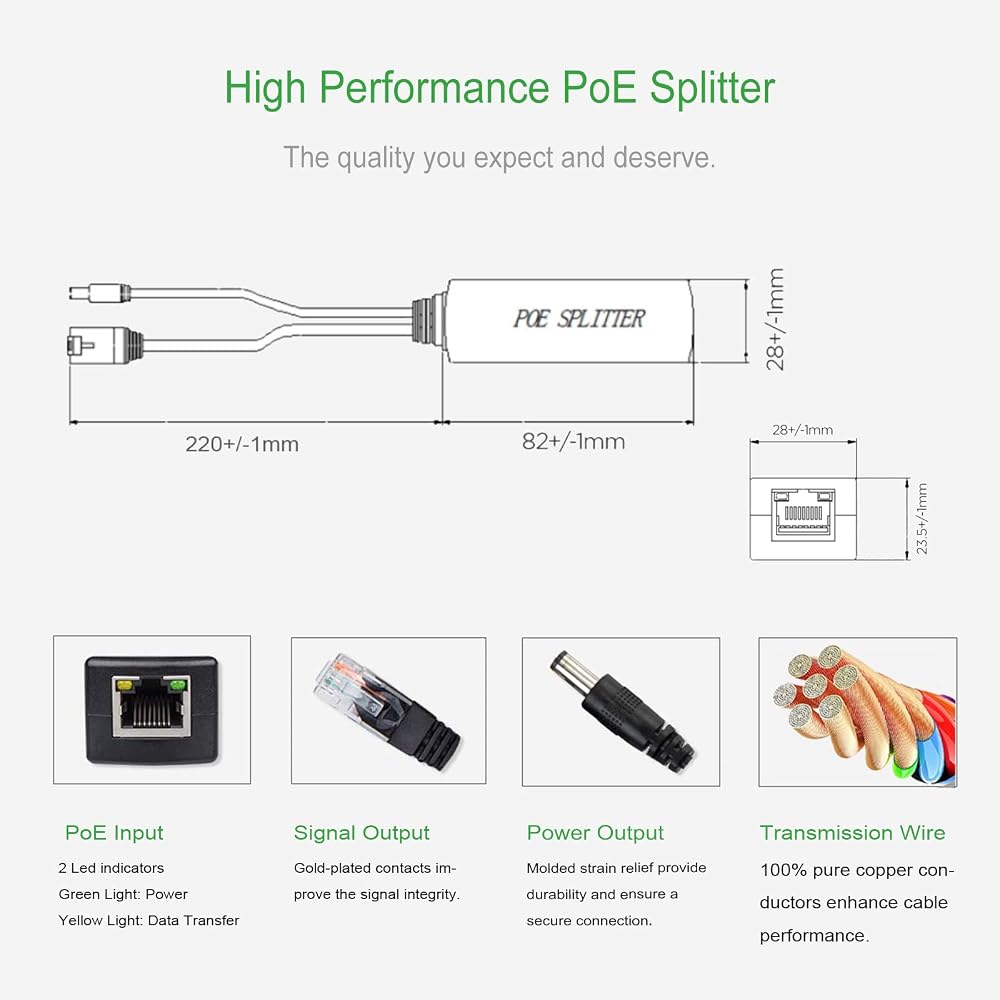

Specification:
1. Input: RJ45 female
2. Output: RJ45 male and 5.5x2.1mm male DC jack
3. Data rate: 10/100Mbps
4. Maximum Power: 15.4W(IEEE 802.3af), 25.5W(IEEE 802.3at)
5. Voltage input: 48-55V, overvoltage protection
6. Voltage output: DC 12V
7. Current output: 1-2A
8. Maximum transmission distance: 150-Meter
9. Operating temperature: -20 Degree~50 Degree
10. Plug and play, no configuration required.

Applications:
1. Use with IEEE 802.3af standard power supply equipment (POE switch) and Non-POE device.
2. Unable to use with Non-POE switch or POE device.
3. It eliminates the need for a power supply or for a camera to be located near a power outlet.

Q&A
1- What is PoE?
Answer: Deliver power and data with a single Ethernet cable for fewer wall plugs and messed cables. Extend powerline to where no AC outlets are nearby, up to 300 feet away from the power source.
2- Why PoE to RJ45?
Answer: A cost-effective way to add plug-and-play PoE support to 12V powered devices and make full use of PoE switches.
3- What else needed?
Answer: You need an IEEE 802.3af compliant PoE switch or injector to serve as the PSE (Power Source Equipment) and an Ethernet cable with PoE signal to feed the splitter.
