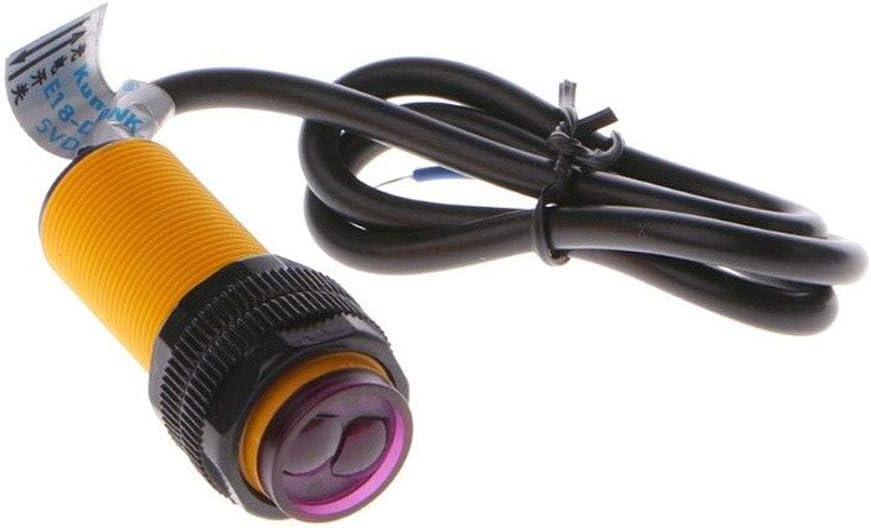

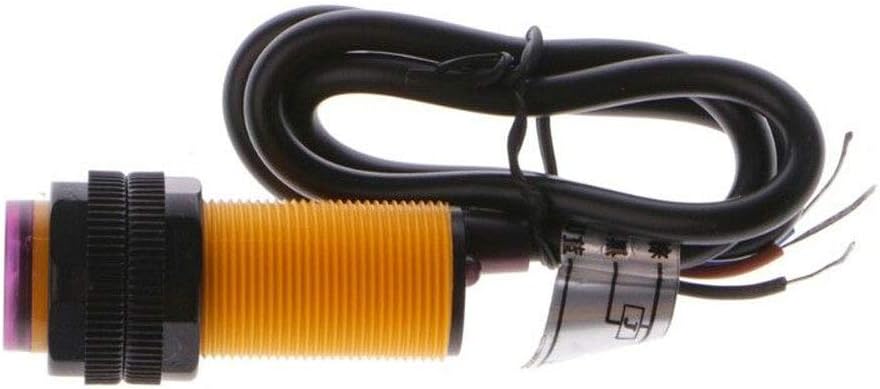

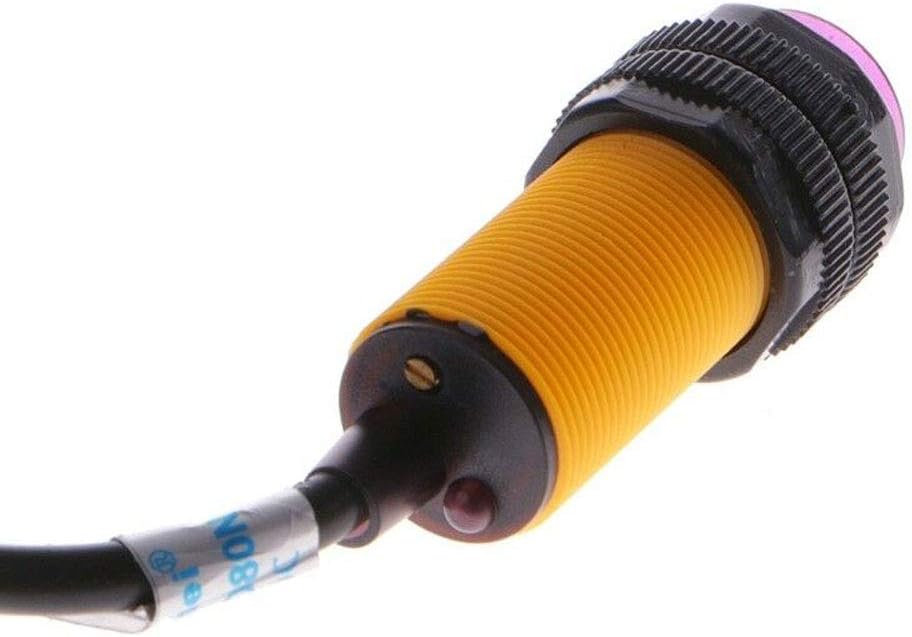

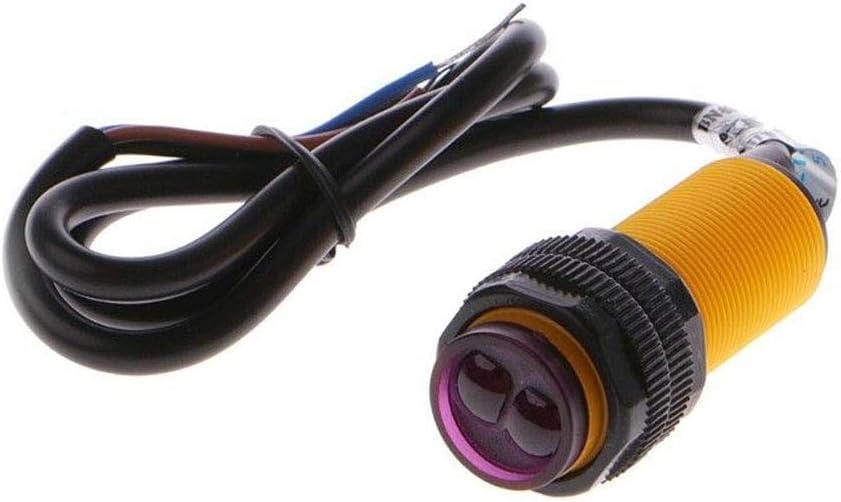

Gump's Grocery E18-D80NK مستشعر التبديل الكهروضوئي بالأشعة تحت الحمراء وحدة استشعار تجنب العوائق
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠.
قد تحتاج إلى محول كهرباء
مميزات خاصة
- Output current DC / SCR / Relay Control output: 100mA/5V supply.
- Current consumption DC <25mA.
- Response time <2ms.
- Point angle: ≤ 15 °, the effective distance adjustable 3-80cm
- Detected object: transparent or opaque body
وصف
Descriptrion:
Operating ambient temperature: -25 ℃ ~ +55 ℃
Standard sensing object: less sunlight 10000LX incandescent 3000LX

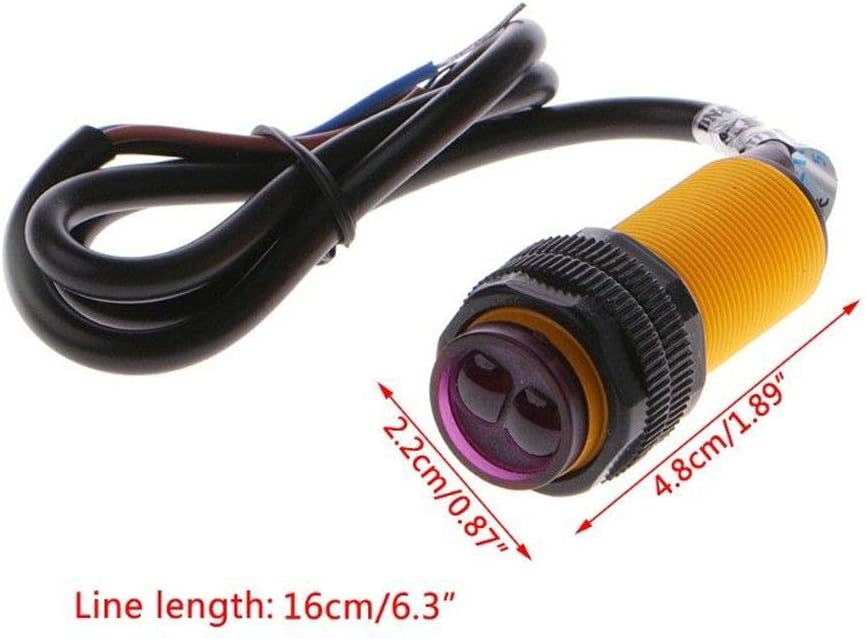

Diameter: 18mm ( 23/32 in )
Sensor length: 45mm ( 1 25/32 in )
Lead Length: 50cm ( 10 1/4 in )

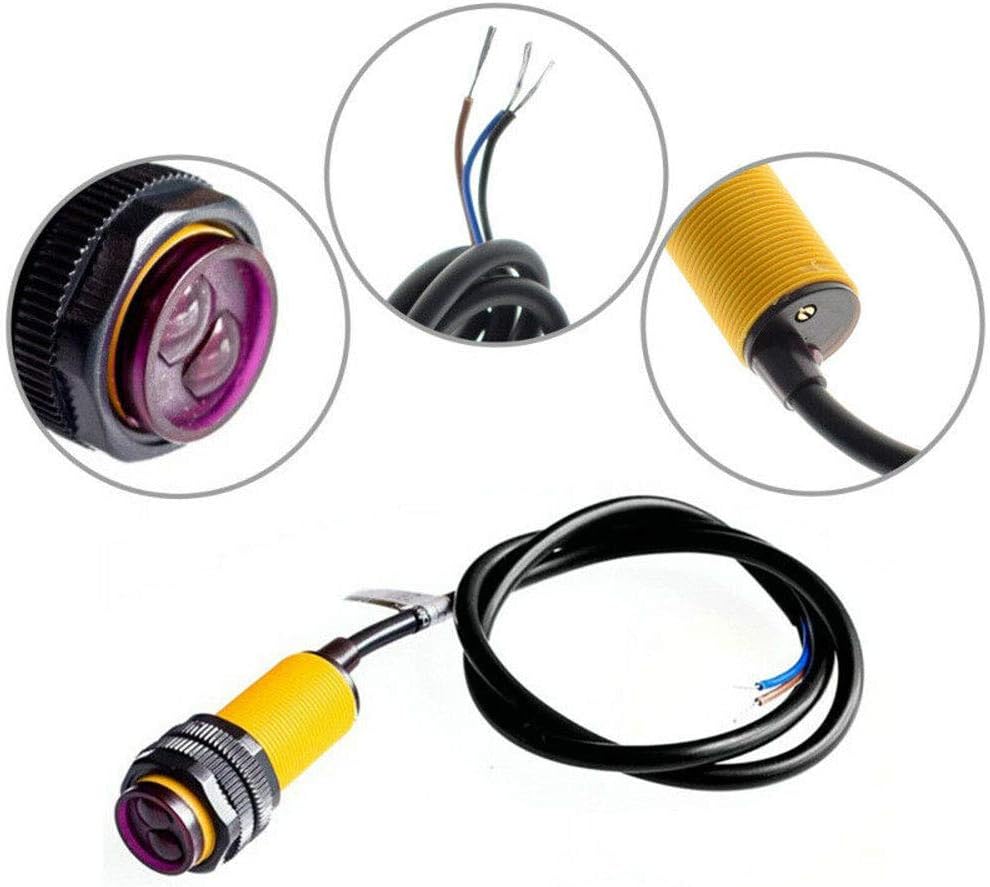

Red: connected 4.5-5V power supply high
Yellow: connected microcontroller output TTL level to the microcontroller
Green: GND 0V power low
Electrical Characteristics:
U: 5VDC
I: 100Ma
Sn :3-80CM
Appearance: Threaded cylindrical
Material: Plastic
Guard mode: Reverse polarity protection
Ambient temperature: -25-70 ℃
Package Included:
1 x E18-D80NK Sensor
