مميزات خاصة

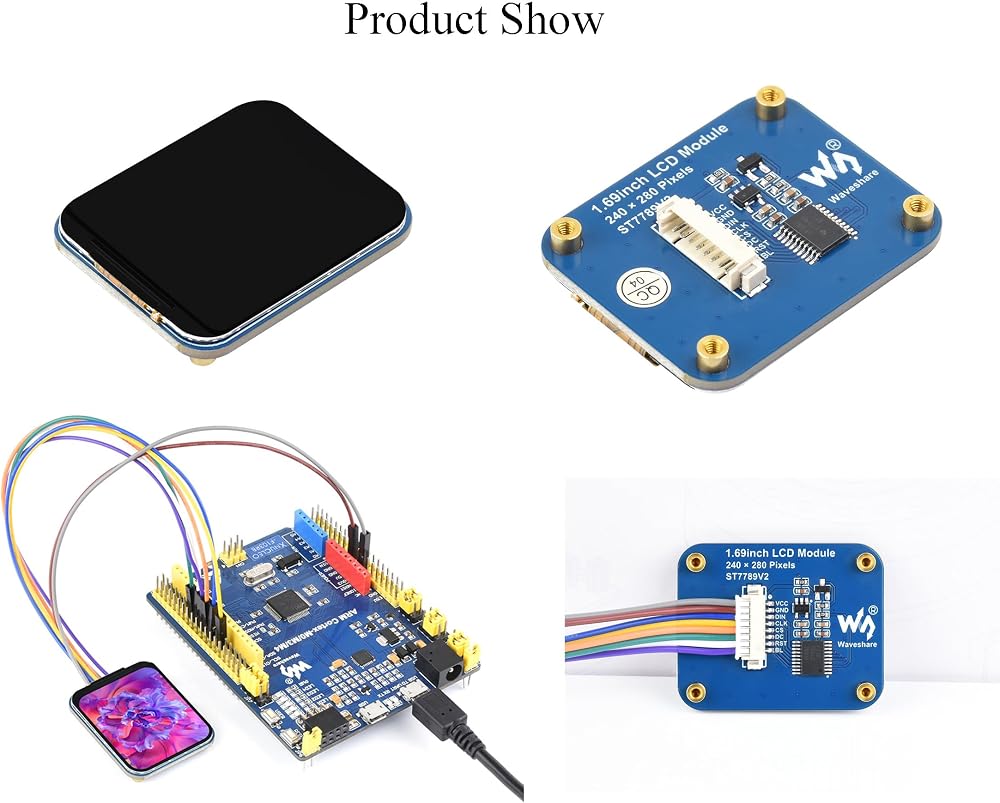

This is Waveshare 1.69inch LCD Display Module, IPS Display Panel. 240×280 resolution, 262K colors, clear and colorful displaying effect
Embedded ST7789V2 driver chip, Using SPI Interface

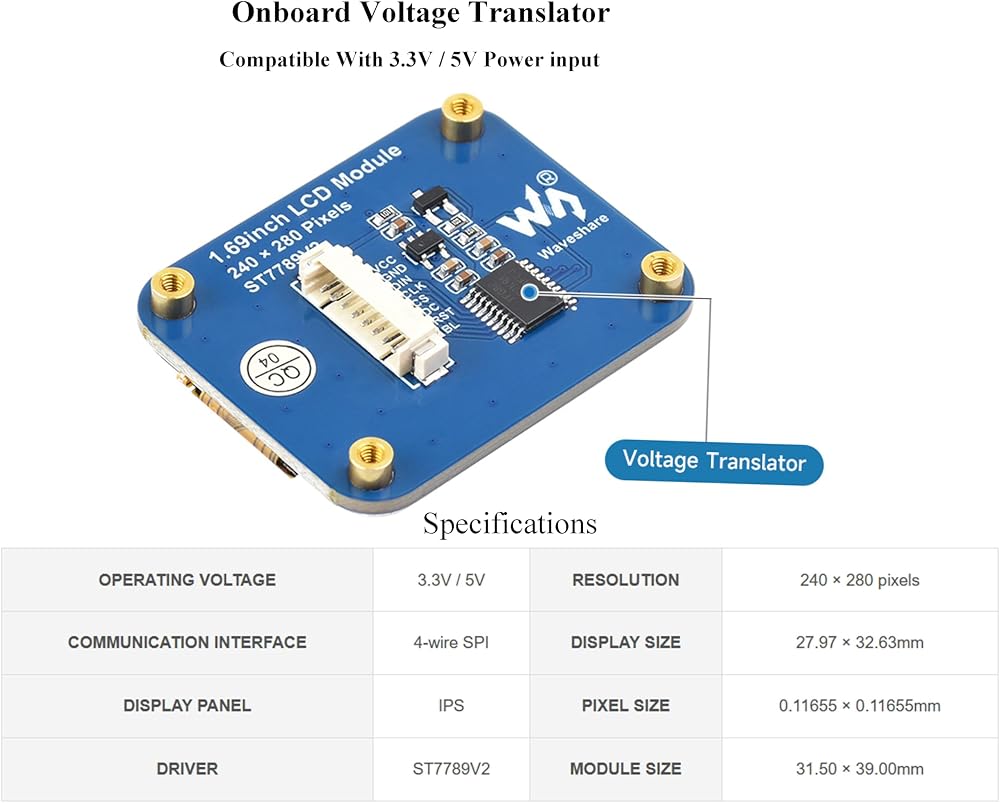

Onboard Voltage Translator--Compatible With 3.3V / 5V Power input

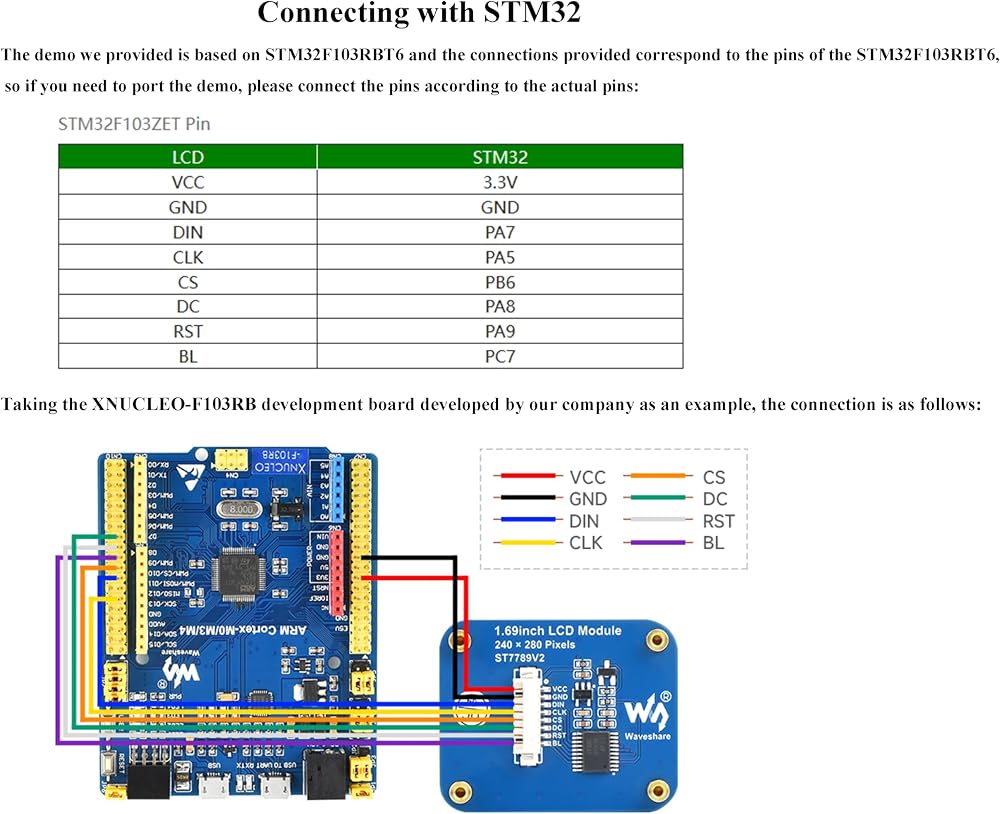

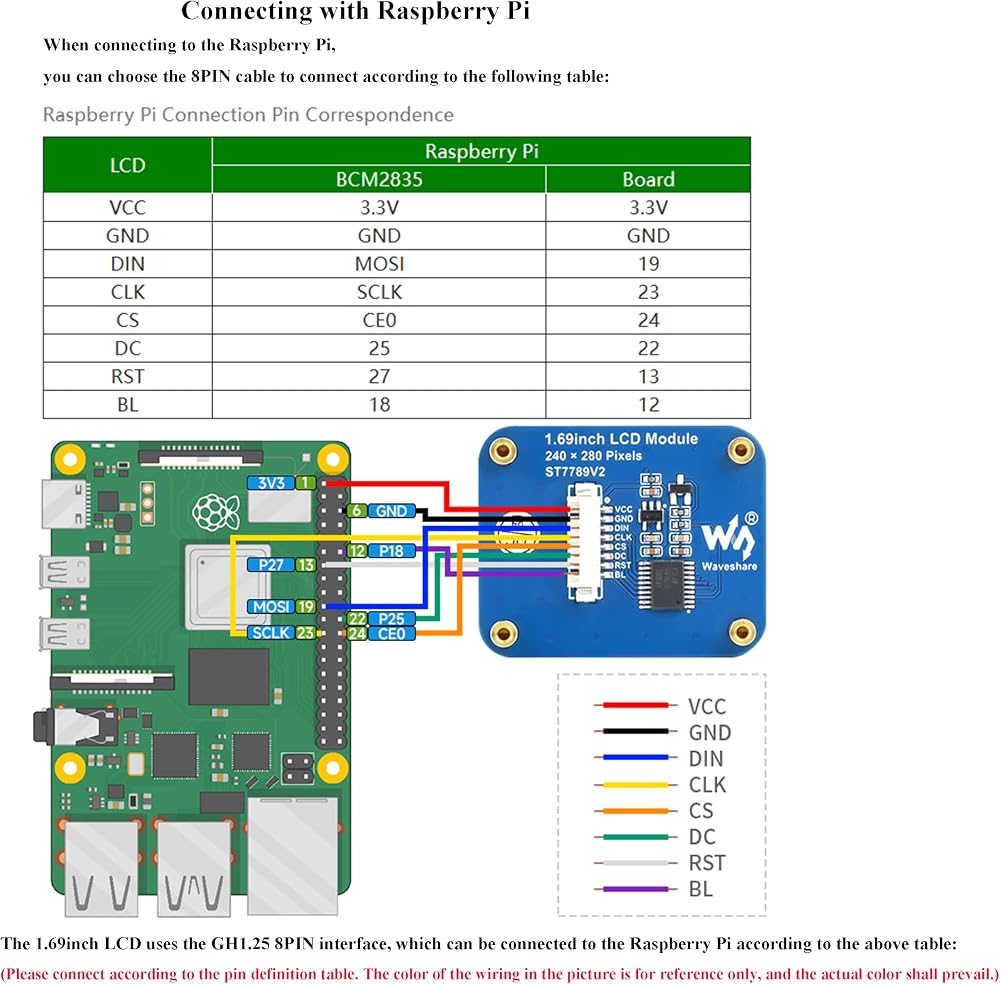

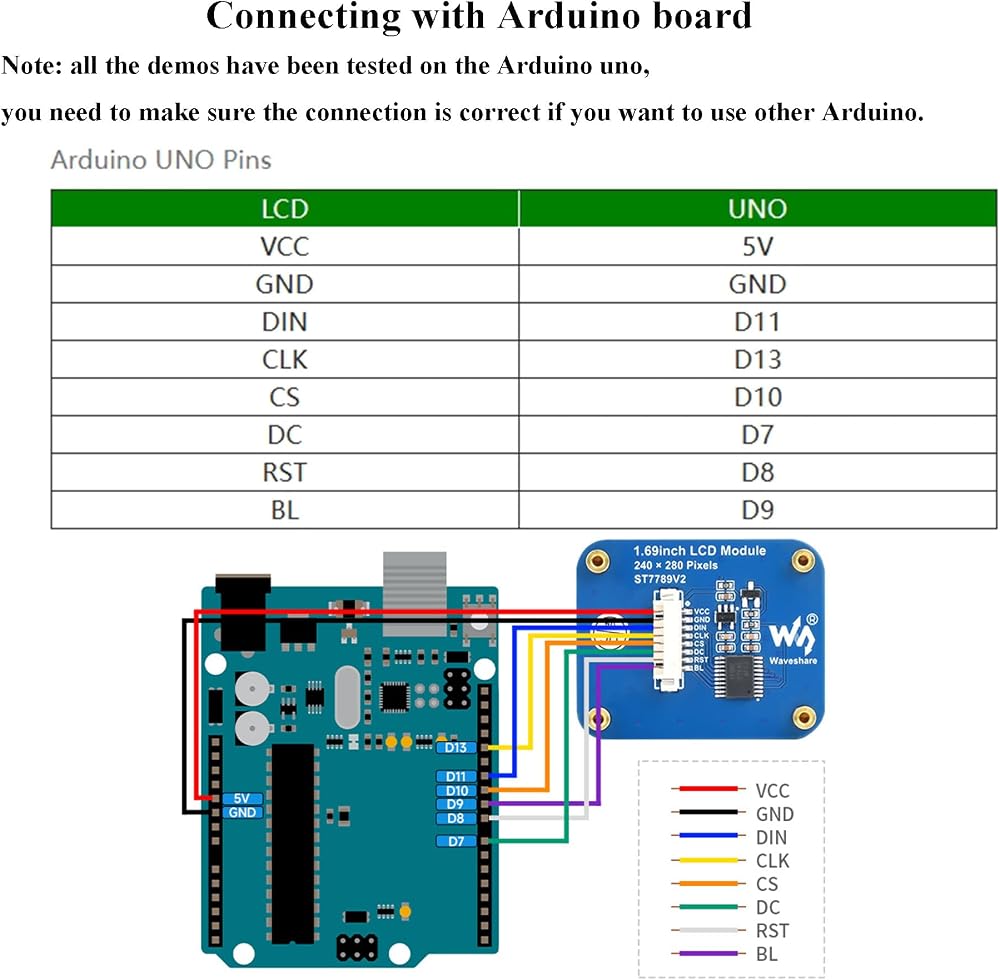

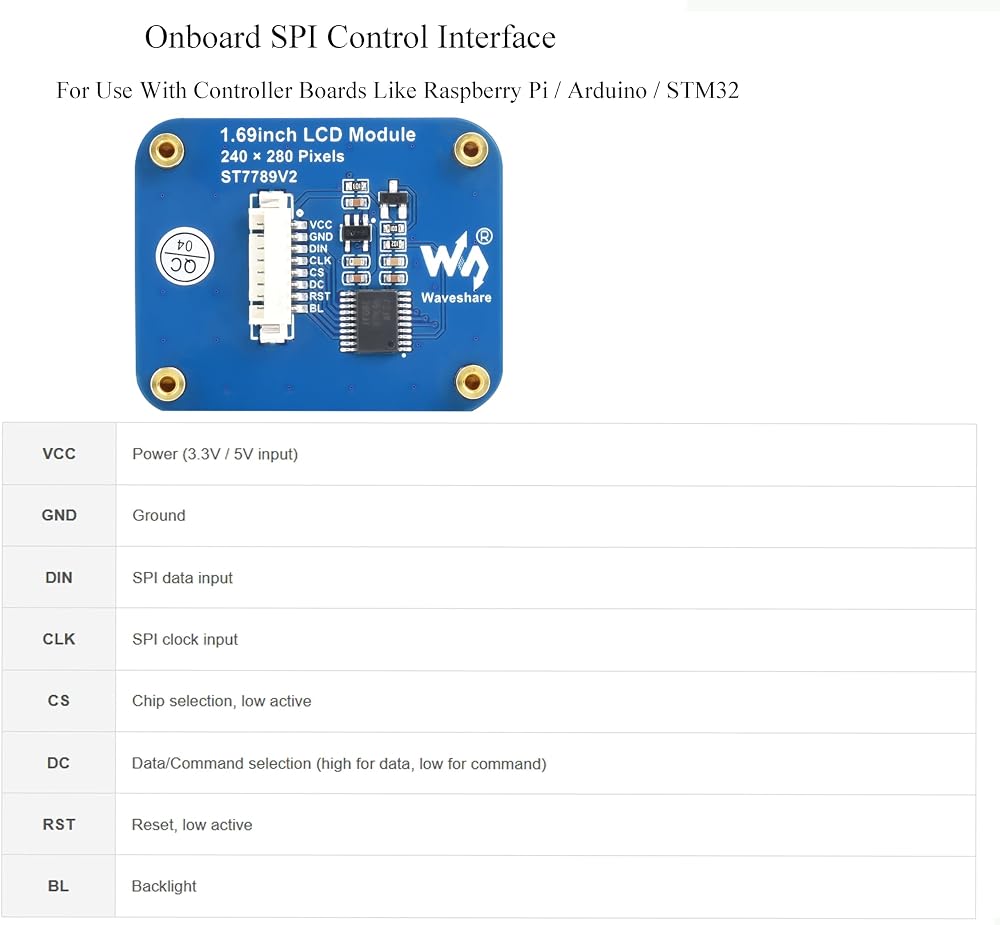

Onboard SPI Control Interface--For Use With Controller Boards, Compatible with Raspberry Pi/ withArduino/STM32
This LCD supports input color formats of 12-bit, 16-bit, and 18-bit per pixel, which are RGB444, RGB565, and RGB666. This demo example uses the RGB565 color format, which is also a commonly used RGB format.
The LCD uses a four-wire SPI communication interface, which greatly saves GPIO ports with faster communication speeds

وصف

Waveshare 1.69inch LCD Display Module, IPS Screen, 262K Colors, Embedded ST7789V2 driver chip, Using SPI Interface.

Features
240×280 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32), please check: n9.cl/zjkfp

Specifications

Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are the same, otherwise it will not work properly.)
Communication interface: SPI
Display Panel: IPS
Control chip: ST7789V2
Resolution: 240 (H)RGB × 280(V)

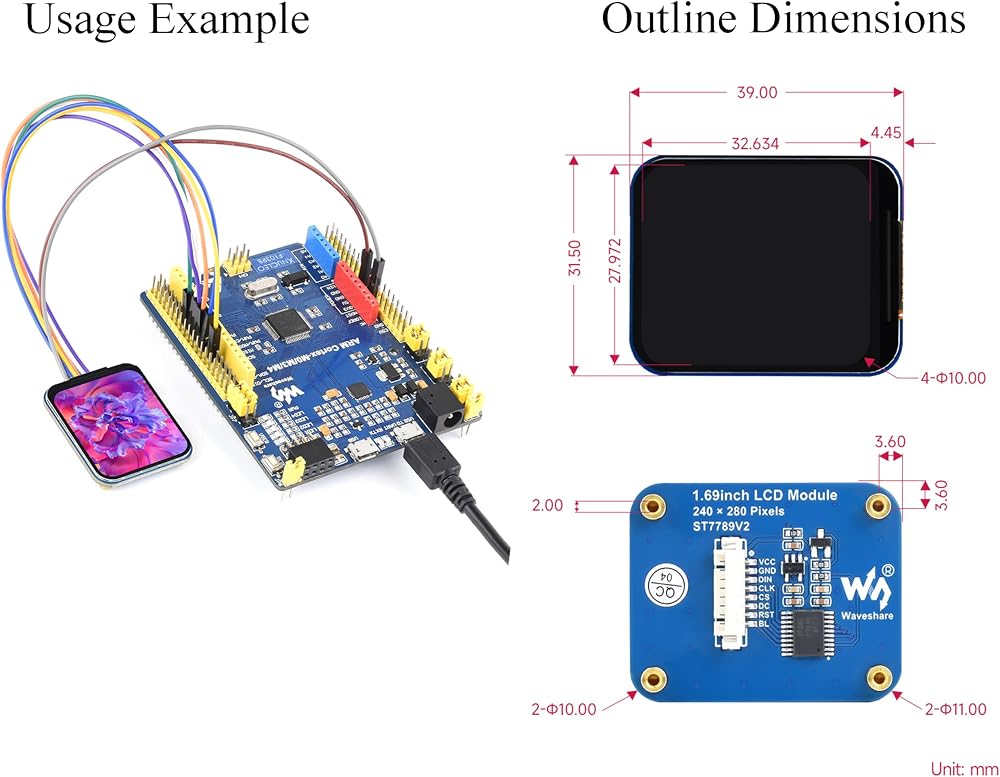

Display size: 27.972mm × 32.634mm
Display R angle: 4-R5 (mm)
Pixel pitch: 0.11655mm × 0.11655mm
Dimensions: 31.5mm × 39.0mm

Package Content
1.69inch LCD Module x1
GH1.25 20cm cable x1
