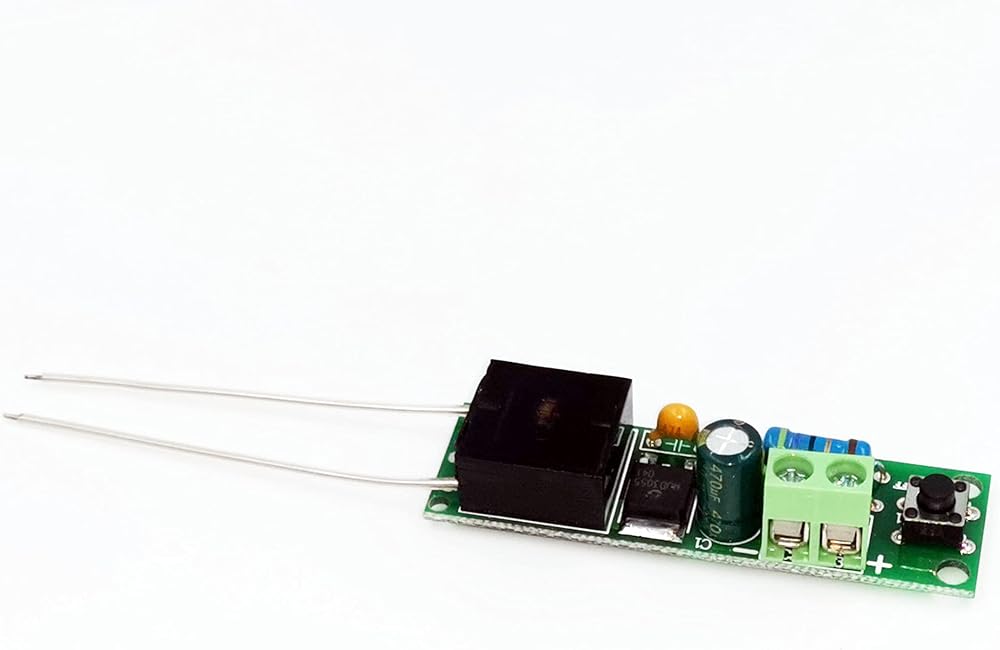

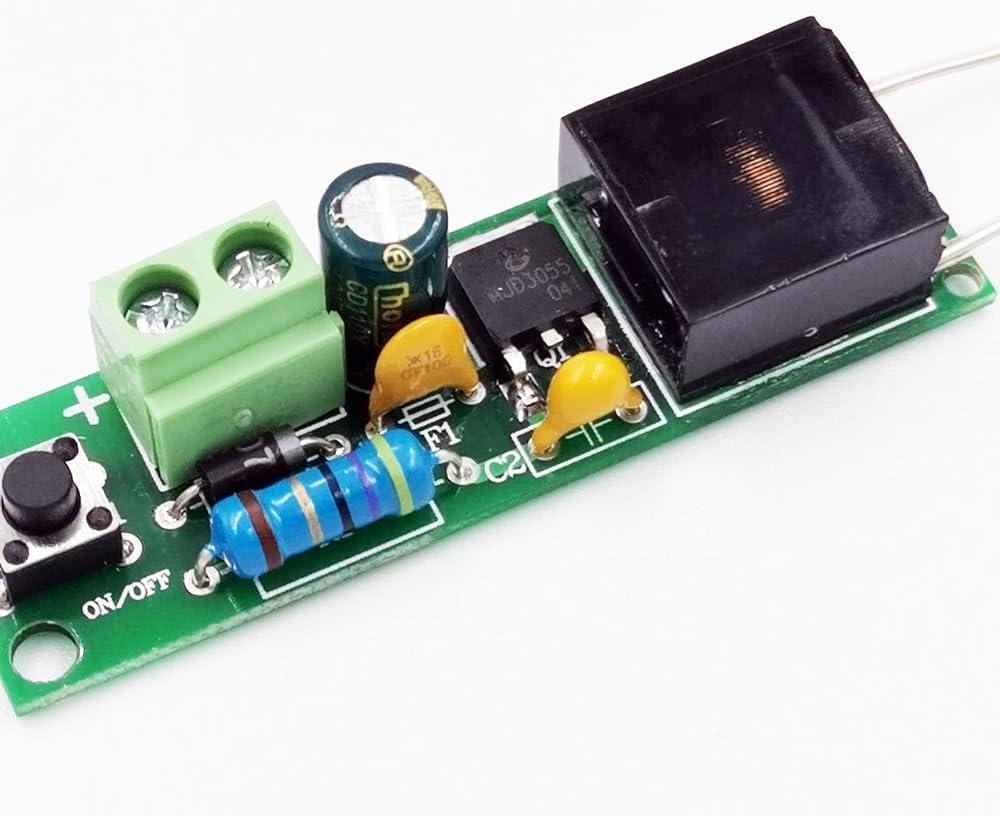

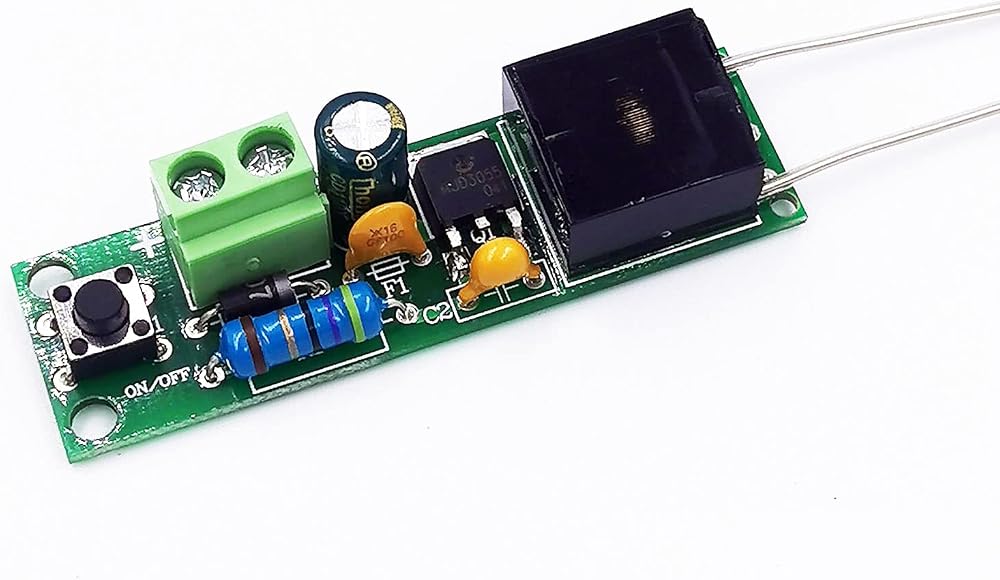

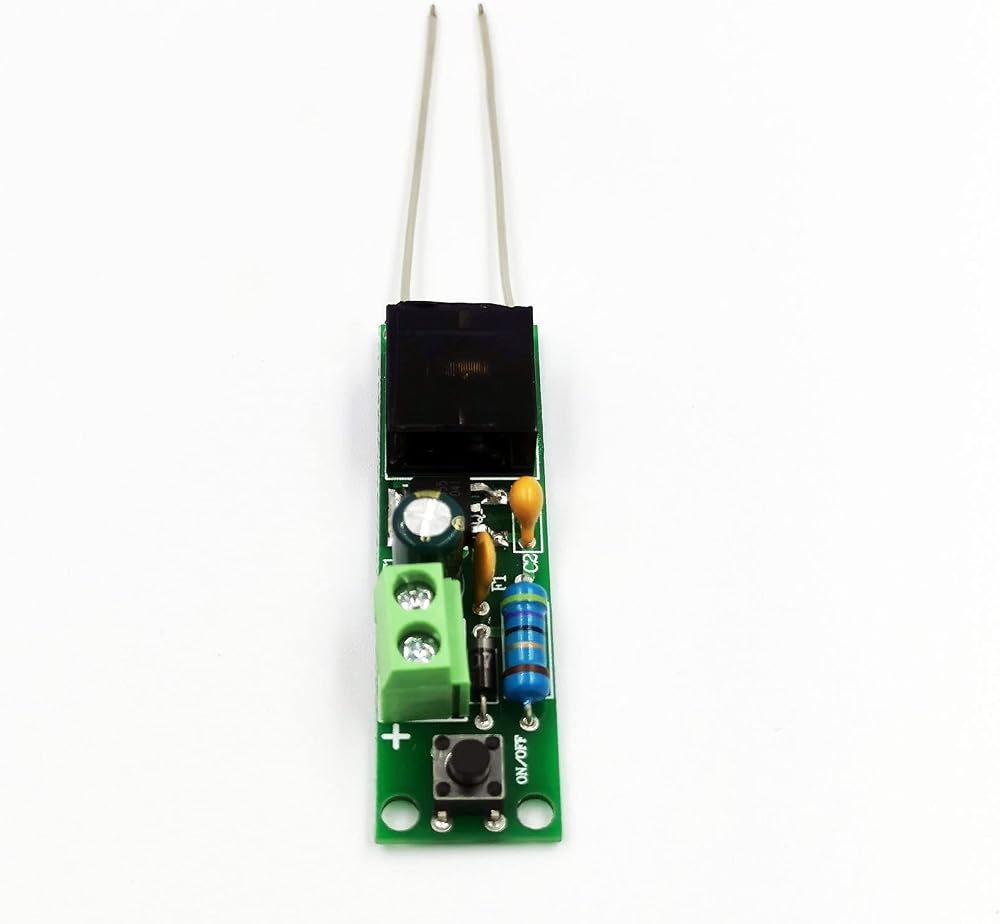

Arc Lighter Cigarette Lighter DC3-5V high Voltage Generator high Voltage Module Transformer

Sorry, this product is not available
Brand
HIECUBE

Special Features

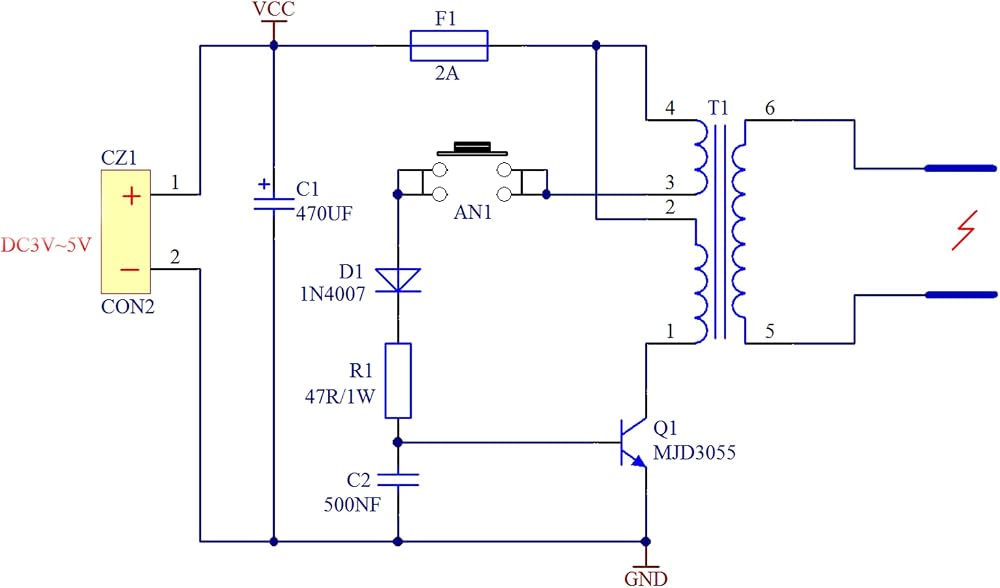

  • 1.This product is a booster coil production package, the circuit is simple and reliable, and equipped with professional line diagrams, which is convenient for electronic enthusiasts
  • 2.Uses: Middle school science experiments, electronic instruments, negative ion generators, small scientific productions, etc. This circuit has high working frequency, stable arc, high temperature resistance, and easy to ignite fuel, so some people call it a plasma lighter
  • 3.The input of this product is connected to the power supply 3V-5V (2A), the secondary output voltage does not meet the high voltage rectifier diode and a capacitor, and the two lines of the output level can produce a purple high-temperature arc less than or equal to 0.8 cm long, but it is very easy to ignite paper, wood Sticks, and even very thin iron wires have burned out (such as in chemical experiments where thin iron wire burns in oxygen, but not as badly as oxygen.)
  • 4.Transformer structure,Two primary windings, one main winding, one feedback winding, and the secondary output pressure. The transformer is designed with a maximum output of 10kV, the arc distance (0.5-0.8cm), and the maximum output limit does not exceed 15kV, which is also an arc of 1cm.
  • 5.The circuit is designed with a self-recovery fuse. If it works for a long time (more than 10 seconds), it will be forced to power off. After the fuse cools down, it will automatically recover, and it can work normally after recovery.
  • 6.Arc high temperature, be careful of burns

Description

Product Auspiciousness:
Working frequency: 20KHZ-25KHZ
Arc distance: MAX5mm

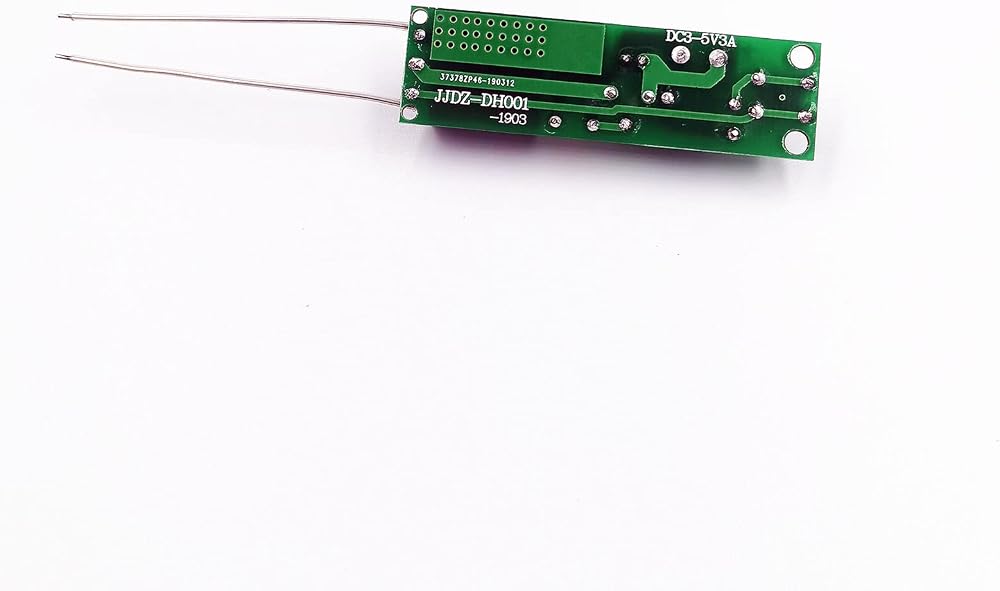

PCB size: 55*16mm
Output pulse voltage: 0.5KV-0.8KV
Output current: ≤0.5A
Input voltage: DC3-5V
Input current: ≥2A
Packing: anti-static bag
Arc high temperature, be careful of burns
