This Product is Designed, Assembled, and Distributed in the USA.

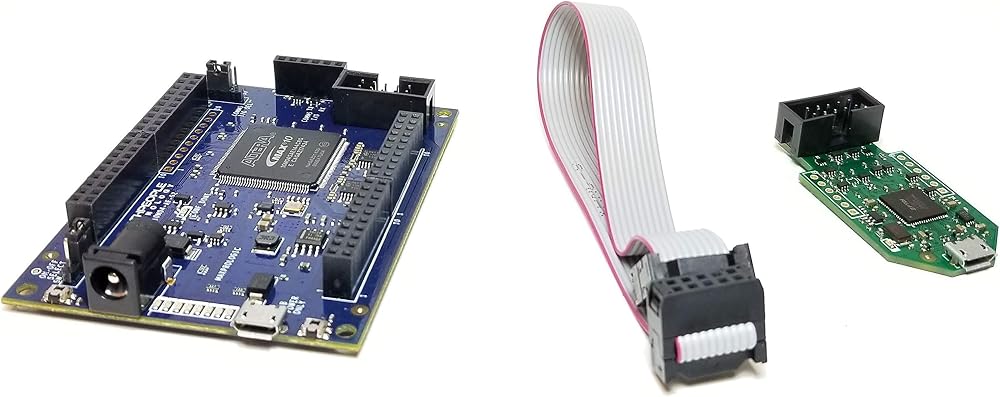

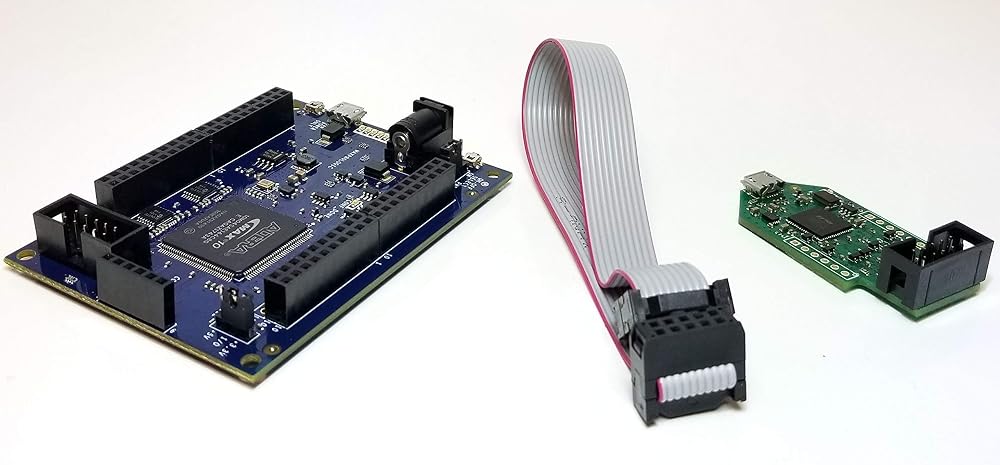

The MaxProLogic is an FPGA development board that is designed to be user friendly and a great introduction into digital design for anyone.

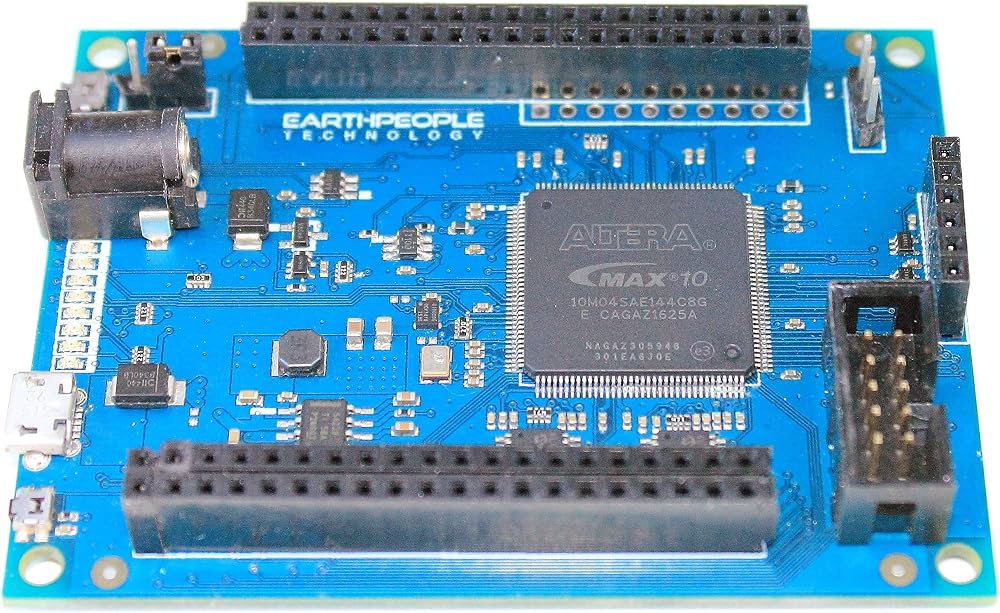

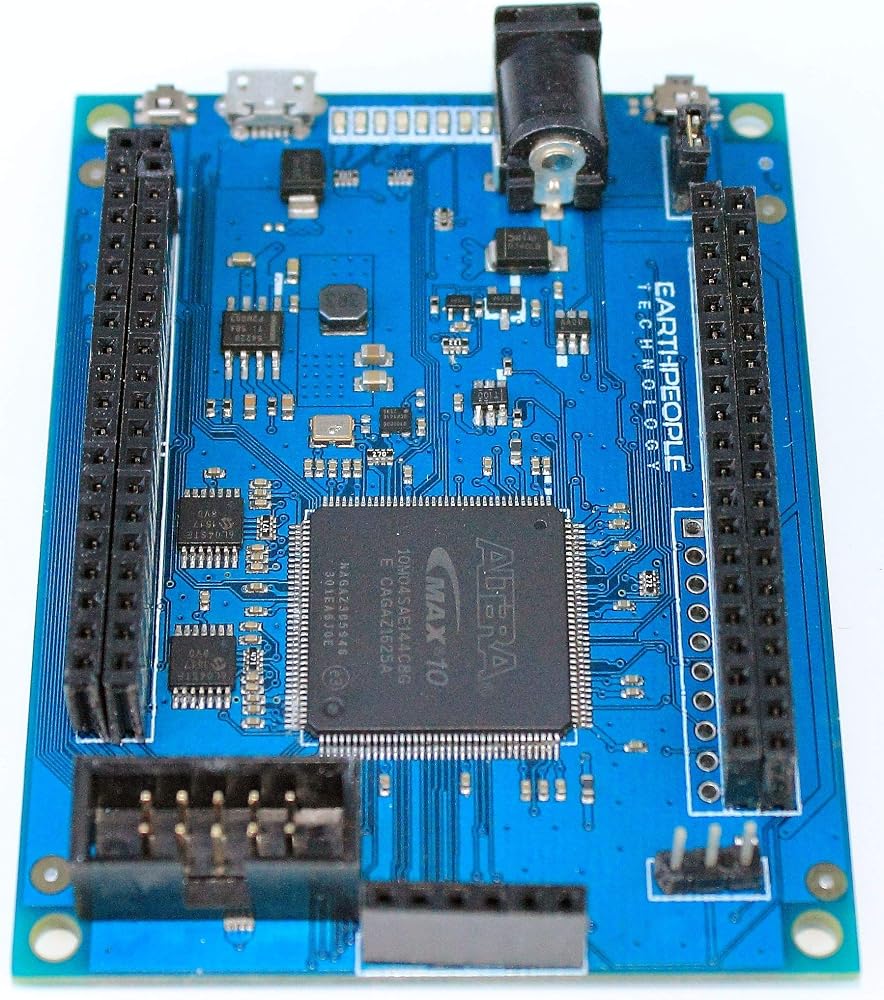

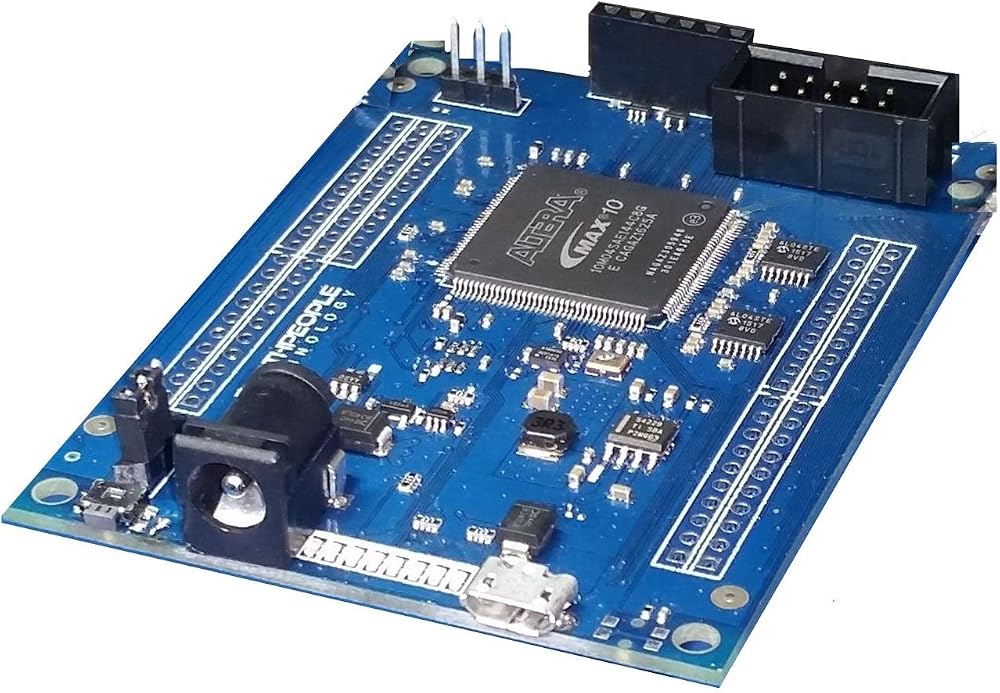

The core of the MaxProLogic is the Altera MAX10 FPGA. This powerful chip has 4,000 Logic Elements and 200Kbits of Memory. The MAX10 is easily scalable from the entry level college student to the most advanced projects like an audio sound meter with FFT.
Upon the many great features of the MaxProLogic is the MAX10 chip has a built in Flash for configuration and incorporates 8 channels of Analog to Digital Conversion.
It allows the user to create more diverse projects. The MaxProLogic is designed to make digital design easy and cost effective.
At Earth People Technology we have years of experience helping students and hobbyists get started with FPGA design. We know that the learning curve in getting started can be a time consuming and frustrating event. So, we created a User Manual that walks the user from unpacking to creating the first project to creating an epic project that will get attention. The Learning Curve with any new piece of hardware is always time consuming. We painstakingly crafted a guide that leaves out no details in creating a project under the Quartus Software Tool.
We will explain how to organize project user files into a folder system for easy navigation. We will explain how to: · Create a Project, · Add User Files · Add MegaFunction IP Files · Add Synopsys Design Constraints, · Assign Inputs and Outputs to pins of the MAX10 · Compile the Design · Synthesize the Project ·
Program into the MAX10 The MaxProLogic leverages the Quartus Prime Lite Software for compilation and synethsis. This software tool is completely free and provides very powerful tools for the user. Also included free in the software tools is the simulation tool, ModelSim.
