1. Frequency range: from 50 kHz to 2.0GHz (Registered version)
2. All types of analog modulation: AM, LSB, NFM, WFM; (CW)

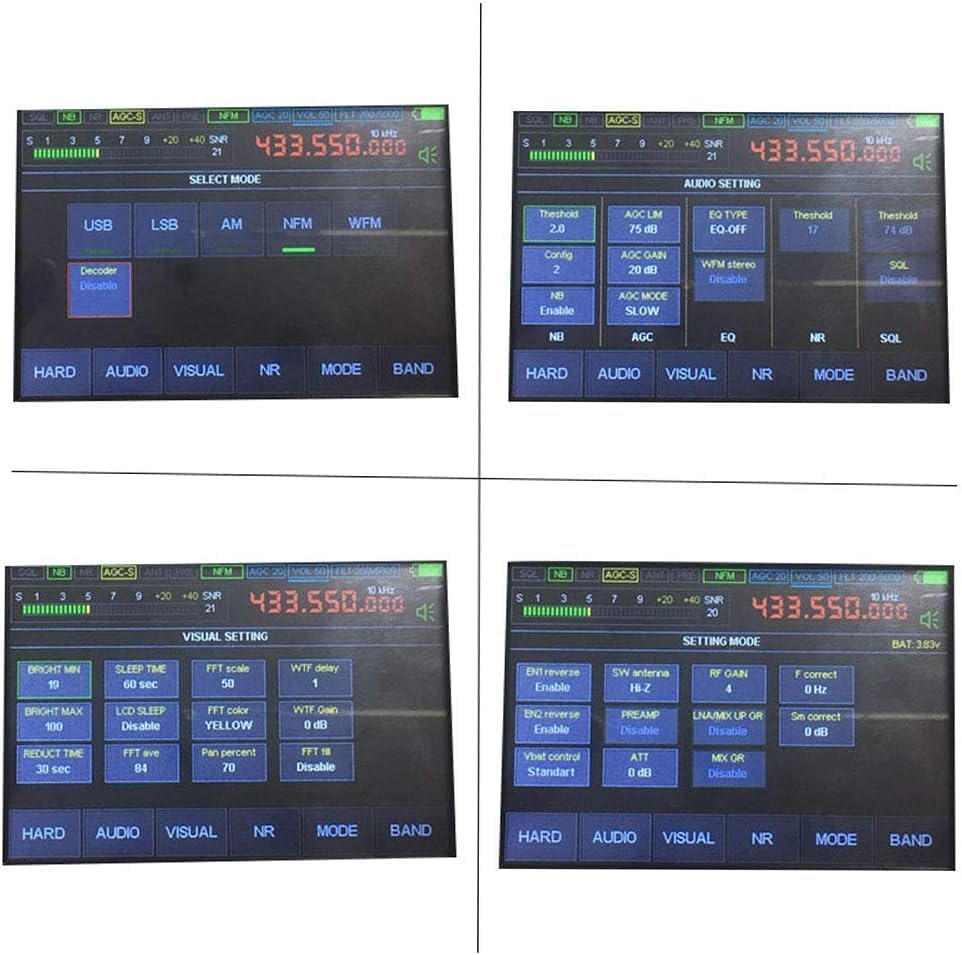

3. Functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer;
4. The powerful stm32H743VIT6 with a clock frequency of 480 MHz is applied;

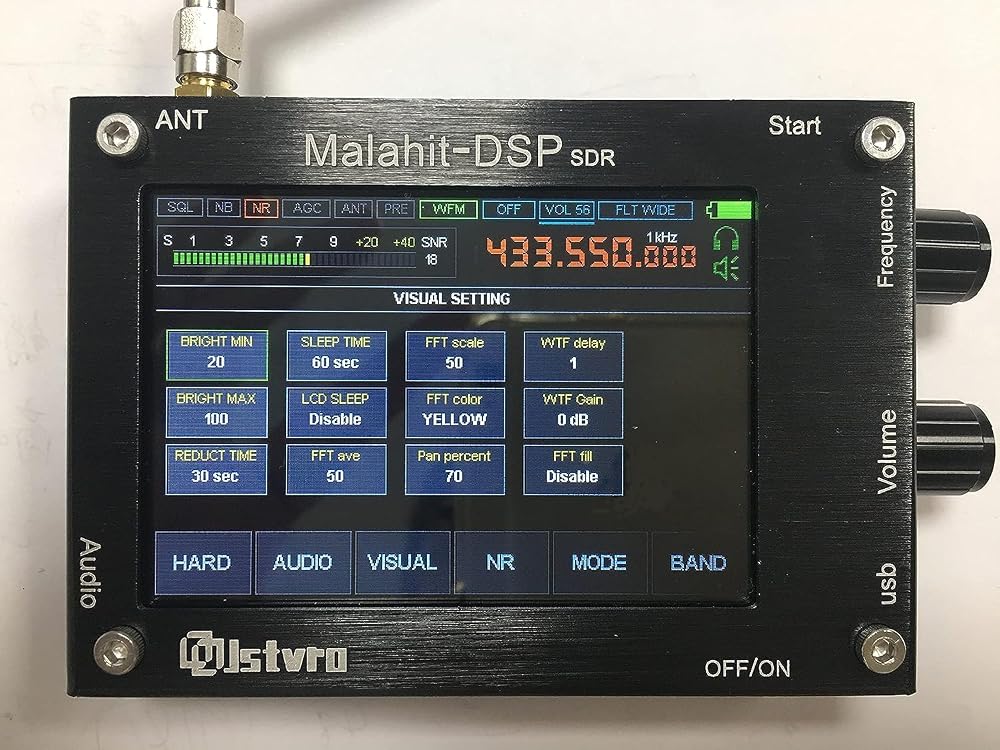

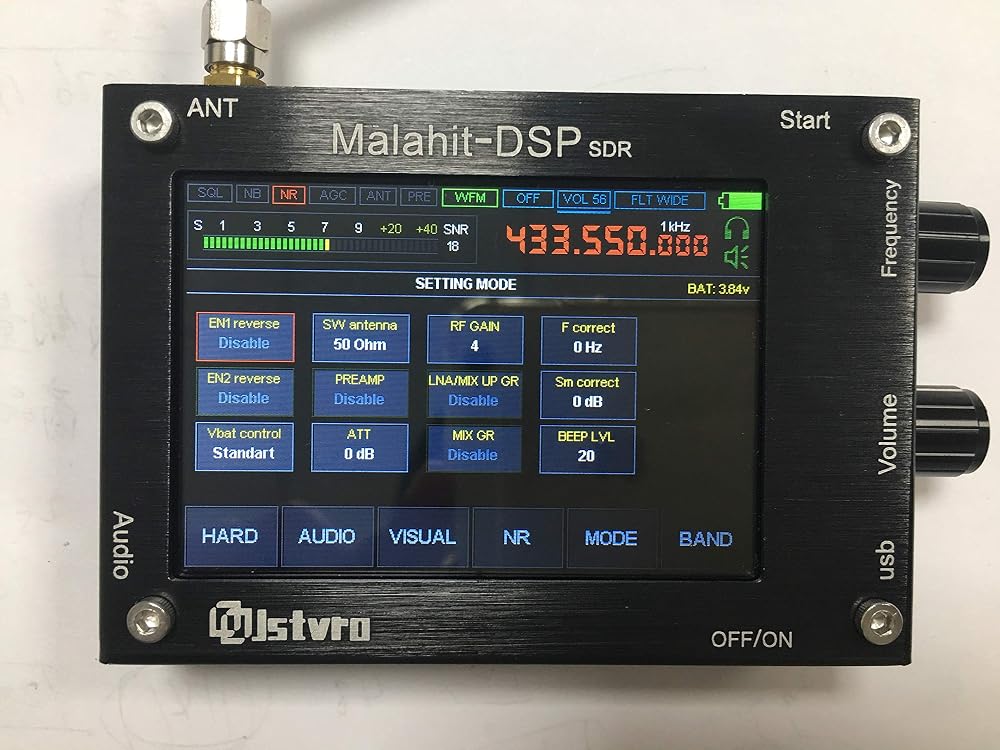

5. 3.5-inch display touch screen;

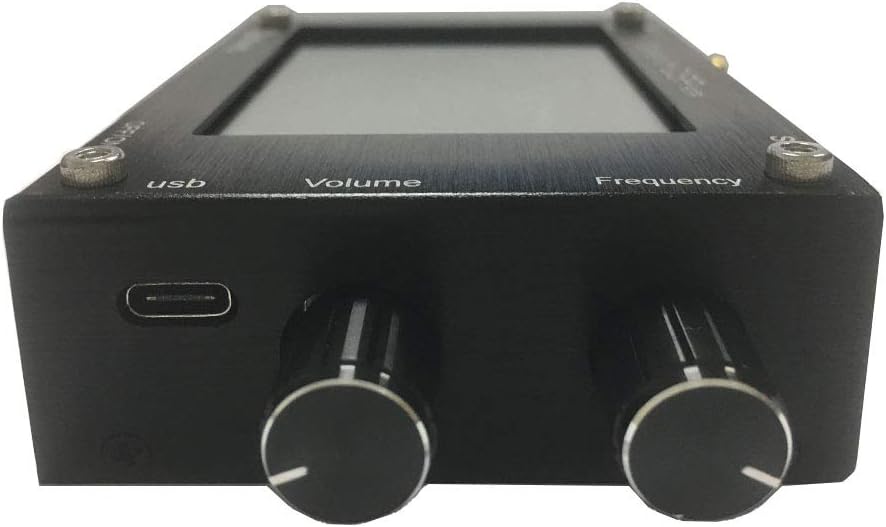

6. Controls: 2pcs; encoders with buttons and touch screen;
7. It is powered by an external TYPE-C interface or battery (Built-in battery 3.7V 3800ma), which can be charged by TYPE-C.
8. Consumption: 300mA when listening to headphones;
9.The reception on built-in telescope or external antenna is to improve the HF reception on telescope antenna, and an additional board with source follower has 10.Connect to computer via USB, which can transfer CAT, IQ and audio.
11.160 kHz span, with scalability
Tips:
The Antenna come with this receiver is a 433MHz antenna. WFM is nice sound.
If you need to receive AM or LSB radio, please buy the right Antenna.
