Listen Technologies LR-500-072 Portable RF Receiver, 72 MHz; Programmable Display; 80 dB Signal-to-noise Ratio; Compatible with Mono and Stereo Headphones

Key Features:
- Compact, portable, and programmable digital receiver
- Can receive up to 17 wide-band or 40 narrow-band channels
- Easy-to-read LCD display with programming status, battery level, channel lock, and signal strength readings
- Channel seek capabilities and channel selector buttons on the front of the unit
- 80 dB signal-to-noise ratio for industry-leading sound quality
- Built-in SmartCharge feature prevents overcharging
- Simple drop-in charging compatible with Listen Technologies' charging cases and plugs
- Compatible with mono and stereo headphones

Specifications:

Audio:
- Frequency Response: 50 Hz - 15 kHz (±3 dB)
- Signal-to-Noise Ratio: SQ enabled: 80dB; SQ disabled 60dB
- Audio Output Jacks: 3.5mm connectors, unbalanced, 0dBu nominal output level, 16mW maximum, impedance 32 Ohms

Controls:
- User Controls: Channel up/down, SEEK, volume, SQ enable/disable

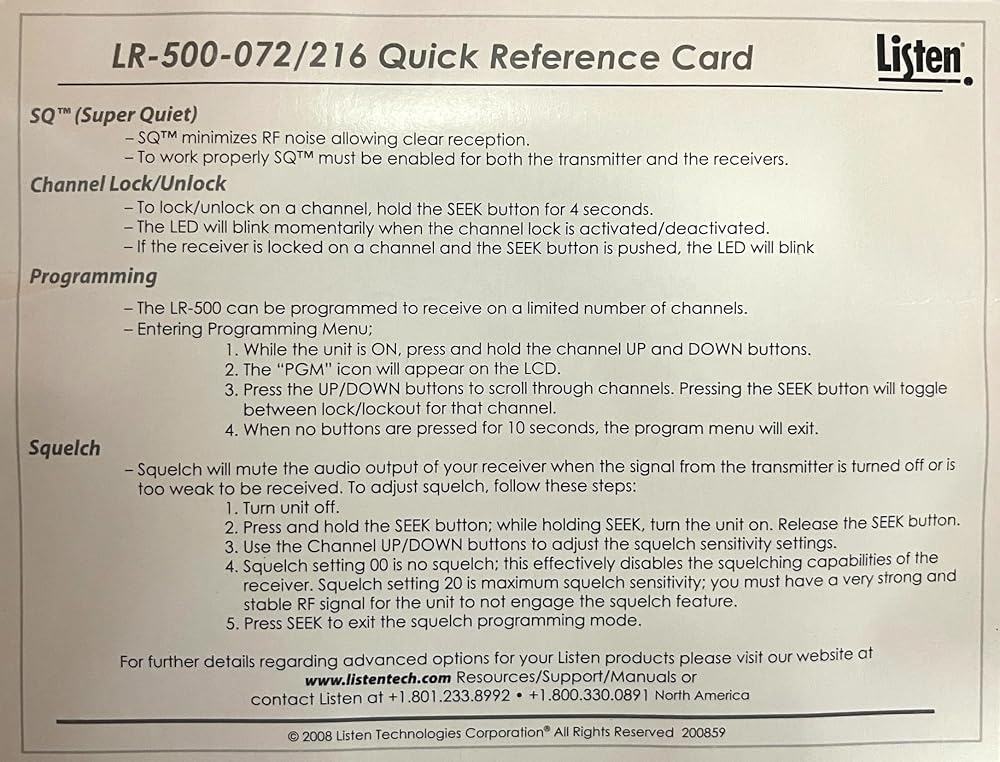

- Programming: Channel lock, squelch, channel lock out

Indicators:

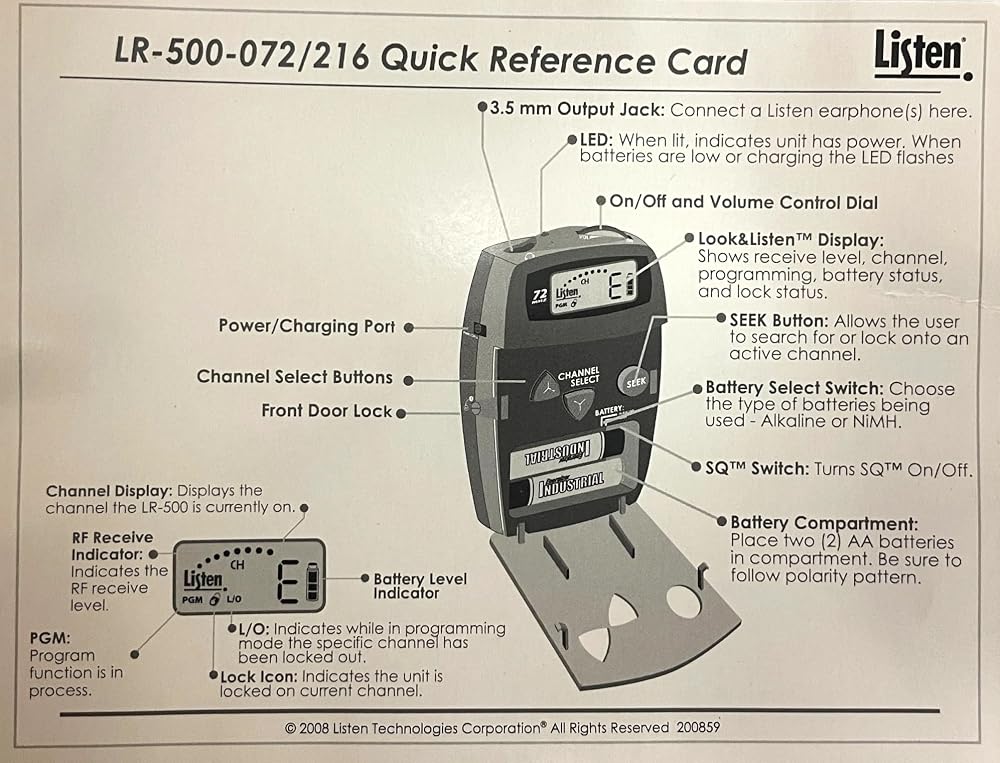

- LCD: Channel Designation, lock status, signal strength indication, programming

RF:
- Frequency Range: 72.025 - 75.950 MHz
- Number of Channels: 17 wide band, 40 narrow band

Power:
- Power Supply: I/P 120VAC; O/P 7.5VDC 250 mA; Drop in contact points for use with charging cases. Power supply not included (LA-208)
- Power Supply Connector: 2.3mm OD by 0.7mm ID, barrel type connector 7.5 VDC, center positive less than 250mA. Drop in contact points for use with Listen charging cases

Physical:
- Color: Dark Grey with white silk screening
- Unit Dimensions 4.57 x 4.17 x 2.80 inches
- Weight 0.25 Pounds
