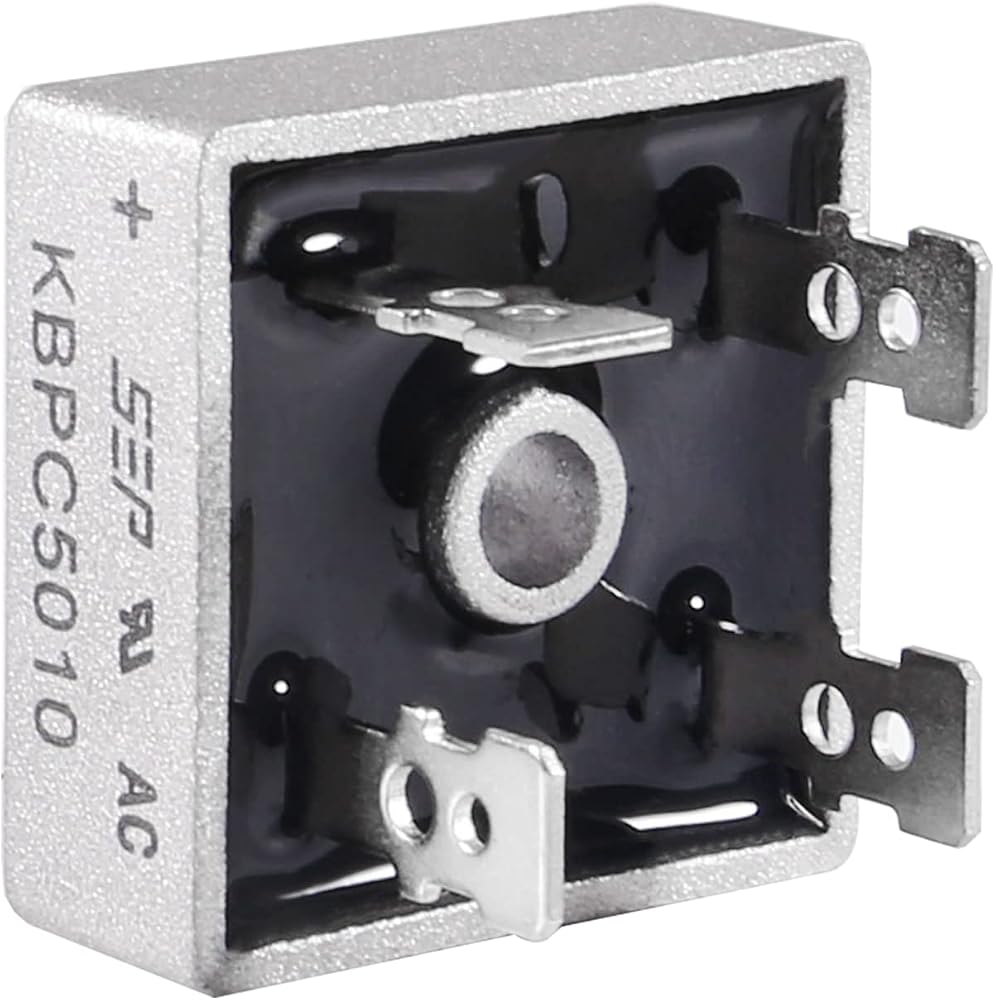

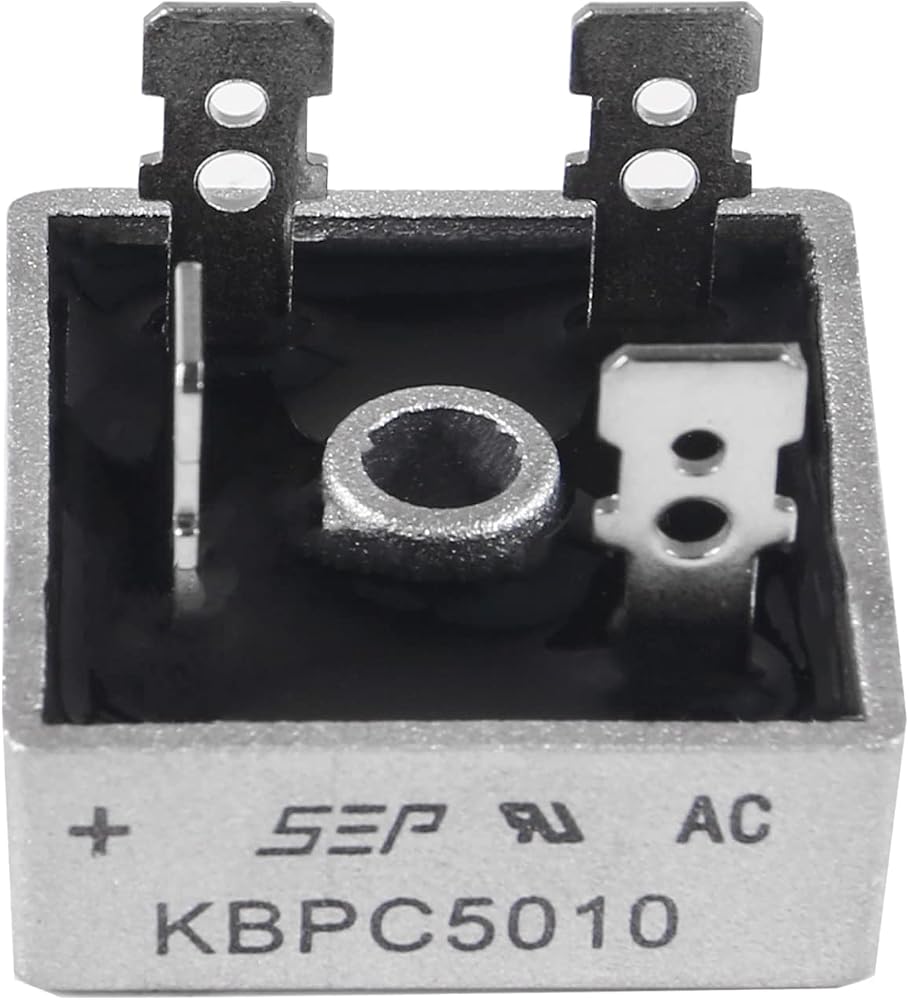

5pcs KBPC5010 Bridge Rectifier Diode Single Phase Full Wave 50A 1000V 4-Pin Electronic Silicon Diodes Through Hole AC to DC Full Bridge Voltage Rectifier (50A 1000V KBPC 5010)

Recurrent peak reverse voltage :1000V;The average forward rectifier current is 50A and the isolation voltage is 1000V. Junction temperature :100℃;Rectifier element: full bridge type.
Features: The bridge rectifier has metal aluminum shell, which is convenient for heat dissipation.High temperature resistance, stable insulation.Low power consumption, high efficiency.
Application: Bridge rectifier diode is usually used in rectifier current, CNC machine tools, remote control system, rectifier power supply, industrial automatic control, CNC machinery and so on.
Function: The rectifier diode is an electronic component that converts alternating current into direct current.The bridge rectifier performs full wave rectification of the input signal to improve the output power and efficiency.
Package:5PCS single-phase diode bridge rectifier KBPC5010.

Model : Kbpc5010
Material : resin, metal;

Terminal Size : 13 x 6mm/0. 5"x0.24"
Body Size : 28 x 28 x 11mm/1.1"x1. 1"x0.4"
Mounted Hole DIA.:5.5mm/ 0. 2"

Phases:Single Phase
Repetitive Reverse Voltage Vrrm Max: 1kV
Forward Current If(AV):50A
Bridge Rectifier Case Style:Module

Forward Voltage VF Max:1.2V
Pins:4Pins
Operating Temperature Max:150°C

Package include:
5pcs KBPC5010
