مميزات خاصة

These selector switches are available in two-position models
Self-locking with 2 normally open contacts

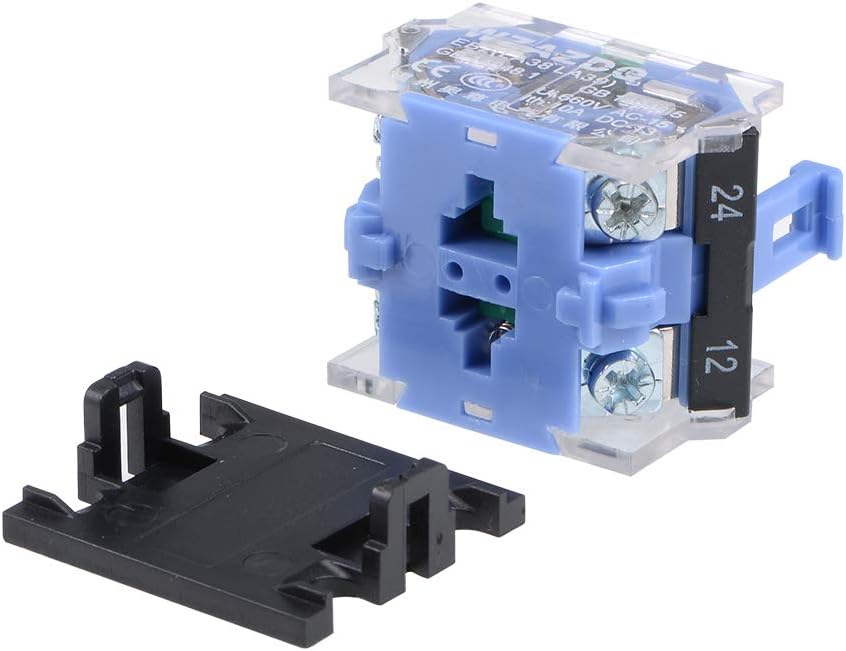

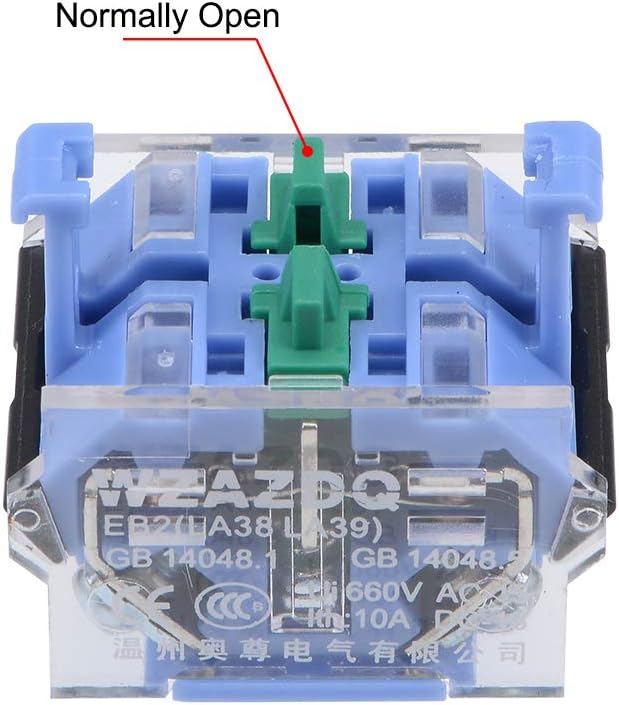

Contact blocks are color coded for easy identification: green for normally open, red for normally closed
Simply drill an 22mm (7/8") hole and secure it with the screw ring
Selector switch can be used with electric oven, juicer, electric heater, blower, range hood, humidifier, massage equipment, heaters and other appliances

وصف

Description:
-Selector switches use cams in combination with contact blocks to provide a wide range of circuit openings and closings.
-Selector switches are often used when more than one control option is needed (e.g. Hand-Off-Auto).
-This 22mm selector switch is modularly designed to make assembly.
-Used widely to control the electromagnetic starter, Contactor, relay and other automatic control electric circuits.

Specification:
Rated Voltage: AC 660V
Rated Current: 10A
Action Type: Latching (Self-Locking)
Positions: 2

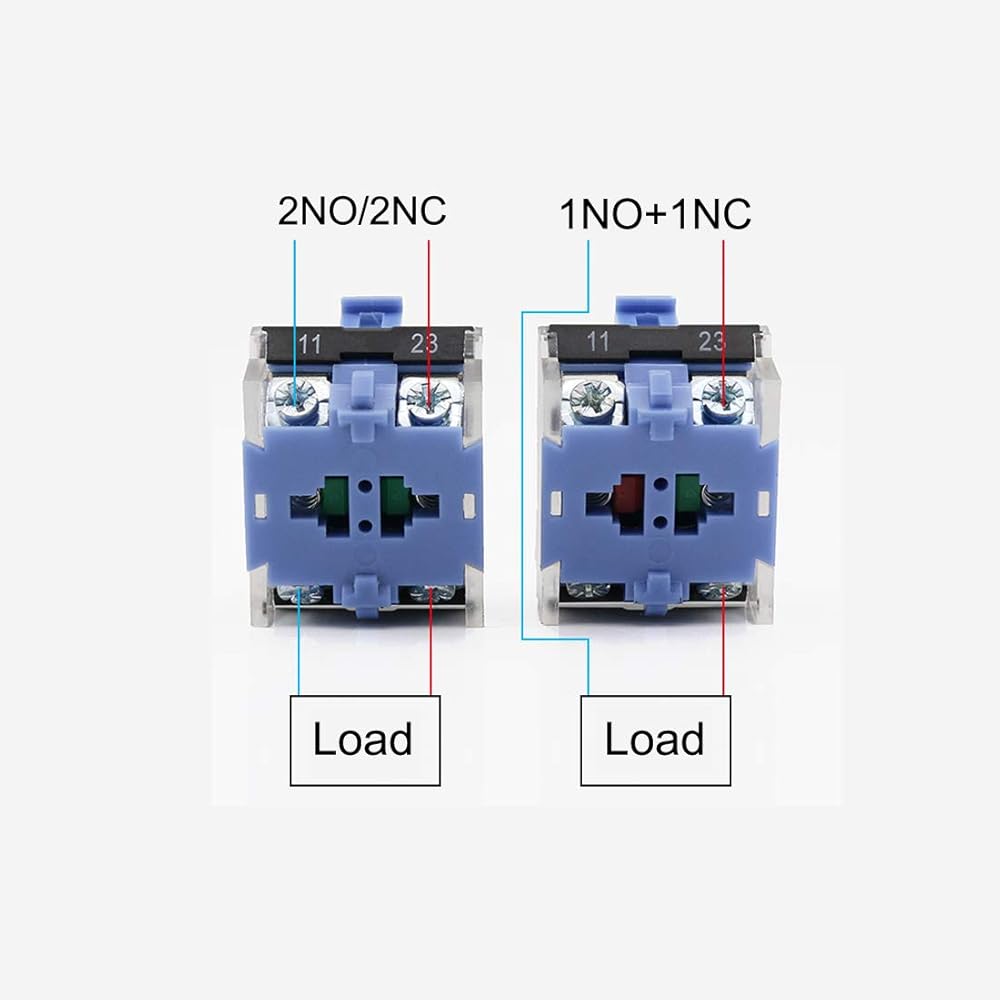

Contacts Type: 2 Normally Open
Terminals Type: Screw Clamps Terminals

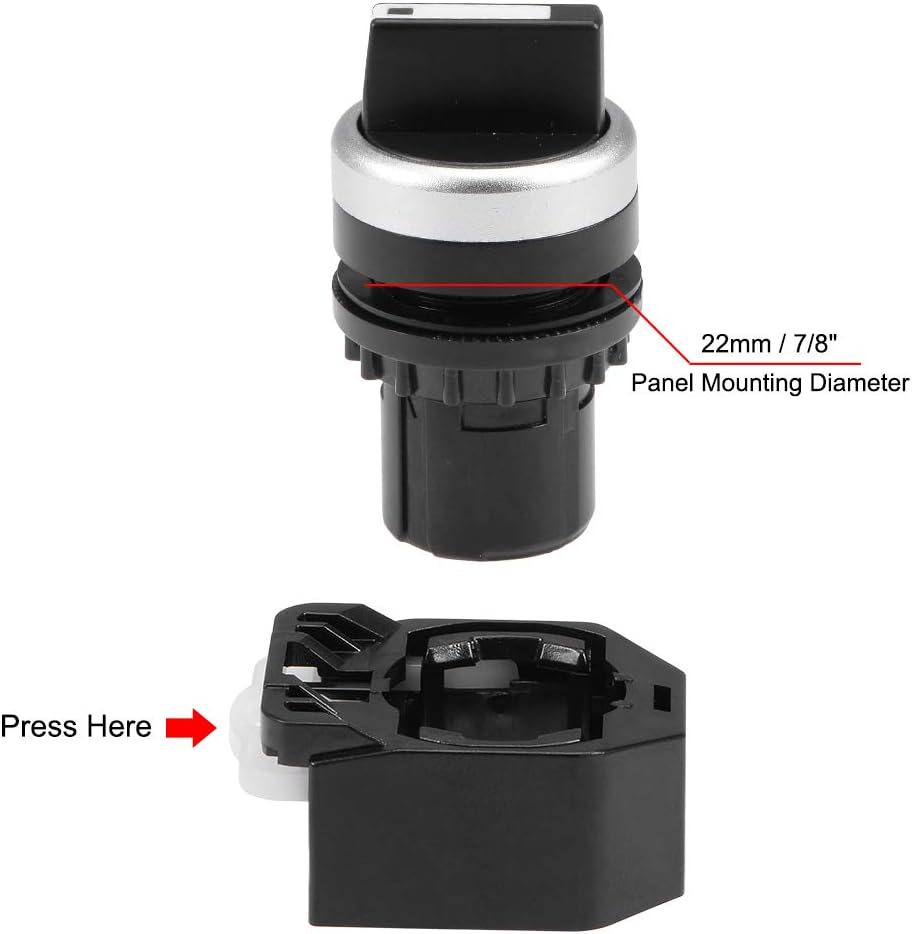

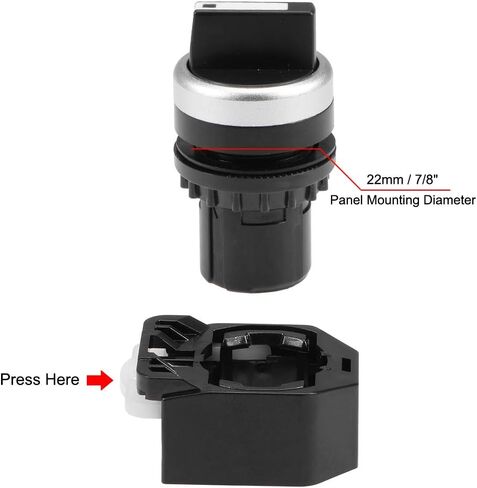

Panel Mounting Diameter: 22mm / 7/8"

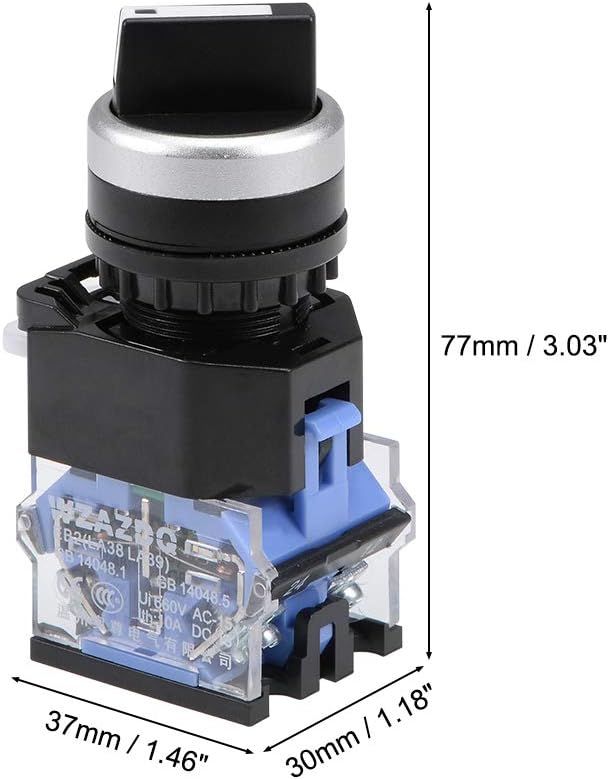

Overall Size: 77 x 37 x 30mm / 3.03" x 1.46" x 1.18" (L*W*H)
