Specification:
Product Name: Limit Switch

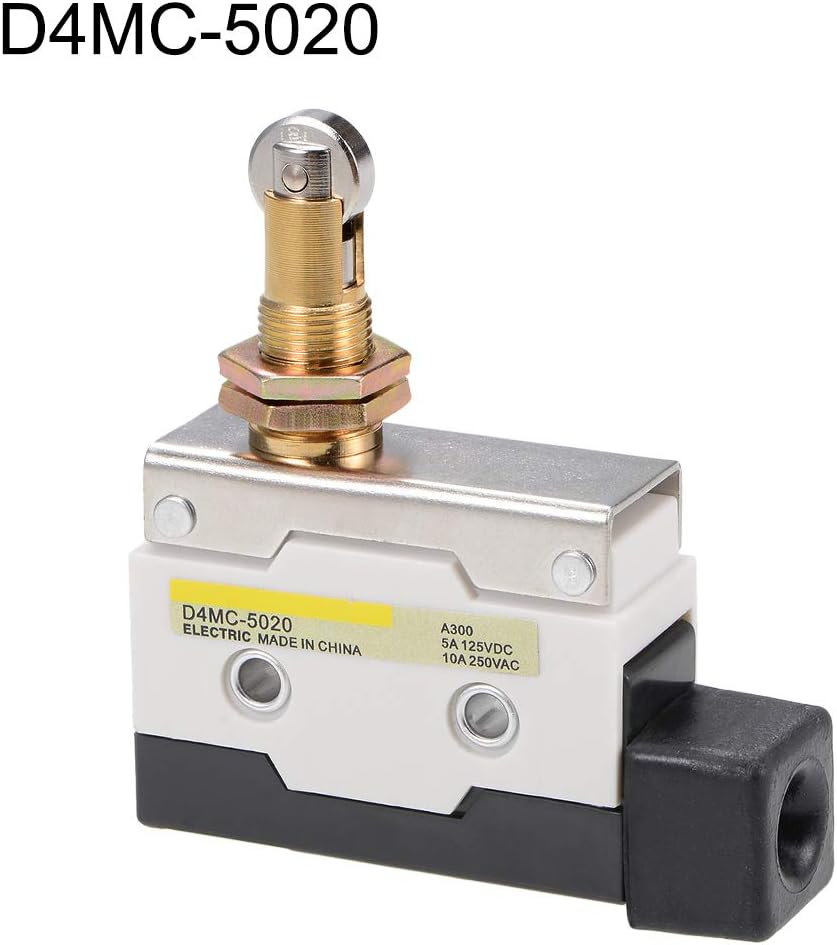

Model: D4MC-5020

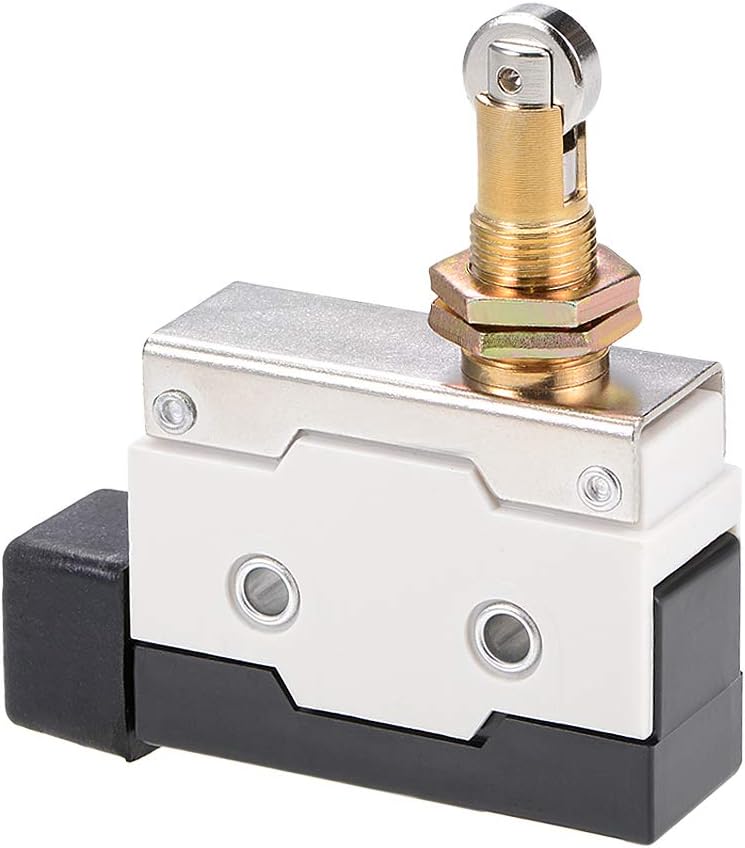

Actuator Type: Roller Plunger Type
Rated Voltage: 5A 125VDC / 10A 250VAC
Contact Configuration: 1NC+1NO

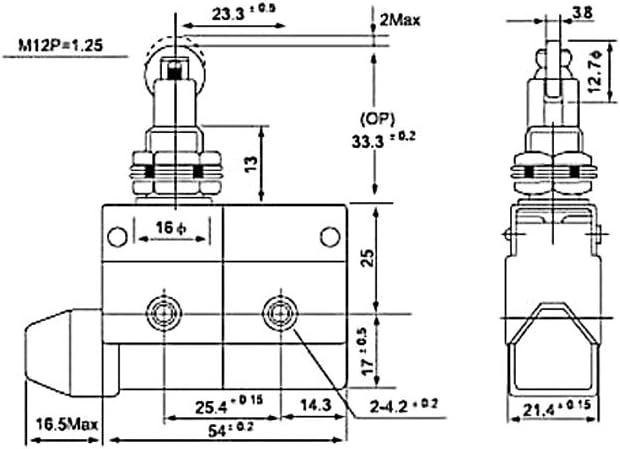

Body Size: 54 x 42 x 21mm (L*W*T)
Mounting Hole Size: 4.2mm (D)
Mounting Hole Distance: 25.4mm

The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.
Position detection accuracy is high.

Operating Characteristics:
OF max.: 600g
RF min.: 100g
PT max.: 2.0mm
OT min.: 6.0mm
MD max.: 0.8mm
OP: 33.3+/-1.2mm

Description:
-Intensive ABS plastic shell, sealed construction.
-Panel mount, side fixed with better water-proof and oil-proof performance.
-Smooth operation with higher OT.

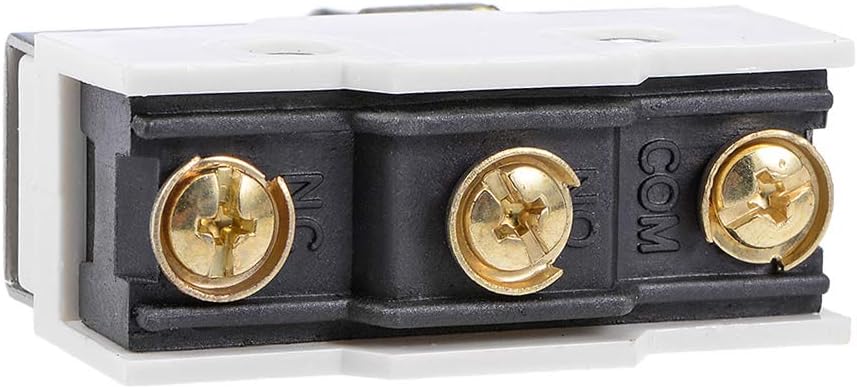

-Silver contacts. Easy-to-wire design.
-This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
