مميزات خاصة

Compatibility: The limit switches kit is compatible with Genmitsu 3018-PROver/3018-MX3/3018-PROVer Mach3.
Product introduction: This is a kind of reliable Horizontal switch for 3D printer, CNC 3018, 3D tool.
Parameters: Size,18mm x 27mm x 14mm (L*W*H); Mounting Hole Dia.: 3.0mm; Cable length: approx. 1m/3.3ft
Plug and play: These micro switches features NO contact, momentary action and come with 1m 3-pin cables.Combined with 3D printing board, plug and play.

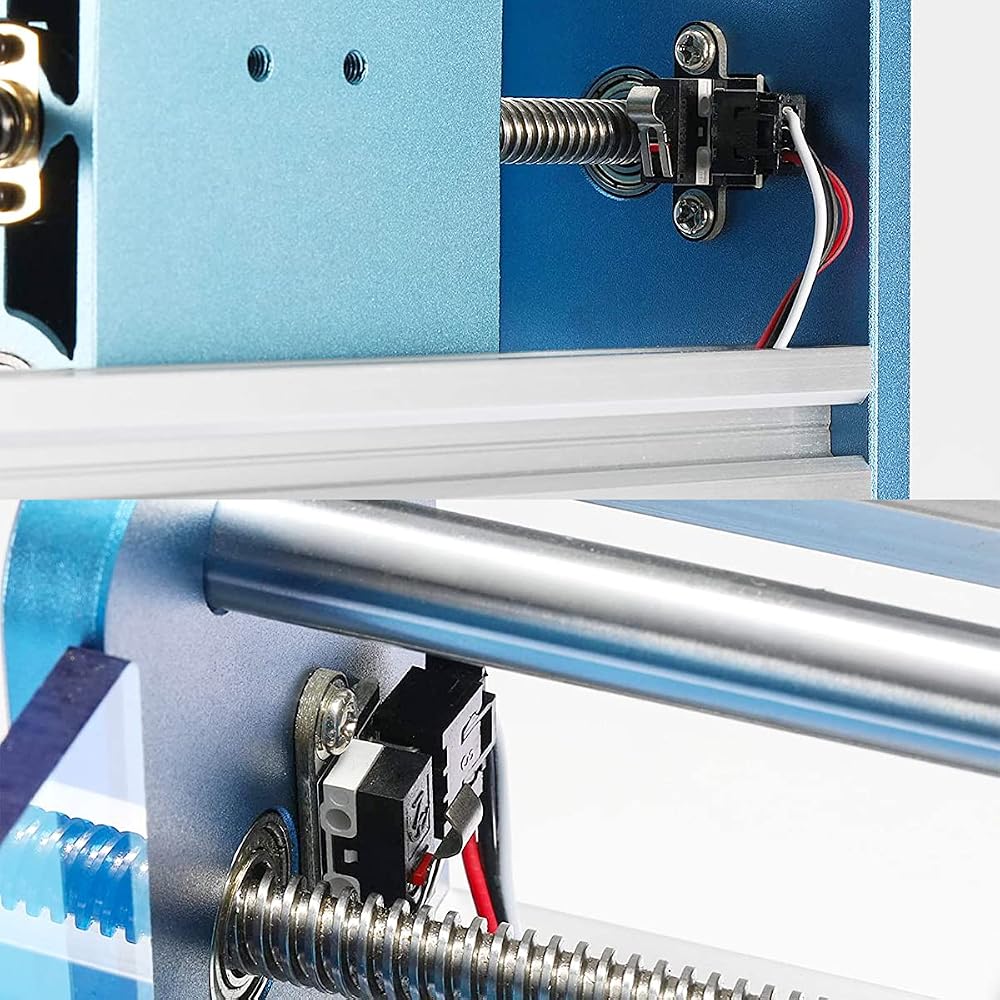

Perfect accessory: Easy installation and long service life. It's a perfect upgraded accessory for CNC without a limit switch.

وصف

Product description
Specification:
Pin: 3 Pin
Action Type: Momentary
Contact Type: Normally Open
Material: Plastic, Metal
Net Weight (Each): 11g

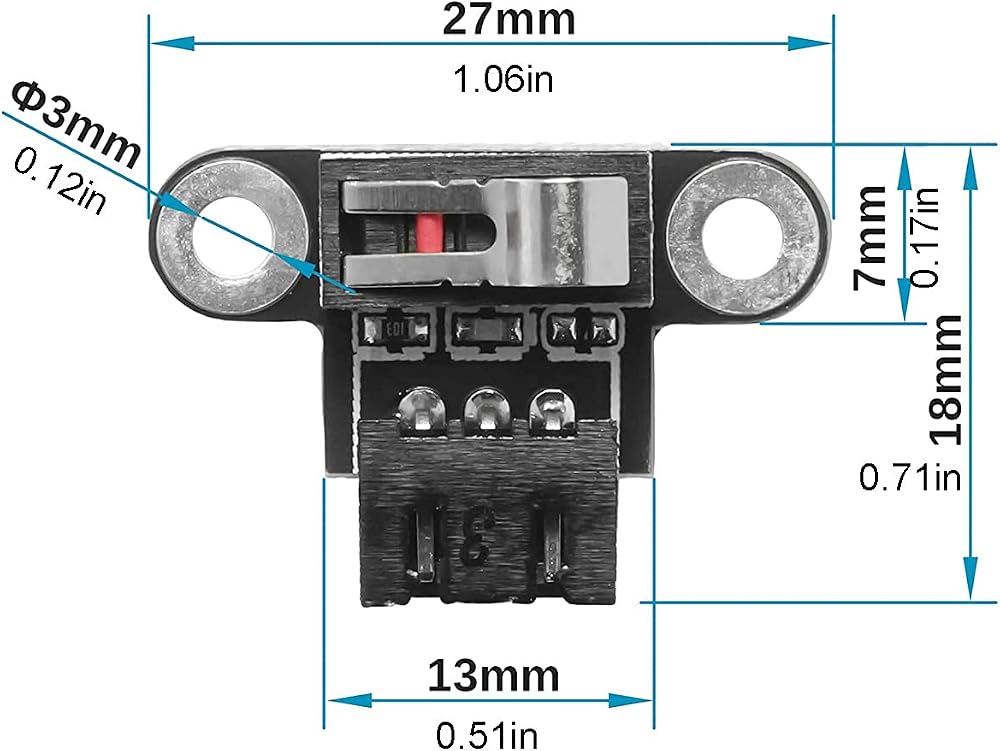

Size (Each): 18mm x 27mm x 14mm (L*W*H)
Fixing Holes Diameter: 3.0mm
Rating: 125VAC 1A

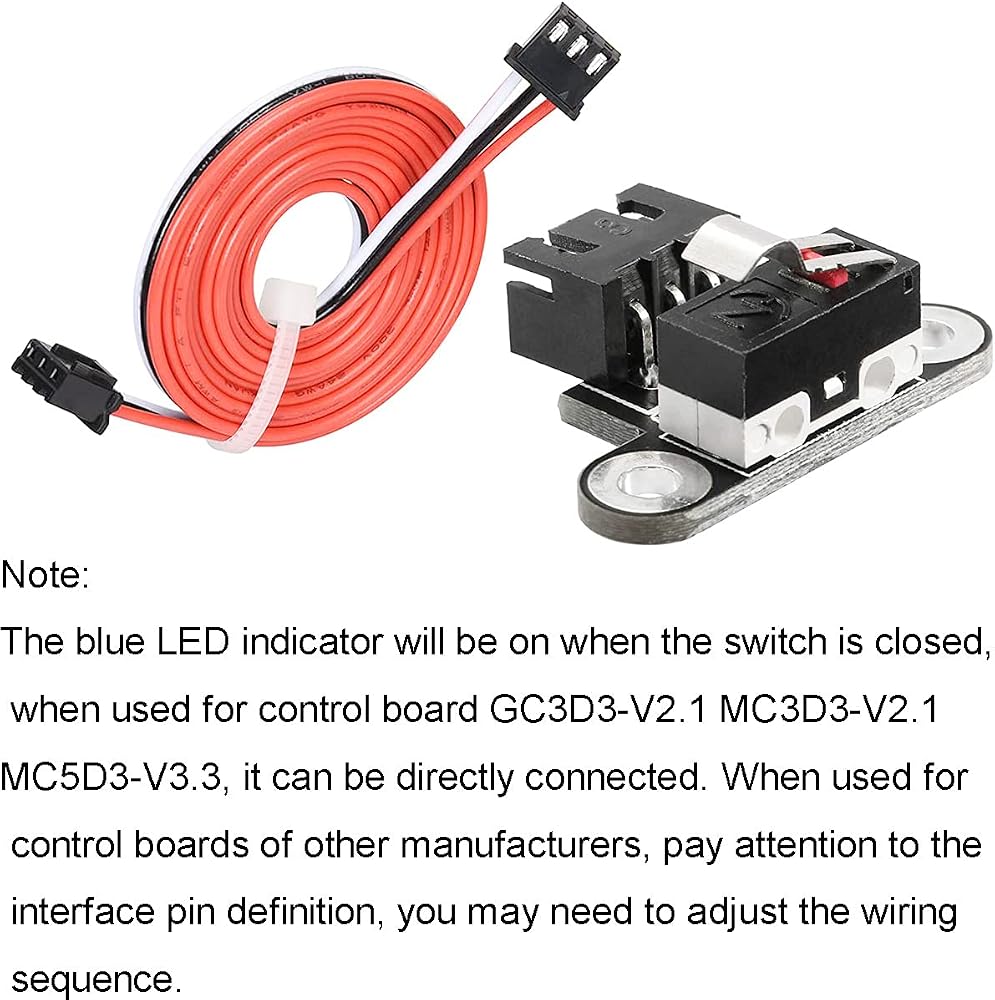

Note:
The blue LED indicator will be on when the switch is closed, when used for control board GC3D3-V2.1 MC3D3-V2.1 MC5D3-V3.3, it can be directly connected. When used for control boards of other manufacturers, pay attention to the interface pin definition, you may need to adjust the wiring sequence.

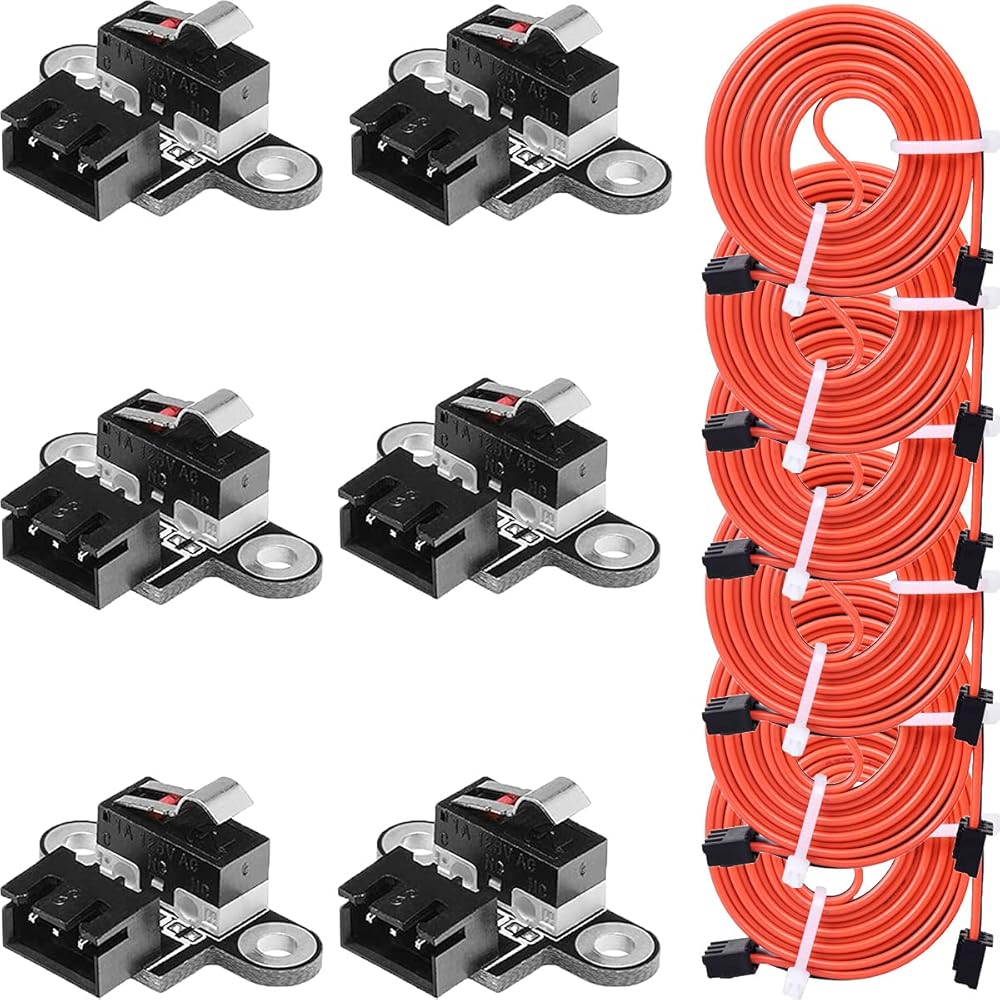

Package Includes:
6 x Mechanical Limit Switch Module

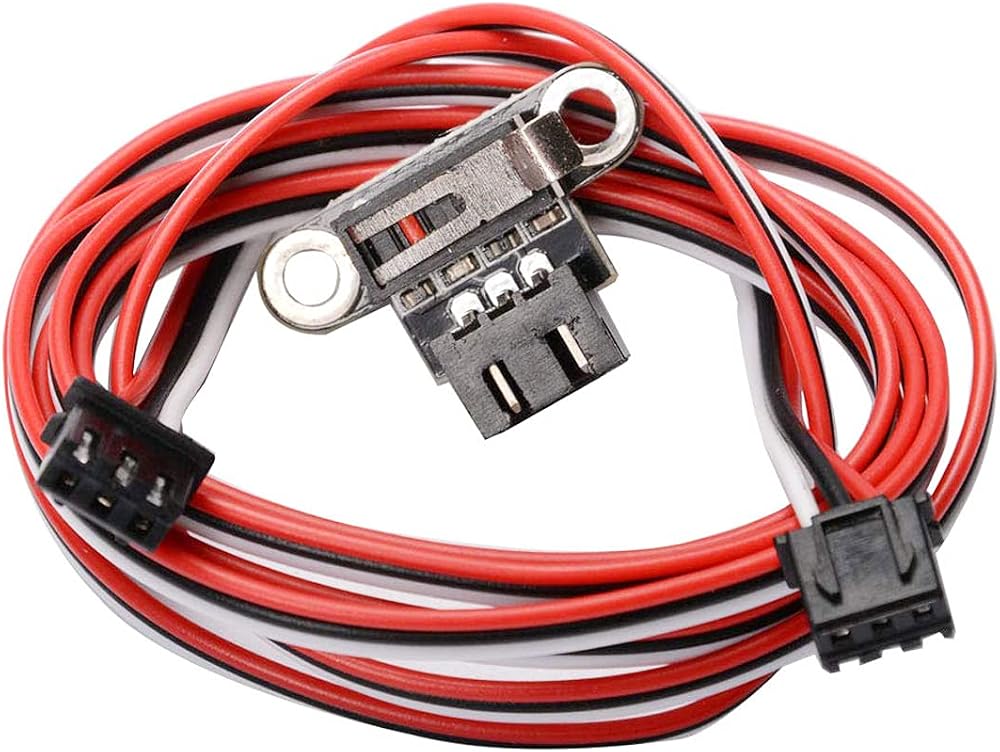

6 x 1m 3-Pin Cables
