Specification:
Features:
1. Low noise: carrier frequency 1.0KHz-16.0KHz continuously to minimize motor noise
2. Automatic voltage regulation: dynamic voltage regulation, static voltage regulation, and non-voltage regulation can be selected according to requirements.
3. Low frequency and high the moment of force: the starting the moment of force is twice the rated the moment of force within 50HZ and the constant the moment of force output
4. Multi-segment operation: 16-segment programmable multi-speed control
5. Simple PLC operation: can set up to 16 speeds. Automatic running time can be set for each segment.
6. RS485 communication: multiple communication protocols are optional with linkage synchronization control function
7. Output frequency range: wide range, low frequency mode, 0-300Hz; mode: 0-3000Hz
8. PID control: widely used in constant pressure water supply, wind pressure constant pressure control, etc.
9. Built-in brake unit: built-in brake unit
10. Applied to motors, mixers, mills, pumps, cranes, conveyors, air compressors, fans, CNC machine tools

Specification:
Condition: Brand New
Model: SKI600-015G/018P-4
Voltage: Three-phase 380V
Stable Current: 32A
: Overload , Overheat , Overvoltage , Overcurrent , Undervoltage , Phase Loss , Ground , Short Circuit , Stall
Application Range: construction site, factory, water supply plant, hotel community, bathing place, central air conditioning water system, paper machine factory, shopping mall escalator, farm, sewage treatment plant, fire hospital transportation, machine tool equipment, automation equipment, etc.
Advantage: Soft Stop, Energy Saving, Motor, Stepless Speed Regulation
Weight: Approx. 7850g / 276.9oz

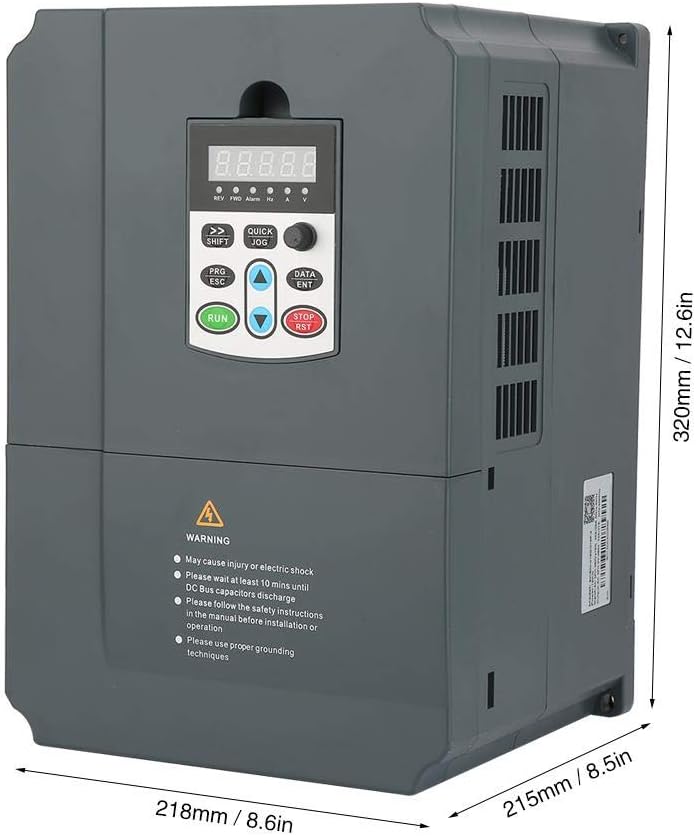

Size: Approx. 320 * 218 * 215mm / 12.6 * 8.6 * 8.5in

Package List:

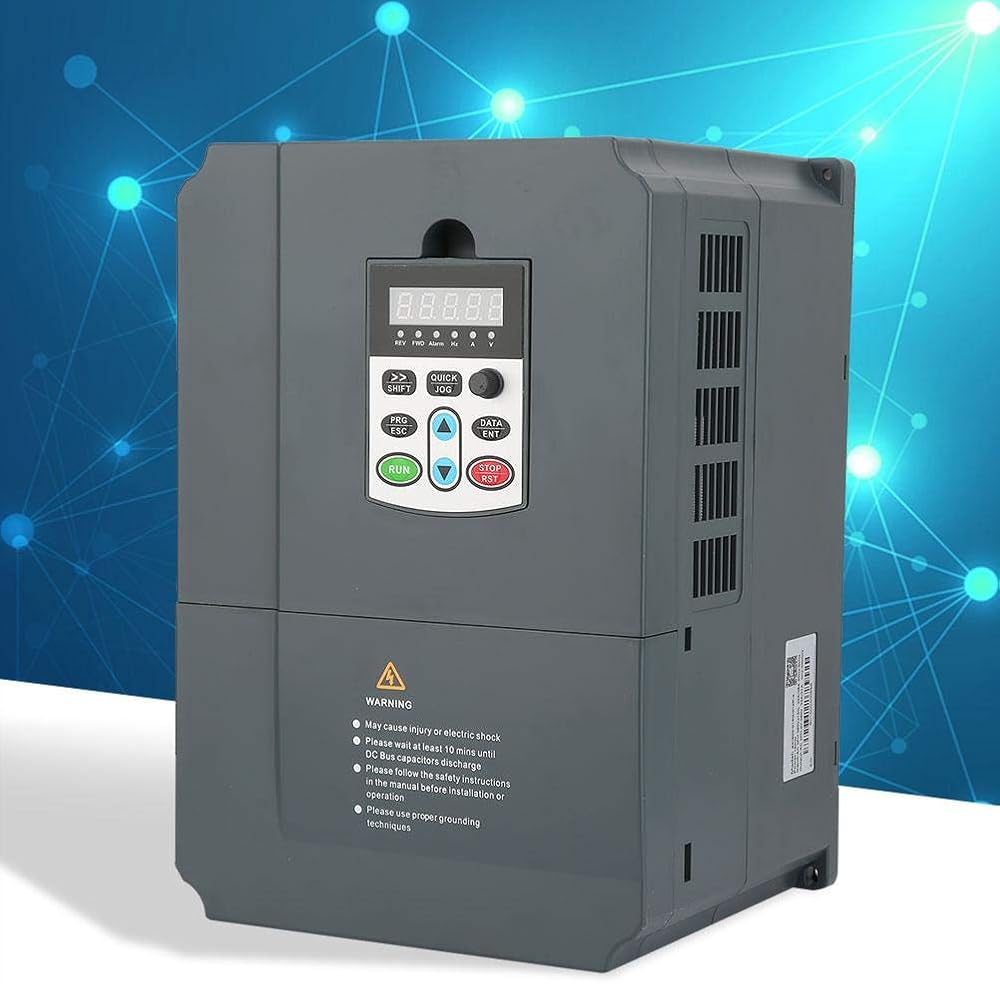

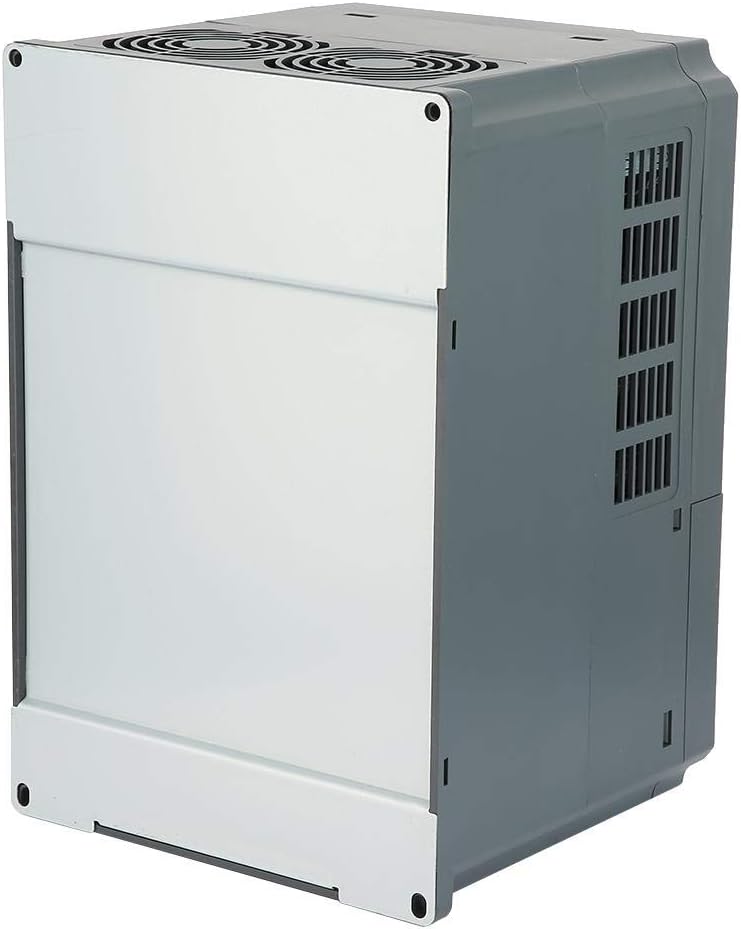

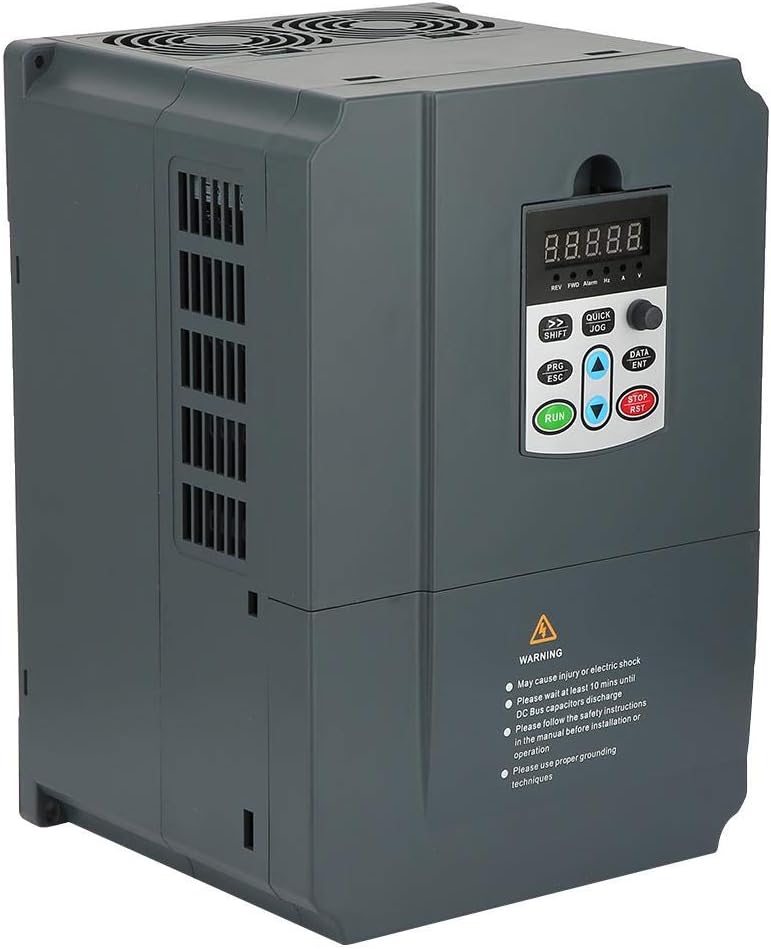

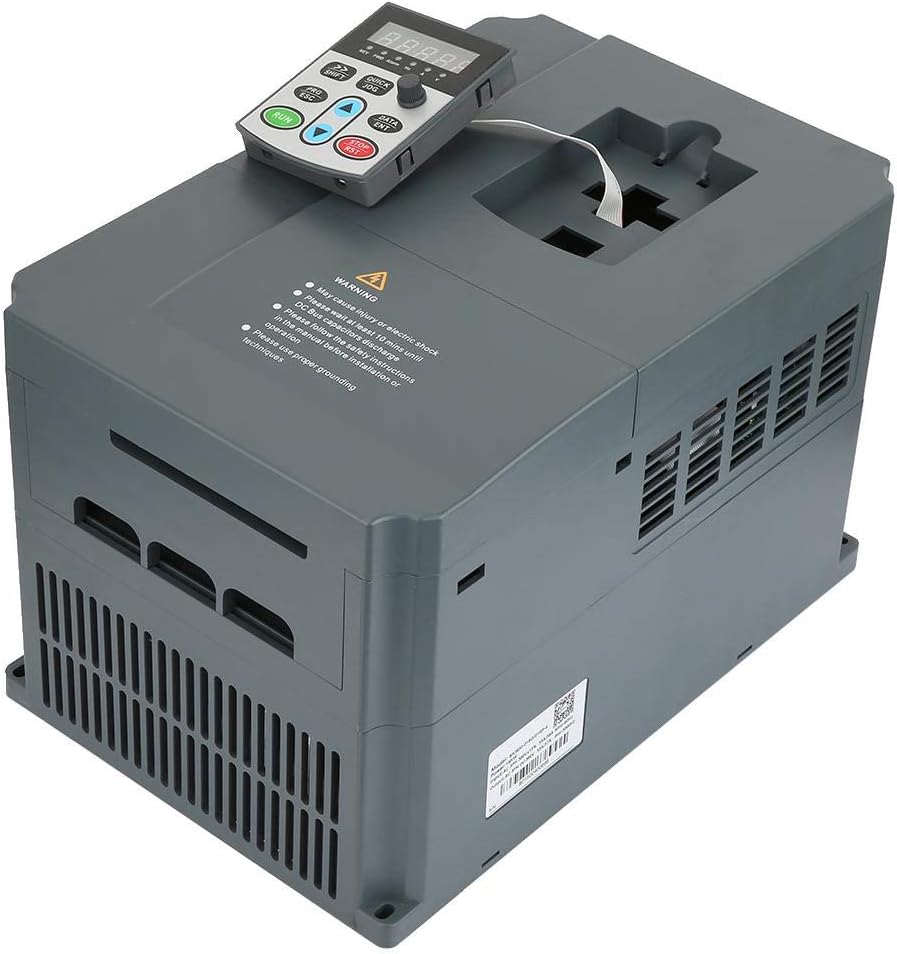

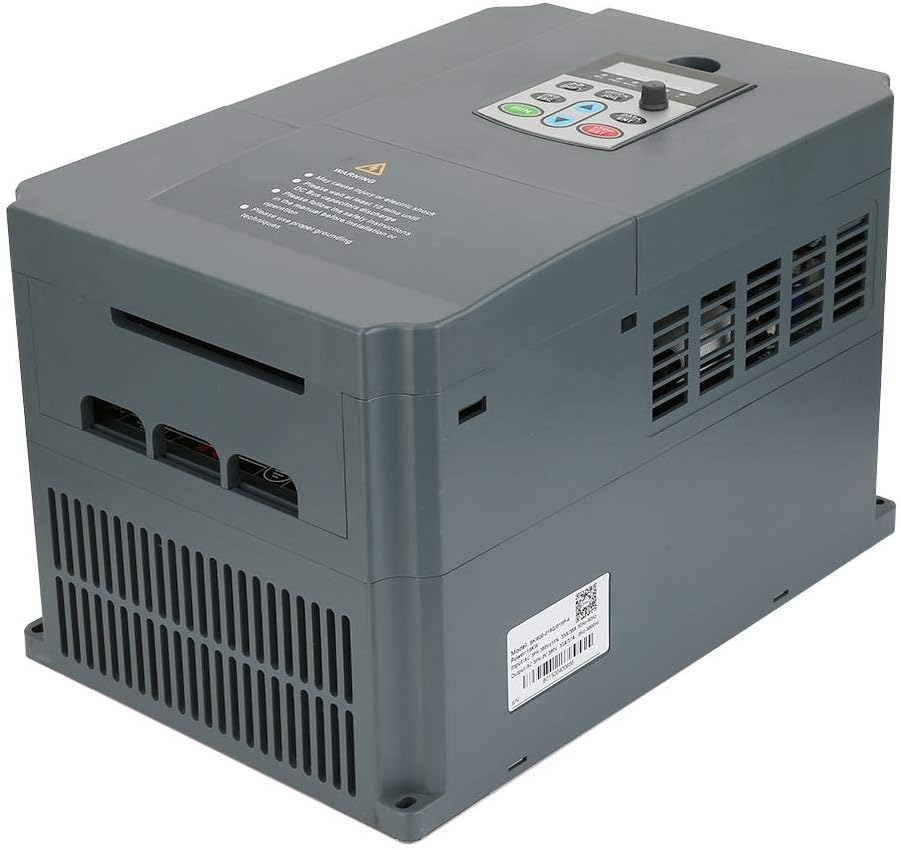

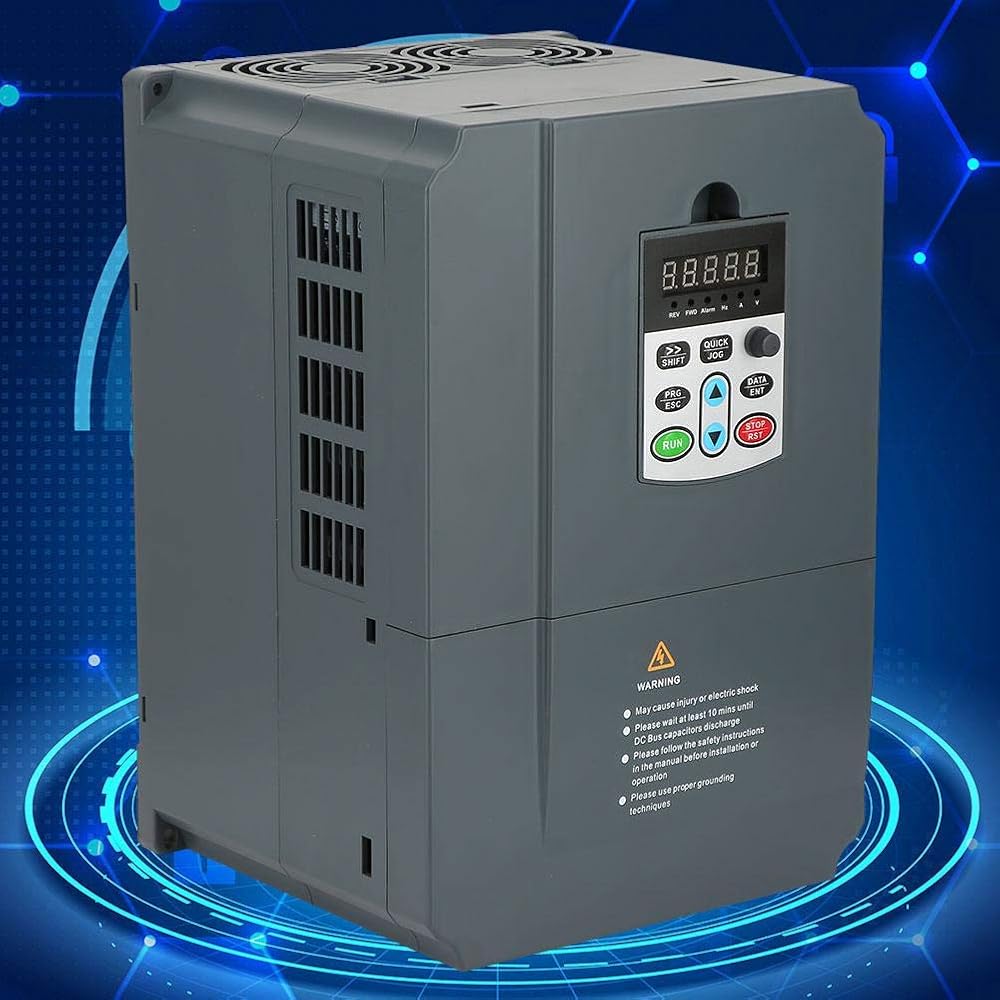

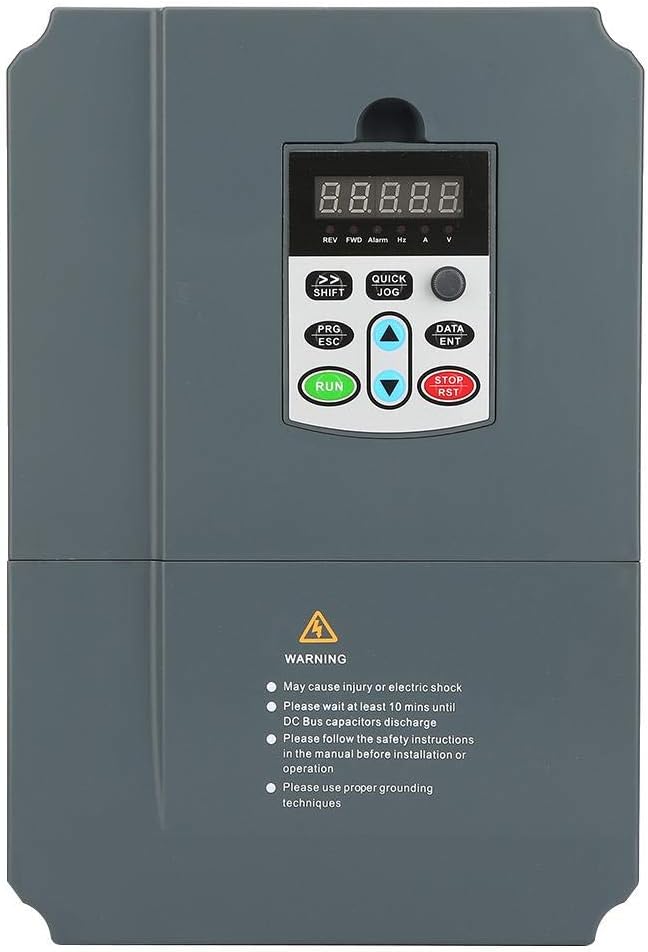

1 * Frequency Converter
Note:
Please note that the new type and old type of this product will be
