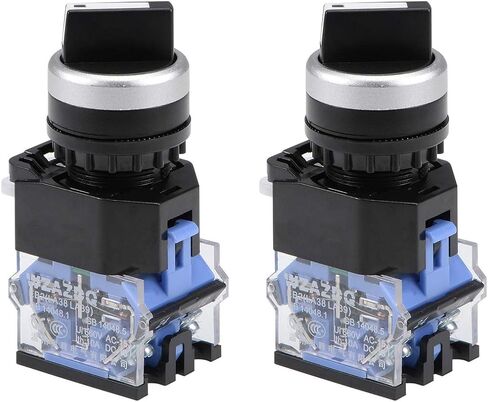

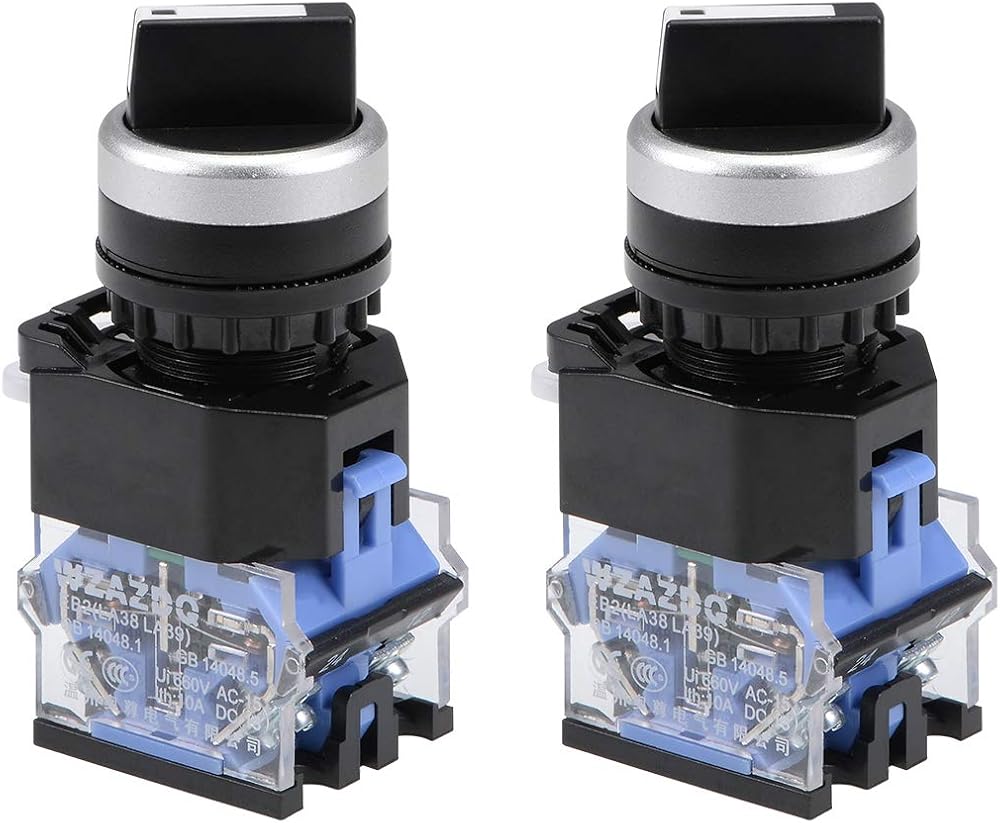

These selector switches are available in two-position models
Self-locking with 2 normally open contacts

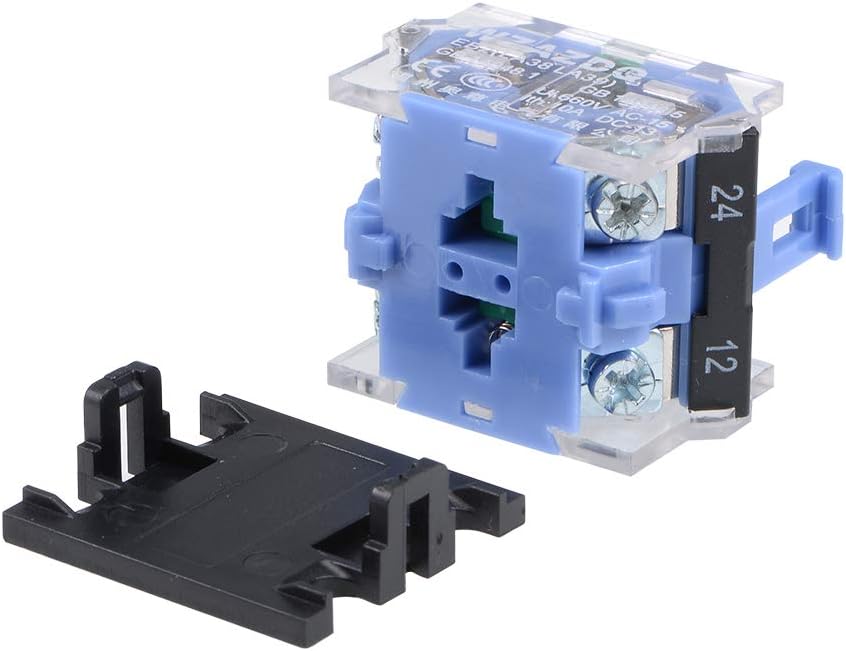

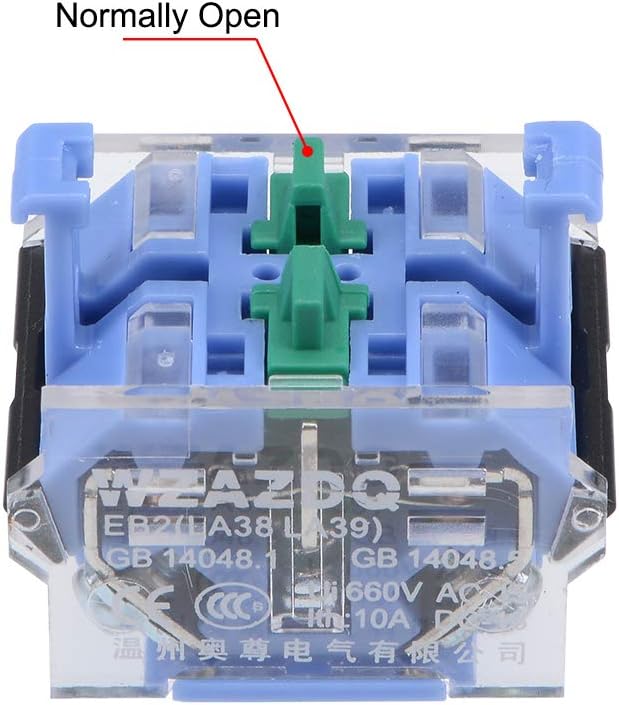

Contact blocks are color coded for easy identification: green for normally open, red for normally closed
Simply drill an 22mm (7/8") hole and secure it with the screw ring
Selector switch can be used with electric oven, juicer, electric heater, blower, range hood, humidifier, heaters and other appliances
وصف
Description:
-Selector switches use cams in combination with contact blocks to provide a wide range of circuit opening and closing.
-Selector switches are often used when more than one control option is needed (e.g. Hand-Off-Auto).
-This 22mm selector switch is designed to make assembly.
-Used widely to control the electromagnetic, Contactor, relay and other automatic control electric circuits.
Specification:
Rated Voltage: AC 600V
Rated Current: 10A
Action Type: Latching (Self-Locking)
Positions: 2
Contacts Type: 2 Normally Open
Terminals Type: Screw Clamps Terminals

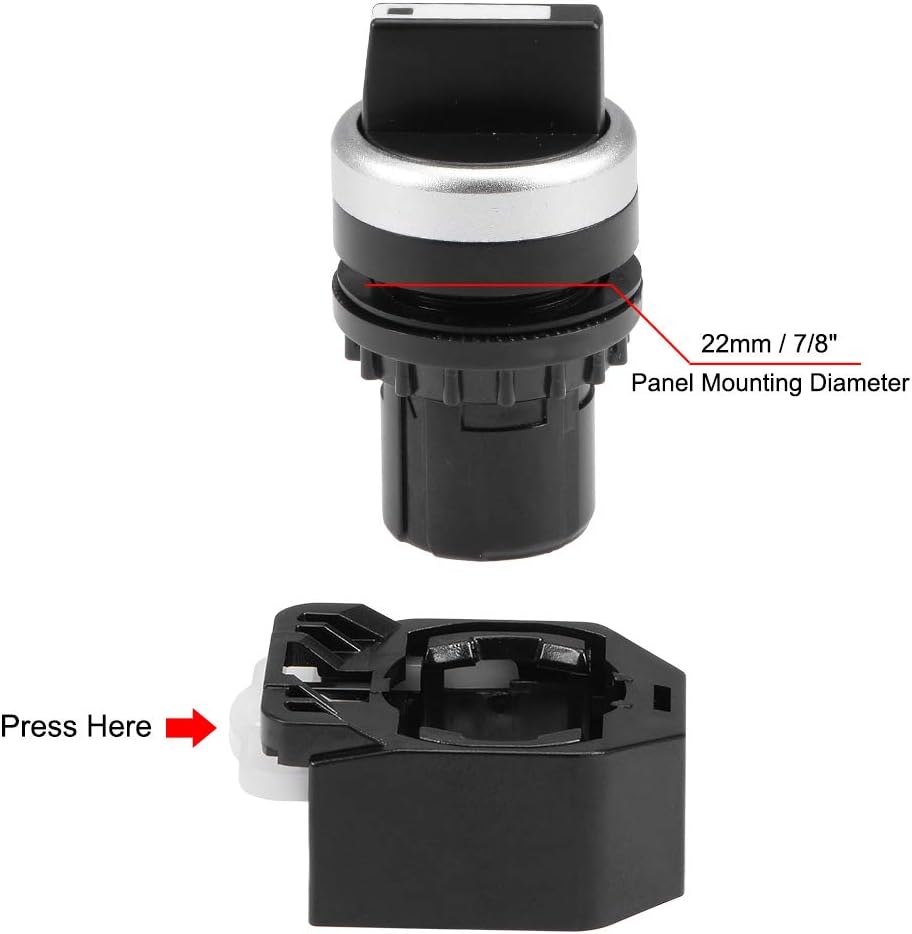

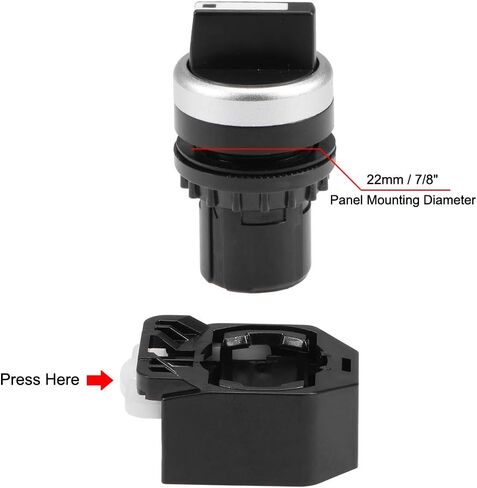

Panel Mounting Diameter: 22mm / 7/8"

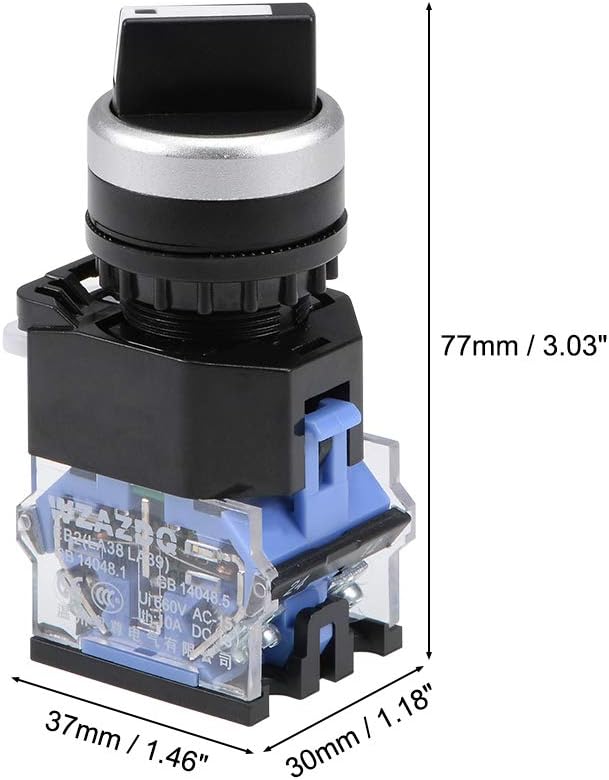

Overall Size: 77 x 37 x 30mm / 3.03" x 1.46" x 1.18" (L*W*H)
