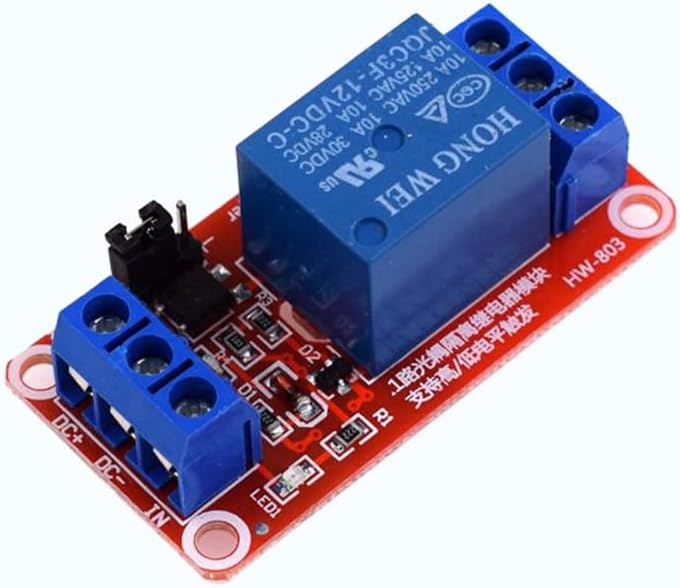

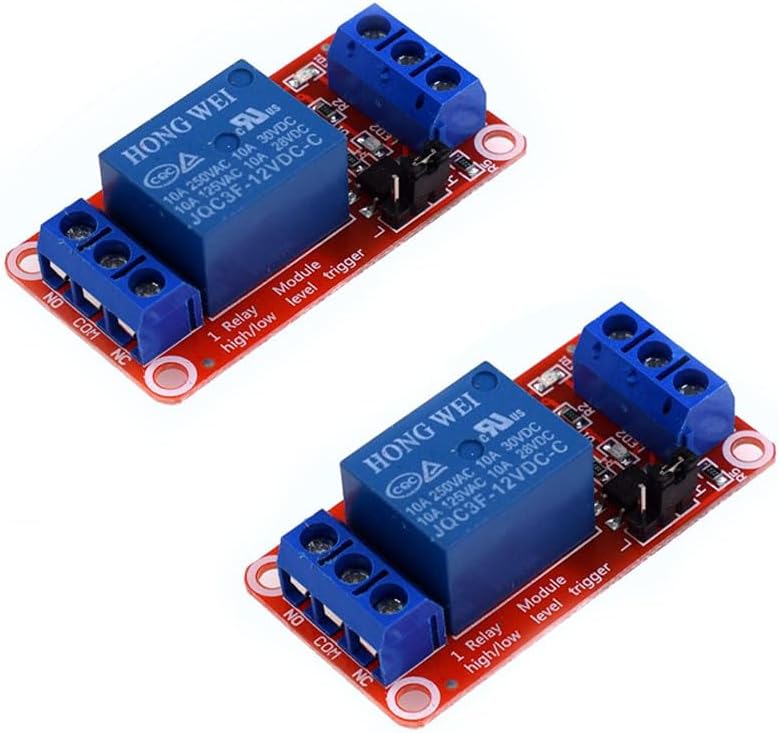

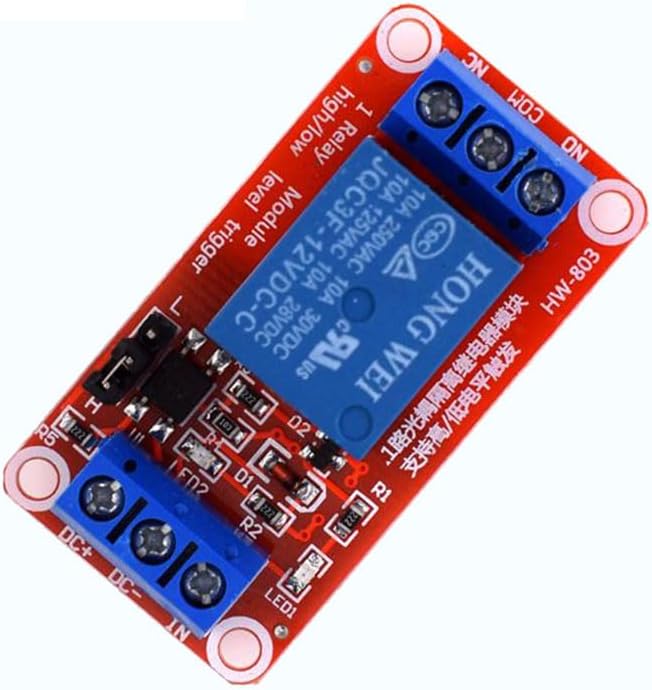

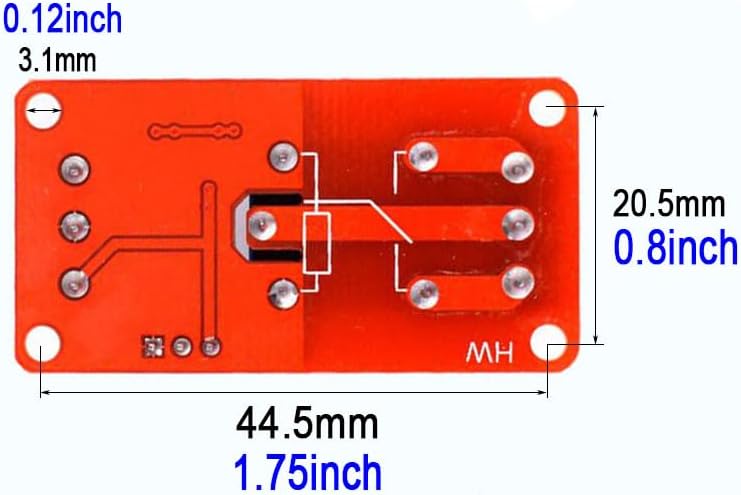

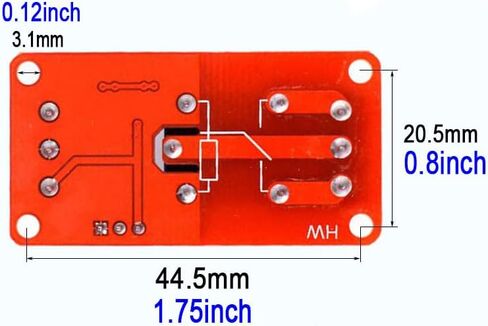

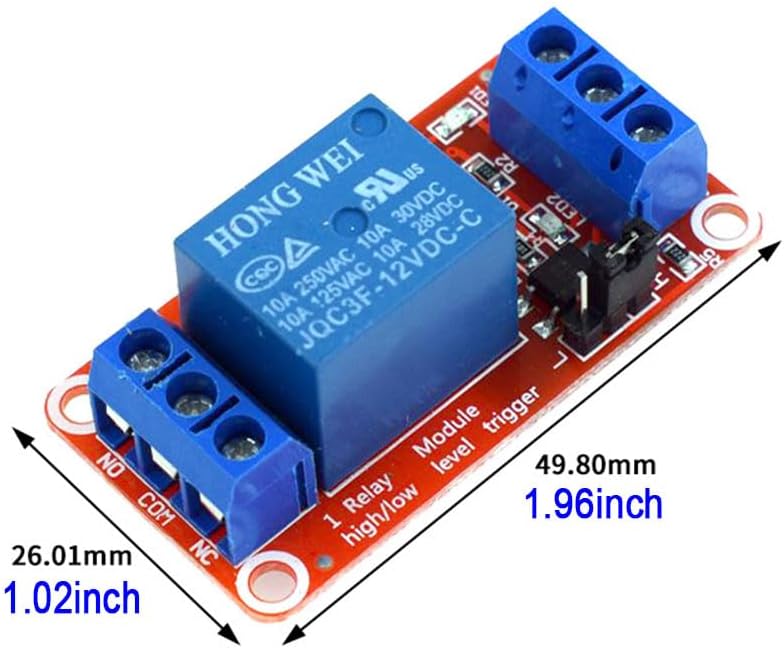

*Module size: length * width * height: 1.96 * 1.02 * 0.73 inches (49.8 * 26.01 * 18.5mm);four fixing bolt holes,Hole 3.1 mm, 44.5 mm * 20.5 mm spacing.
*Module using SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA.
*The module uses quality relay, normally open interfaces , Maximum load: AC 250V/10A, DC 30V/10A.
*Power indicator light (green), relay status indicator light (red), fault-tolerant design, even if the control line is damaged, the relay will not operate.
*Interface design is user-friendly, and all interfaces can be directly connected to wires through wiring terminals, which is very convenient.
وصف
●Adopting optocoupler with high isolation, strong driving ability, and stable performance.
●Adopting a 12VDC relay with a driving current of 5mA.
●Supports high or low levels, which can be set through jumpers on the module.
●Support microcontroller program control.
●Fault tolerant design, even if the control line is broken, the relay will not act.
●The interface design is user-friendly, and the interface can be directly connected and led out through wiring terminals.
●Equipped with 4 positioning holes with a diameter of 3.1mm for easy bolt fixation.
