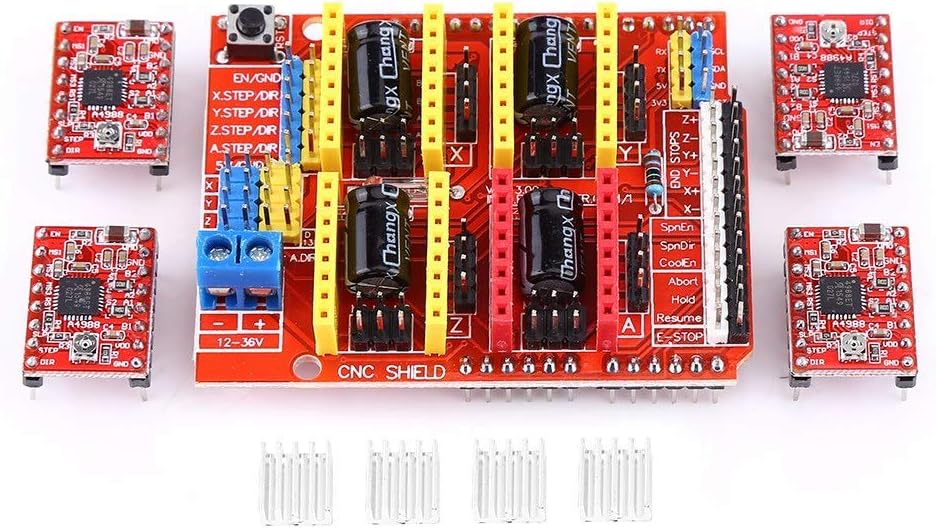

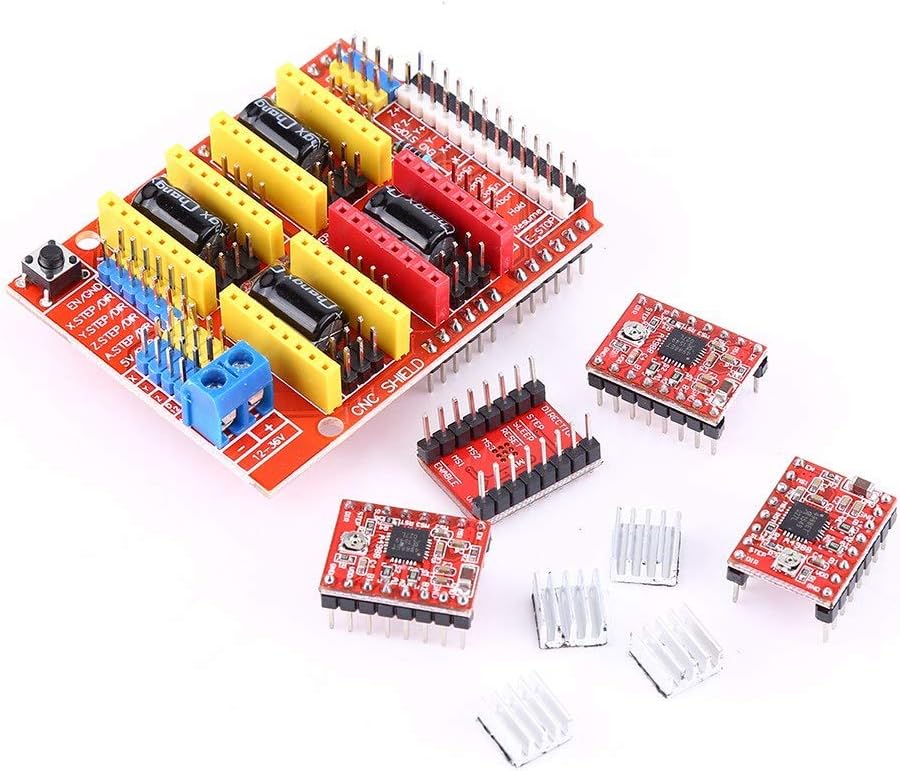

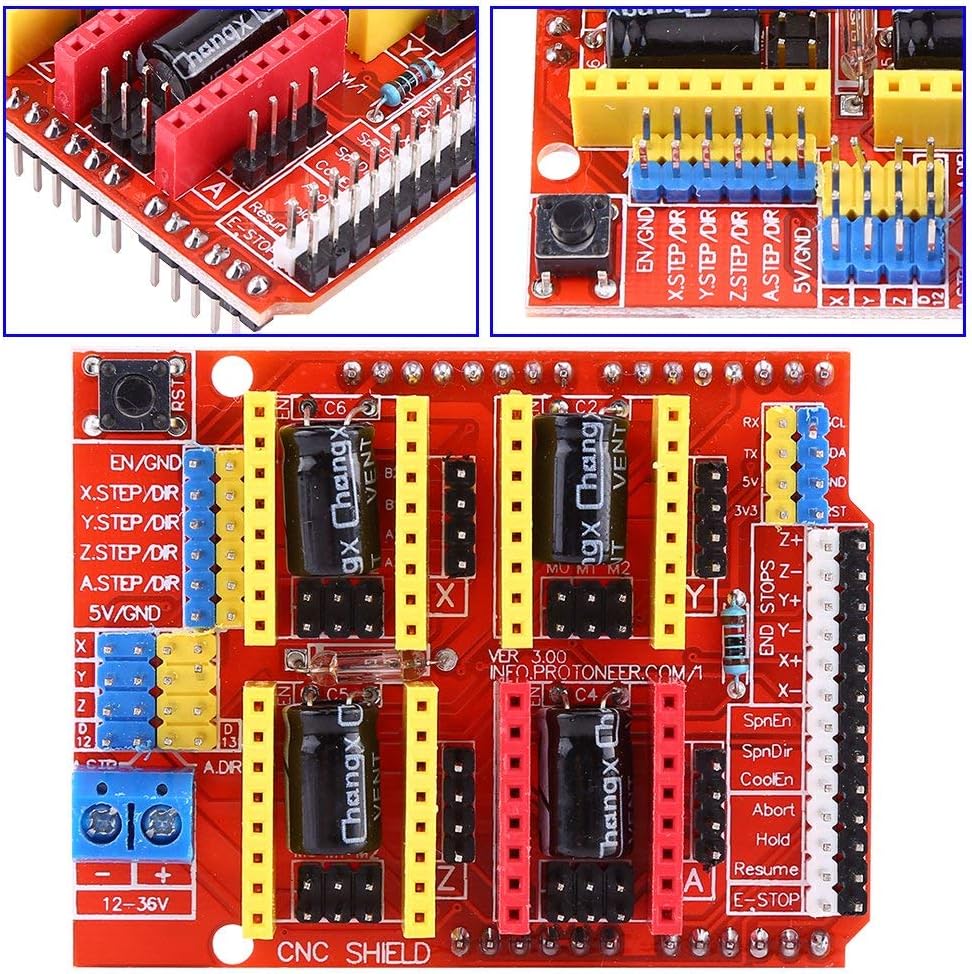

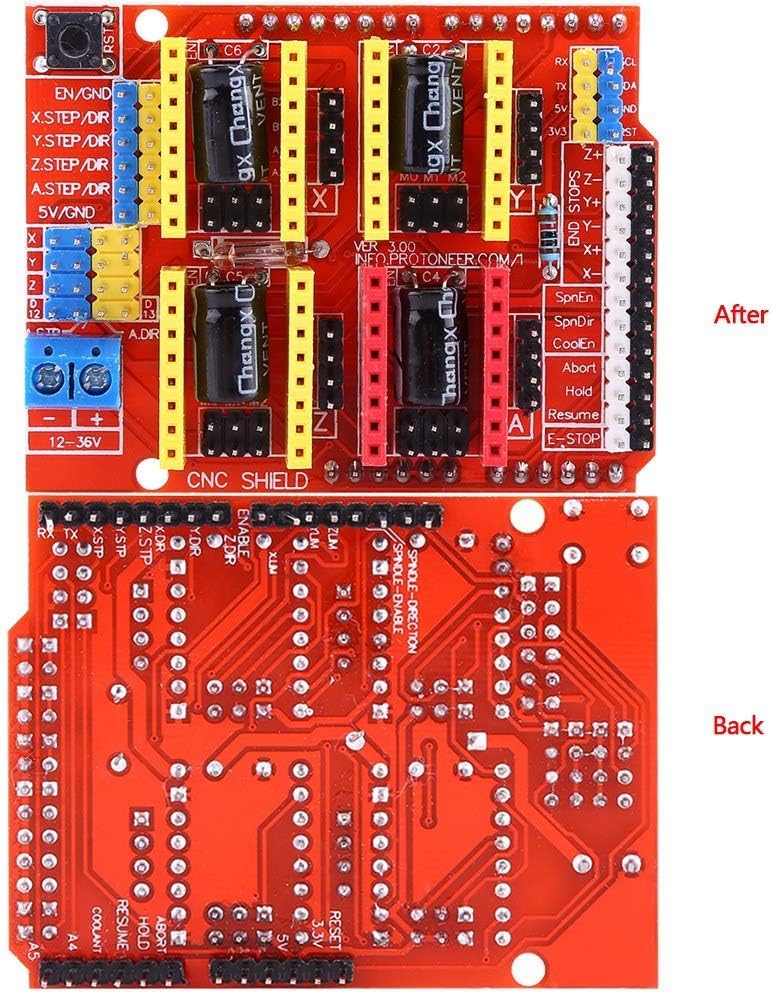

CNC Expansion Board:
Version: V3.0
Color: Red

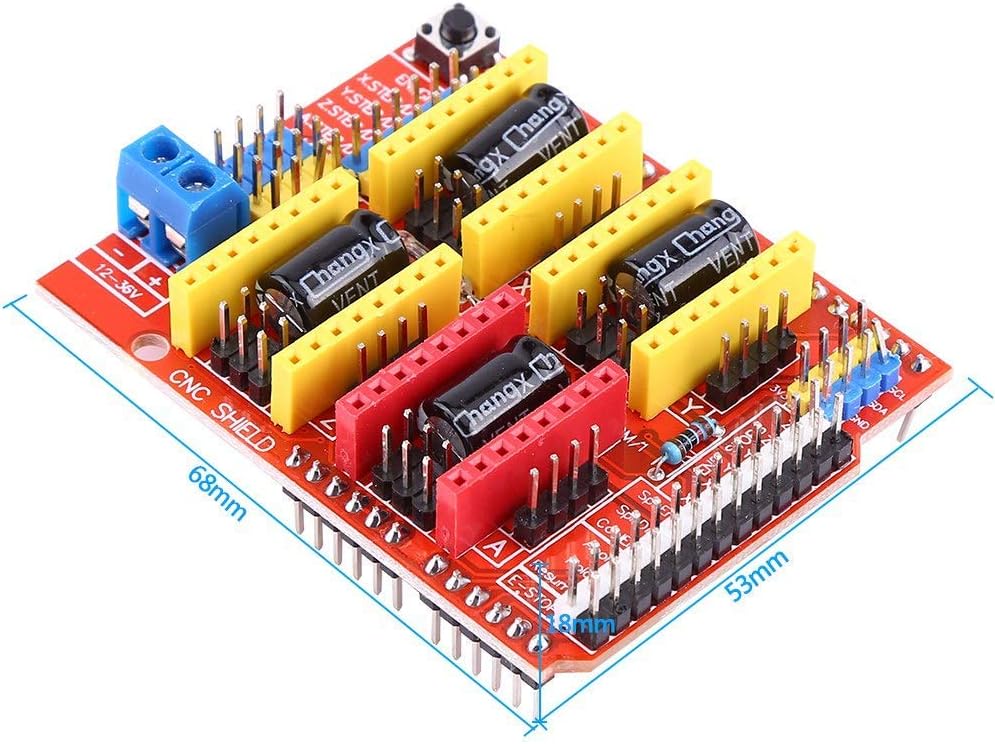

Size: 68 x 53 x 18mm / 2.67 x 2.08 x 0.7"
Voltage: DC 12V to 36V (only DRV8825 driver can handle up to 36V, so please consider voltage for power supply)

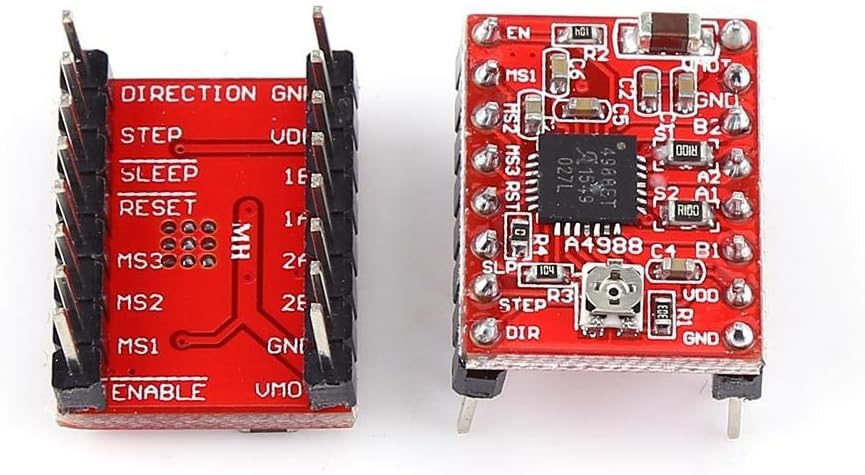

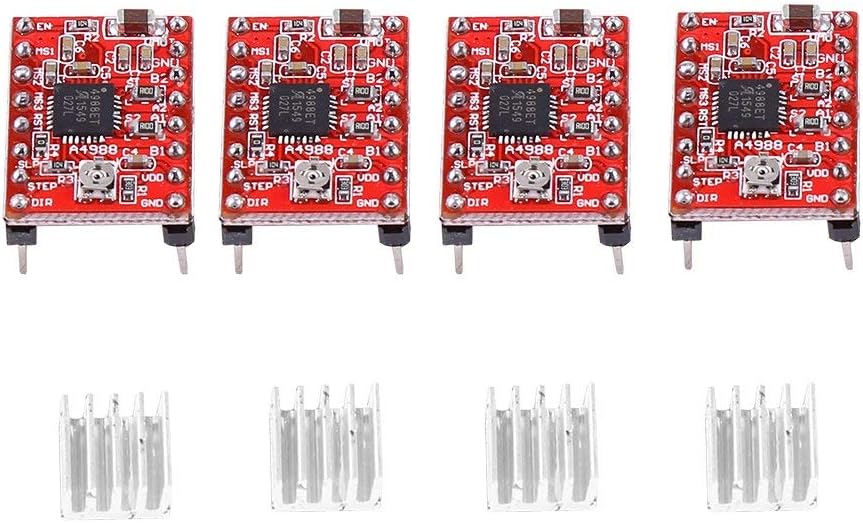

4pcs A4988 Driver:
Color: Red
Size: 20 x 15mm / 0.78 x 0.59"
Thermal Shutdown Circuit: Yes
Cross Current Protection: Yes
Ground Fault Protection: Yes
Short Circuit Protection: Yes
Compatible Logic Voltage: 3.3V and 5V
Five Step Modes: Full, 1/2, 1/4, 1/8 and 1/16
Mix with slow current attenuation model.
Internal UVLO and low RDS (on) output.
Automatic current attenuation mode Detection/Select.
Phase-in rectifier, low power consumption.
Warning: Connecting or disconnecting stepping motor while driver is powered on might damage driver.
Legal Disclaimer:
1- This is not a brand name product, it is a high quality compatible with for Arduino products.
2- Logos or Text on chips or board color may differ than pictures.
3- Please allow slight dimension difference due to different manual measurement.
