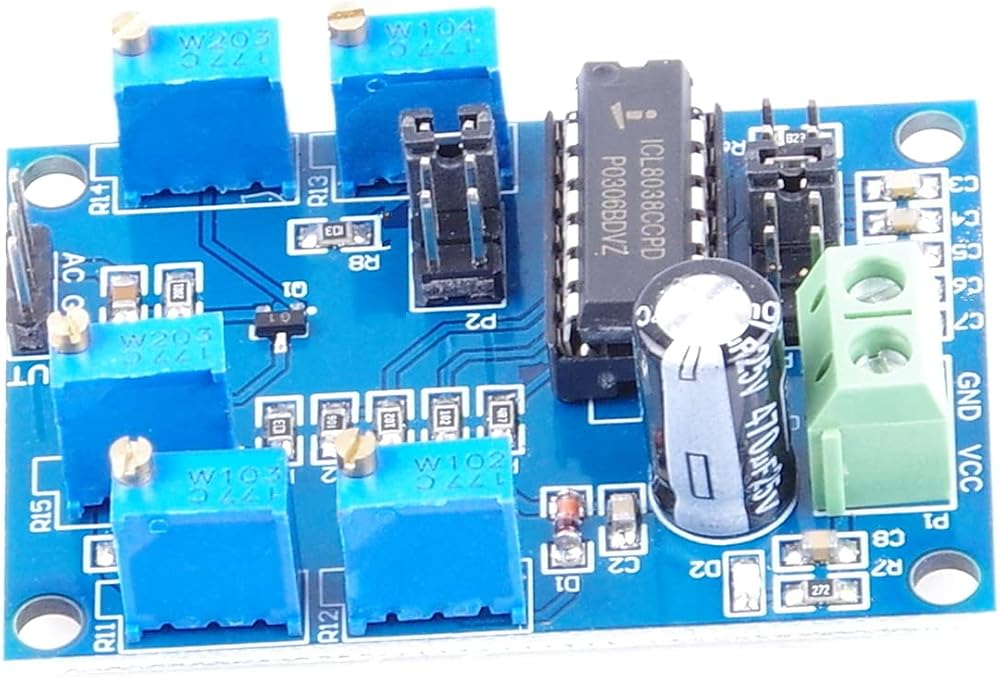

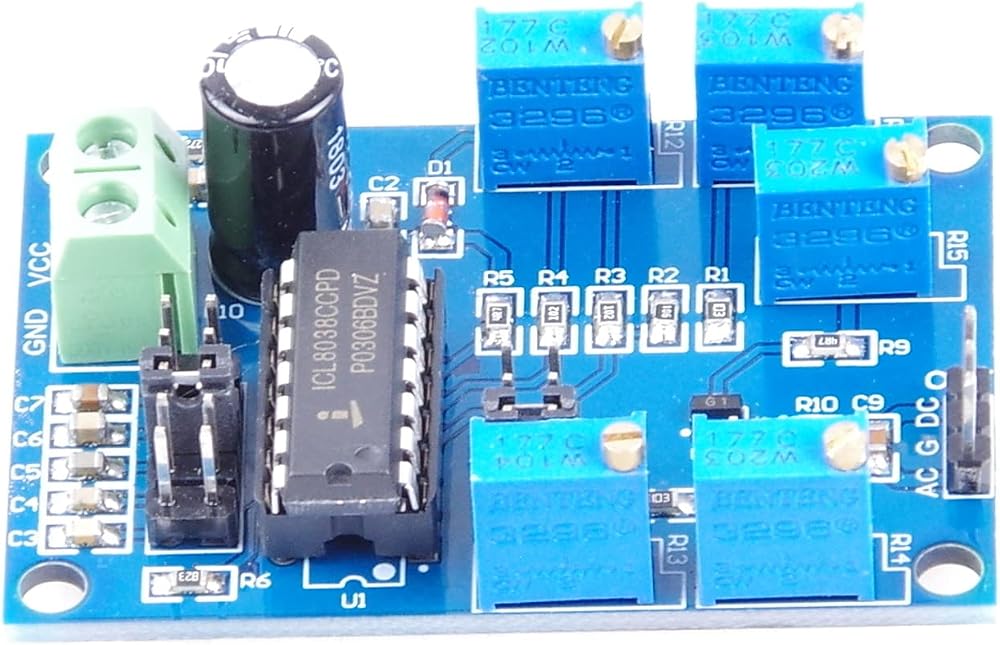

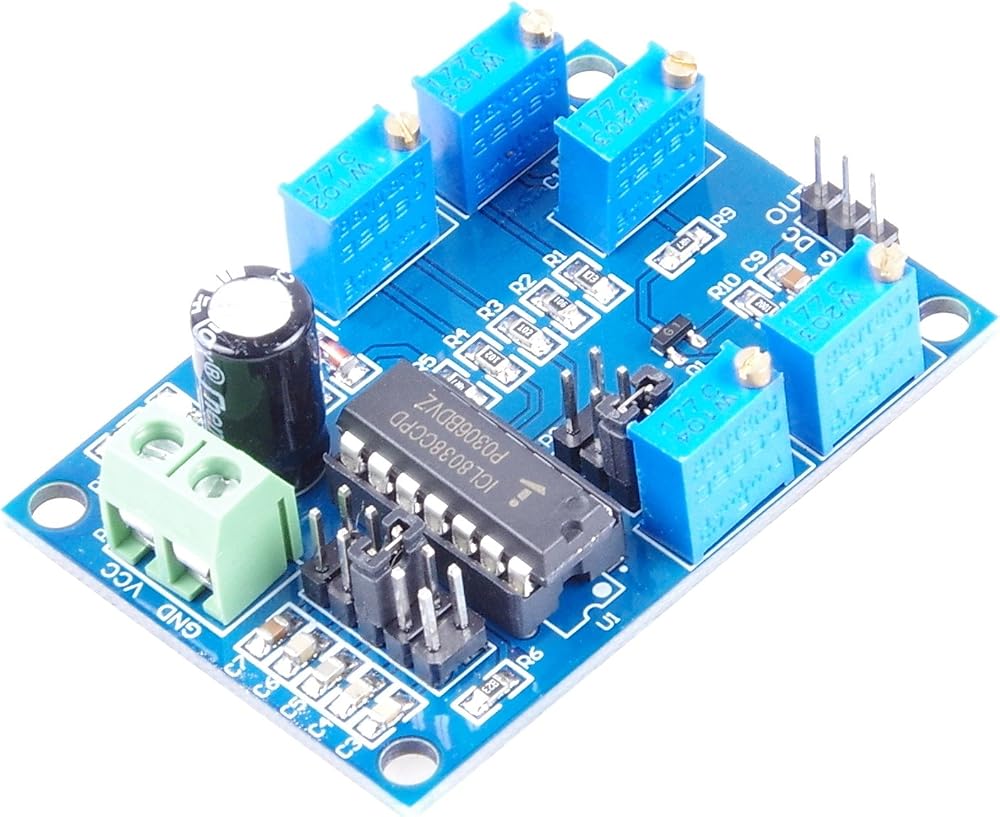

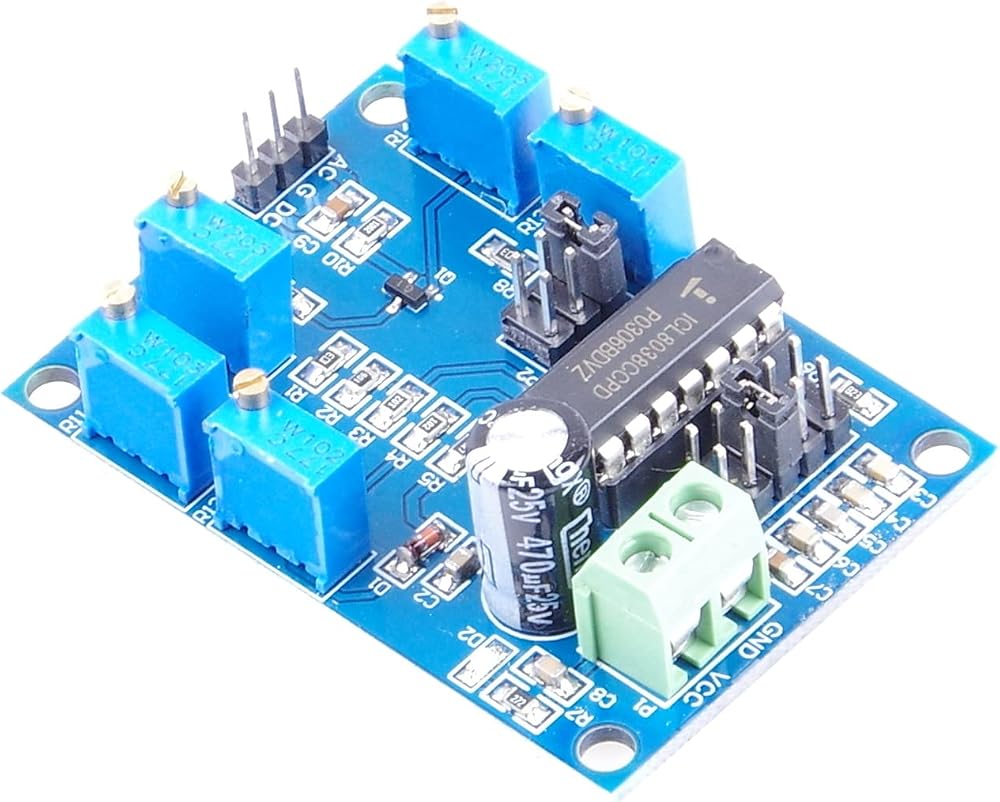

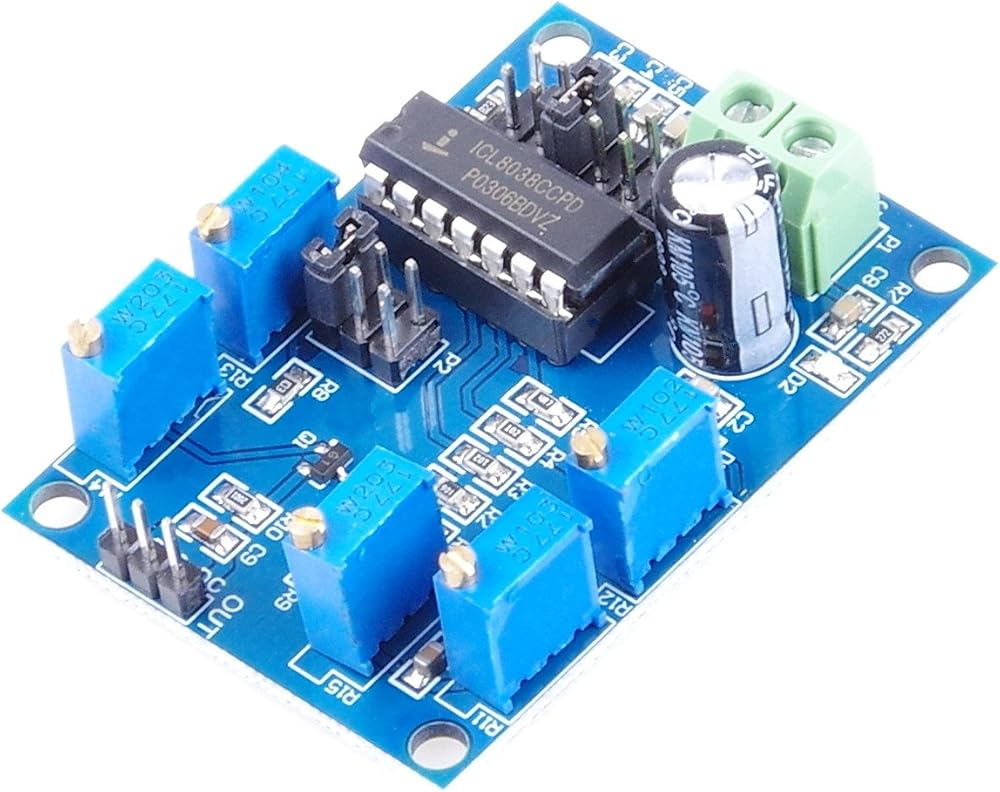

The LC ICL8038 module is designed for common frequency ranges.
Operating voltage: 12-15V DC power supply.
Frequency range: 10Hz-450KHZ.
Distortion: sine waves less than 1% distortion, duty cycle: adjustable from 2% -98%.

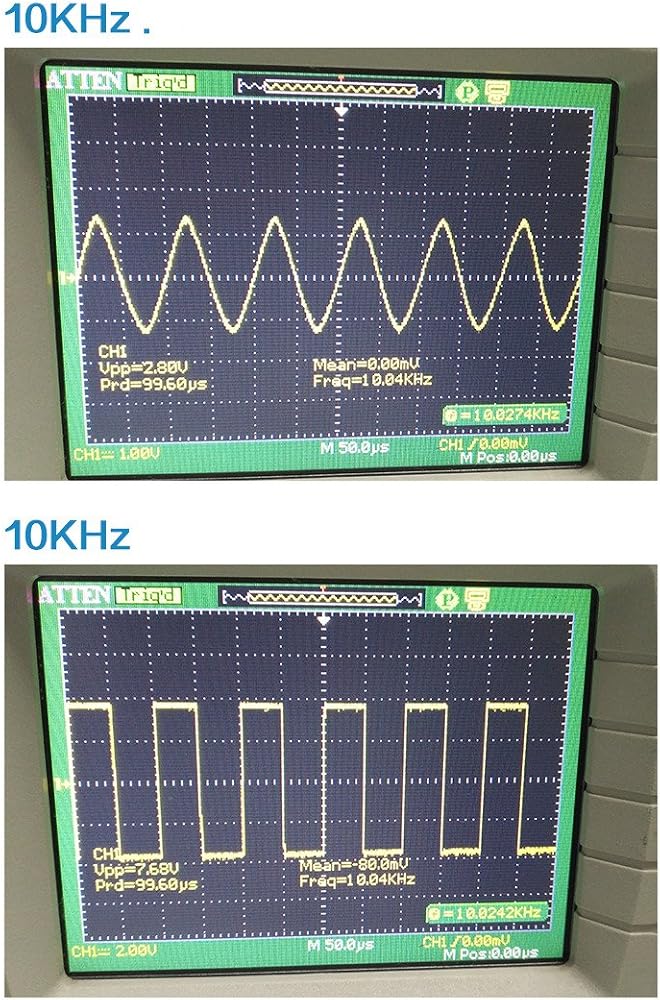

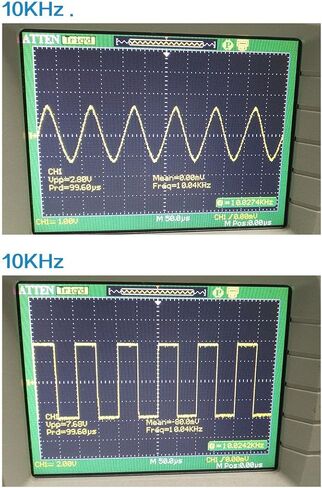

Sine wave can be used for test signals, drive signals, carrier frequency signals, etc, square wave can be used for switching signals, trigger signals, etc.

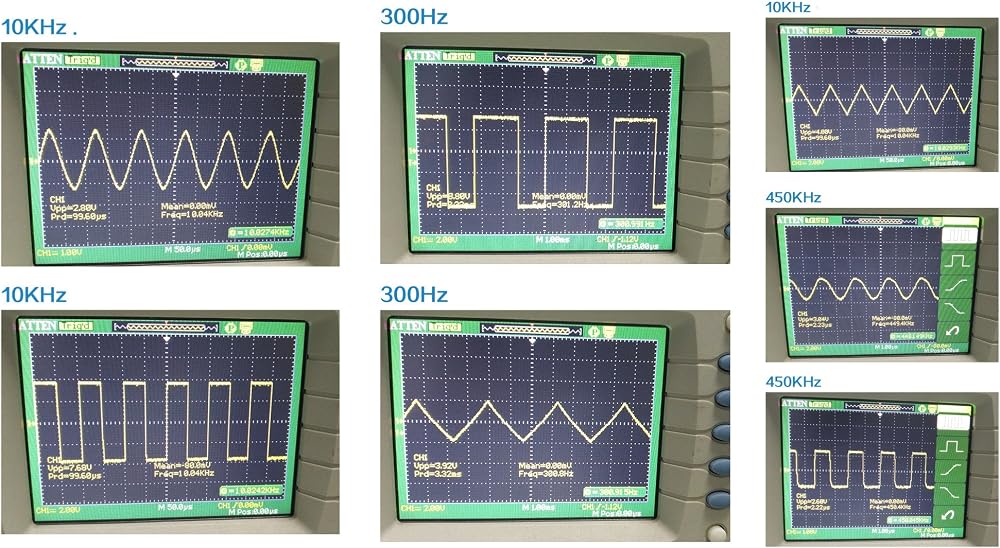

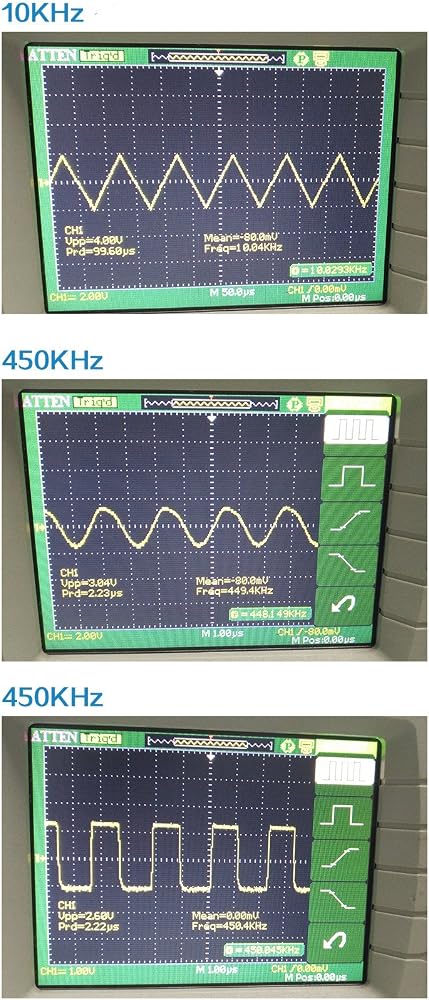

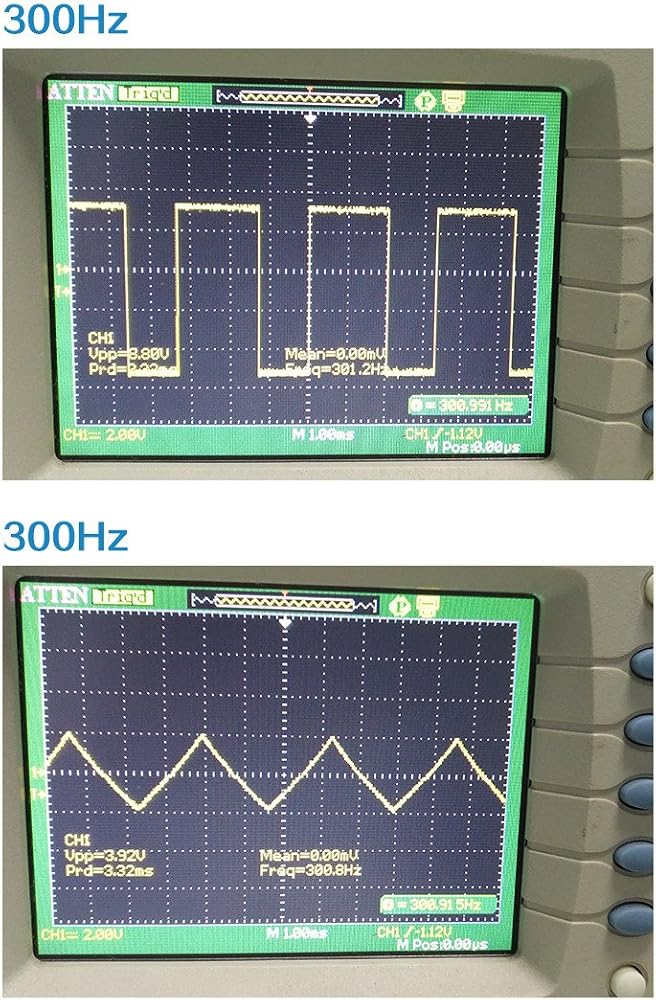

It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 10Hz to 450KHz.
Specification:
Operating voltage: single 12-15V DC power supply.
Frequency range: 10Hz-450KHZ.
Distortion: Sine waves less than 1% distortion.
Duty cycle: adjustable from 2% -98%.
Low temperature drift: less than 50ppm/degree.
Triangular wave: a high linearity 0.1%.
Operating temperature: 0-70degree
Size: 37.8 * 54.5mm.
Note: There might be a bit color distortions due to different computer resolutions.
There might be size errors due to different computer resolutions.
Package include:
1 * ICL8038 medium/low frequency signal generator.
