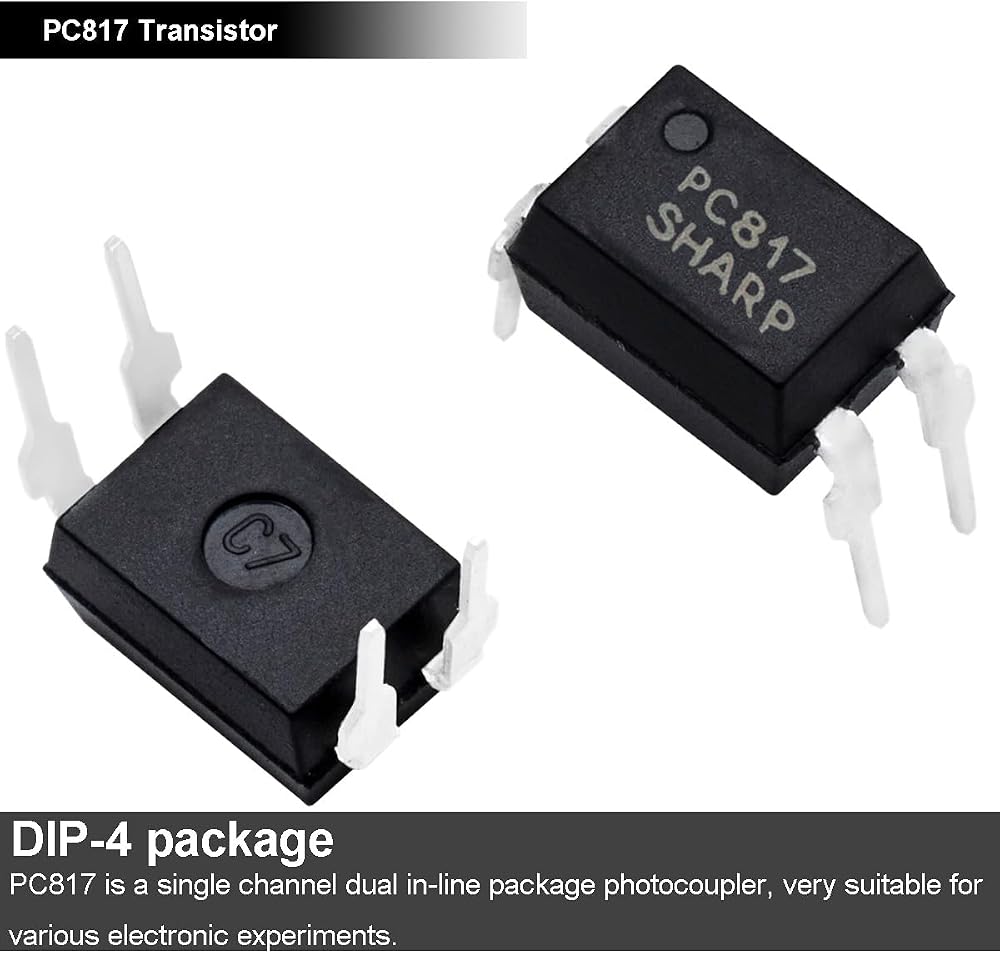

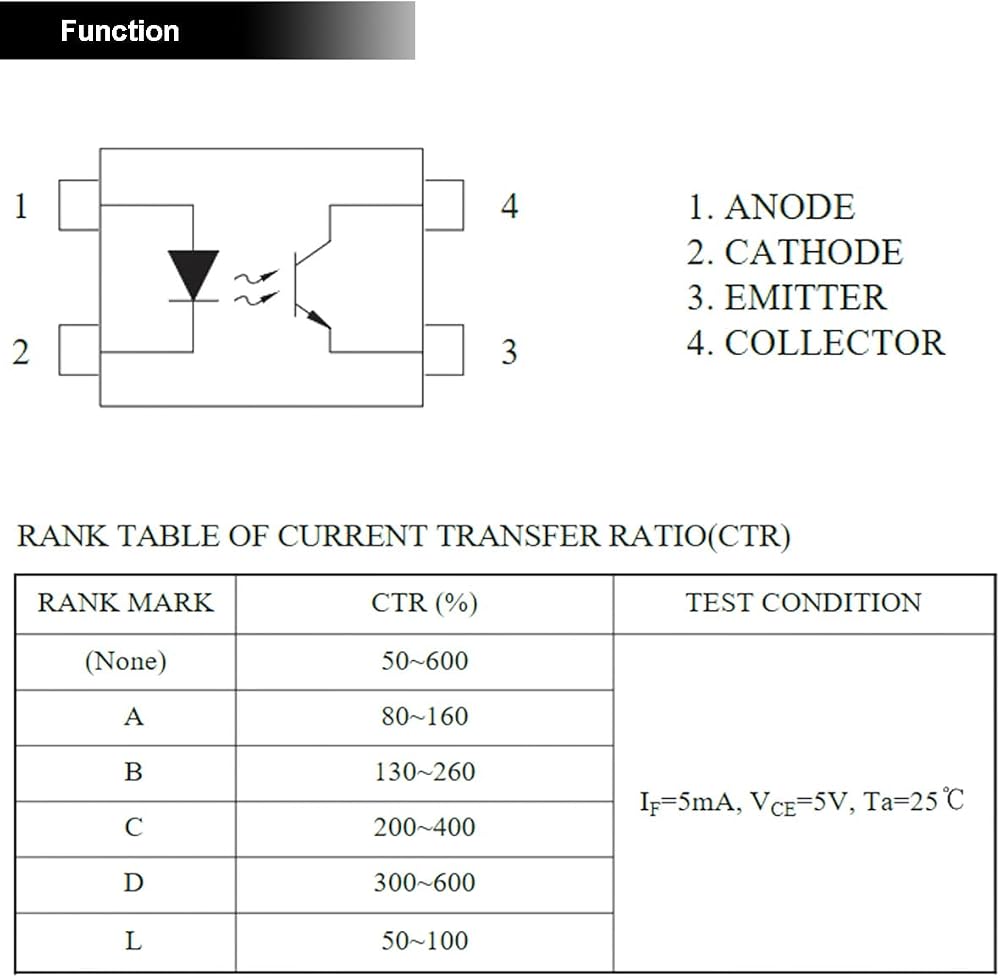

What it does: PC817 is a single channel dual in-line package optocoupler, very suitable for various electronic experiments.
Features: The PC817 photocoupler has high isolation voltage between input and output and dual transfer mold packaging.
Current transfer rate: (CTR: minimum 50%, IF=5mA, V CE =5V); High isolation voltage between input and output 5000V effective value.
DIP-4 IC Socket: When the chip needs to be replaced or installed, just remove the connection between the IC socket and the chip. Can withstand repeated welding and disassembly.
Easy to install: The IC socket is the carrier between the PCB circuit board and the chip, which allows the PC817 optocoupler to be pulled and inserted without soldering to the PCB board.
Application: Widely used in Computer terminals, SCR system equipment, measuring instruments, copiers, automatic ticket vending machines, household appliances.

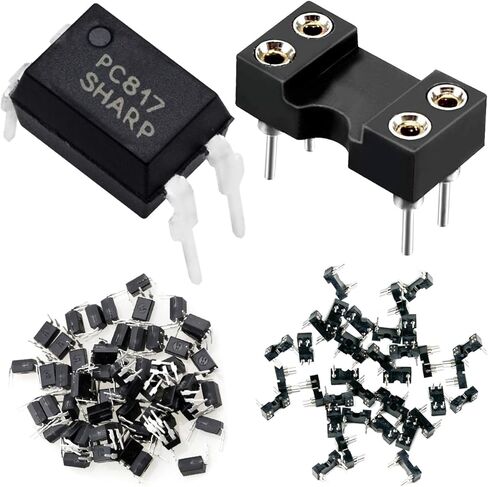

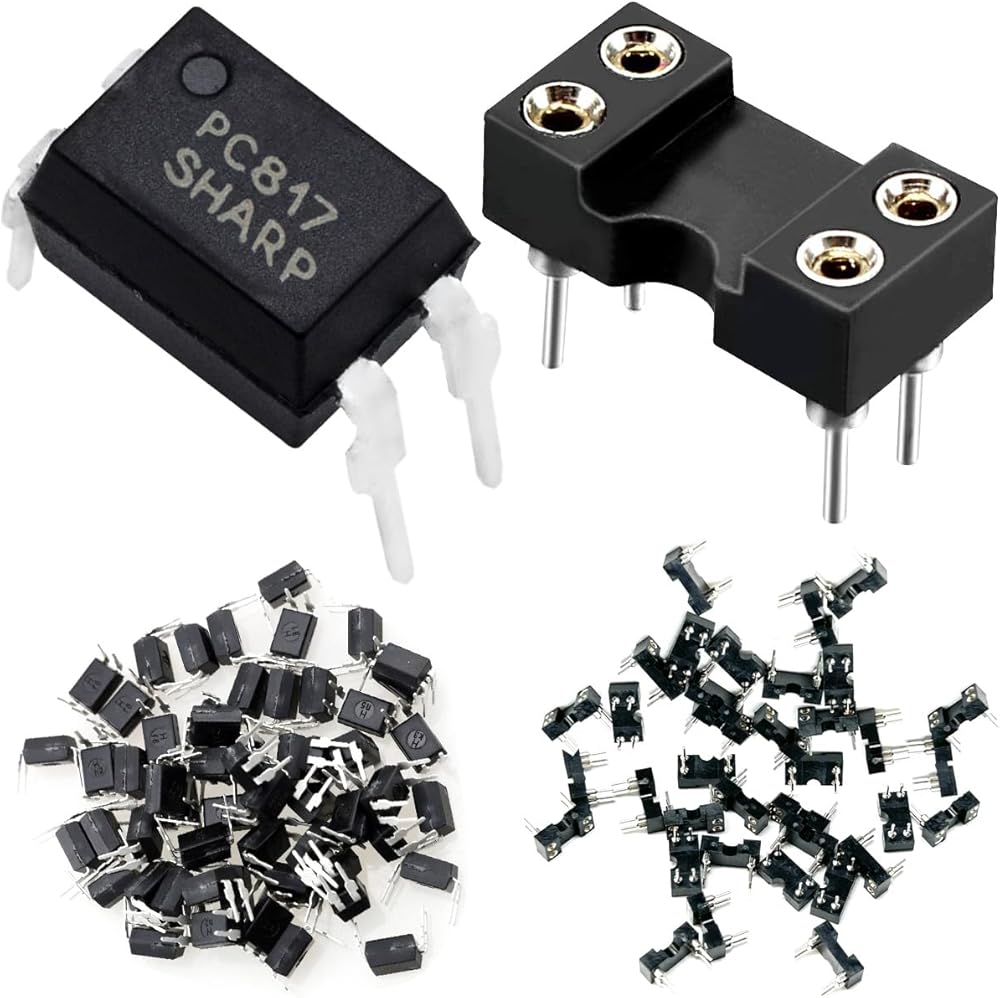

Package Includes: 50 x PC817 Transistor Output Optocoupler;50 x Round DIP-4 IC Socket.

وصف

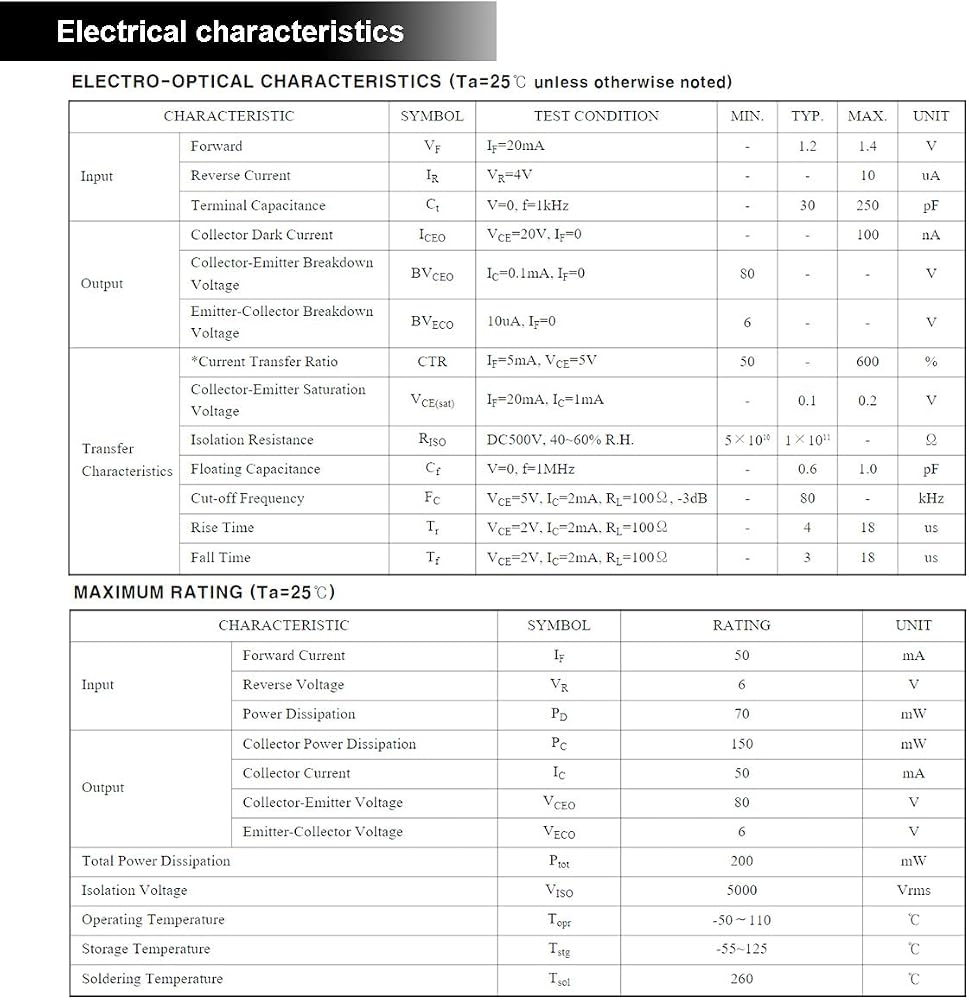

PC817 Specification:
Current transmission rate: (CTR: minimum 50%, IF = 5mA, V CE = 5V)
High isolation voltage between input and output is 5000V effective value.
Forward current (ICEO): 50mA
Forward peak current (ICE max) :1A
Reverse voltage :6V
Power consumption: 70mW
Collector emitter voltage :35V
Emitter collector voltage: 6V
Collector current: 50mA
Collector power consumption: 150mW
Total power consumption: 200mW
Working temperature: -30℃~+100℃
Collector emitter saturation voltage: 0.1V (typical value)

DIP-4 IC Chip Socket Specification:
Material: Plastic, Metal

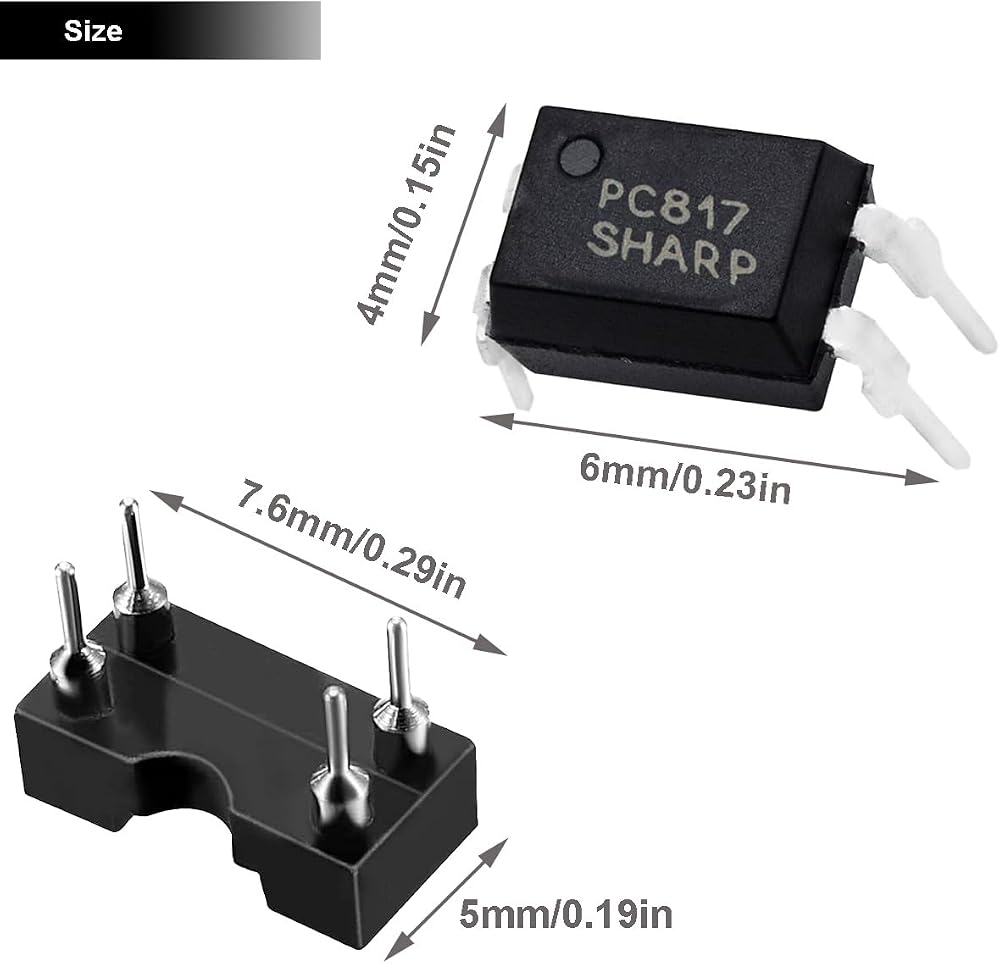

Pitch: 2.54mm/ 0.1 inch
Row to Row Distance(Approx): 7.6mm/ 0.3"
Number of Pins: 4
Size(Approx): 10 x 5 x 7.5mm/ 0.39" x 0.2" x 0.3"(L*W*H)

Package Includes:
50 x PC817 Transistor Output Optocoupler
50 x Round DIP-4 IC Socket
