صمام التحكم الاتجاهي الهيدروليكي 4 بكرة 21 GPM منافذ SAE 3600 PSI للجرارات الصغيرة لوادر الجرارات ومقسمات السجل in Saudi Arabia صمام التحكم الاتجاهي الهيدروليكي 4 بكرة 21 GPM منافذ SAE 3600 PSI للجرارات الصغيرة لوادر الجرارات ومقسمات السجل in Saudi Arabia صمام التحكم الاتجاهي الهيدروليكي 4 بكرة 21 GPM منافذ SAE 3600 PSI للجرارات الصغيرة لوادر الجرارات ومقسمات السجل in Saudi Arabia صمام التحكم الاتجاهي الهيدروليكي 4 بكرة 21 GPM منافذ SAE 3600 PSI للجرارات الصغيرة لوادر الجرارات ومقسمات السجل in Saudi Arabia صمام التحكم الاتجاهي الهيدروليكي 4 بكرة 21 GPM منافذ SAE 3600 PSI للجرارات الصغيرة لوادر الجرارات ومقسمات السجل in Saudi Arabia صمام التحكم الاتجاهي الهيدروليكي 4 بكرة 21 GPM منافذ SAE 3600 PSI للجرارات الصغيرة لوادر الجرارات ومقسمات السجل in Saudi Arabia

صمام التحكم الاتجاهي الهيدروليكي 4 بكرة 21 GPM منافذ SAE 3600 PSI للجرارات الصغيرة لوادر الجرارات ومقسمات السجل

SAR 720
ماركة
waltyotur
وزن
8 kg
– 1 +

مميزات خاصة

  • Hydraulic Spool Valve: Equipped with 4 spools and SAE type ring inlet/outlet port. Maximum pressure of this hydraulic is 3600 PSI, and maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
  • Double Acting Cylinders: All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders. Single float spool will raise & lower your bucket and features a locking detent position.
  • Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
  • Structure: This hydraulic directional control valve comes with 4 spool, with cast iron construction for long-time use, and the solid structure can provide long-term service. The design allows it to install in narrow areas and maximizes its control capabilities.
  • Wide Application: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, construction machines, loaders, and for other applications hydraulically controlled.

وصف

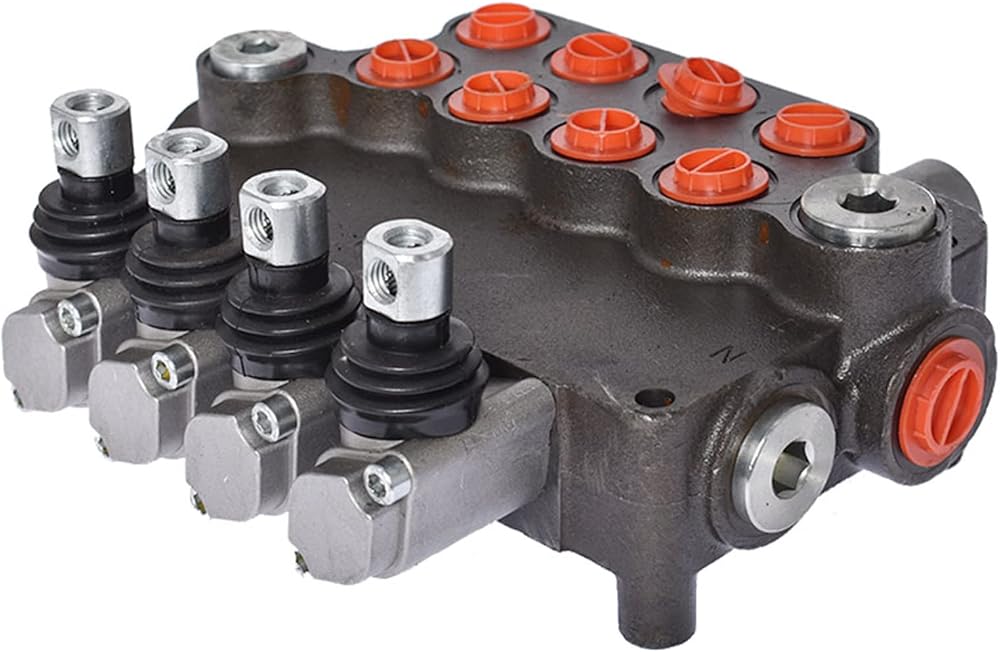

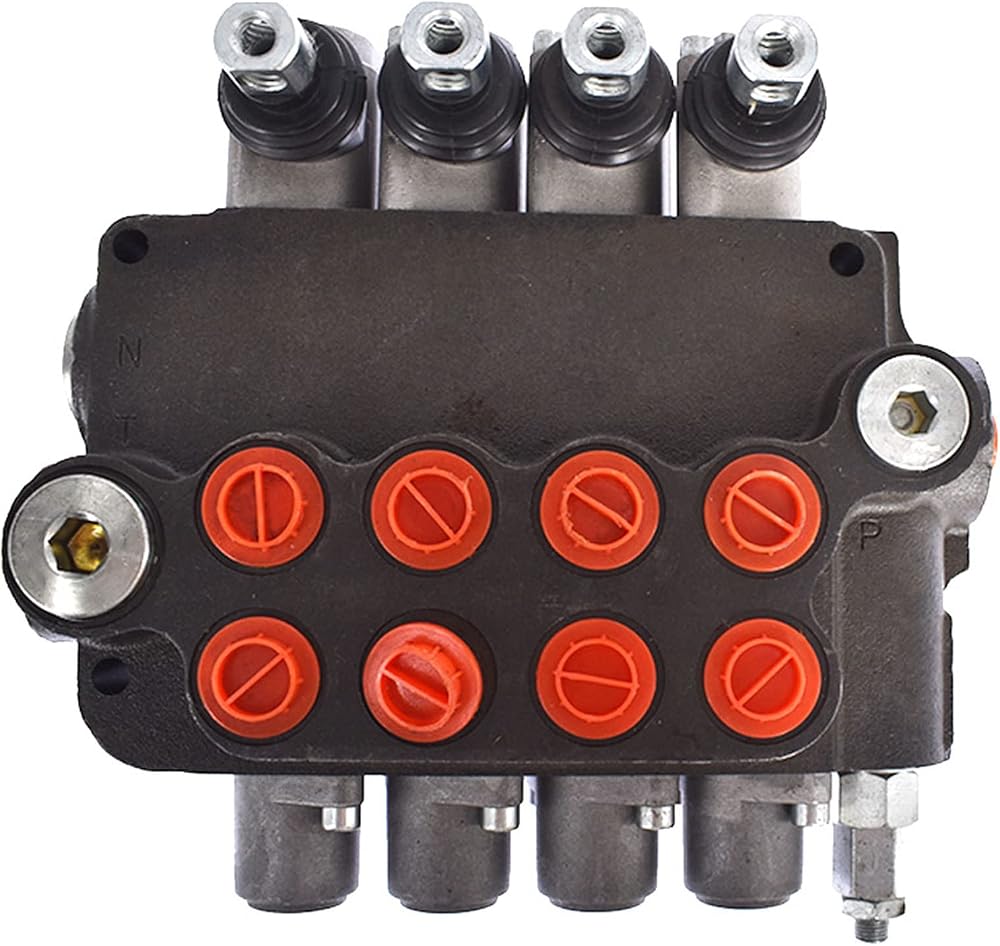

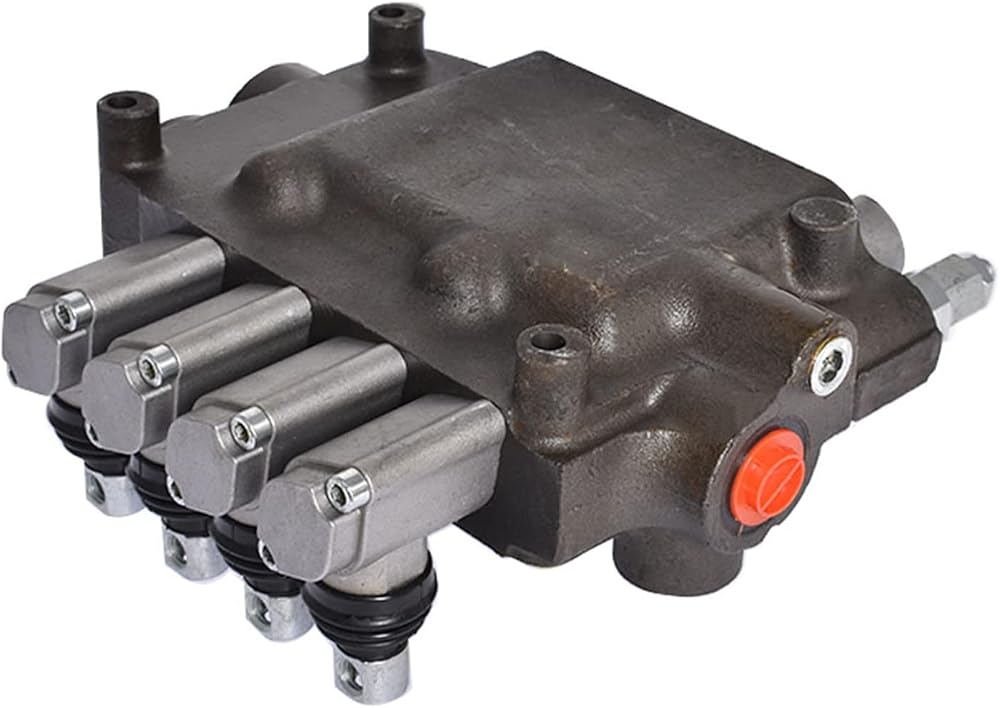

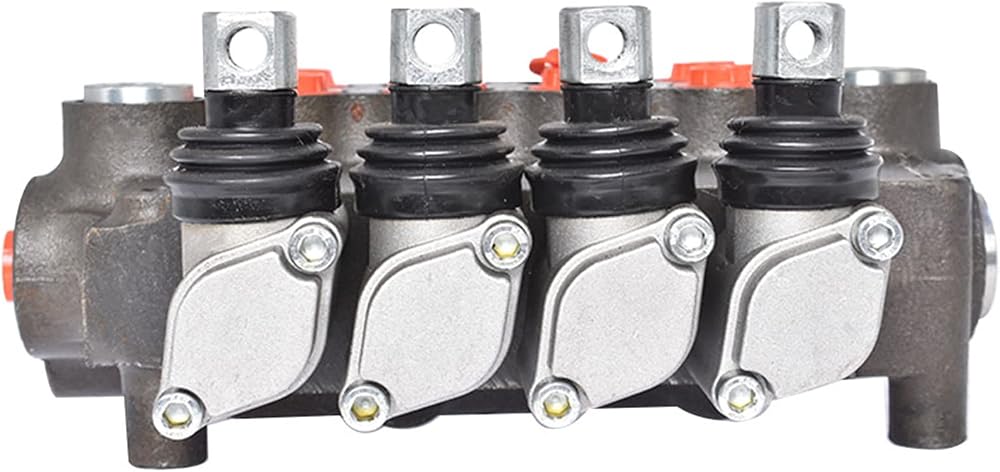

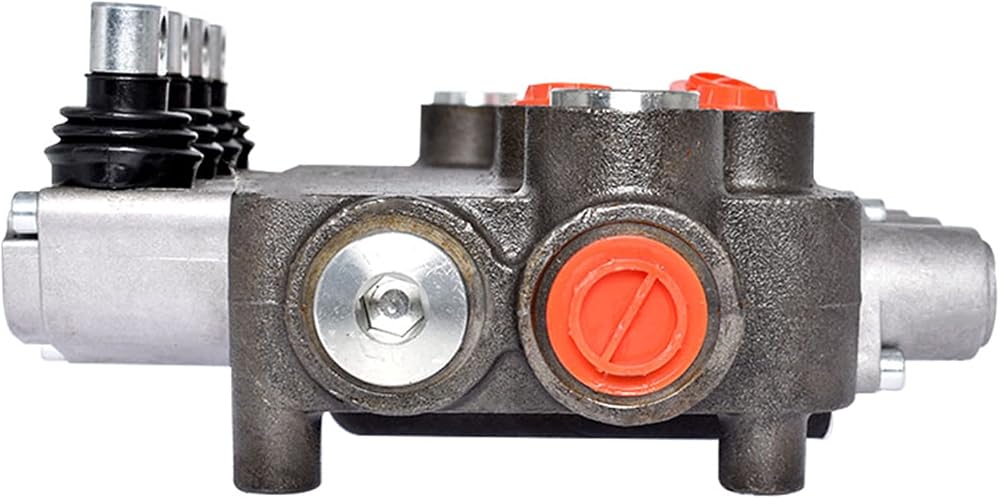

4 Spool 21gpm Hydraulic Directional Control Valve
Specification:
4 Spool monoblock valve
Flow 21 GPM
3600 PSI MAX Pressure
Adjustable release valve
Inlet port SAE 10
Outlet port SAE 12
Working ports SAE 10
4 Way 3 Positions
Fluid temperature from 5 to 176F
Mounting with 3 bolts M8
Handle mounting vertically or horizontally
Features:
-4 Spool valve with design allows for installations in tight areas
-All spools are standard double acting with spring return to neutral position which for double acting cylinders
-Used for open center systems (Pump to Tank Flow) - closed center option available
-Anti-drop load checks on each spool
-Precision ground and hard chrome-plated spools assure a long life
-High-tensile strength cast iron monoblock construction
-SAE O-Ring ports ensure solid seal and prevent blockages
-Capable of Closed Center or Power Beyond (conversion plug required)
-Vertical or horizontal handle mount
Package Included:

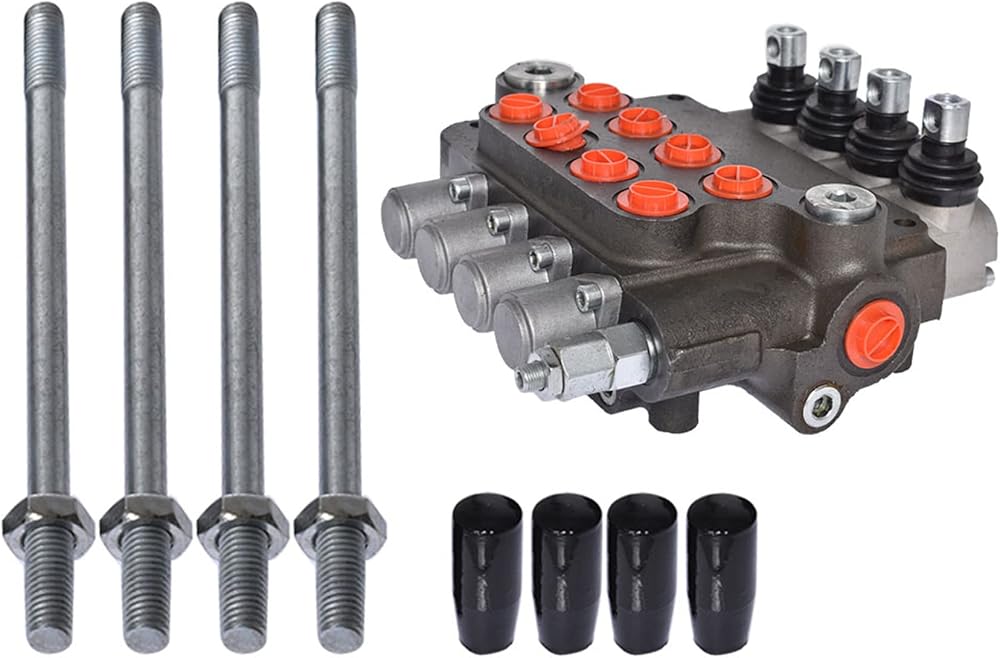

1 x 4 Spool Hydraulic Directional Control Valve
