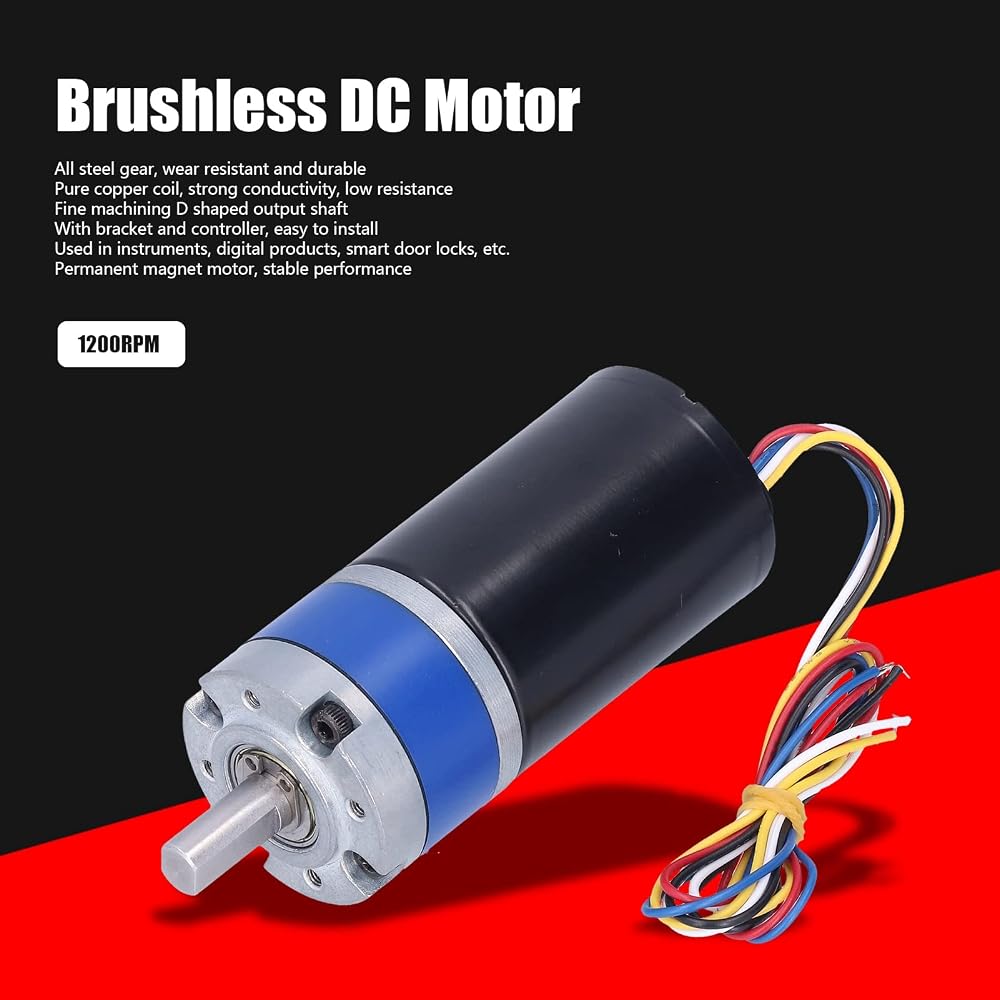

Feature:
1. Pure Copper Coil: The stator and rotor adopt pure copper coils, which have strong conductivity and low resistance.
2. All Steel Gear: The motor adopts all steel gear, which has high torsion, and is wear resistant and durable.

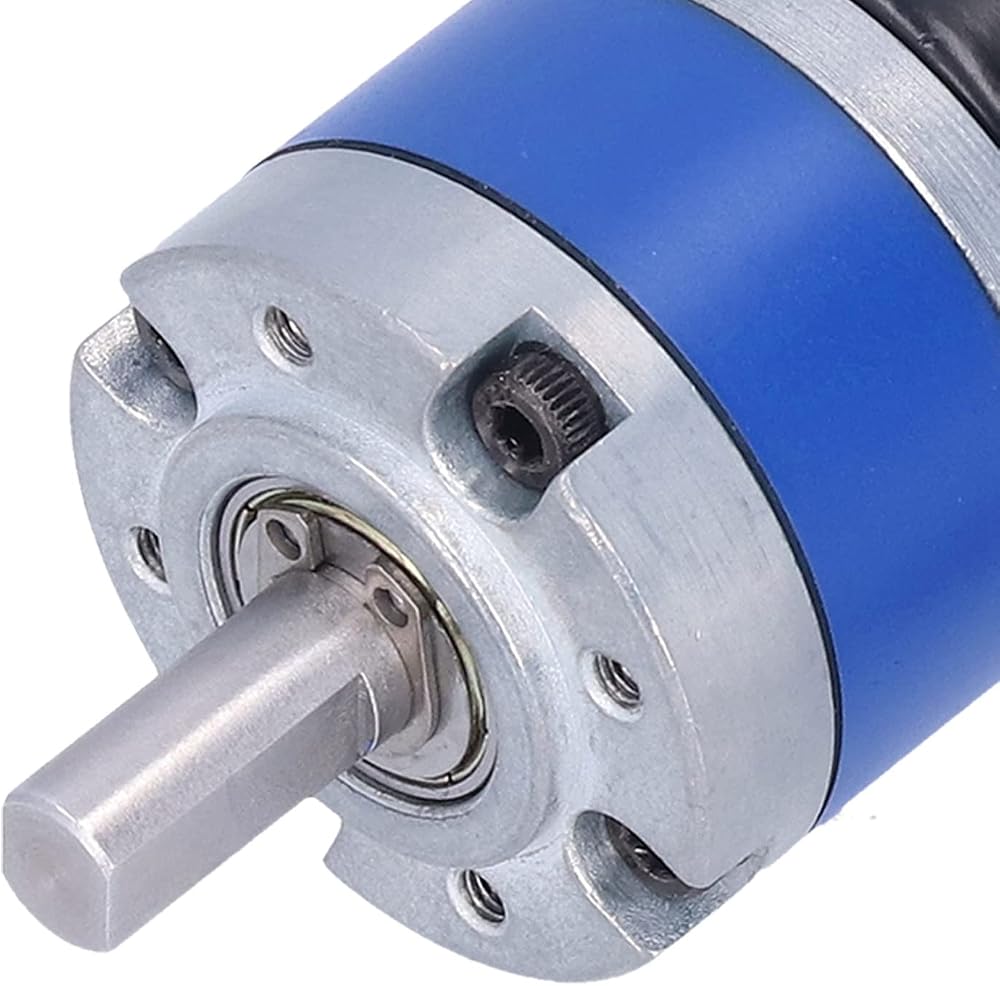

3. With D Output Shaft: The D shaped output shaft has been finely processed to increase the friction of the force and increase the torsion of the motor.

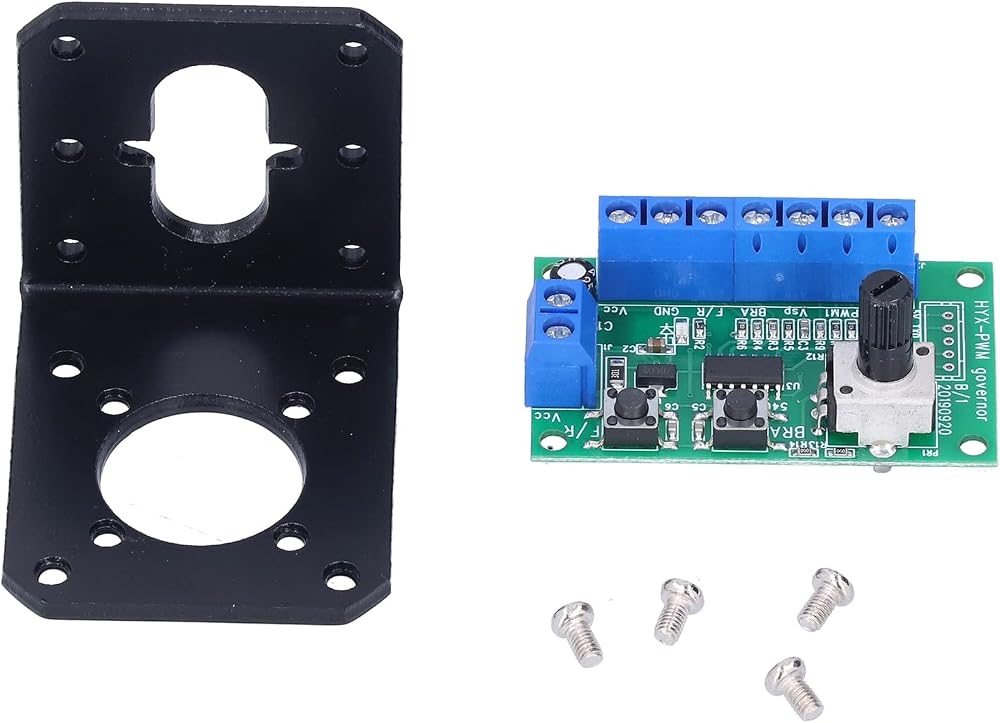

4. Convenient Installation: The DC geared motor is equipped with a bracket and a controller, which is easy to install and use, and the operation is stable
5. Wide Applications: Commonly used in instrumentation, digital products, industrial equipment, security monitoring, smart door locks, ect.

How to Use:

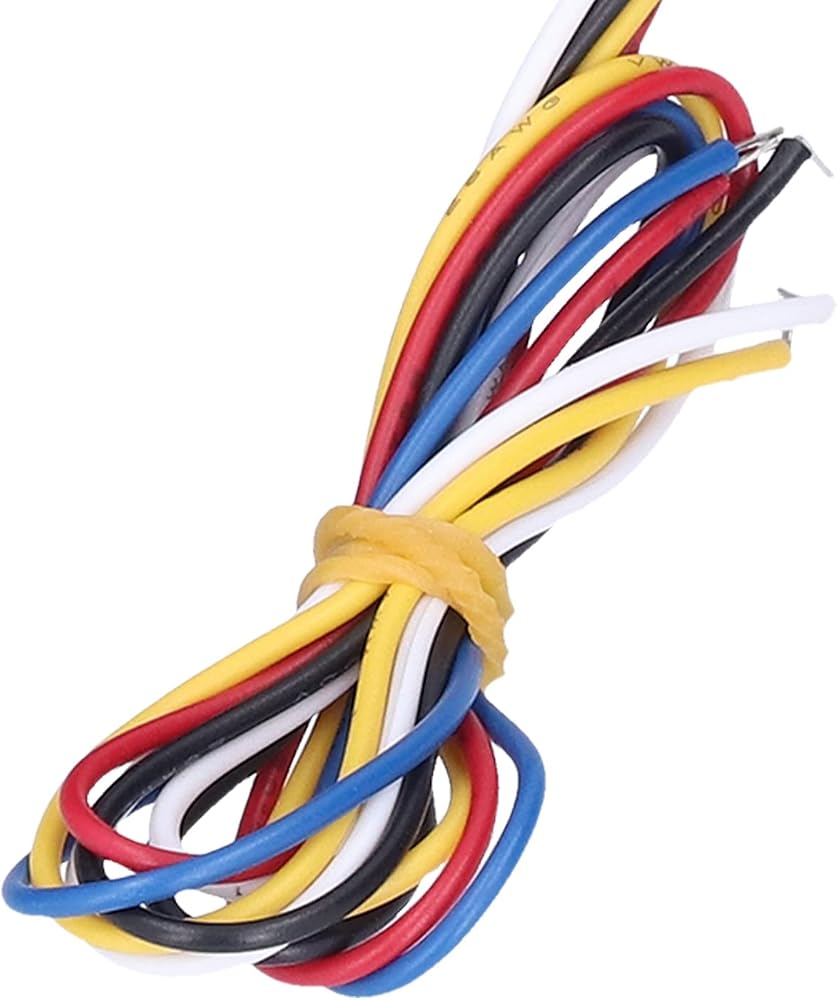

Wiring:
Red Wire: Electrode positive pole 9‑30V
Black Wire: Electrode negative pole
Blue Wire: 0‑5V PWM speed regulation
Yellow Wire: Signal wire motor has 6 pulses per revolution
White Wire: Floating forward, white and black parallel reverse

Specification:

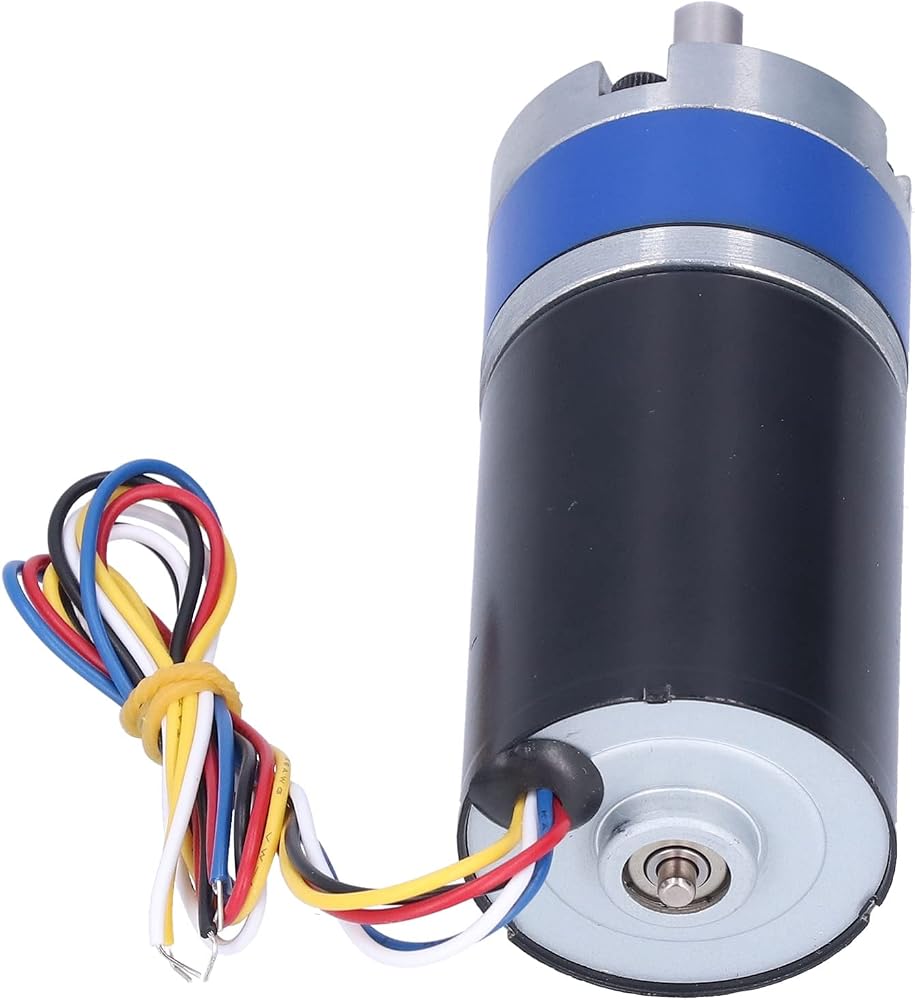

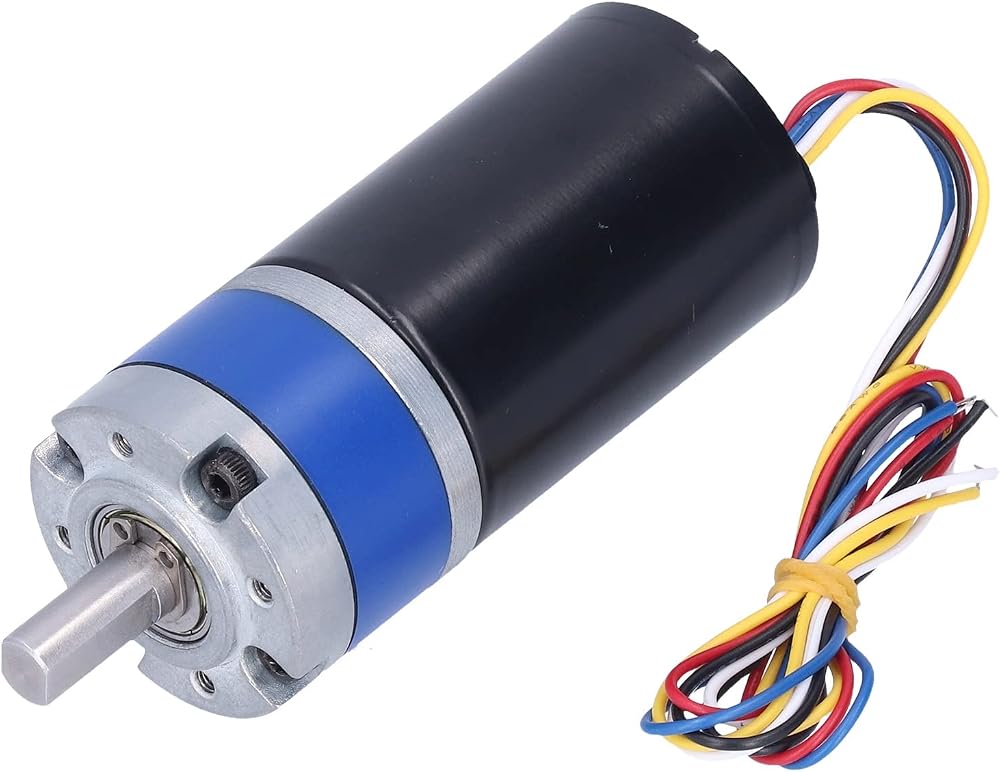

Item Type: Gear Motor
Model: CM36-3650
Material: Copper, steel, magnet, PCB
Uses: Instrumentation, digital products, equipment, security monitoring, smart door locks
Rated Voltage: DC 24V
Locked Rotor Current: 4A

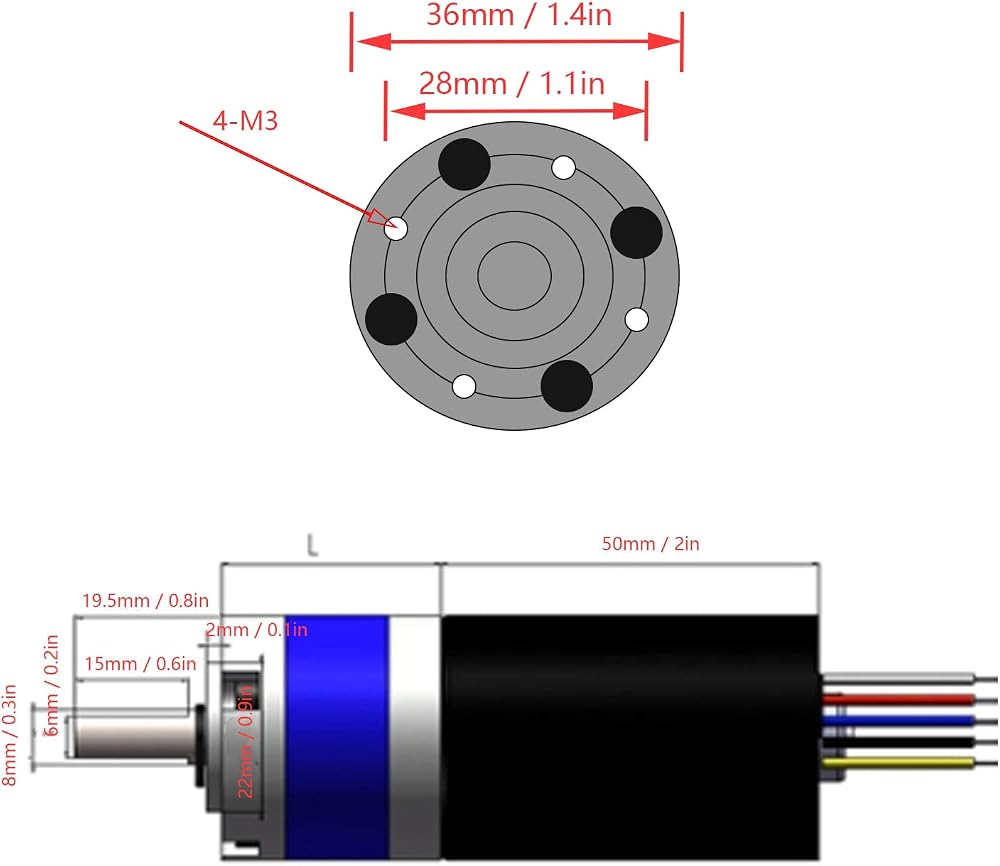

Shaft Diameter: Approx. 8mm / 0.3in
Shaft Length: Approx. 17.5mm / 0.7in

Rated Voltage Reduction Ratio No Load Rated Locked Rotor Gear Box Length Speed Current Rated Load Load Speed Current Locked Rotor Torsion Current V R/MIN MA Kg.cm R/MIN MA Kg.cm A mm 24 3.7 1600 130 0.7 1300 670 5 4 Approx.
26.6mm / 1in
