OE Part#
Engine: Replacement for Weber 32/36 DGV DGEV DGAV
22680033B, 22680.033B
99004.300, 99004300
99005.068, 99005068
99217.332S, 99217332S
Specifications:
primary Venturi: φ26mm
Secondary Venturi;φ10.5mm
Primary Auxiliary Venturi; φ27mm
Secondary Auxiliary Venturi;φ10.5mm
Primary Main Jet;1.4mm
Secondary Main Jet; 1.4mm
Primary Air Corrector Jet;1.7mm
Secondary Air Corrector Jet :1.6mm
Primary Emulsion Tube; F50
Secondary Emulsion Tube; F50
Primary idle Jet;0.6mm
Secondary Idle Jet; 0.5mm
Pump Jet;φ0.5mm
Needle Valve; 2.0mm
Float Measurement :47mm

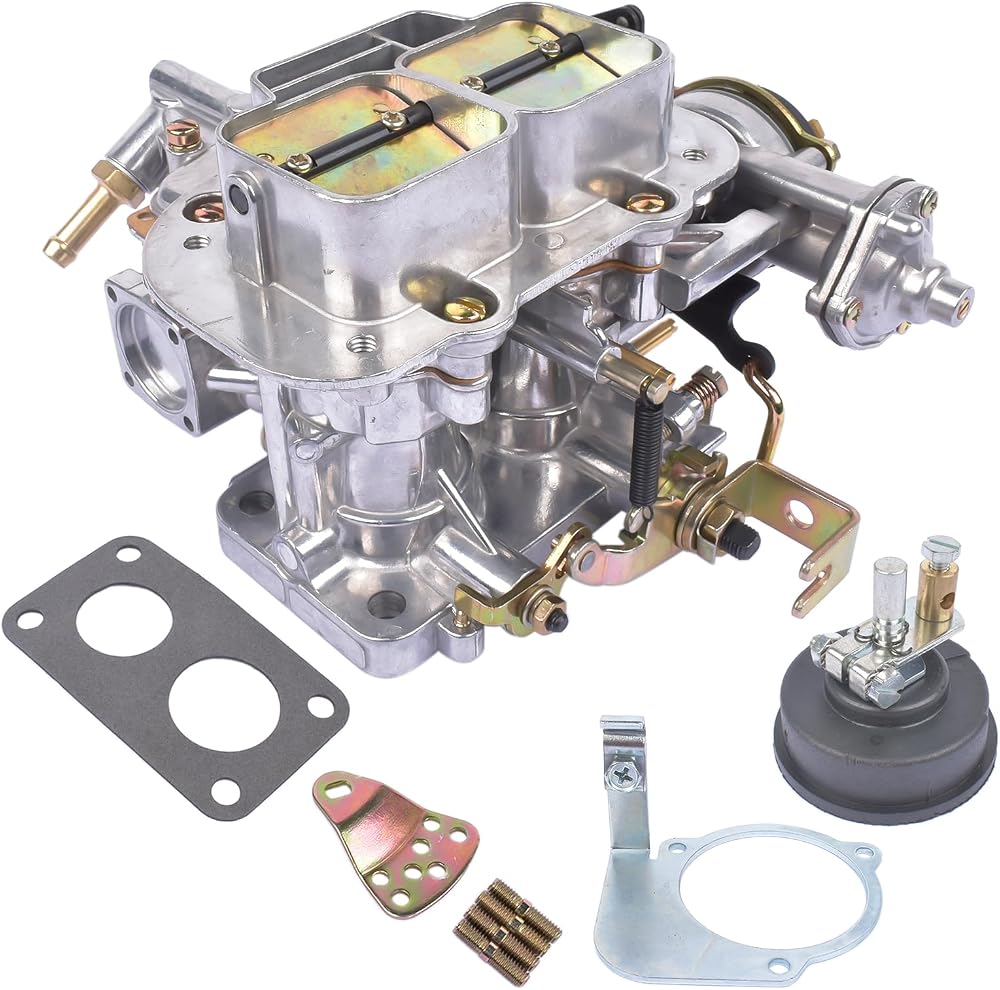

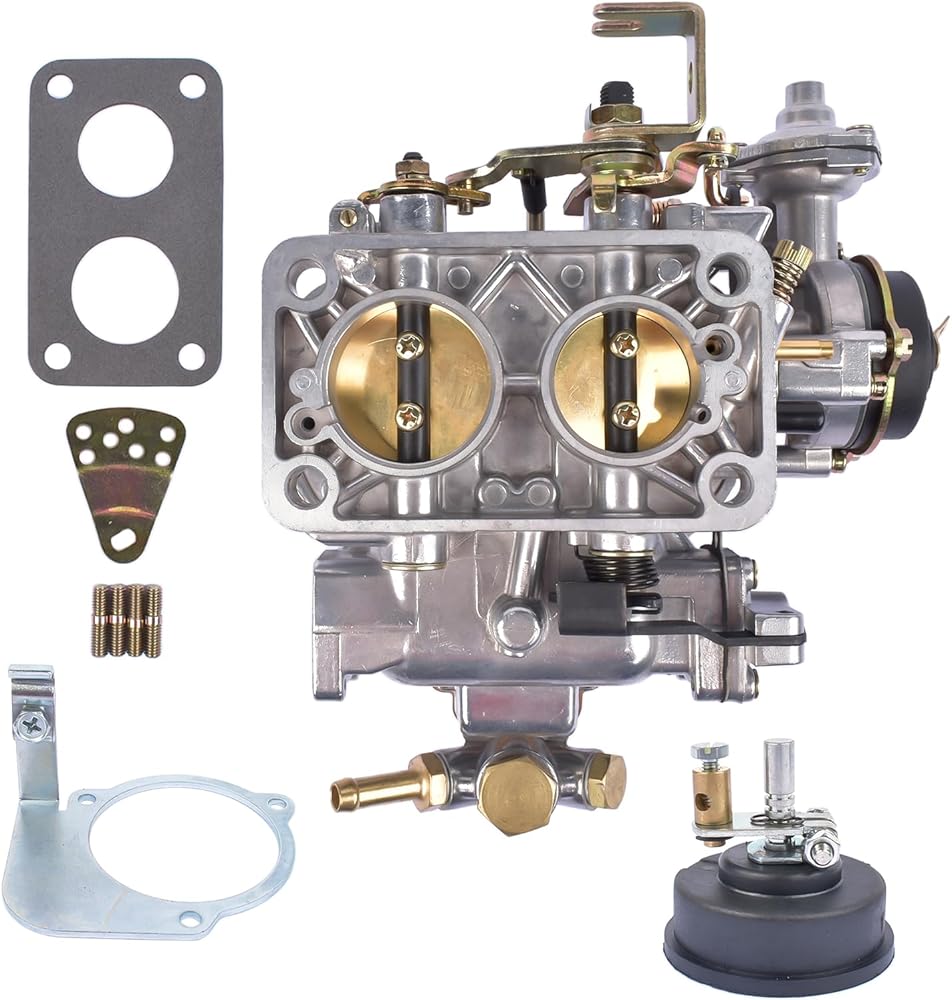

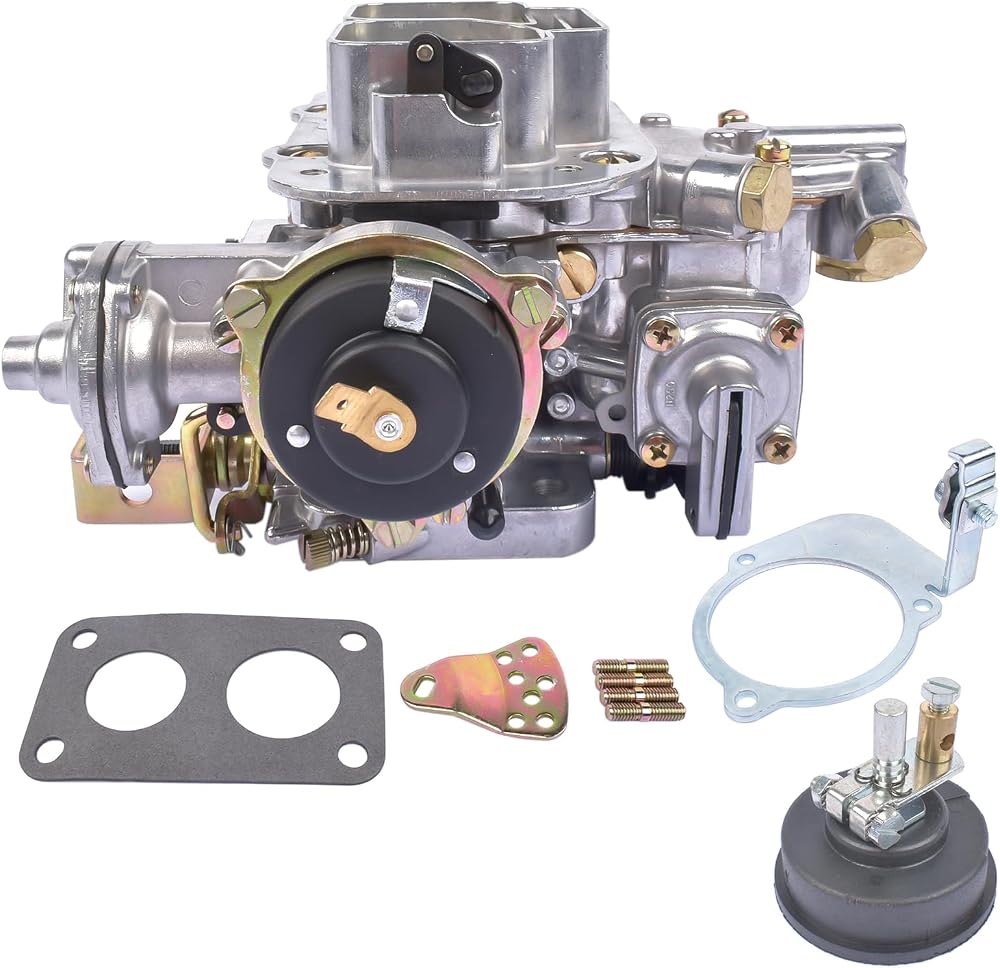

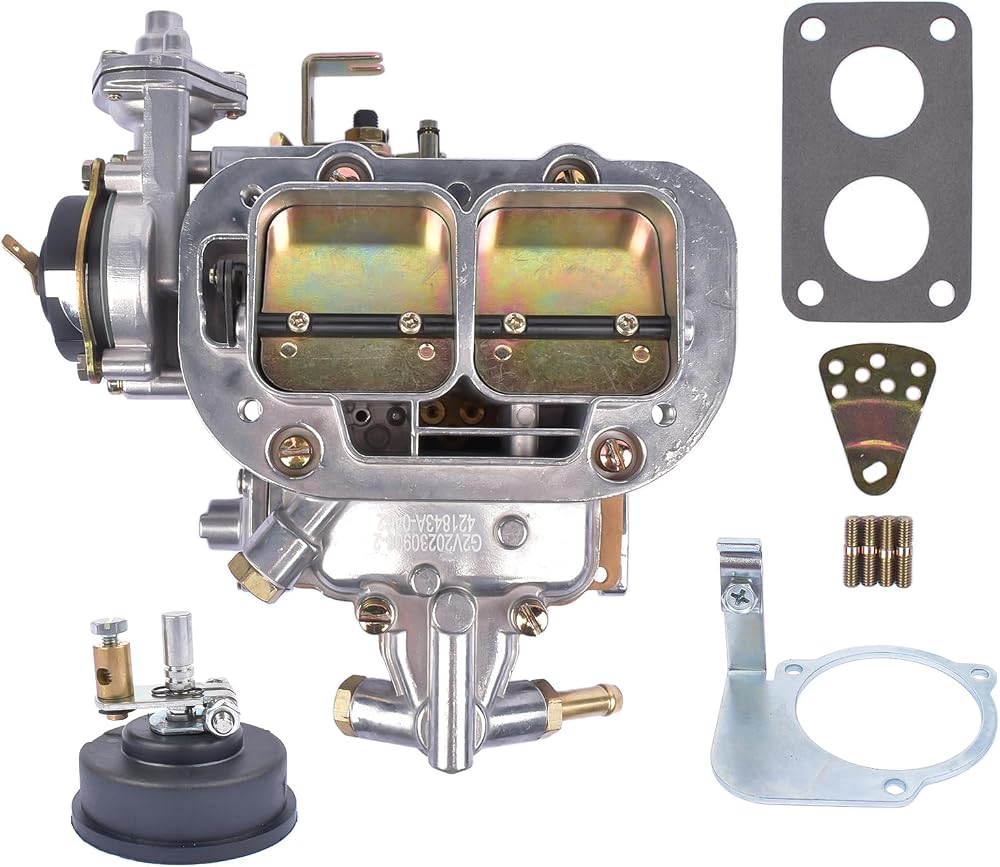

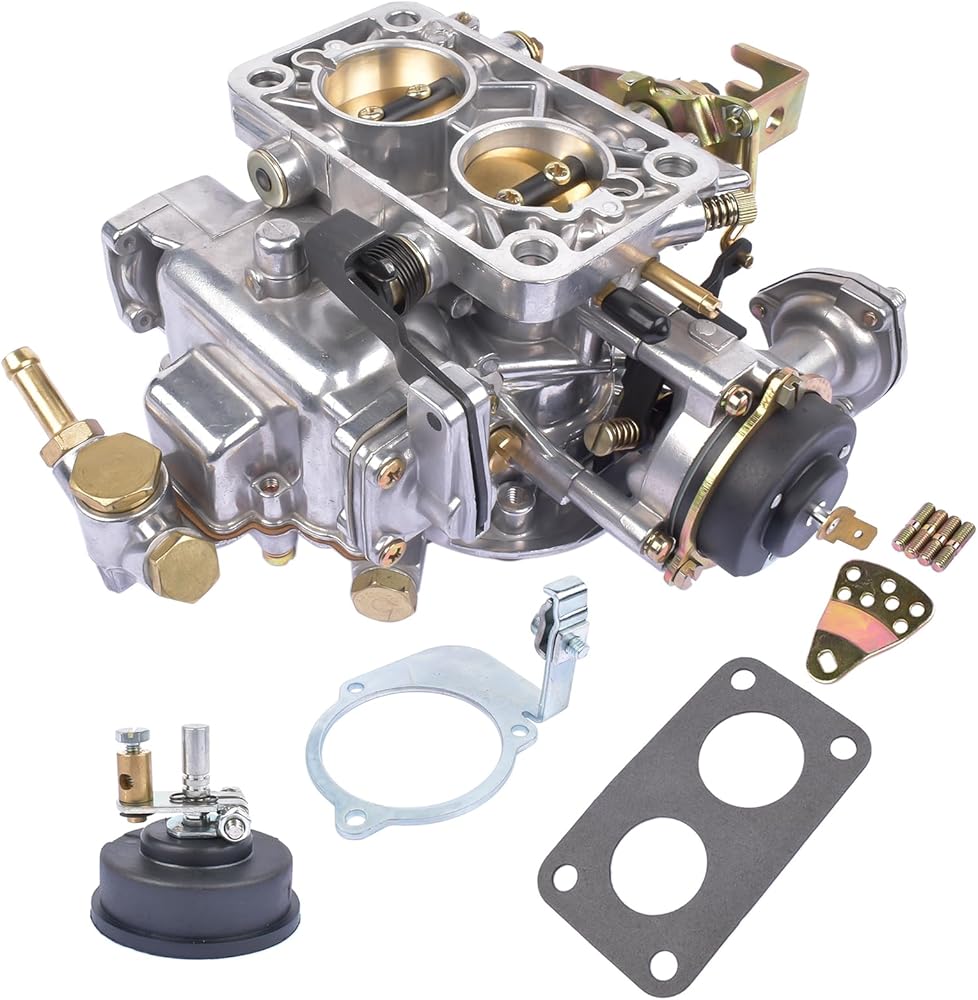

Package Include:
1x Carburetor Electric Choke
1x Manual Choke Conversion Kit
Applicable Vehicles
Replacement for Toyota Pickup Celica Corona 20R and 22R engines
Replacement for Mazda
1986-1987 B2000 2.0L
1987-1993 B2200 2.2L
Replacement for Nissan
1981-1982 Pickup Z20 2000cc PL720
1981-1983 Pickup Z22 2200cc PL720
1980-1981 200SX
1986 Sentra 1.5L 1.6L
1984 720 2.0L 2.2L
1983 Pulsar 1.6L
Replacement for Datsun
1969-1972 Pickup L16 1600cc PL521, Datsun 510
1973-1974 Pickup L18 1800cc PL620, 510, 610, 710
1975-1980 Pickup L20 2000cc PL620, 510, 610, 710
1982- 1978 200SX 2.2L
1972-1990 CJ5, CJ7, CJ8, Wrangler Cherokee with a 258Ci W/ 2BBL Carter BBD Carb
