TCA9548A I2C Multiplexer Breakout Board 8 Channel Expansion Board with pi Header for Arduino in Saudi Arabia TCA9548A I2C Multiplexer Breakout Board 8 Channel Expansion Board with pi Header for Arduino in Saudi Arabia TCA9548A I2C Multiplexer Breakout Board 8 Channel Expansion Board with pi Header for Arduino in Saudi Arabia TCA9548A I2C Multiplexer Breakout Board 8 Channel Expansion Board with pi Header for Arduino in Saudi Arabia

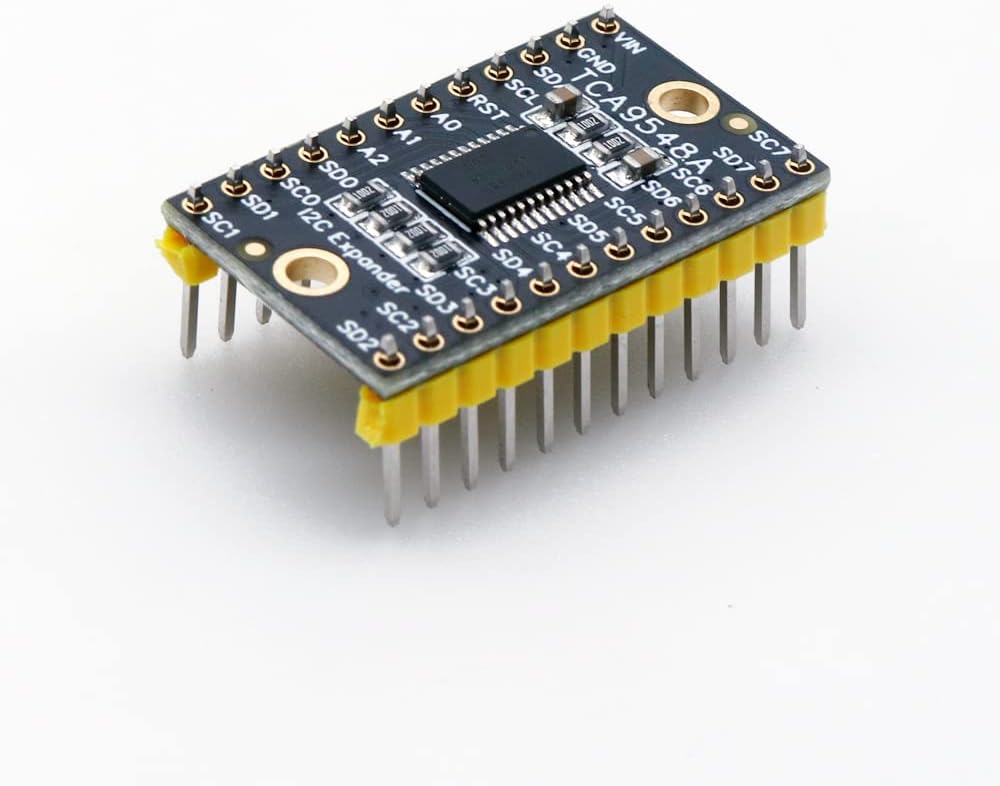

TCA9548A I2C Multiplexer Breakout Board 8 Channel Expansion Board with pi Header for Arduino

SAR 53
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • The TCA9548A Breakout board supports communicating with multiple I2C devices with the same address, making it easy to interface with them.
  • TCA9548A multiplexer features: bidirectional eight-channel I2C multiplexer, active low reset input

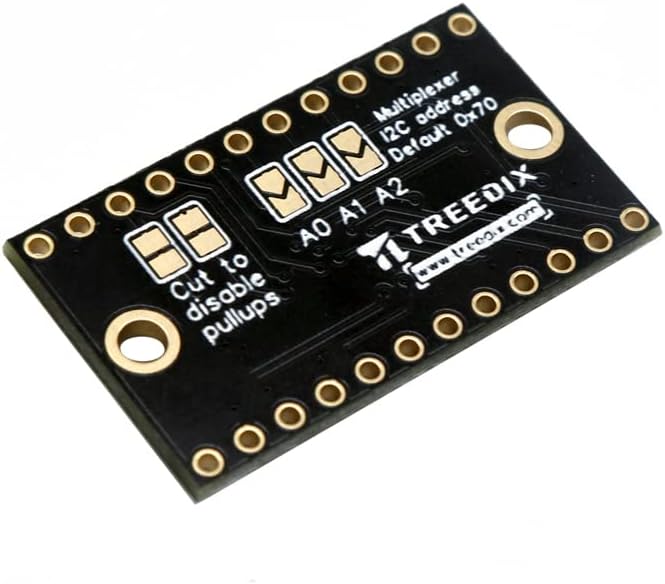

  • The default address of this expander is 0x70, the address can be changed, and can be set within 0x70~0x77.
  • In the address of 0x70~0x77, 8 expanders can be cascaded, and each expander can be connected to 8 devices with the same address, so that the same I2C port can be connected to 64 devices with the same address and can be used normally.
  • The chip is compatible with 3V and 5V and can be used with any logic level

Description

Specification:

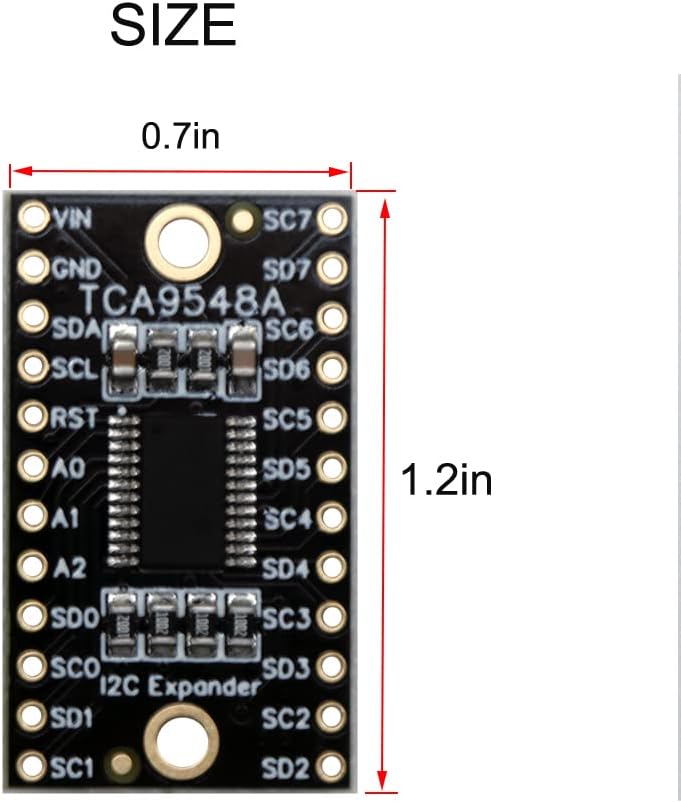

Size: 3.04*1.77cm (1.2*0.7in)
Interface: I2C
Chip: TCA9548A
Optional I2C address: 0x70-0x77
Working voltage: 1.65V-5.5V
Maximum clock frequency: 400KHz

Features:
This multiplexer is necessary when connecting multiple sensors with the same I2C address to the same MCU (such as multiple OLED screens or MPU sensors).
Package includes:

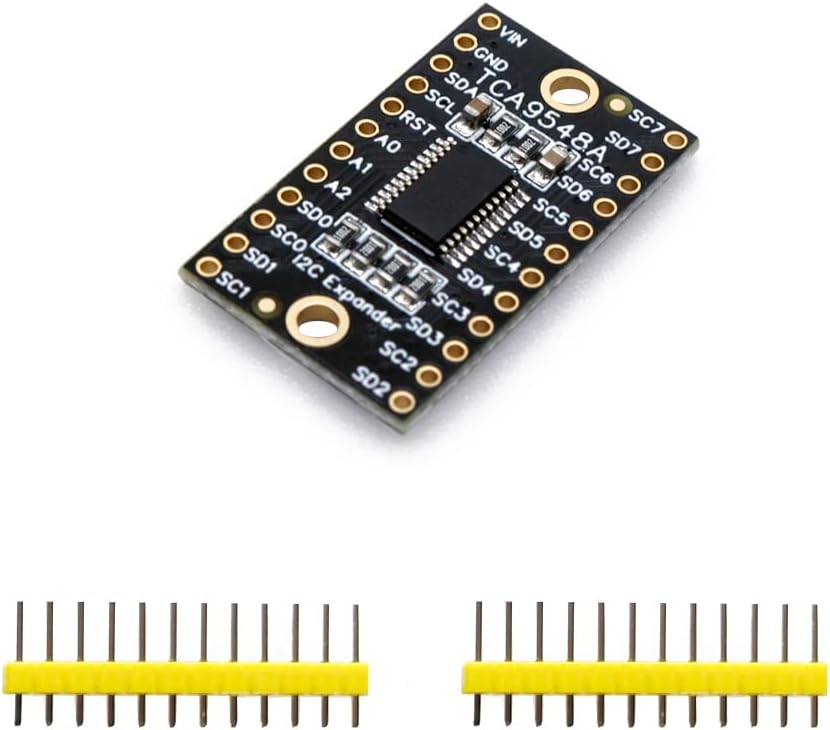

1x Muti-Channel Expansion Development Board
2* pin header
